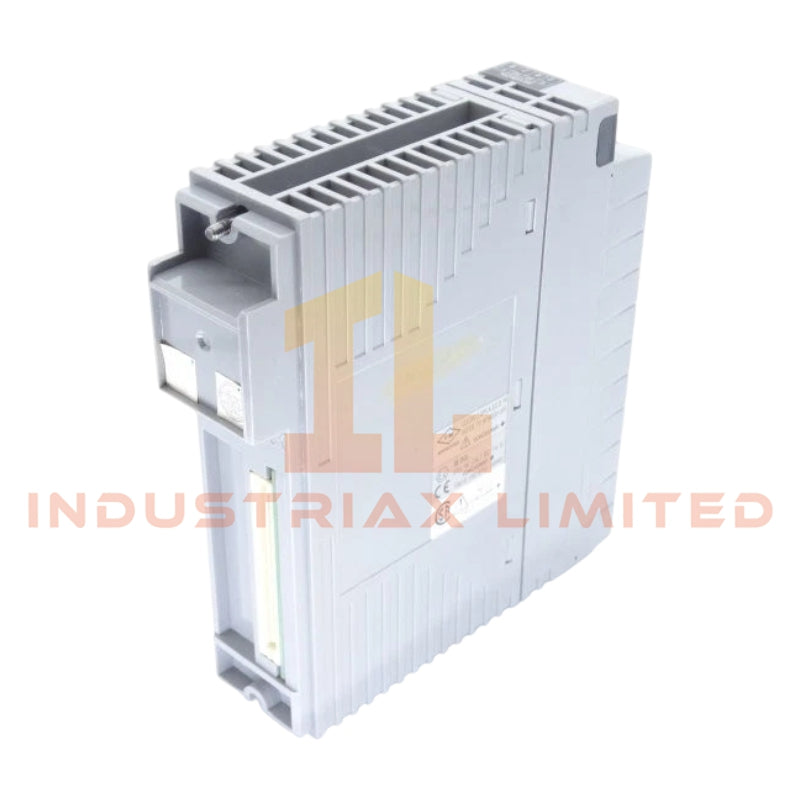

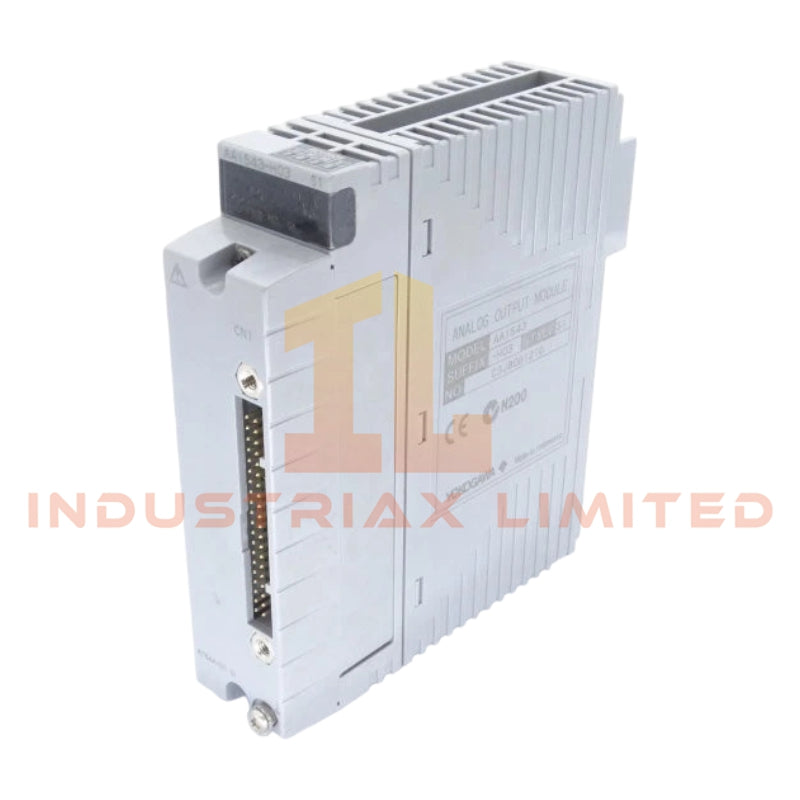

The AAI543-H03 (K4A00) from Yokogawa is a 16-channel analog output module designed for high-precision signal control in process automation systems. Each channel provides isolated 4 to 20 mA output with standard switch-over response for redundant configurations. This model includes HART communication and temperature rating from -20 to 70 degrees Celsius, ensuring reliable operation in varied industrial environments. Note that this unit has been discontinued and replaced by AAI543-H53 (K4A00) for new installations.
Technical Specifications
-
Model: AAI543-H03
-
Order Number: K4A00
-
Module Type: Analog Output Module
-
Output Channels: 16, fully isolated
-
Output Signal Range: 4 to 20 mA
-
Redundancy: Standard switch-over response
-
Withstanding Voltage: 1500 V AC between output and system for 1 minute
-
Allowable Load Resistance: 0 to 750 Ohms
-
Circuit-Open Detection: Less than 0.65 mA
-
Accuracy: ±48 microamps
-
Data Update Period: 10 milliseconds
-
Temperature Drift: ±16 microamps per 10 degrees Celsius
-
Maximum Current Consumption: 230 mA at 5 V DC, 540 mA at 24 V DC
-
Communication: HART protocol, supports pressure clamp terminal, MIL connector cable, and dedicated KS1 cable
-
Terminal Adapter: KS Cable Interface Adapter for AEA4D terminal board (Model ATK4A-00)
-
Operating Temperature: -20 to 70 degrees Celsius
-
Weight: 0.4 Kg
Applications
-
High-precision analog signal output for distributed control systems
-
Integration with Yokogawa DCS and PLC platforms
-
Redundant system configurations for critical process control
-
Industrial environments requiring HART communication support
FAQ
Q: Is the AAI543-H03 compatible with existing AEA4D terminal boards?
A: Yes, it requires the KS Cable Interface Adapter (Model ATK4A-00) for proper connection.
Q: What is the replacement for this discontinued model?
A: The AAI543-H53 (K4A00) is the recommended replacement with enhanced reliability and updated specifications.
Similar Models Comparison
-
AAI543-H53: Replacement model with similar 16-channel analog output, enhanced temperature tolerance, and updated communication options.
-
AAI543-H01: 8-channel version with reduced output capacity and lower channel redundancy features.
