Overview

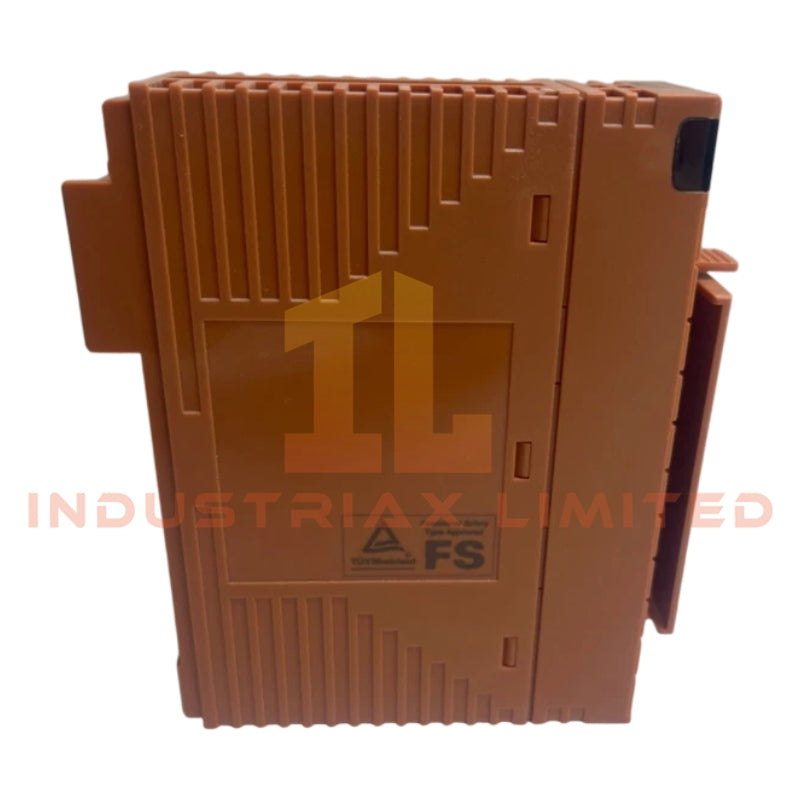

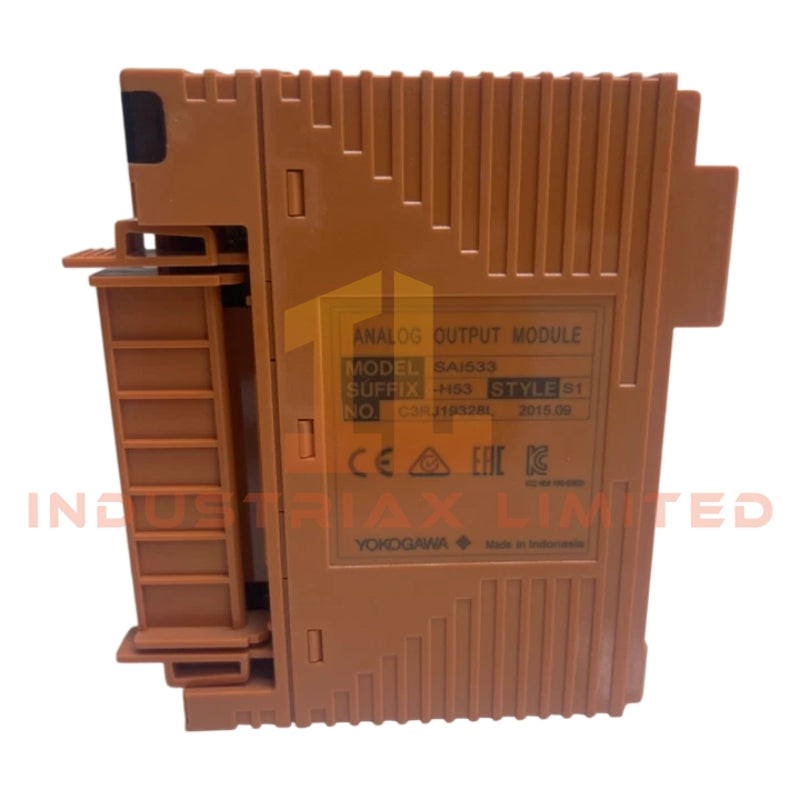

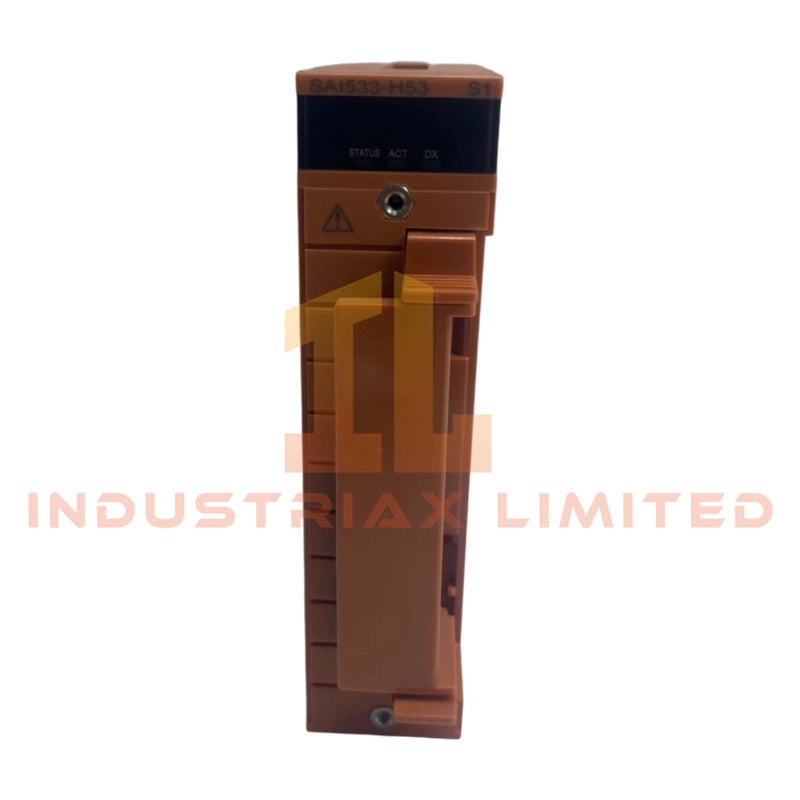

The SAI533-H53/A4D00 from Yokogawa is an 8-channel analog output module designed for reliable 4 to 20 mA current signal generation. With full channel isolation and HART communication support, this module provides precise control and monitoring for industrial process applications. It is engineered for operation in standard industrial temperature ranges and adheres to ISA G3 standards.
Technical Specifications
-
Model: SAI533-H53/A4D00
-
Module Type: Analog Output Module (Current Output)
-
Output Channels: 8 isolated analog output channels
-
Output Signal: 4 to 20 mA current
-
Communication: HART compatible
-
Terminal Interface: Pressure clamp or MIL cable connection
-
Standards: ISA G3 compliance
-
Operating Temperature: -20 to 70 degrees Celsius
-
Channel Isolation: Fully isolated for stable operation
-
Mounting: DIN rail compatible
-
Material: Industrial-grade enclosure
Suffix Code Explanation
-
H: HART communication interface
-
5: Designed for pressure clamp terminal block or MIL cable; no explosion protection
-
3: Conforms to ISA G3 standards and -20 to 70 degrees Celsius operating range
Key Features
-
High-precision 4 to 20 mA output for control loops
-
Fully isolated channels for signal integrity
-
Supports HART communication for diagnostics and configuration
-
Robust design suitable for standard industrial temperature ranges
-
Easy installation with pressure clamp or MIL cable terminals
Applications
-
Distributed Control Systems (DCS)
-
Process automation and monitoring
-
Actuator and valve control
-
Remote signal transmission
FAQ
Q: Can the module operate outside the -20 to 70 degree Celsius range?
A: Standard operation is guaranteed within -20 to 70 degrees Celsius. Extended temperature ranges may require protective enclosures.
Q: Is HART configuration required for normal operation?
A: HART is optional. The module functions with standard 4 to 20 mA current output without HART, but HART enables advanced diagnostics and configuration.
Similar Models Comparison
-
SAI533-H52: 4-channel analog output module with HART support
-
SAI533-H54: 8-channel module with extended EMI protection
-
SAI534-H53: Analog output module with high-speed response
