Description

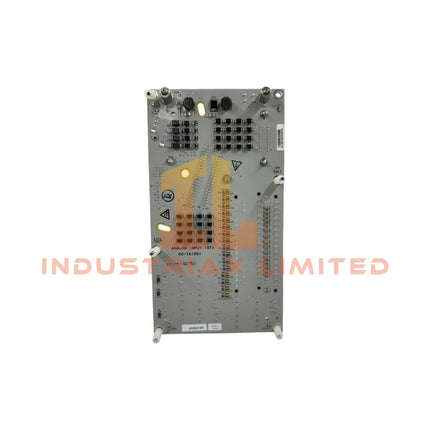

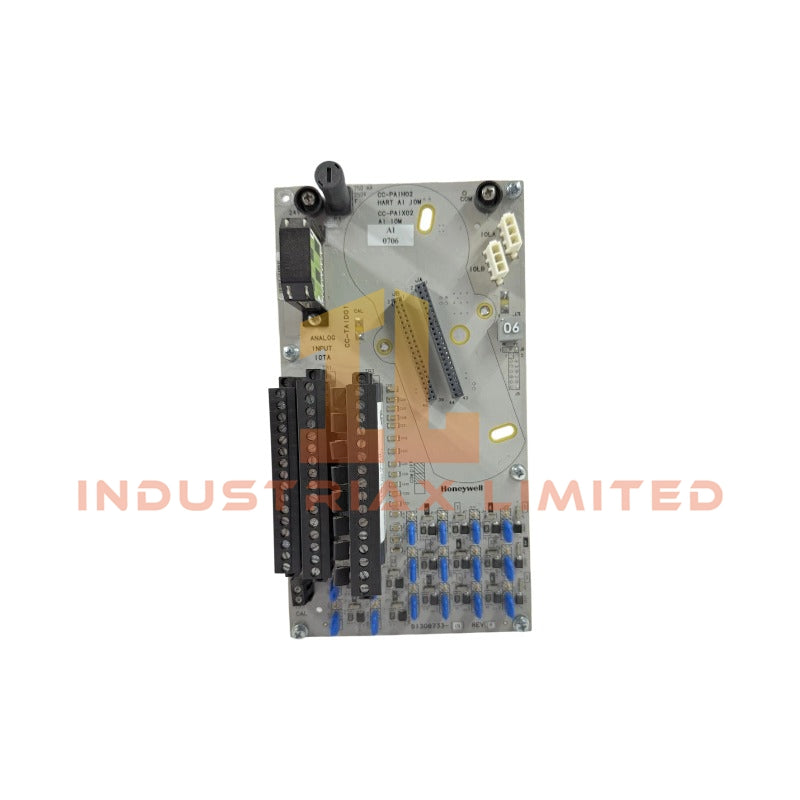

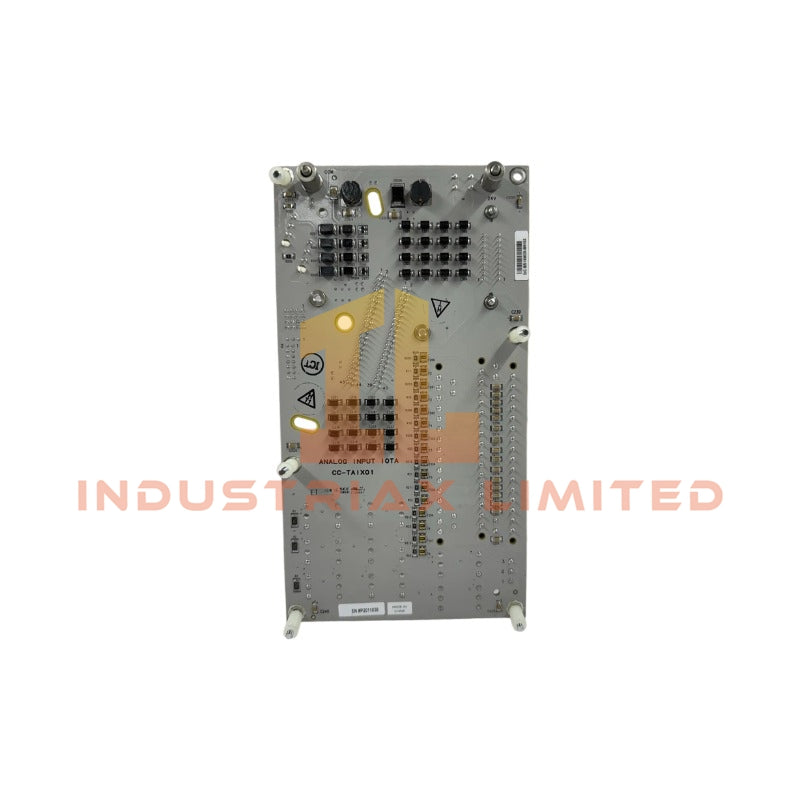

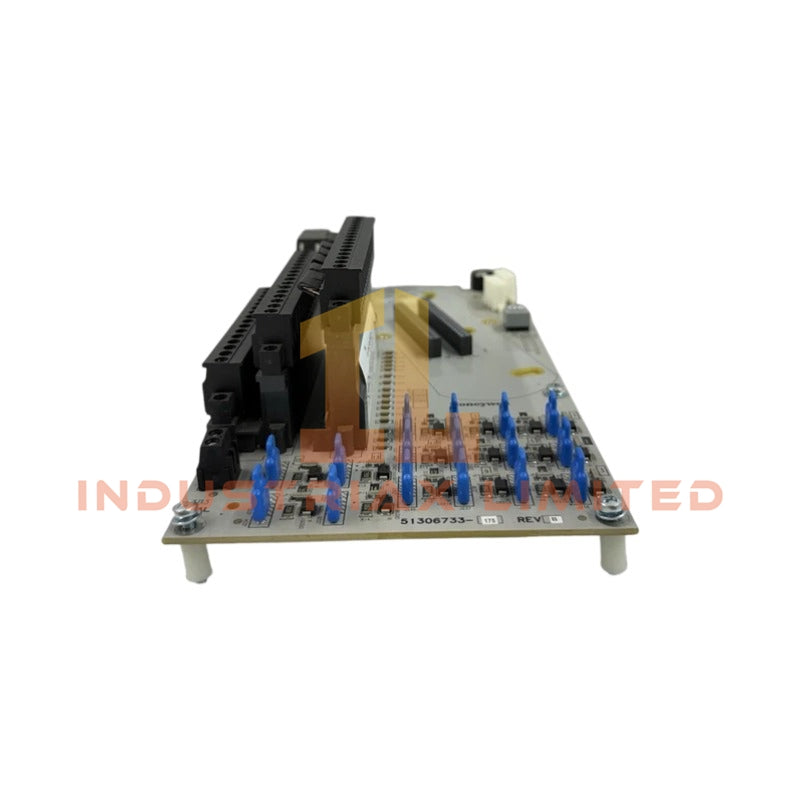

Honeywell CC-TAID01 Analog Input Module
The Honeywell CC-TAID01 51306733-175, also cataloged as the 51306733-175 Analog Input Module, operates as a dedicated hardware component for acquisition of process field analog signals within Honeywell distributed control system I/O architectures.
The module performs multi-channel analog signal conditioning and A/D conversion, supporting 2-wire and self-powered transmitter interfaces. It converts field inputs into digital values via a 16-bit resolution conversion stage, with configurable voltage and current input ranges including 4-20 mA (via 250 Ω termination), 0-5 V, 1-5 V, and 0.4-2 V. Channel sampling is executed through a 50 ms scan cycle with onboard filtering implemented using a single-pole RC network (-3 dB at 6.5 Hz).
Hardware Specifications
Parameter
Specification
Model
CC-TAID01 51306733-175
Brand
Honeywell
Origin
USA
Weight
0.34 kg
Dimensions
22.1 x 12.1 x 8 cm
Operating Temp
Not specified
Power Consumption
Not specified
Input Channels
16 channels
Input Type
2-wire or self-powered transmitters
Input Range
0-5 V, 1-5 V, 0.4-2 V, 4-20 mA (250 Ω)
A/D Resolution
16 bits
Scan Rate
50 ms
Normal Mode Filter
Single-pole RC, -3 dB @ 6.5 Hz
Common Mode Voltage
-6 to +5 V peak
Honeywell Process I/O Signal Conditioning Architecture
The CC-TAID01 integrates channel-level analog conditioning aligned with distributed control system acquisition requirements. Input circuits support 4-20 mA current loop measurement using external or internal loop excitation depending on system configuration. Channel-to-channel electrical separation is implemented to reduce cross-channel interference during mixed-signal acquisition.
In 4-20 mA HART loop environments, the module supports baseband current measurement while preserving compatibility with superimposed digital communication signals. Signal conversion is performed prior to backplane transfer, enabling deterministic data representation for downstream controller execution logic.
Extensive self-diagnostic routines monitor open-wire conditions, field power integrity, and bad process variable detection states. Fault states are mapped to system-level diagnostics for redundancy-capable control architectures.
Frequently Asked Questions (FAQ)
Q: Does the CC-TAID01 support hot-swap insertion in a live backplane? A: Hot-swap capability is dependent on the host chassis design. The module itself performs initialization diagnostics after backplane power stabilization and does not independently manage insertion sequencing.
Q: What is the behavior under open-wire detection conditions? A: Open-wire detection triggers a diagnostic fault state per channel and forces the process variable into a bad PV condition flag for downstream control logic interpretation.
Q: How is 4-20 mA loop measurement implemented internally? A: The input stage converts loop current into voltage across a precision 250 Ω resistor before digitization by the 16-bit A/D converter.
Field Installation Guidelines
Shielded twisted pair cabling is required for all analog input channels. Cable shields should be grounded at a single point within the control cabinet to avoid ground loop formation. Field wiring for 4-20 mA loops should maintain correct polarity across transmitter and module terminals.
Module insertion must be performed with chassis power isolated unless the system backplane explicitly supports live insertion. Terminal tightening should follow manufacturer torque specifications for spring-clamp or screw-terminal variants used in the installation frame.
Separation between analog input wiring and high-voltage switching conductors should be maintained to reduce induced noise coupling into low-level signal circuits.
