Description
Description

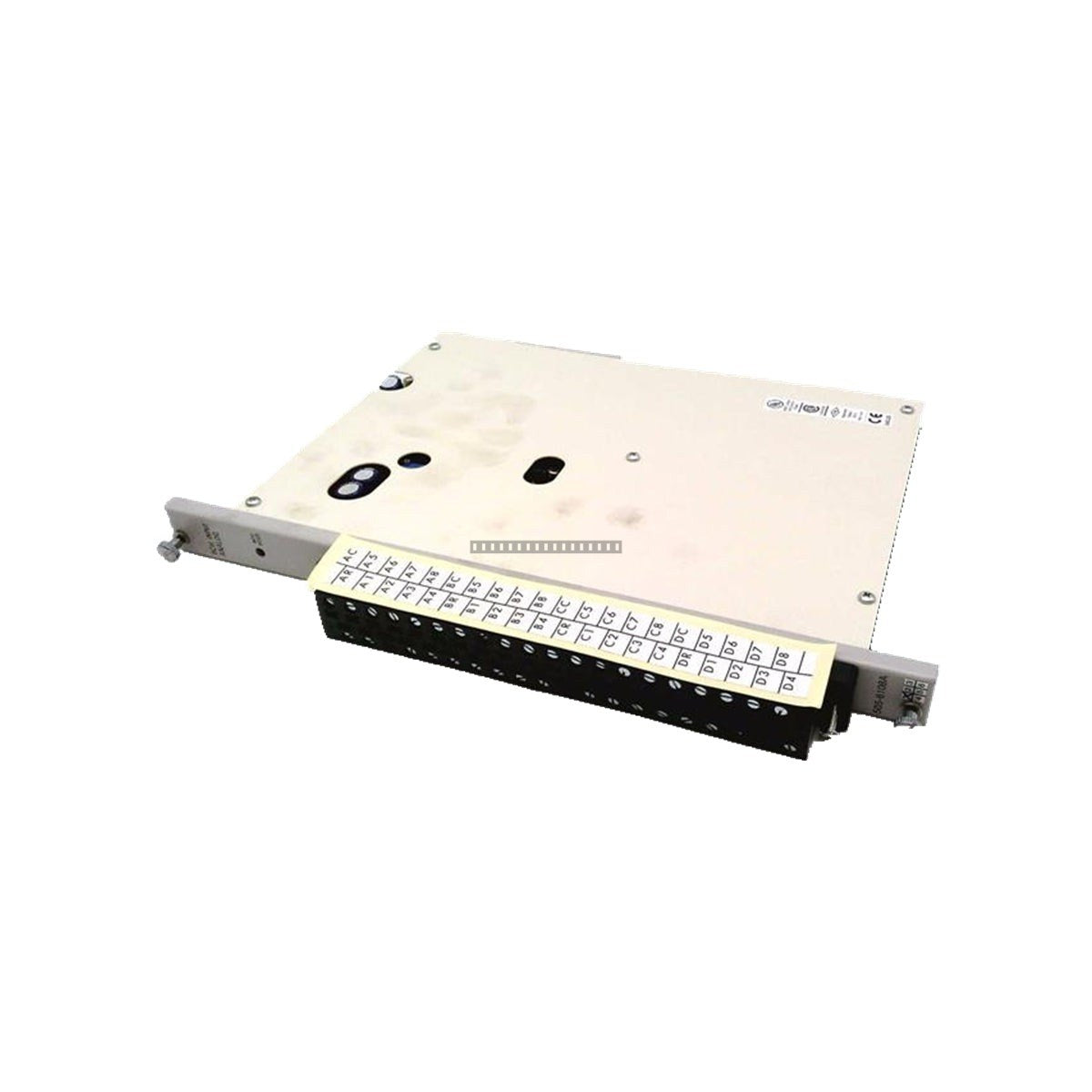

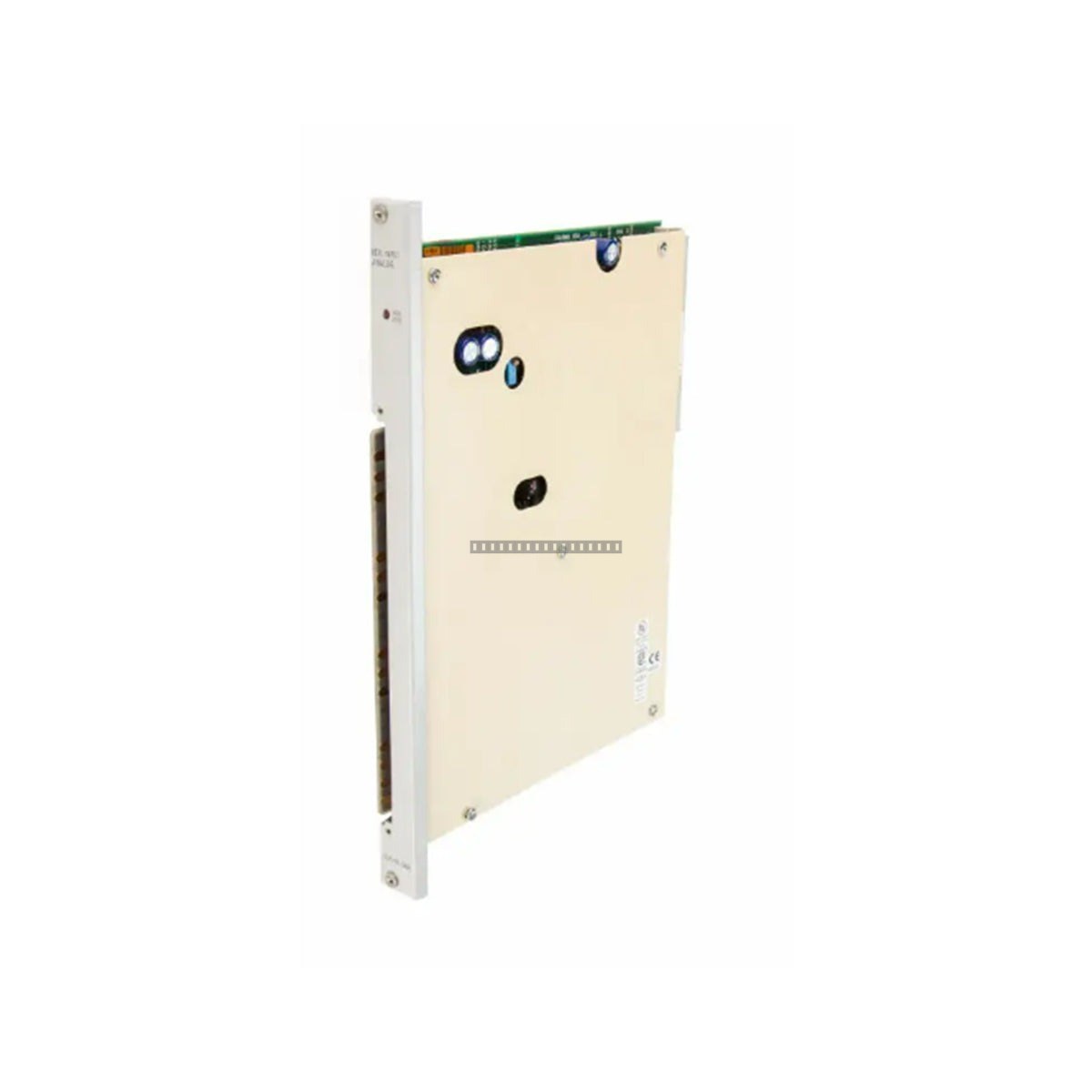

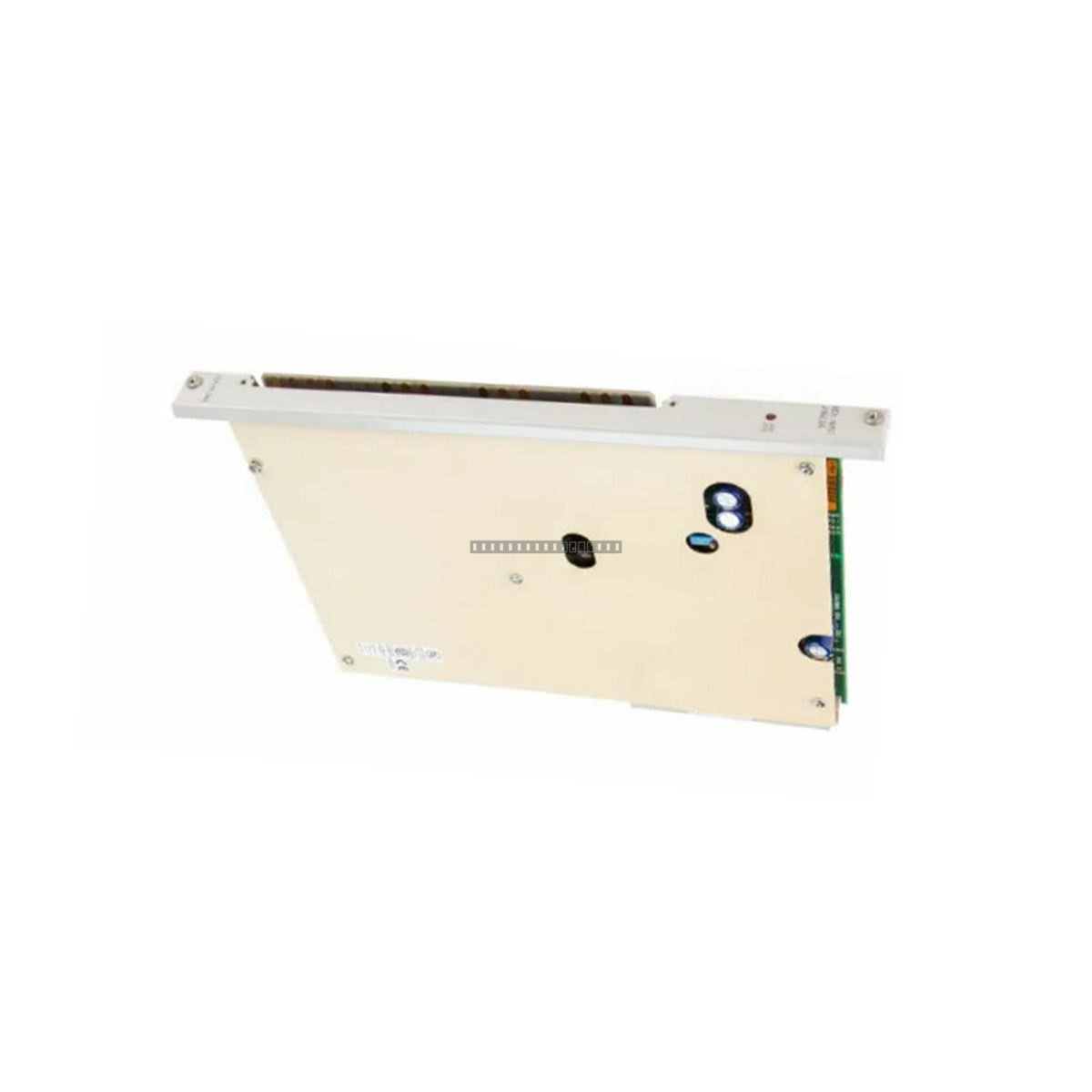

The Siemens 505-6108A is an 8-channel analog input module designed for the SIMATIC TI 505 series programmable logic controller (PLC) systems. This module provides high-resolution data acquisition for industrial control applications, supporting both current and voltage input signals. As a 12-bit, single-wide module, it integrates directly into the TI 505 I/O base, allowing for efficient expansion of analog monitoring capabilities in legacy automation environments.
Features
- 8-channel analog input capacity for versatile signal monitoring.
- 12-bit resolution for precise analog-to-digital conversion.
- Compatible with standard Siemens TI 505 series I/O racks.
- Supports both voltage and current input configurations.
- Single-wide module design for space-efficient rack mounting.
Applications
This module is typically utilized in process control industries where monitoring of analog variables such as pressure, temperature, flow, or level is required. It is commonly found in legacy manufacturing lines, water treatment facilities, and power generation control systems that rely on the TI 505 architecture.
Technical Specifications
| Model |
505-6108A |
| Manufacturer |
Siemens |
| Series |
SIMATIC TI 505 |
| Module Type |
Analog Input |
| Channels |
8 |
| Resolution |
12-bit |
| Form Factor |
Single-wide |
| Tariff Code |
8538907080 |
Installation Guidelines
- Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the backplane connector to ensure reliable communication with the CPU.
- Use shielded twisted-pair cabling for all analog inputs to minimize electromagnetic interference (EMI) and signal noise.
- Route signal cables away from high-voltage AC lines and heavy motor starters to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
Is the Siemens 505-6108A still in production?
No, this module has been discontinued by the manufacturer. We provide tested, reliable units to support the ongoing maintenance of existing TI 505 systems.
Can this module handle both voltage and current inputs?
Yes, the 505-6108A is designed to support both analog current and voltage signal types, making it a flexible solution for various instrumentation needs within the TI 505 series.
