Description

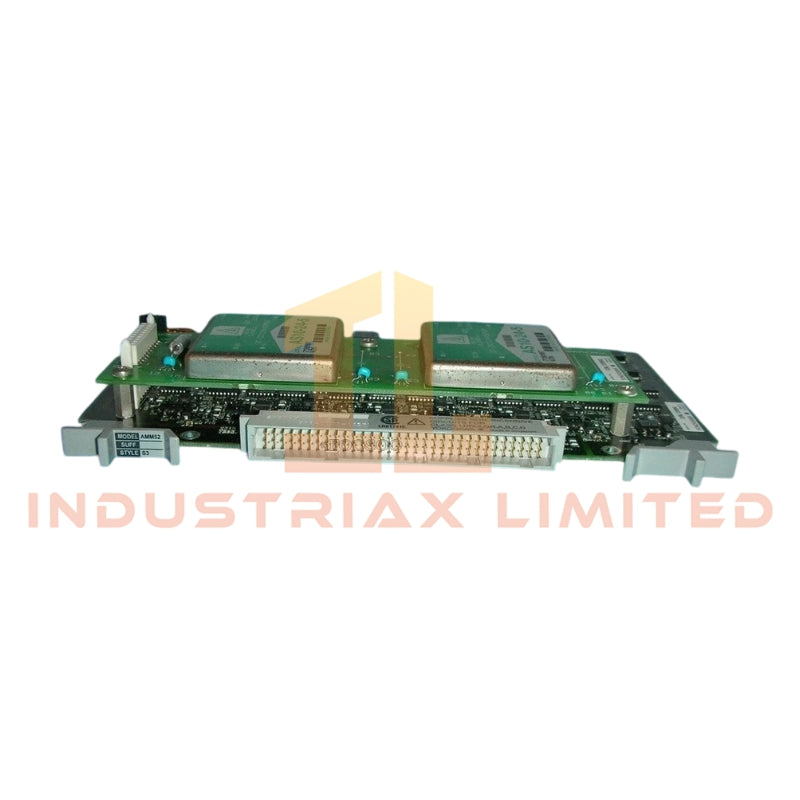

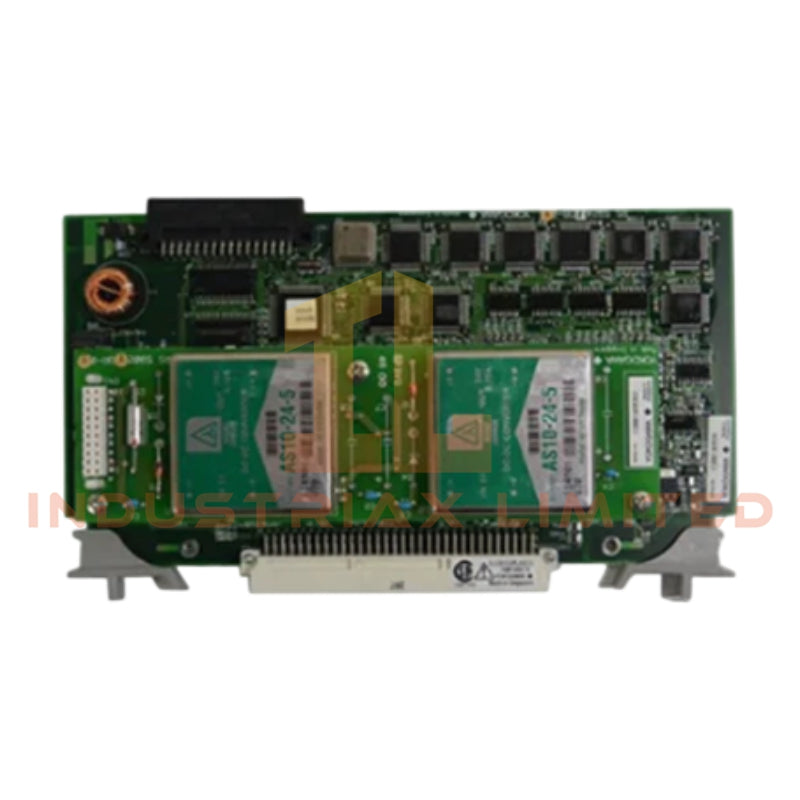

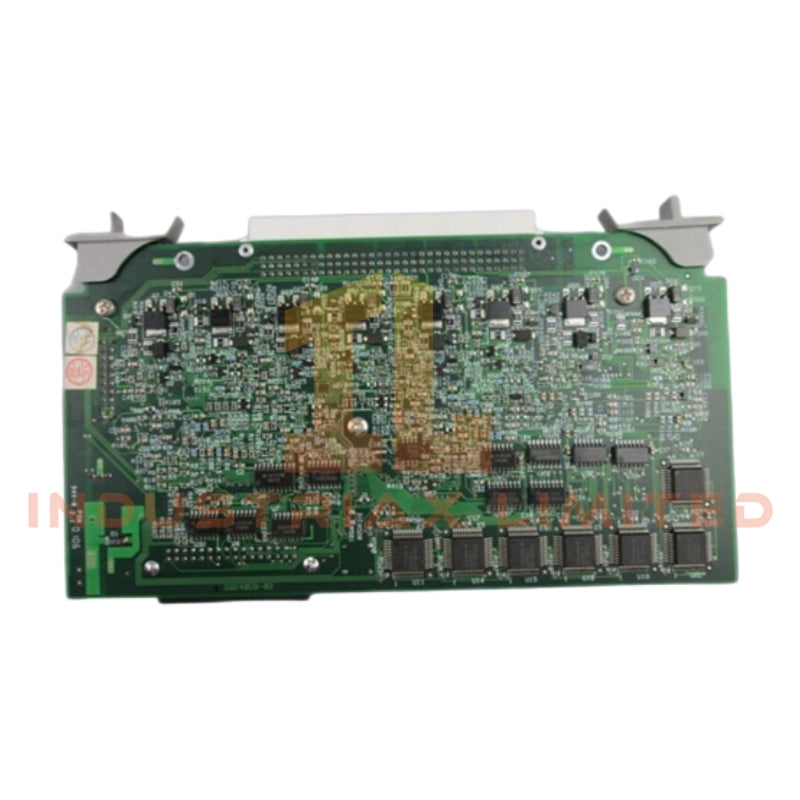

Yokogawa AMM52 Voltage Input Multiplexer Module

The Yokogawa AMM52 module, also cataloged as the AMM52 Voltage Input Multiplexer Module, operates as a dedicated hardware component for sequential scanning and analog voltage conversion within Yokogawa CENTUM distributed control and Remote I/O systems.

HardwareSpecifications

Parameter	Specification
ModelBrand	Yokogawa AMM52 / AMM52-S2
Origin	Japan
Weight	0.40 kg (0.88 lbs)
Dimensions	Standard RIO module form factor
OperatingTemp	0 to 55 degC (typical industrial range)
PowerConsumption	4 A max @ 5 VDC (backplane)
ModuleType	Voltage Input Multiplexer
NumberOfChannels	4 input channels per module
InputSignalRange	DC 1 to 5 V
AllowableInputVoltage	≤ ±30 VDC
InputImpedance	≥ 1 MΩ (powered ON) / ≥ 500 kΩ (powered OFF)
SignalIsolation	Non-isolated (channel-to-channel and system-to-field)
Accuracy/Resolution	Dependent on system A/D converter (~±0.1% full scale)
DataRefreshCycle	1 second
OutputTypes	Analog signals (0-10 V, ±10 V, or 4-20 mA)
FlowMeasurementAccuracy	±0.3% of reading value
MaxInputsOutputs	4 inputs/outputs for current, pulse, and status signals

ProcessControlIntegration

The AMM52 supports 4-20 mA HART loop protocol integration for analog signal interfacing. While the module is non-isolated, careful attention must be paid to channel-to-channel and system-to-field grounding to prevent common-mode noise. Cold junction compensation is not implemented internally; external signal conditioning is recommended if precise low-level DC measurement is required.

FrequentlyAskedQuestions

Q: Does the AMM52 support hot-swapping?
A: No. The module must be powered down before removal or replacement to prevent backplane bus damage.

Q: What is the expected switching delay between input channels?
A: The scan period is 1 second per standard RIO multiplexer sequencing; channel-to-channel switching occurs within this cycle.

Q: Can the module operate with varying backplane voltages?
A: The module is rated for 5 VDC backplane supply. Deviations may cause malfunction or inaccurate readings.

FieldInstallationGuidelines

• Ensure all analog input signals share a common grounding point to minimize ground loop interference.
• Install external signal isolators if field devices are referenced to different grounds.
• Route signal wiring separately from high-current or switching power cables to reduce electromagnetic interference.
• Secure the module firmly in the RIO rack; excessive vibration may affect analog measurement stability.
• Follow standard ESD precautions during installation or removal to protect input circuitry.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
