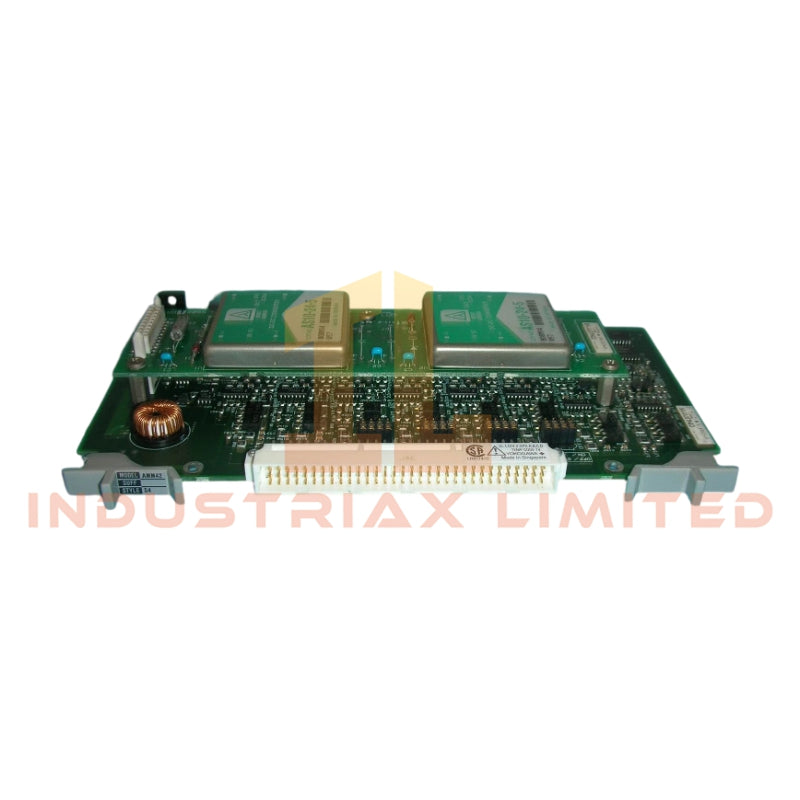

okogawa AMM42-s4 Multiplexer Input Module
Configured for analog signal multiplexing acquisition in Field Control Station (FCS) environments, the Yokogawa AMM42-s4 (AMM42-s4 Multiplexer Input Module) provides direct electrical routing and scanning of field transmitter inputs into the FCS data acquisition layer.
The module operates as a high-density input multiplexer for sequential channel sampling within Yokogawa I/O architecture, supporting transmitter excitation via integrated loop power while maintaining a non-isolated electrical topology between system, field, and channels.
Suffix Breakdown & Model Matrix
No formally published internal suffix decomposition is provided for AMM42-s4 beyond its complete ordering code designation. The identifier is treated as a single functional module reference within Yokogawa FCS I/O catalog structure.
Hardware Specifications
Parameter
Specification
ModelBrand
Yokogawa AMM42-s4
PowerConsumption
Transmitter supply 23.5 to 24.5 VDC, output current limit <= 60 mA
Input Resistance
250 ohm (modifiable to 70 ohm with barrier connection)
Signal Isolation
No isolation between system, field, and channels
System Role
Multiplexed analog input scanning module for FCS
Yokogawa Field I/O Electrical Topology Characteristics
Within the FCS I/O framework of Yokogawa, the AMM42-s4 implements a multiplexed acquisition method where channel sequencing is performed internally rather than via parallel A/D conversion per channel. The field wiring interface is electrically common across channels, and no galvanic isolation is implemented between field terminals and system backplane. This topology requires external consideration for grounding strategy, especially in mixed-signal environments where loop integrity and noise coupling must be controlled at cabinet level.
Loop-powered transmitter support is provided through a regulated 23.5 to 24.5 VDC supply rail, with enforced current limitation to 60 mA, constraining aggregate field device loading per module segment.
Frequently Asked Questions
Q: Does the AMM42-s4 support channel-to-channel electrical isolation? A: No. The module architecture is non-isolated across channels, requiring external isolation if segregation is required at system level.
Q: Can the module directly power 4-20 mA field transmitters? A: Yes, within the constraint of a 23.5 to 24.5 VDC loop supply and a maximum output current limit of 60 mA per supply path.
Q: Is hot-swap insertion supported during operation? A: Hot-swap behavior is dependent on FCS rack implementation; electrical loop continuity must be evaluated prior to module removal to avoid process interruption.
Field Installation Guidelines
Maintain shield termination at a single-point ground within the control cabinet to reduce loop noise coupling on non-isolated channels.
Verify total loop current demand does not exceed 60 mA per transmitter supply segment.
Use appropriate barrier resistance configuration (250 ohm or 70 ohm) based on external intrinsic safety barrier requirements.
Ensure consistent reference grounding between FCS backplane and field wiring marshalling panels to prevent floating potential differentials.
