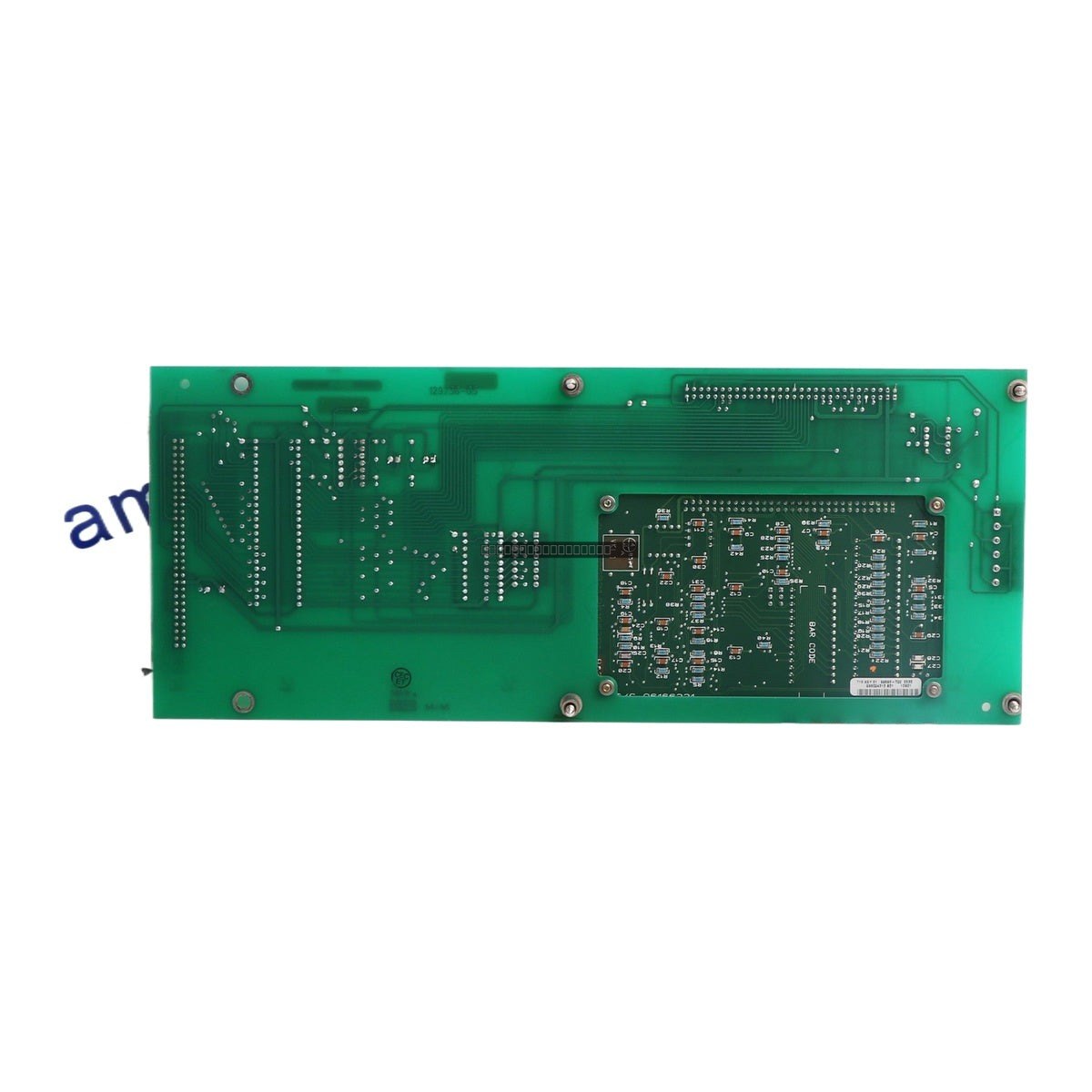

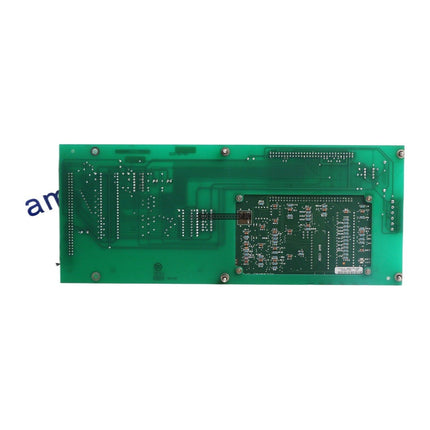

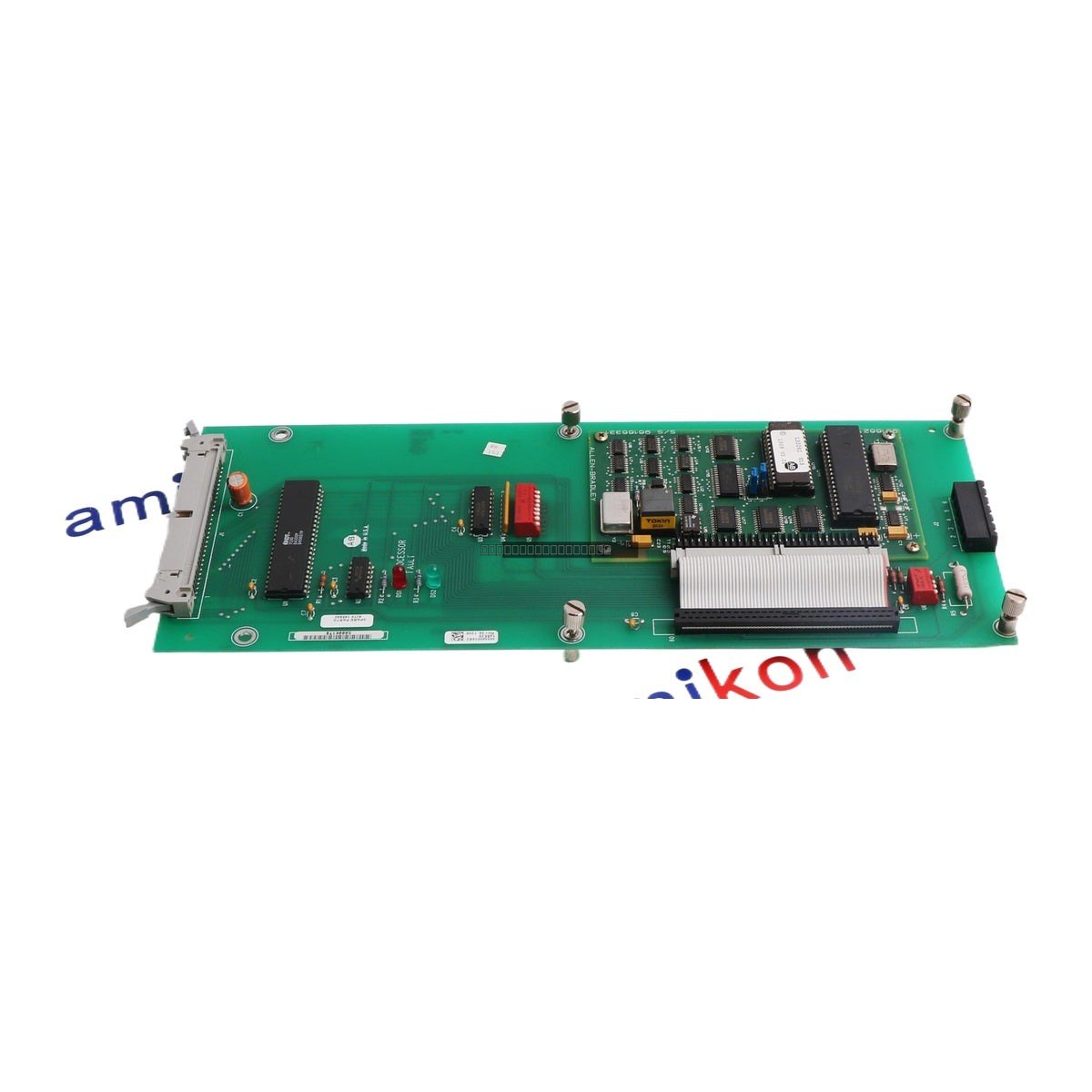

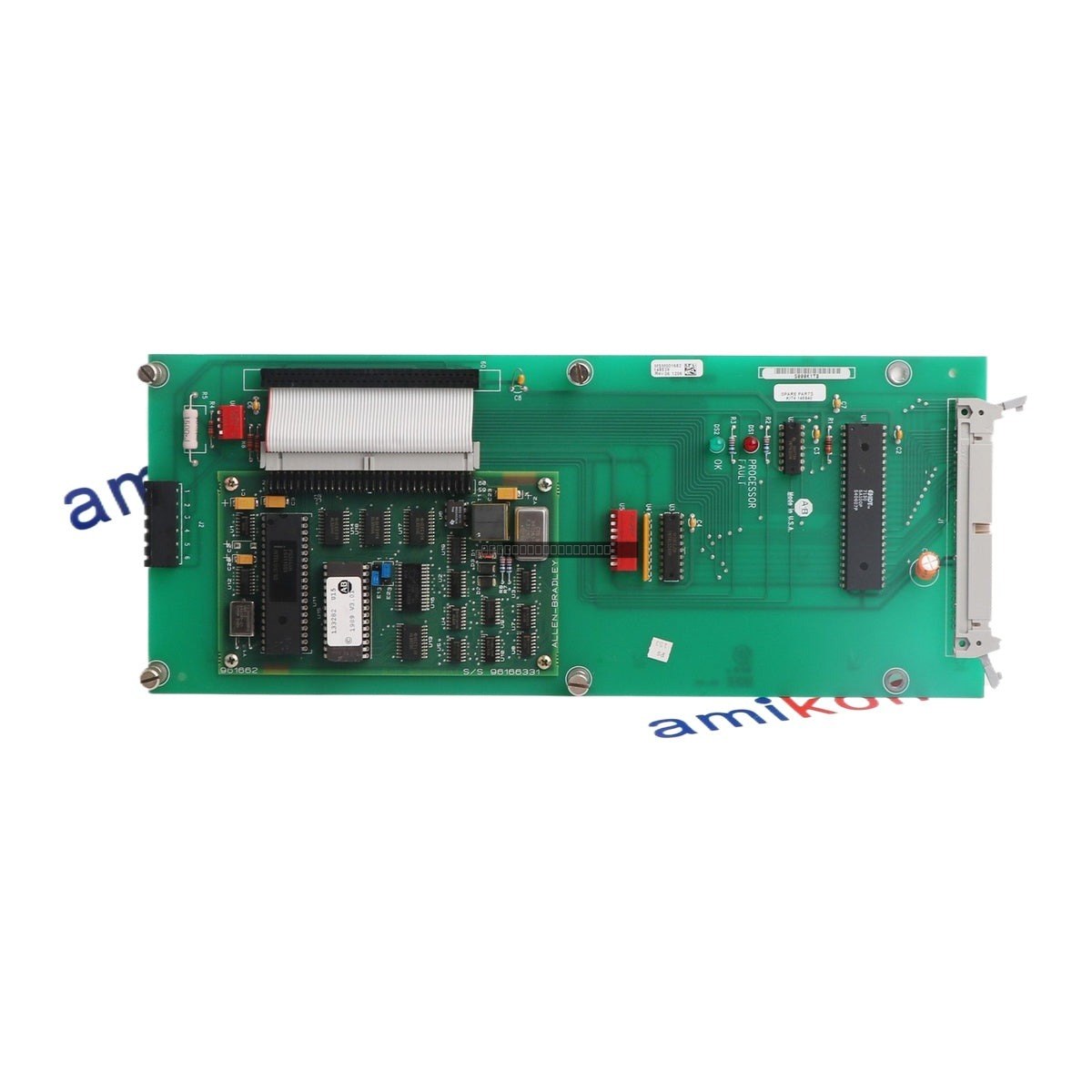

The Allen-Bradley SP-148540/148539 is a node adapter circuit board assembly designed for use with 1935 series digital DC drives. This component serves as a critical renewal part for maintaining industrial drive system communications and control logic. It is functionally equivalent to the 1395-148540 assembly.
Features
- Designed for integration with 1935 digital DC drive systems.
- Functions as a node adapter board for reliable network communication.
- Renewal part engineered to meet original equipment specifications.
- Robust construction suitable for standard industrial environments.
Technical Specifications
| Product Model |
SP-148540/148539 |
| Spare Model |
129736-05 |
| Power Supply |
5V DC |
| Power Consumption |
5-15 W |
| Isolation |
500-1500V AC |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH (non-condensing) |
Installation Guidelines
- Ensure power is completely disconnected from the drive unit before attempting to remove or install the circuit board.
- Handle the board by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
- Verify that the board is correctly seated in the designated slot and that all edge connectors are properly aligned.
- Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature component failure.
- Check that all ribbon cables and wiring connections are secure and free from debris or oxidation.
FAQ
Is this board compatible with other drive series?
This specific node adapter is designed for the 1935 digital DC drive series. Please verify your drive model and part number compatibility before installation.
What should I do if the board shows signs of oxidation?
Ensure the installation environment is kept within the specified non-condensing humidity range. If oxidation is present on the connectors, use an approved electronic contact cleaner and ensure the board is completely dry before re-insertion.
