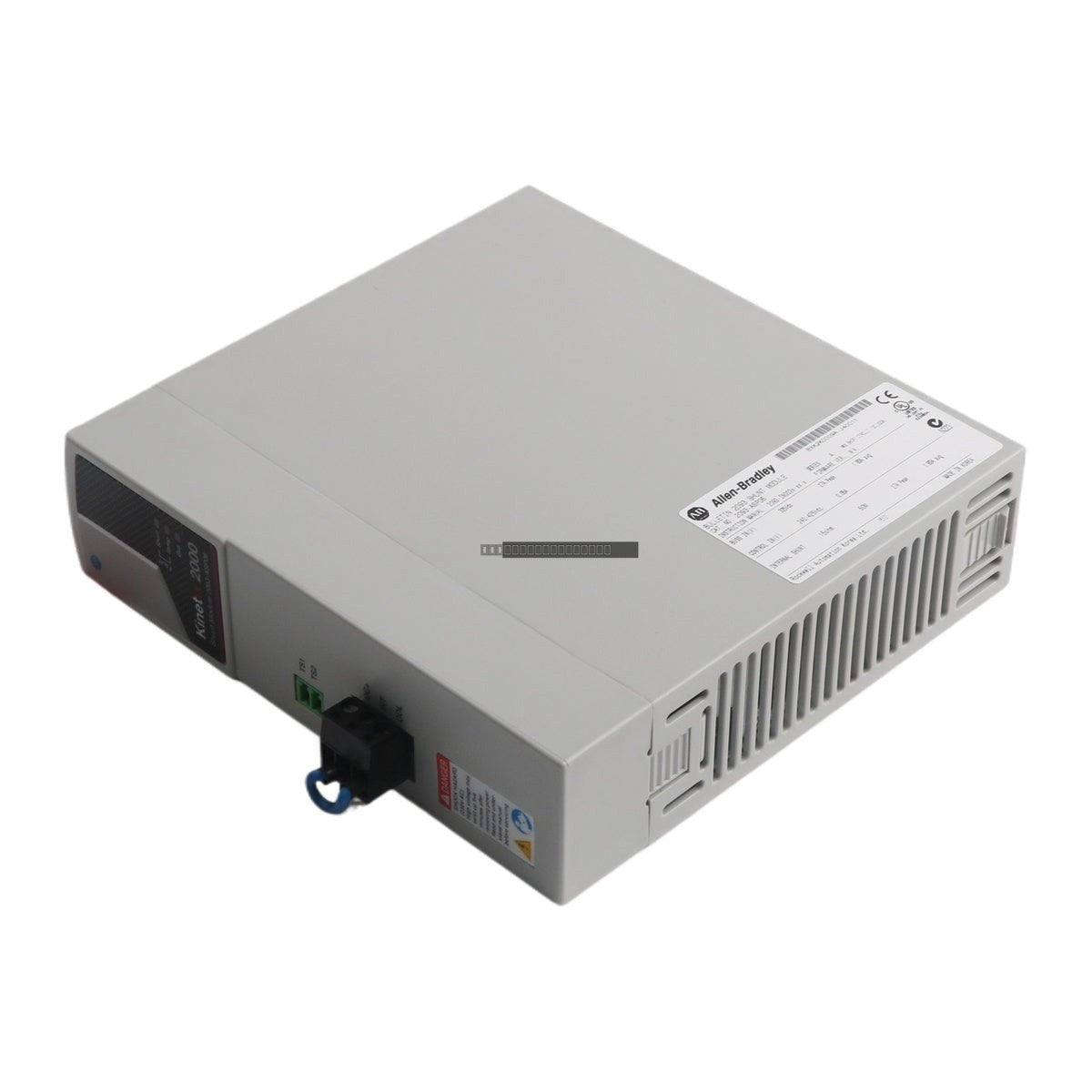

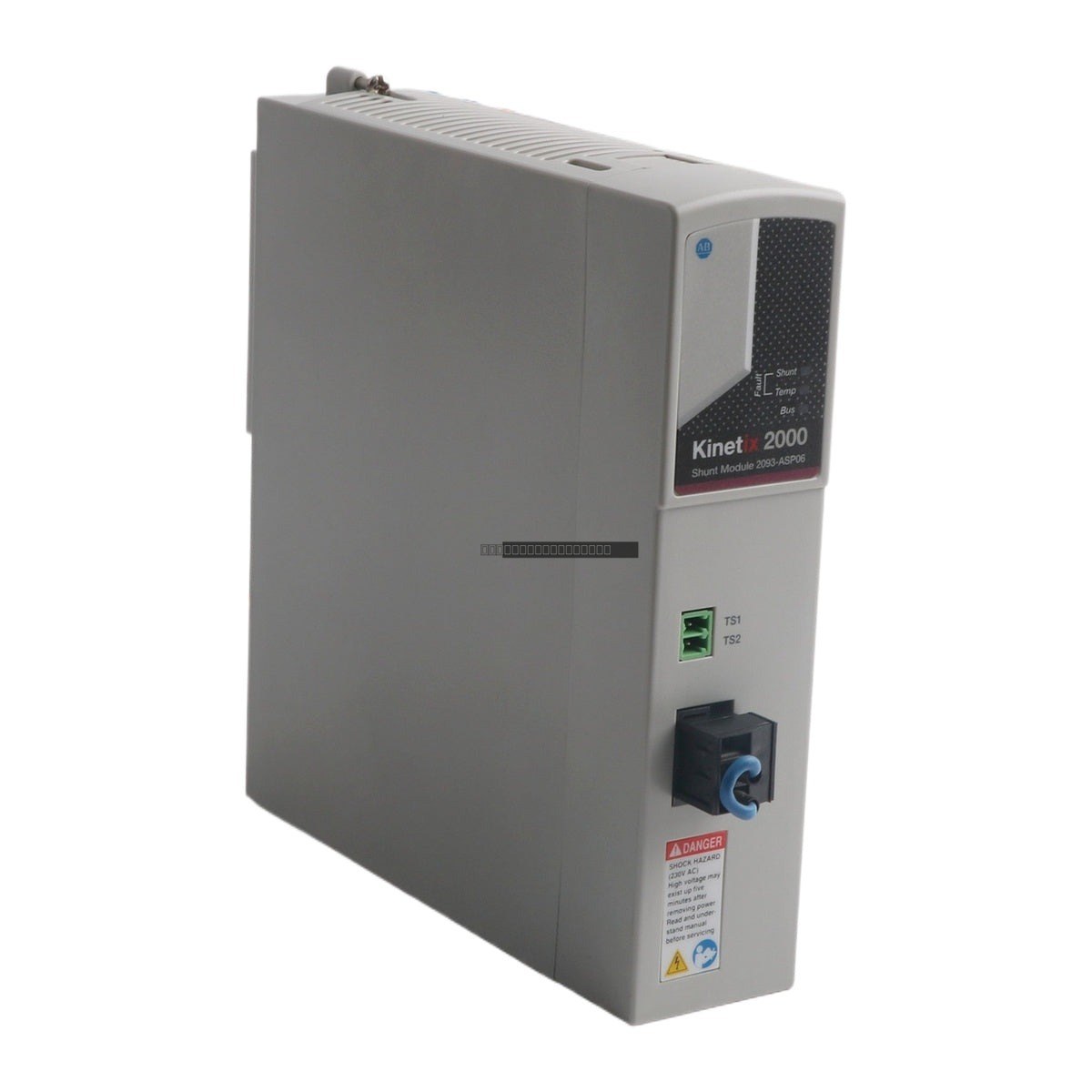

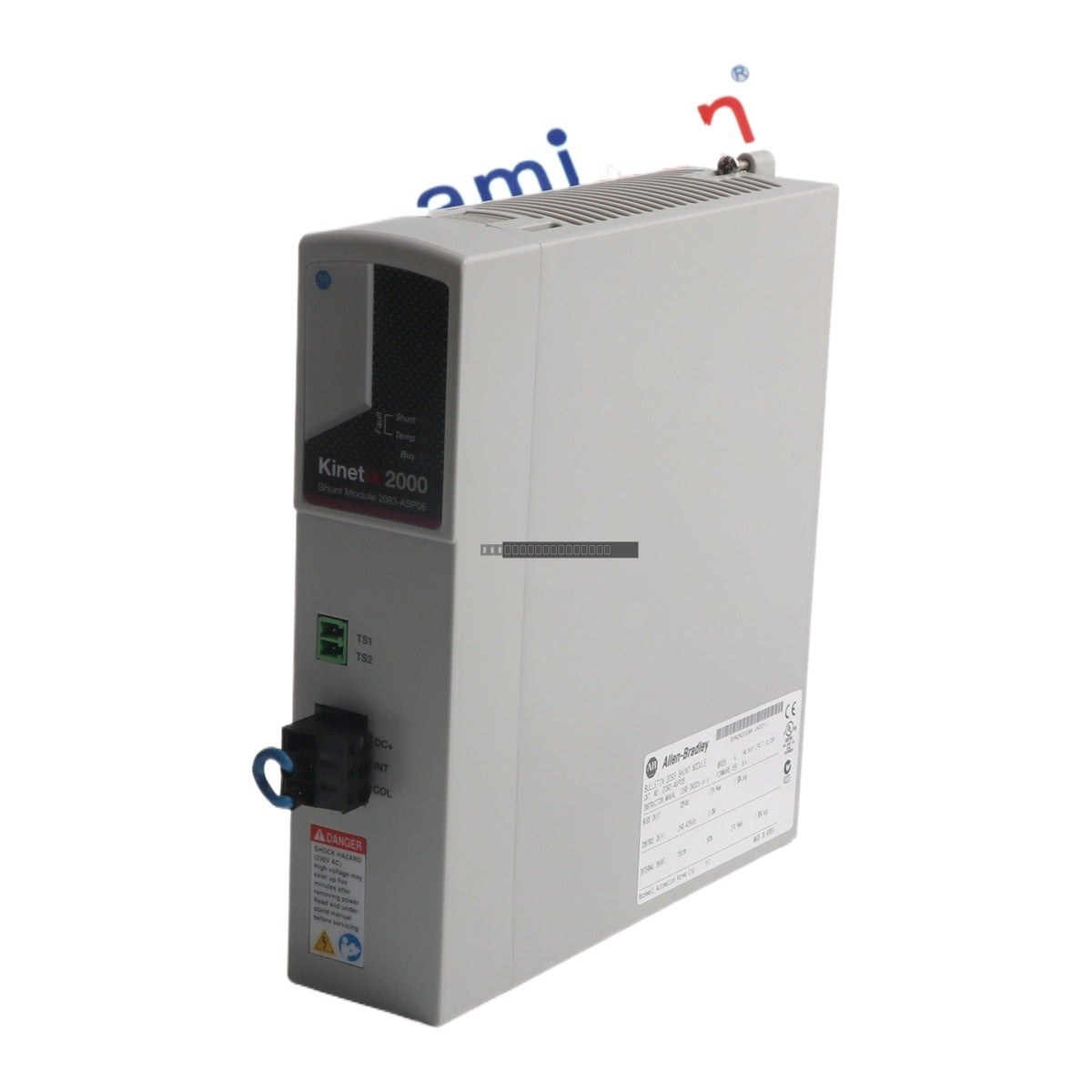

The Allen-Bradley 2093-ASP06 is a shunt module designed for use within the Kinetix 2000 multi-axis servo drive system. This module is engineered to manage excess regenerative energy generated during motor deceleration, protecting the drive system by dissipating power through an internal resistor.
Features
- Designed specifically for the Kinetix 2000 servo drive architecture
- Integrated internal shunt resistor rated at 15 Ohm, 50W
- Supports a bus input voltage of 325V DC
- Control input rating of 0.05A at 240-425V DC
- Compact, power-rail mountable design for efficient cabinet space utilization
Technical Specifications
| Model |
2093-ASP06 |
| Series |
Kinetix 2000 |
| Internal Shunt Resistance |
15 Ohm |
| Internal Shunt Power Rating |
50W |
| Bus Input Voltage |
325V DC |
| Control Input |
0.05A (240-425V DC) |
| Mounting Type |
Power Rail |
Installation Guidelines
- Ensure the drive system is fully powered down and the DC bus is discharged before installing or removing the shunt module.
- Mount the module onto the designated power rail within the Kinetix 2000 system, ensuring secure mechanical seating.
- Verify that the shunt module is compatible with the specific drive configuration and power requirements of the application.
- Maintain adequate clearance around the module to allow for proper thermal dissipation during operation.
- Follow standard ESD precautions when handling the module to prevent damage to internal components.
FAQ
What is the primary function of the 2093-ASP06?
The 2093-ASP06 acts as a shunt module to dissipate regenerative energy produced by the servo motors during braking, preventing overvoltage conditions on the DC bus.
Is this module compatible with other Kinetix series?
The 2093-ASP06 is specifically engineered for the Kinetix 2000 servo drive system. Please consult your system documentation for compatibility with other Kinetix drive families.
