Description

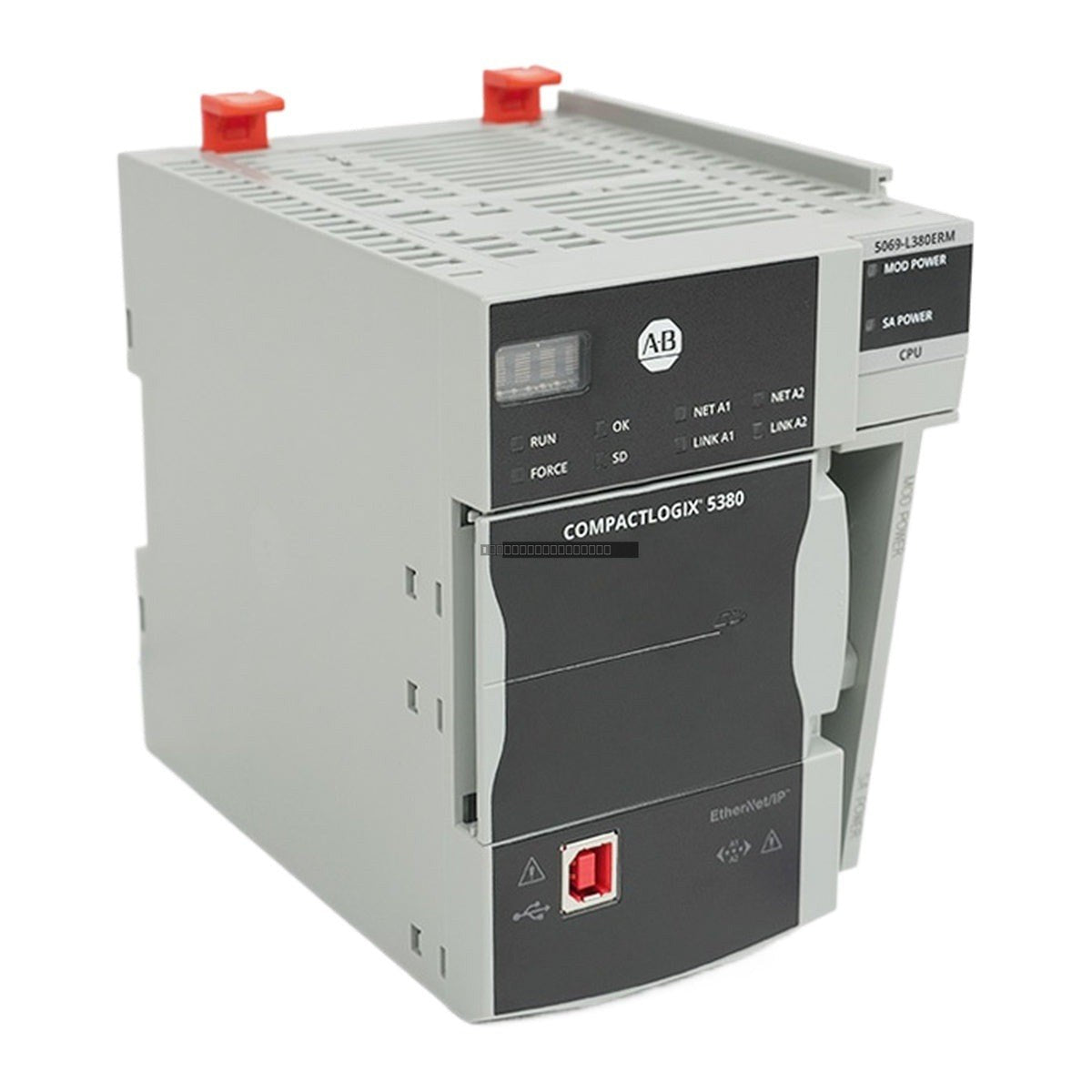

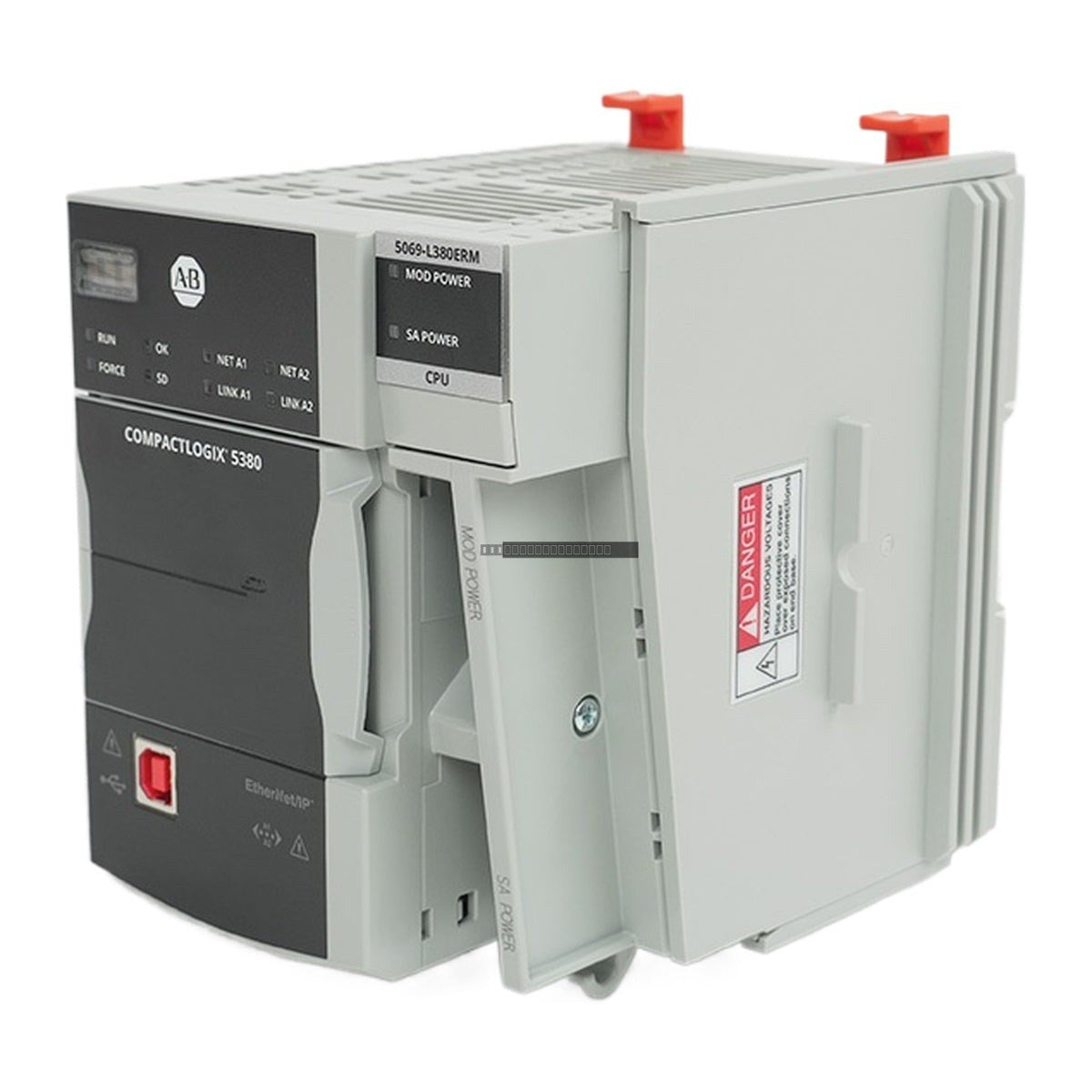

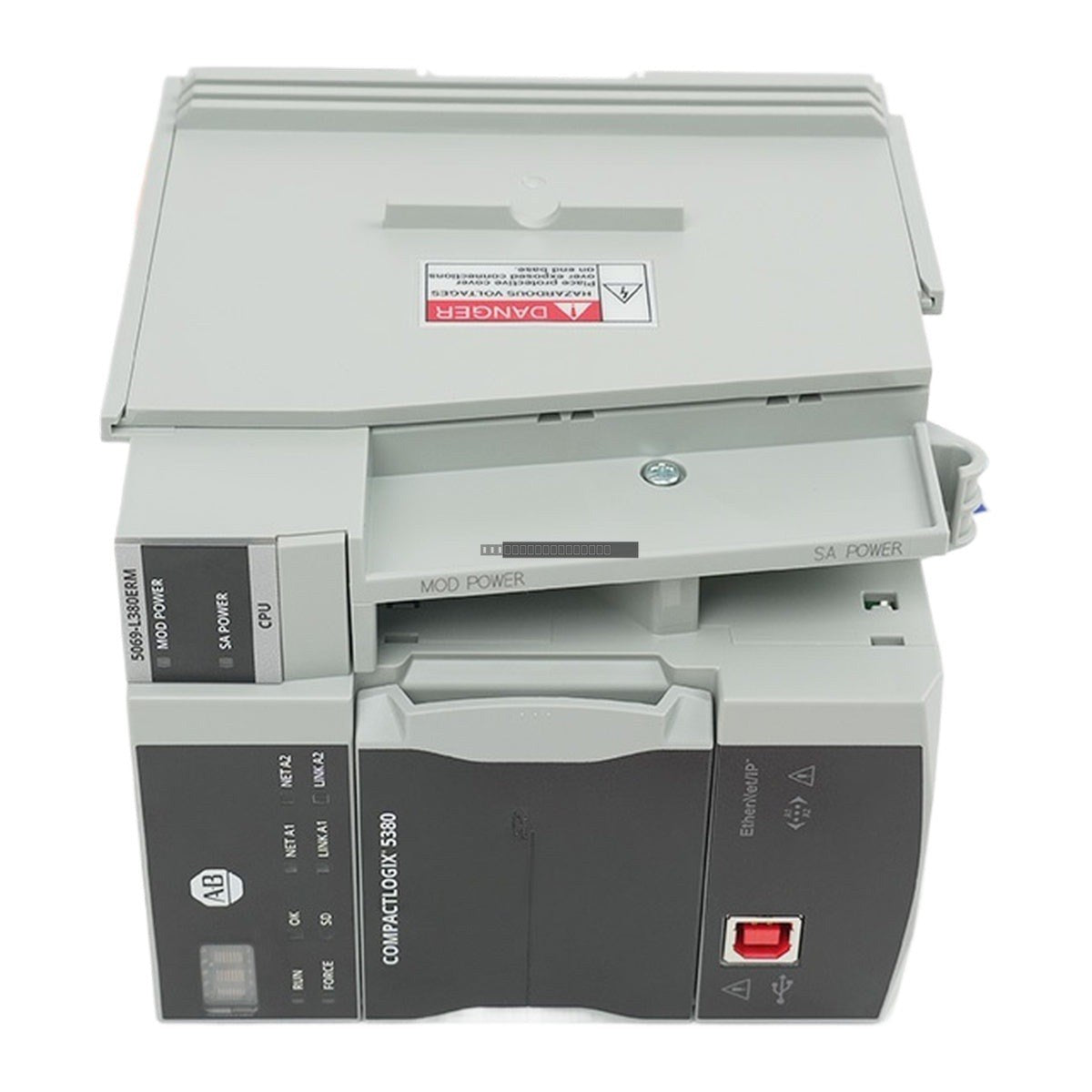

The Allen-Bradley 5069-L380ERM is a high-performance CompactLogix 5380 Programmable Automation Controller (PAC) designed for demanding industrial applications requiring integrated motion control. Part of the Logix 5000 family, this controller provides 8 MB of user memory and supports high-speed processing for complex automation tasks.
Features
- Integrated Motion over EtherNet/IP for up to 28-32 axes of motion.
- Dual 1 Gb Ethernet ports for high-speed network communication.
- Dedicated USB port for local configuration and programming.
- Supports up to 31 local Compact 5000 I/O modules.
- High-speed task execution with up to 31 standard tasks and 1 safety task.
- Supports up to 150 EtherNet/IP nodes.
Applications
- Robotics and CNC machinery requiring multi-axis synchronization.
- High-speed packaging and assembly line automation.
- Material handling and complex conveyor systems.
- Process automation and SCADA integration in smart manufacturing.
Technical Specifications
| Model |
5069-L380ERM |
| Memory |
8 MB |
| Communication |
2 x 1 Gb Ethernet, 1 x USB |
| Max Local I/O |
31 Modules |
| Max EtherNet/IP Nodes |
150 |
| Motion Axes |
Up to 28-32 axes |
| Power Supply |
MOD Power 18-32V DC; SA Power 0-32V DC / 0-240V AC |
| Mounting |
DIN-Rail |
Installation Guidelines
- Mount the controller horizontally on a zinc-plated steel DIN rail to ensure proper chassis grounding.
- The controller must be positioned as the leftmost component in the system assembly.
- Install a 5069-ECR end cap on the right side of the final I/O module to protect the bus connections before applying power.
- Ensure the system is powered down before installing or removing any modules to prevent electrical damage.
- Maintain adequate clearance around the controller to ensure proper ventilation and cooling.
FAQ
What is the 5069-L380ERM?
It is a CompactLogix 5380 controller designed for general-purpose automation and integrated motion control via EtherNet/IP.
What type of I/O modules are compatible?
This controller is compatible with the 5069 Compact 5000 I/O series, supporting up to 31 local modules.
How is the controller configured?
Configuration is performed via the Ethernet ports or the local USB port using Studio 5000 Logix Designer software.
