Description

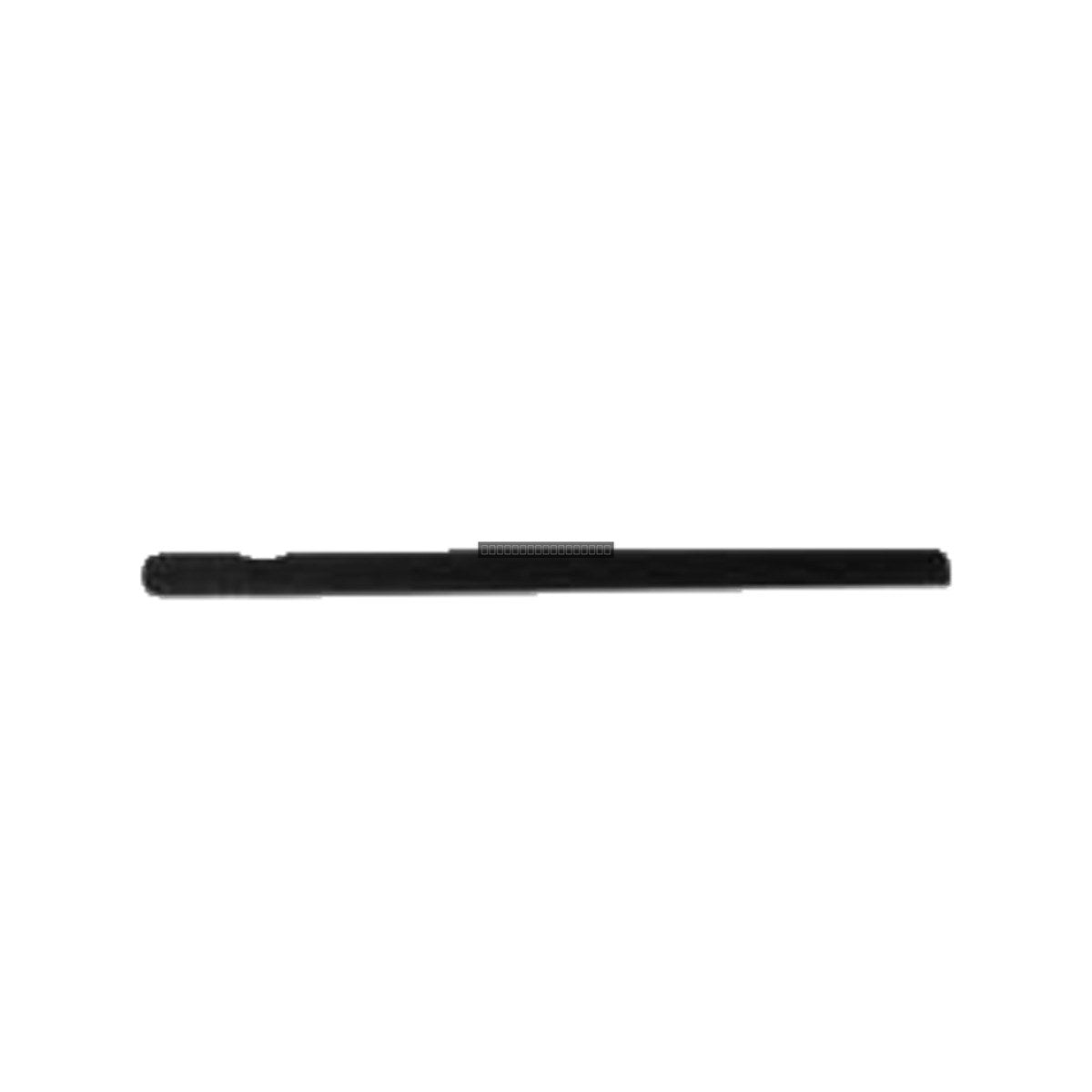

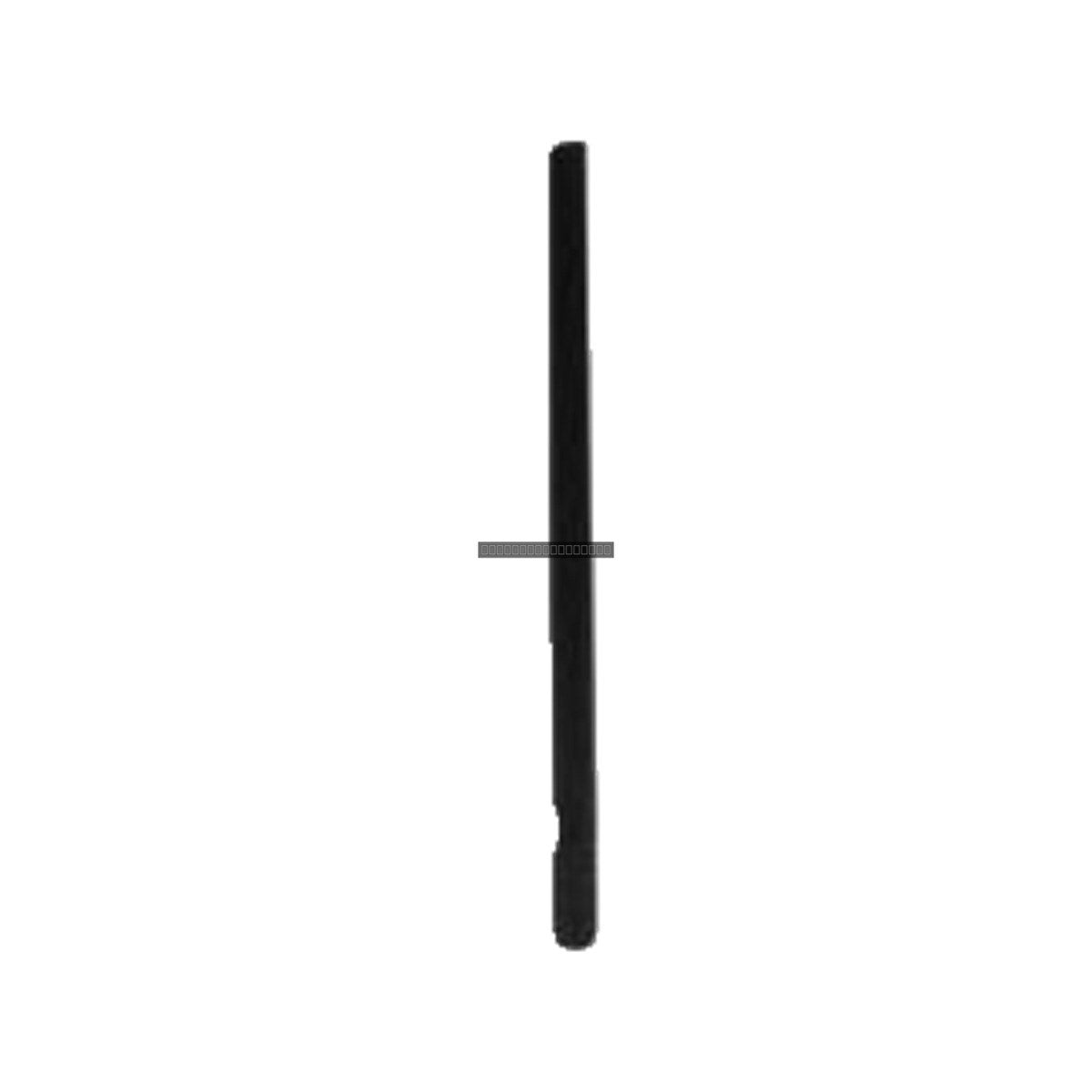

The Allen-Bradley 2711-NM13 is a 2 MB PC flash memory card designed specifically for use with PanelView Standard operator terminals. This storage module facilitates the reliable transfer and retrieval of application files, configuration data, and runtime projects, ensuring consistent performance in industrial human-machine interface (HMI) applications.
Features
- 2 MB storage capacity for PanelView Standard terminal applications.
- Durable plastic housing engineered for industrial environments.
- High vibration resistance (2 g up to 2000 Hz) for reliable operation in machinery-heavy settings.
- Wide operating temperature range from 0 deg C to 55 deg C.
- Supports non-condensing humidity environments up to 95%.
Applications
This memory card is primarily used for loading, backing up, and restoring application files on PanelView Standard terminals. It is a critical component for maintenance, system updates, and project migration within automation control systems.
Technical Specifications
| Model |
2711-NM13 |
| Brand |
Allen-Bradley |
| Product Type |
PC Flash Memory Card |
| Memory Capacity |
2 MB |
| Operating Temperature |
0 deg C to 55 deg C |
| Storage Temperature |
-20 deg C to 70 deg C |
| Humidity |
5% to 95% (Non-condensing) |
| Vibration Resistance |
2 g up to 2000 Hz |
| Max Altitude |
2000 meters |
Installation Guidelines
- Ensure the PanelView terminal is powered down before inserting or removing the memory card to prevent data corruption or electrical damage.
- Insert the card into the designated PCMCIA slot on the terminal, ensuring correct orientation.
- Avoid exposure to excessive dust, moisture, or corrosive gases in the installation environment.
- Handle the card by its edges to prevent electrostatic discharge (ESD) or physical damage to the contact pins.
- Store in a clean, dry environment when not in use to maintain data integrity.
FAQ
Is the 2711-NM13 compatible with all PanelView terminals?
This card is designed for use with PanelView Standard terminals. Please verify your specific terminal model's compatibility with 2 MB PC flash memory cards before installation.
What is the maximum operating altitude for this card?
The 2711-NM13 is rated for operation at altitudes up to 2000 meters above sea level.
