Description

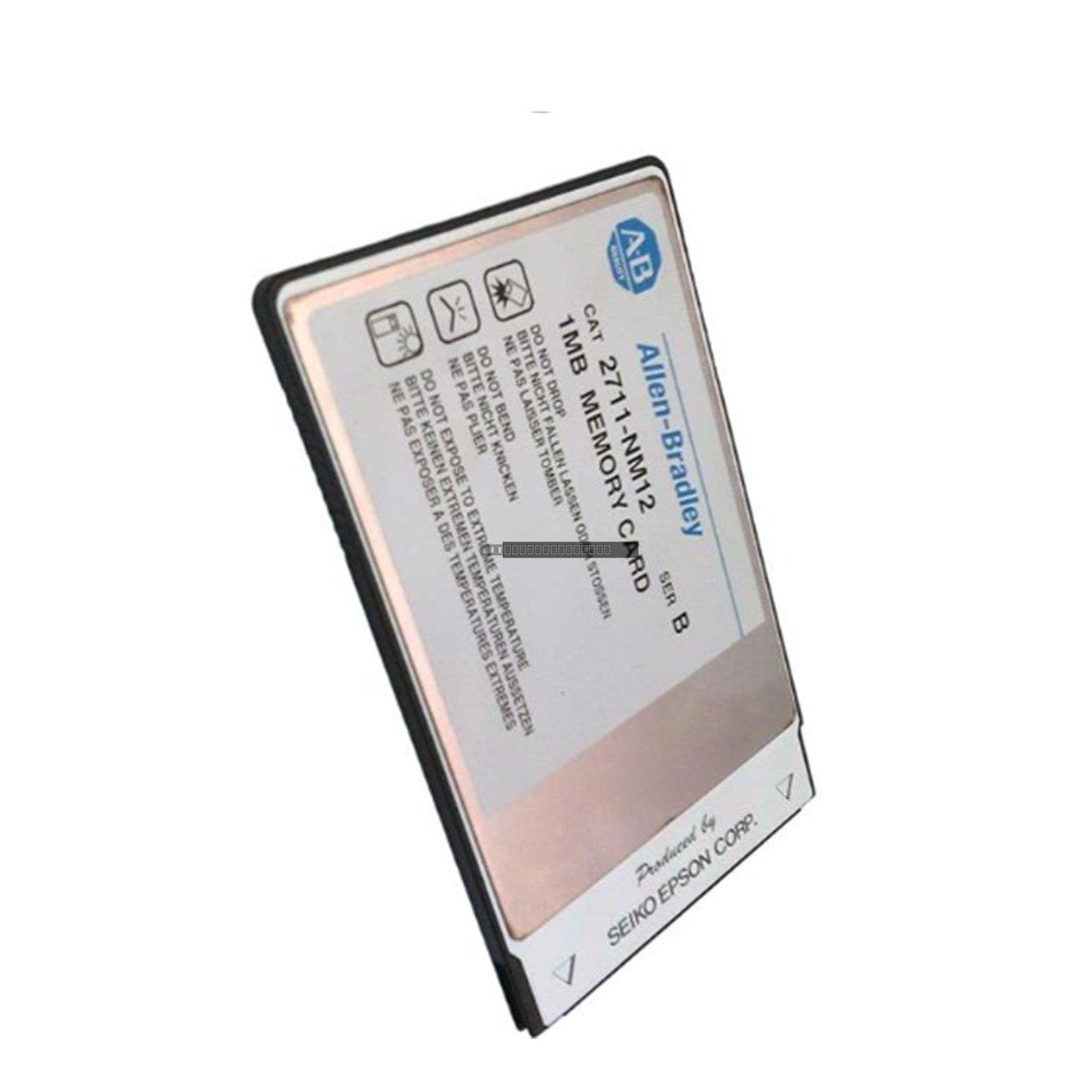

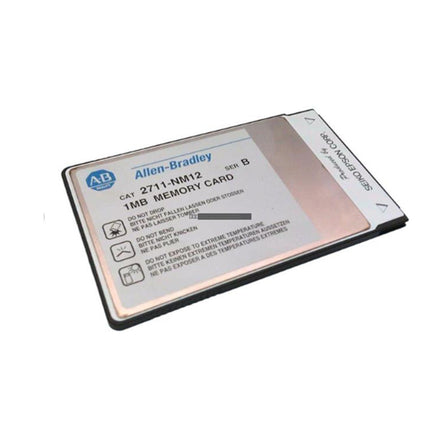

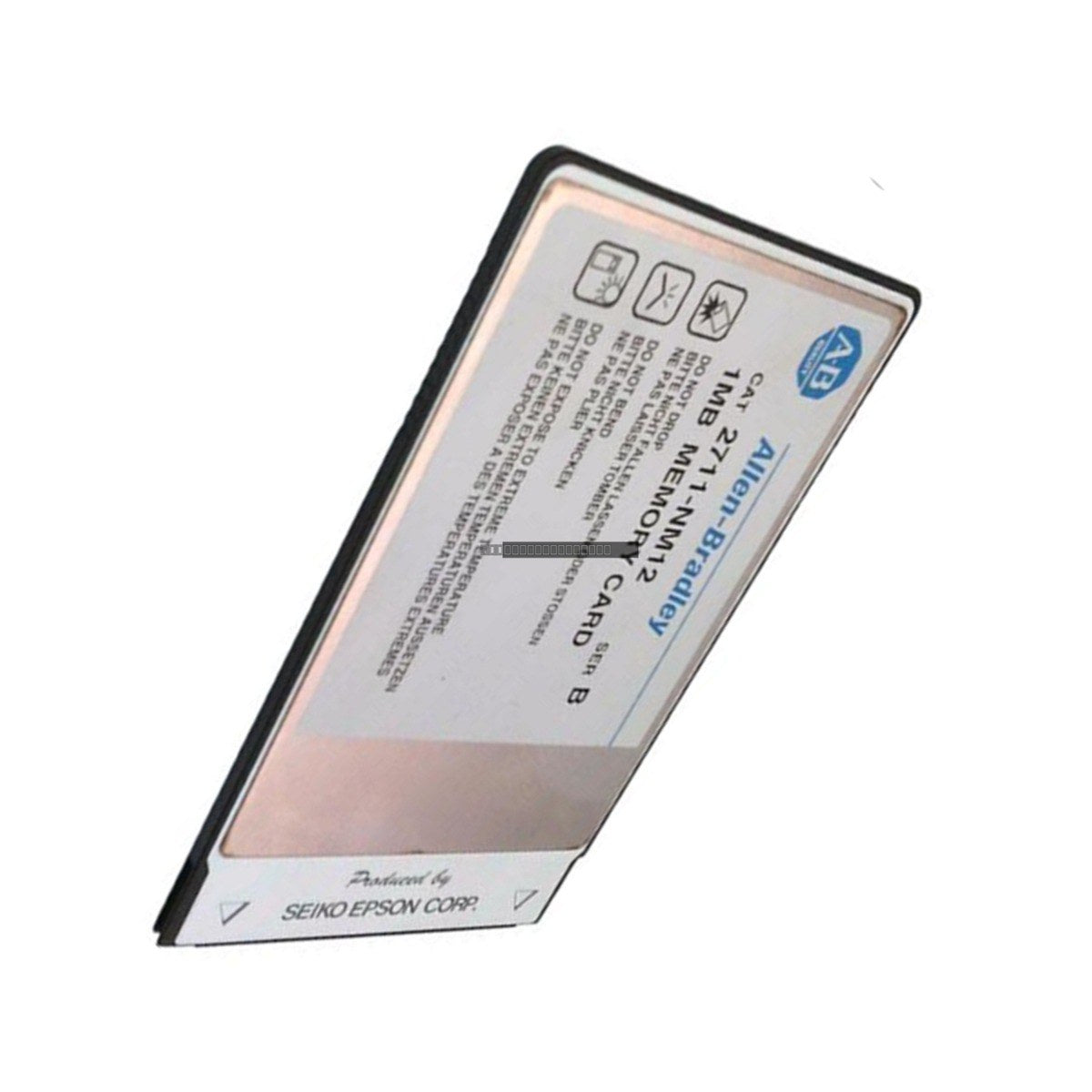

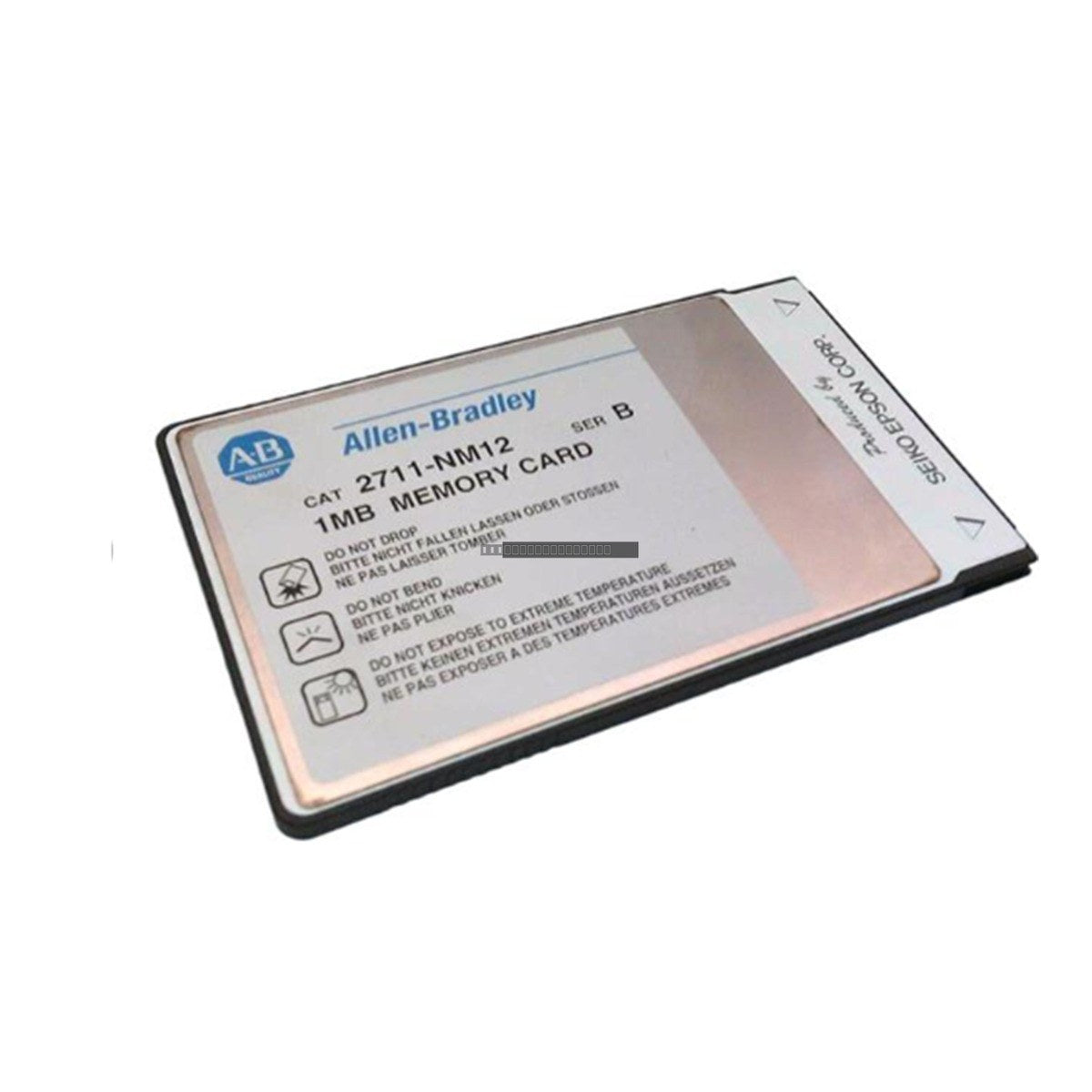

The Allen-Bradley 2711-NM12 is a PCMCIA linear flash memory card engineered for program and data backup within industrial operator interface systems. Designed specifically for compatibility with PanelView series operator terminals, this 1 MByte memory module provides reliable data retention to support application management, configuration storage, and system recovery. It serves as a critical component for maintaining legacy PanelView automation networks.
Features
- Standard PCMCIA linear flash memory architecture.
- 1 MByte storage capacity for terminal programs and operational data.
- Optimized for industrial HMI platforms and PanelView series terminals.
- Robust construction for stable performance in industrial environments.
Applications
This memory card is primarily used for backing up and restoring application files, configuration settings, and firmware data on legacy Allen-Bradley PanelView operator terminals. It is essential for field maintenance, system upgrades, and disaster recovery procedures where terminal data must be preserved or transferred.
Technical Specifications
| Model |
2711-NM12 |
| Brand |
Allen-Bradley |
| Memory Type |
PCMCIA Linear Flash |
| Storage Capacity |
1 MByte |
| Compatibility |
PanelView Series Operator Terminals |
| Lifecycle Status |
Discontinued |
Installation Guidelines
- Ensure the PanelView terminal is powered down before inserting or removing the PCMCIA card to prevent data corruption or electrical damage.
- Handle the card by its edges; avoid touching the gold-plated connector pins to prevent oxidation or ESD damage.
- Insert the card into the designated PCMCIA slot on the PanelView terminal until it is firmly seated.
- Verify that the terminal recognizes the memory card via the system configuration or file management menu after power-up.
- Store in a clean, dry environment when not in use to maintain the integrity of the flash memory contacts.
FAQ
Is this card compatible with all PanelView terminals?
The 2711-NM12 is designed for specific legacy PanelView models that feature a PCMCIA slot. Please verify your specific terminal's hardware manual to confirm support for 1 MByte linear flash cards.
Can this card be used for long-term data storage?
Yes, linear flash memory is non-volatile and designed for reliable data retention in industrial applications, making it suitable for storing critical backup files for extended periods.
