Description

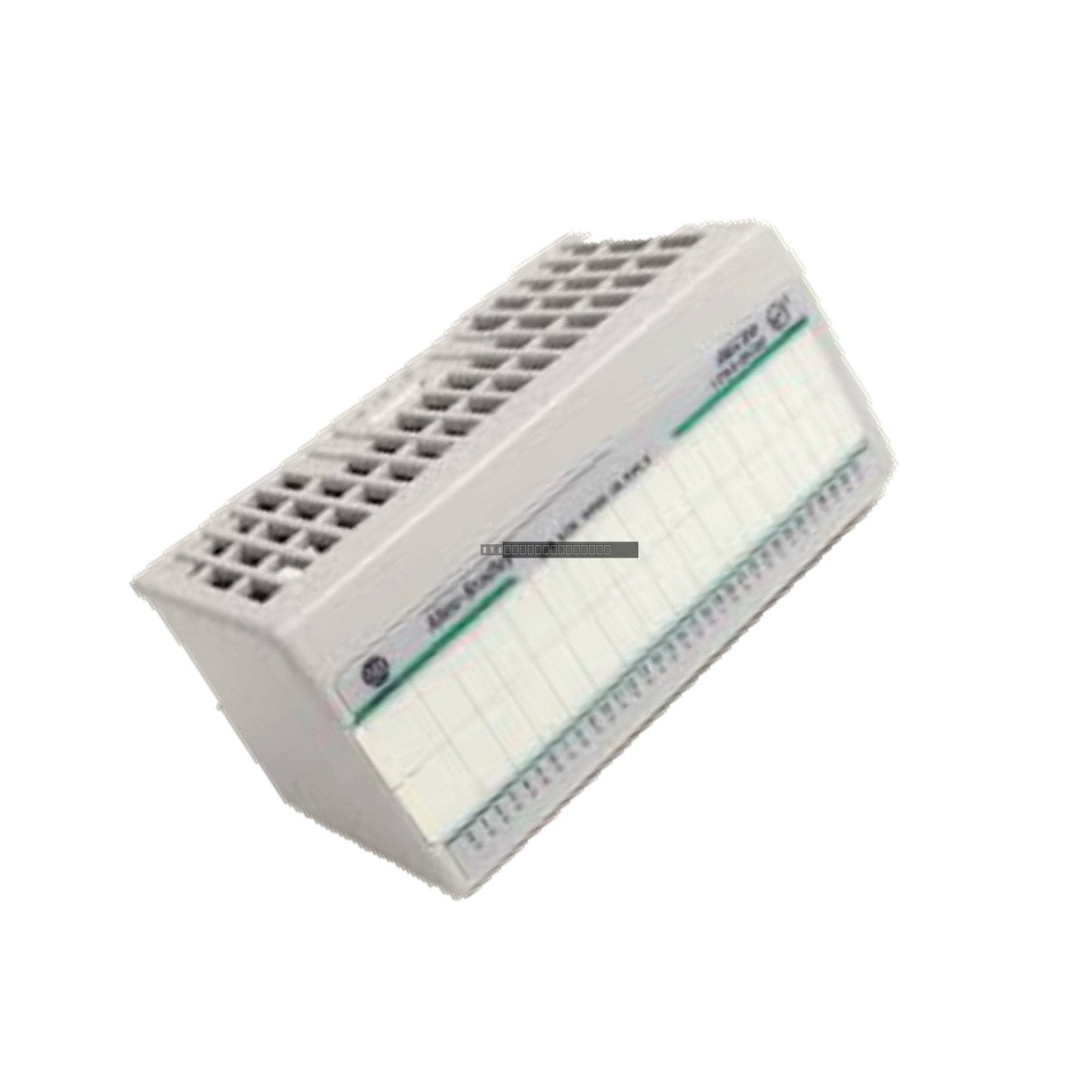

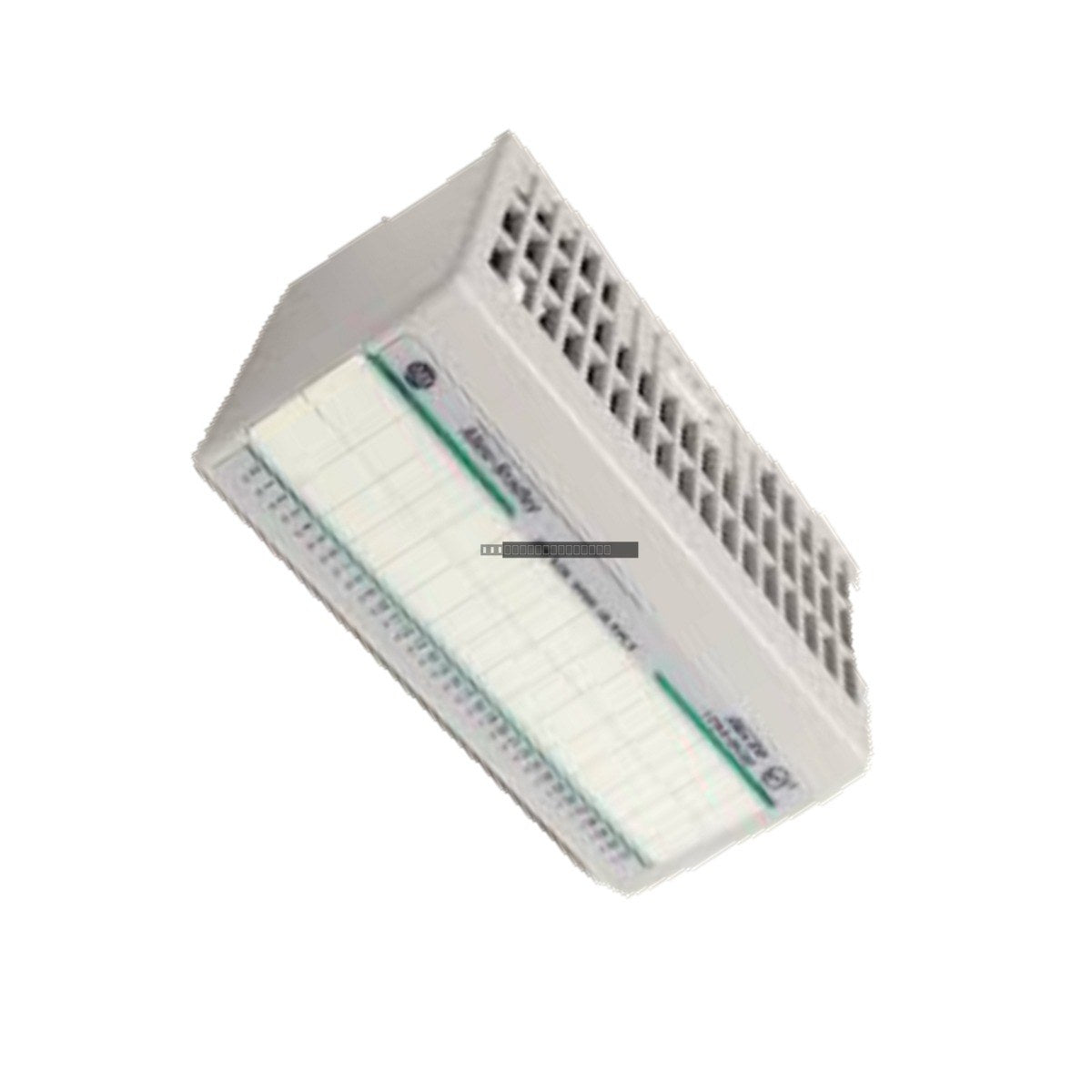

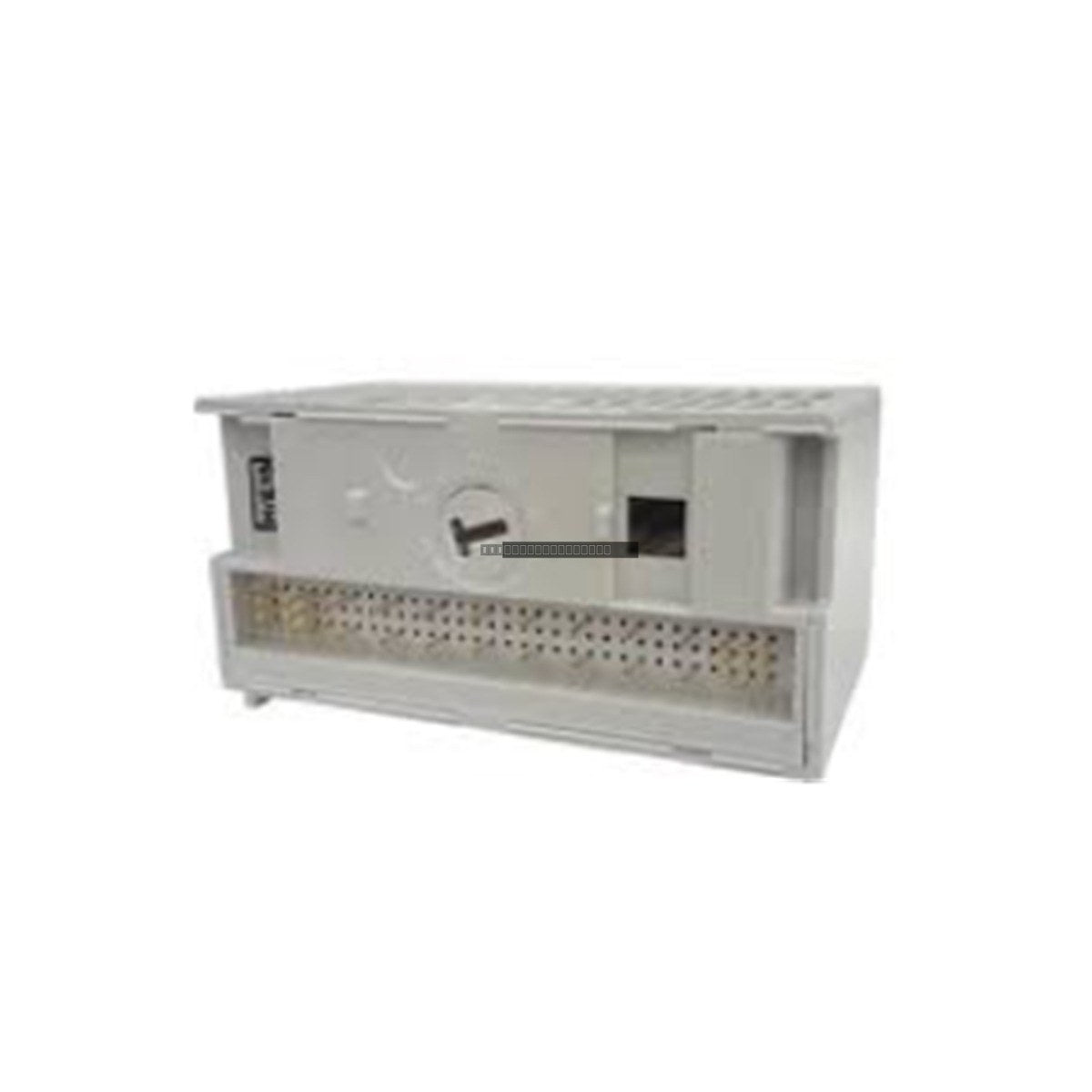

The Allen-Bradley 1794-VHSC is a high-performance counter module designed for the FLEX I/O platform. This module provides advanced counting capabilities for industrial automation applications requiring high-speed pulse processing and precise motion or position feedback.
Features
- Dual-channel configuration for versatile counting applications.
- Supports both 5V DC and 24V DC input signals.
- Two isolated output groups, each containing two outputs for flexible control.
- Compact, open-style construction suitable for standard DIN-rail mounting.
- IP20-rated enclosure for protection against solid objects.
- Compatible with the FLEX I/O system architecture.
Applications
This module is typically utilized in high-speed counting, flow metering, and position tracking tasks within manufacturing and process control environments. It integrates seamlessly into Allen-Bradley control systems to provide real-time data acquisition for high-frequency pulse inputs.
Technical Specifications
| Model |
1794-VHSC |
| Module Type |
Very High Speed Counter |
| Input Voltage |
5V DC |
| Input Off-state Voltage |
<1.8V DC |
| Input Off-state Current |
<0.25 mA |
| Input On-state Current |
>5mA |
| Outputs |
2 Isolated Groups of 2 |
| Output Supply Voltage Range |
10-31V DC |
| Power Dissipation |
5.0W @ 31.2V DC max |
Installation Guidelines
- Ensure the power is disconnected from the FLEX I/O rack before installing or removing the module to prevent electrical damage.
- Mount the module on a standard DIN rail, ensuring it is securely seated in the terminal base.
- Use shielded cabling for high-speed input signals to minimize electromagnetic interference (EMI).
- Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
- Verify that the input voltage levels match the module requirements to avoid signal errors or hardware damage.
FAQ
What is the primary function of the 1794-VHSC?
The 1794-VHSC is a specialized FLEX I/O module designed to count high-speed pulses from sensors or encoders, providing accurate data for control logic.
Is this module compatible with standard FLEX I/O bases?
Yes, it is designed for integration into the standard FLEX I/O system, allowing for modular expansion in Allen-Bradley PLC configurations.
