Description

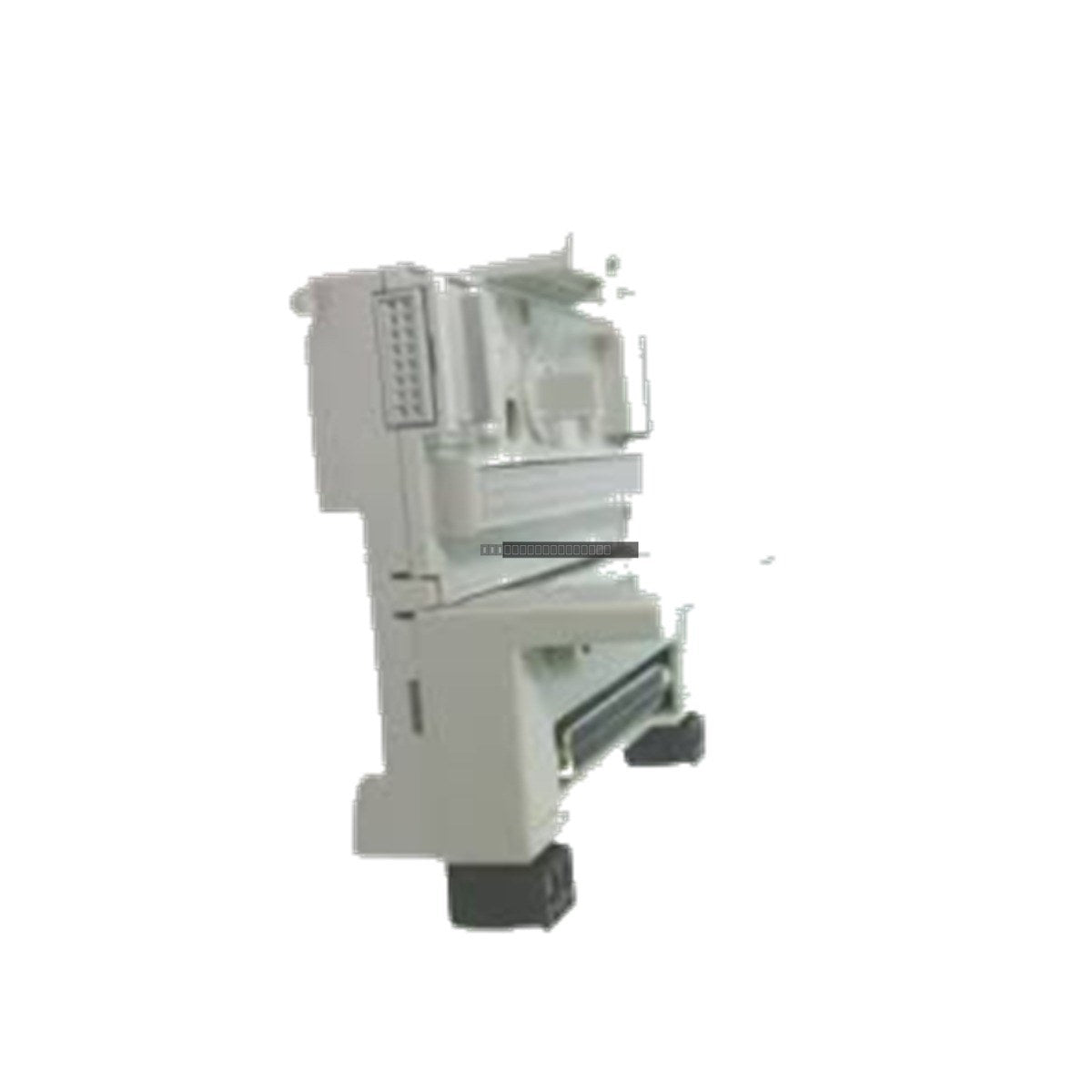

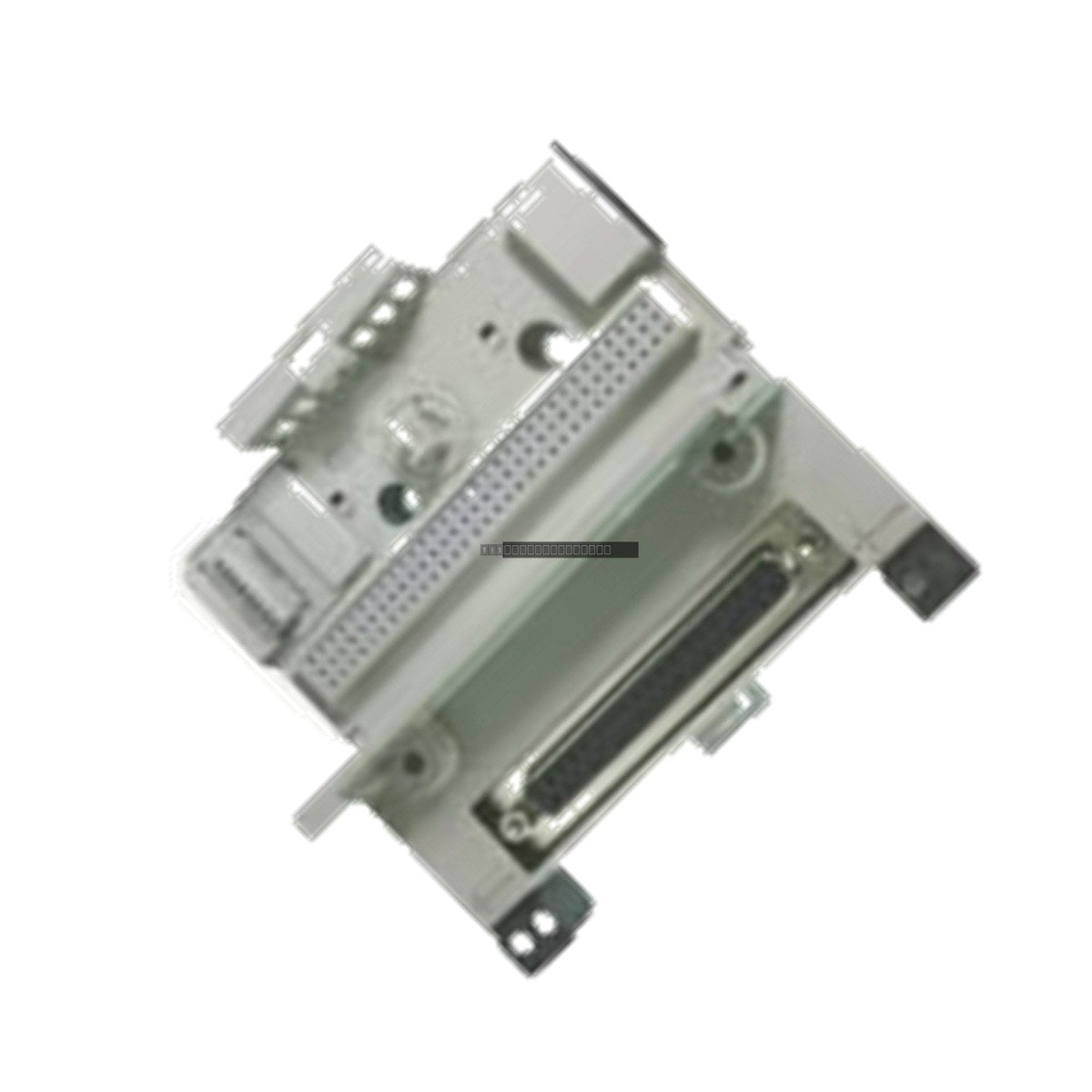

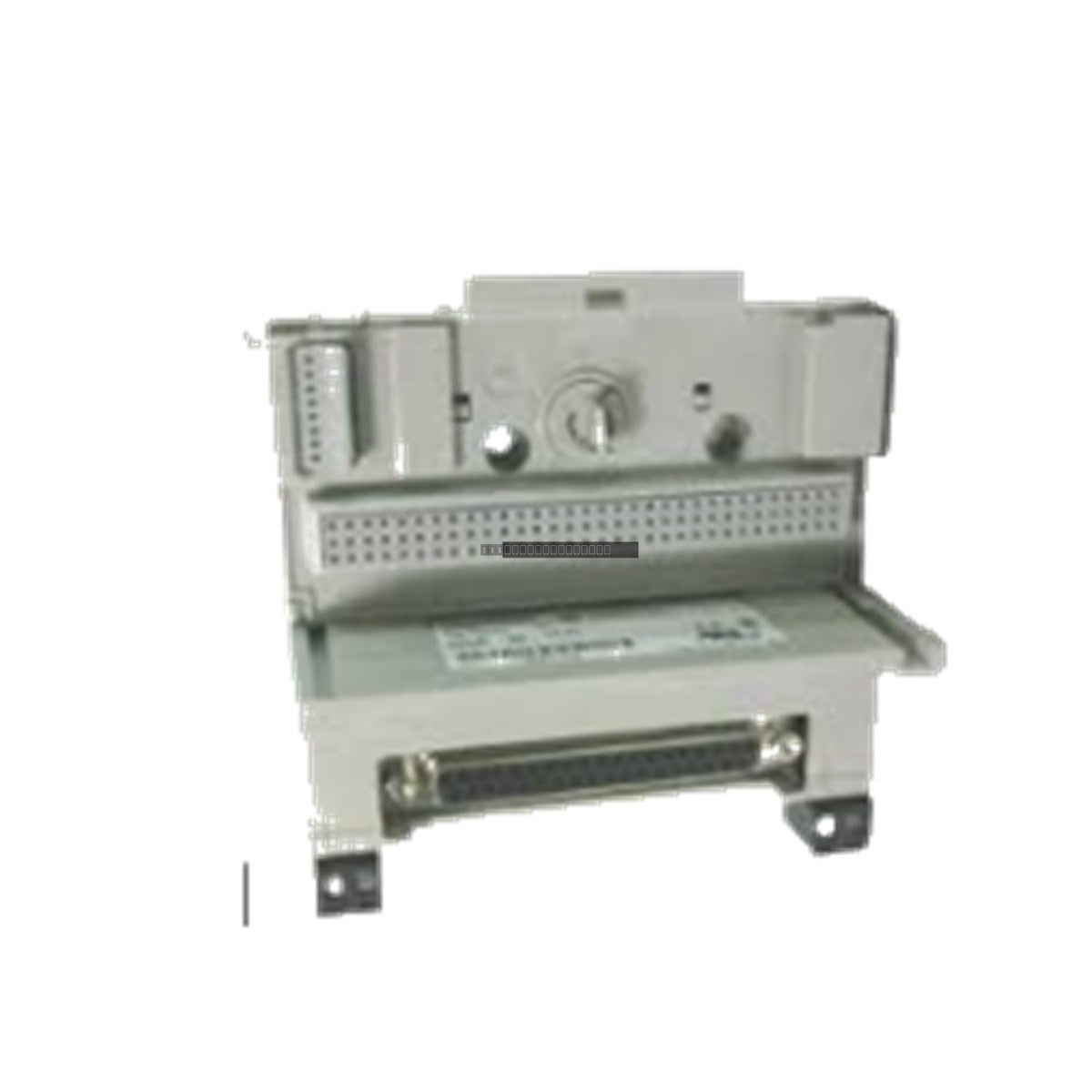

The 1794-TB37DS is a high-density 37-pin D-Shell terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit serves as the mechanical and electrical interface for Flex I/O modules, replacing traditional screw or spring-clamp terminals with a standardized DB-37 female connector. This design facilitates the use of pre-fabricated cable harnesses, significantly reducing wiring labor and minimizing potential human error during commissioning and maintenance.
Features
-
High-Density Interface: Features a 37-pin D-Sub female connector for rapid, reliable field wiring.
-
Flex I/O Compatibility: Supports both discrete digital and analog Flex I/O modules within the 1794 platform.
-
Simplified Maintenance: Enables efficient hot-swapping of modules, reducing downtime in critical automation environments.
-
Robust Power Handling: Supports a maximum aggregate current capacity of 10 A for field power distribution.
-
Mechanical Interlock: Includes a rotatable keyswitch guide to ensure correct module-to-base alignment and prevent improper installation.
Applications
The 1794-TB37DS is ideal for control cabinet applications where space is at a premium and high-density I/O connectivity is required. It is commonly used in remote marshalling panels, custom breakout board assemblies, and test sets where rapid, error-free signal routing is necessary.
Technical Specifications
| Model |
1794-TB37DS |
| Brand |
Allen-Bradley / Rockwell Automation |
| Interface |
37-Pin D-Shell (DB-37) Female |
| Max Current |
10 A Aggregate |
| Operating Temp |
0 to 55 degC (32 to 131 degF) |
| Vibration Resistance |
5 g at 10 to 500 Hz |
| Humidity |
5 to 95 percent (non-condensing) |
| Mounting |
DIN-rail or Panel Mount |
Installation Guidelines
-
Mounting: Ensure the base is securely snapped onto a standard Top-Hat DIN-rail or bolted to a flat enclosure sub-panel.
-
Wiring: Use a compatible DB-37 cable harness. Ensure the connector is fully seated and secured with mounting screws to a torque of 0.6 Nm (5.3 lb-in) for a gas-tight connection.
-
Safety: Always verify the mechanical keyswitch position matches the intended I/O module before attempting to seat the module into the base.
-
Handling: This is an open-style component; ensure it is installed within a suitable industrial enclosure to protect against environmental contaminants.
-
Power: Ensure all field power is disconnected before installing or removing any Flex I/O modules from the terminal base.
FAQ
Q: Can I use this base with any Flex I/O module?
A: The 1794-TB37DS is compatible with most 1794 Flex I/O modules, but you must ensure the mechanical keyswitch is set correctly to match the specific module type to prevent damage.
Q: What is the maximum current capacity?
A: The terminal base is rated for a maximum aggregate current of 10 A.
