Description

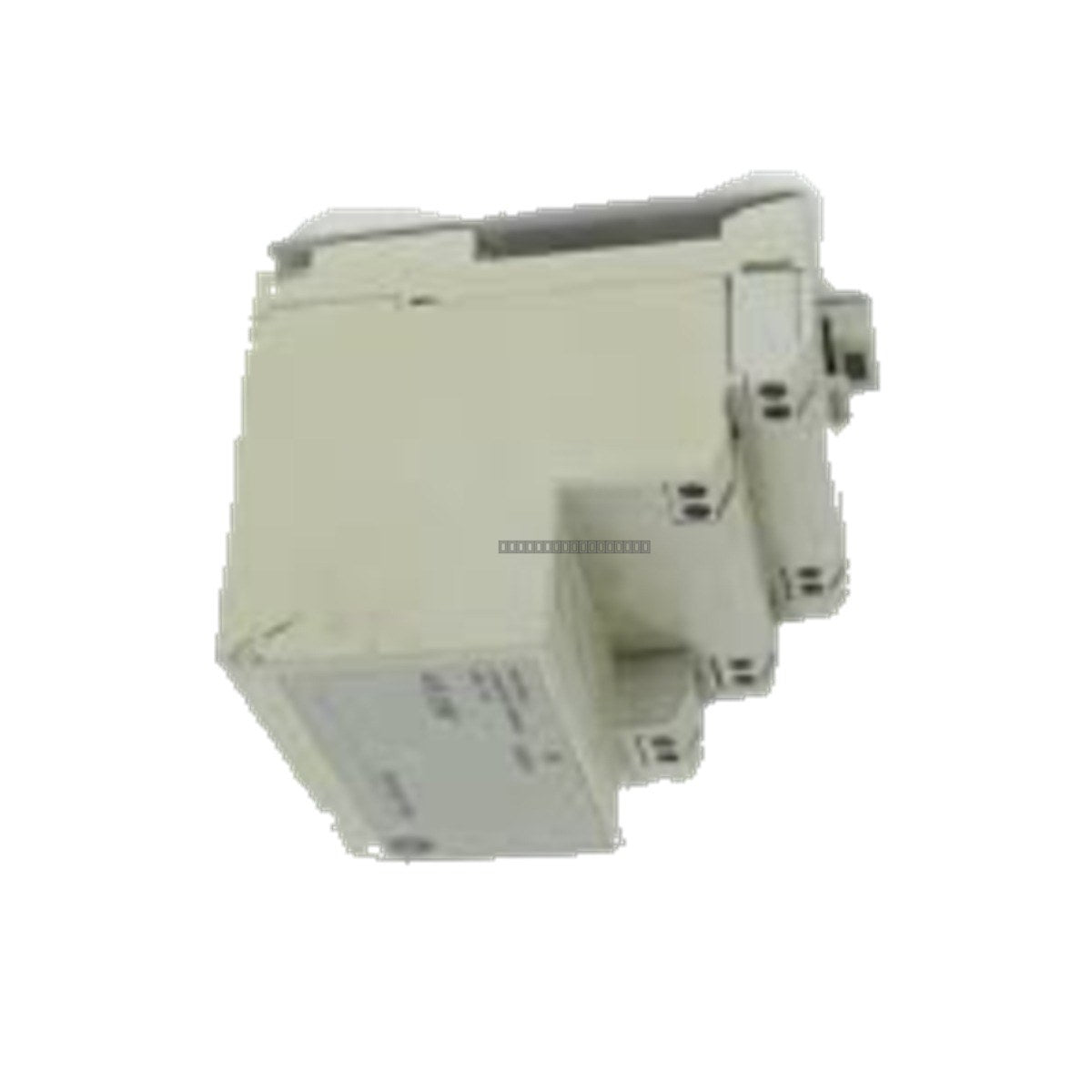

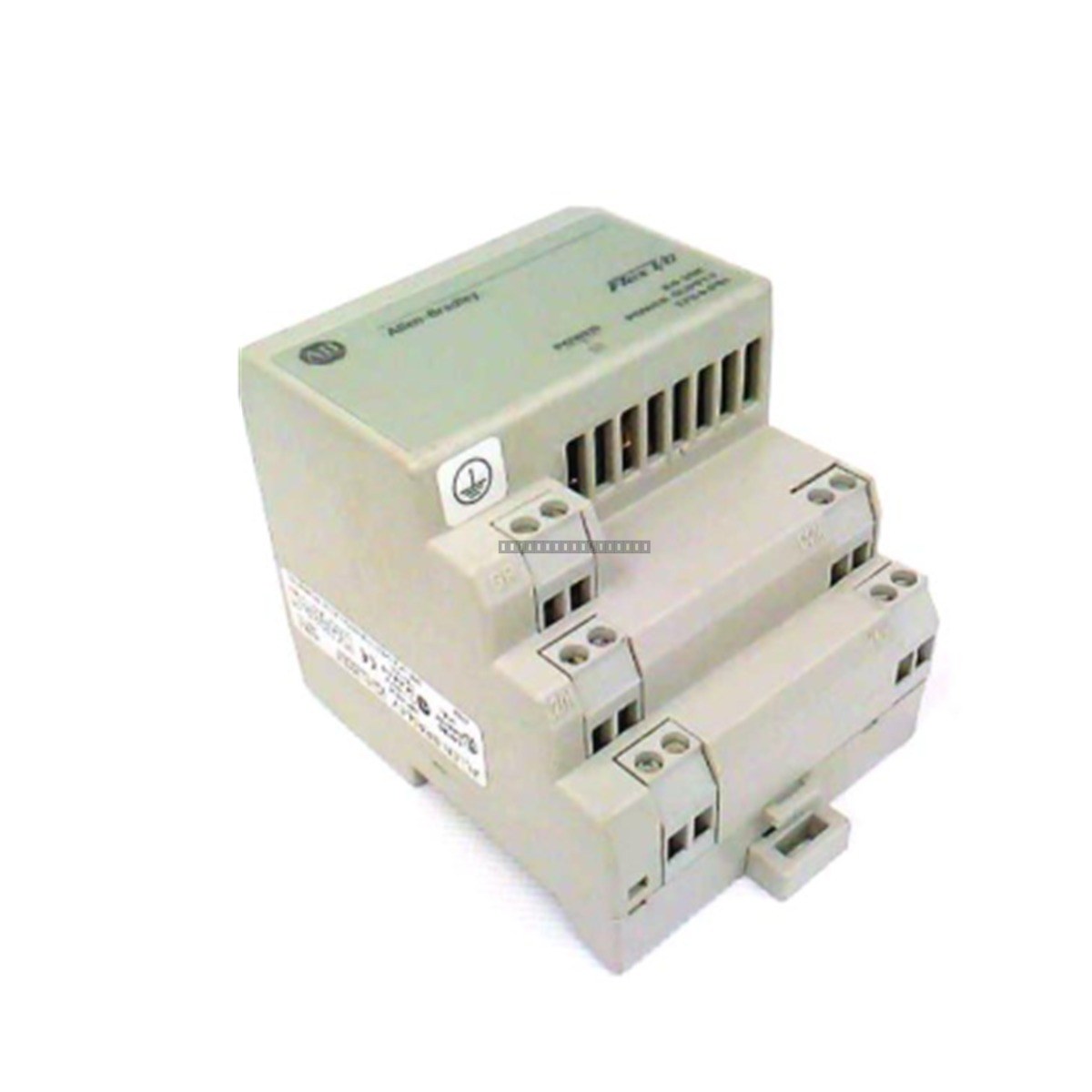

The Allen-Bradley 1794-PS13 is a robust, industrial-grade power supply module designed for the FLEX I/O distributed system. It converts standard AC line power into a regulated 24V DC output, providing essential power to FLEX I/O communication adapters and field-side circuitry. By delivering a stabilized power source, this module helps protect sensitive digital and analog signals from external power fluctuations within the I/O rack.
Features
- Wide AC input voltage range (85-264V AC) for global compatibility.
- Space-saving design for standard 35mm DIN rail mounting.
- Integrated over-voltage and over-current protection.
- Status diagnostic indicator for quick troubleshooting.
- Designed specifically for the FLEX I/O platform.
Applications
- Automotive assembly stations for pneumatic valves and sensors.
- Packaging and bottling lines requiring reliable power for conveyors and sorting gates.
- Material handling systems including palletizers and automated storage systems.
- Machine tool control, including coolant pumps and interlocks.
- Industrial HVAC control skids for dampers and fans.
Technical Specifications
| Model |
1794-PS13 |
| Input Voltage Range |
85-264V AC |
| Input Frequency |
47-63 Hz |
| Output Voltage |
24V DC |
| Output Current |
1.3 A |
| Output Power |
31.2 W |
| Max Input Current |
0.7 A |
| Overcurrent Protection |
1.4 A |
| Power Dissipation (Max) |
7 W |
Installation Guidelines
- Mounting: Hook the module onto a 35mm DIN rail and rotate it down until the locking tab snaps securely into place.
- AC Input Wiring: Connect 120/230V AC to the input terminals (A, B, C).
- DC Output Wiring: Connect the 24V DC output to the FLEX I/O adapter (Terminal G: +24V DC, Terminal H: 24V DC common).
- Daisy-Chaining: Use terminals D, E, and F to daisy-chain AC power to additional power supply modules if required.
- Ensure power is disconnected before installing or removing the module to prevent electrical shock or equipment damage.
FAQ
What is the 1794-PS13 power supply?
The 1794-PS13 is a 24V DC field power supply module within the Allen-Bradley FLEX I/O product family. It provides power to input/output devices connected to the terminal bases.
How many adapter modules can the 1794-PS13 power?
It provides sufficient 24V DC power to operate up to 4 adapter modules, though it is not designed to power an entire large FLEX I/O system.
What is the output power and current?
It has a nominal output of 24V DC, a maximum output current of 1.3 A, and an output power of 31.2 Watts.
What is the input voltage range of the 1794-PS13?
This module accepts a wide input voltage range of 85–264V AC, 47–63 Hz, suitable for global applications.
