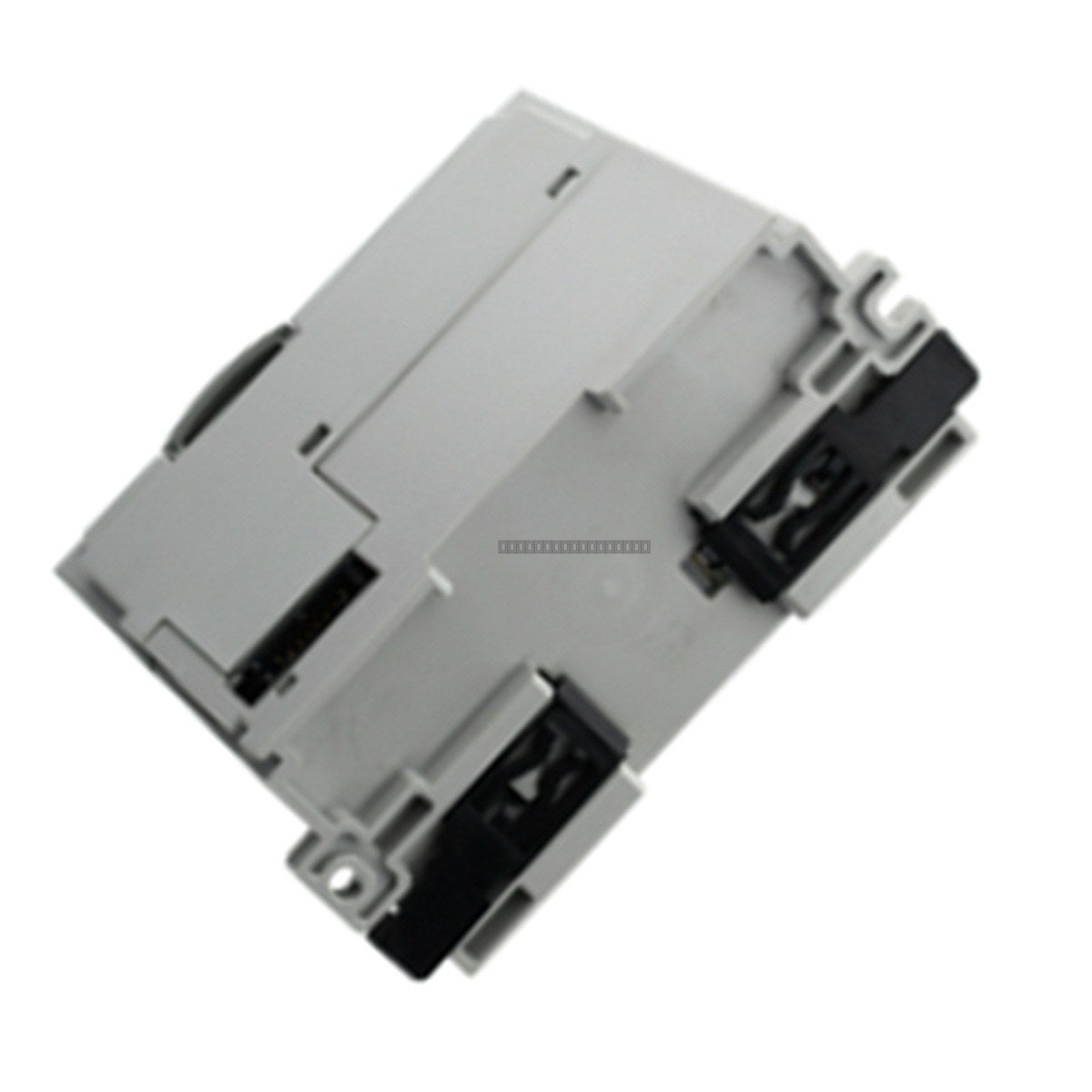

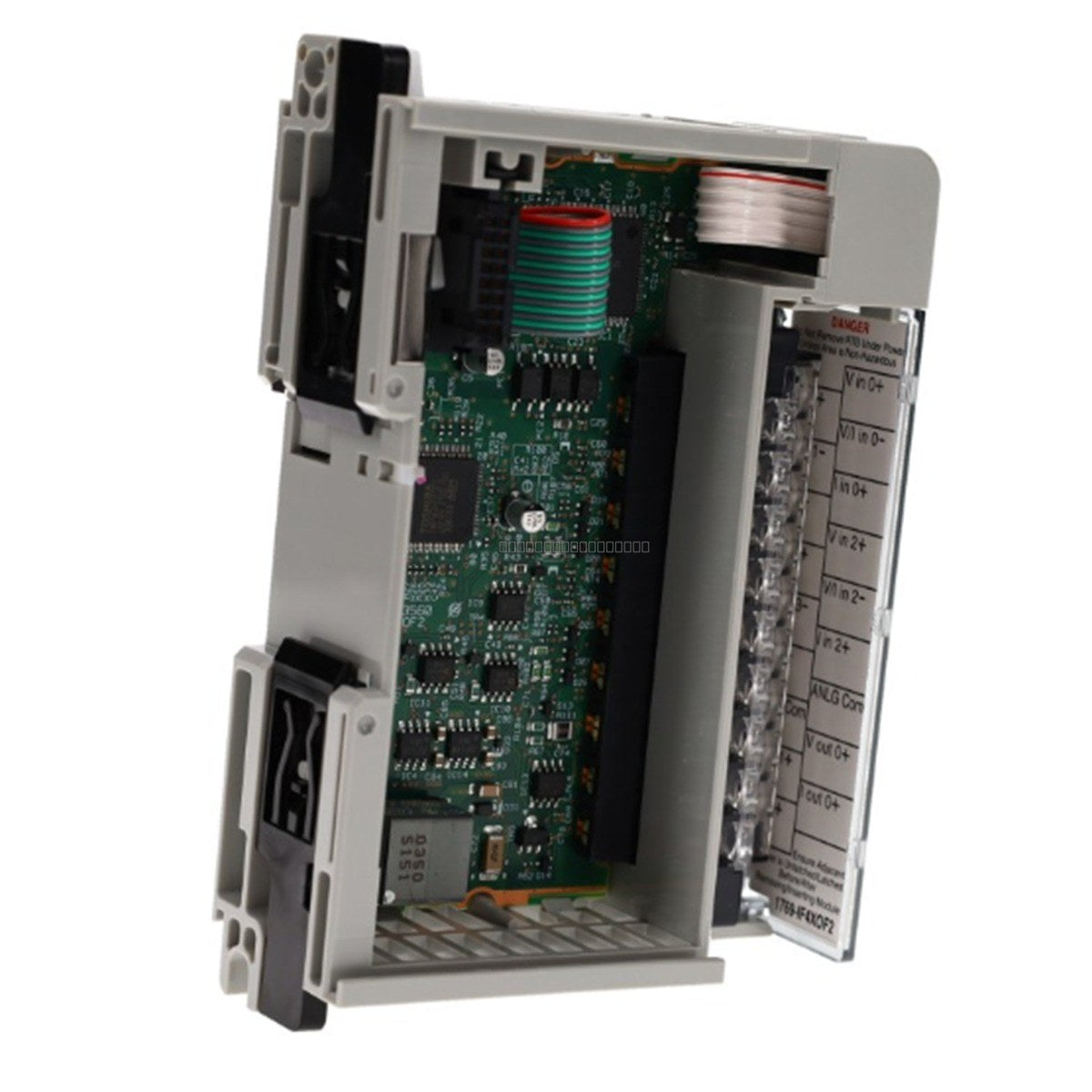

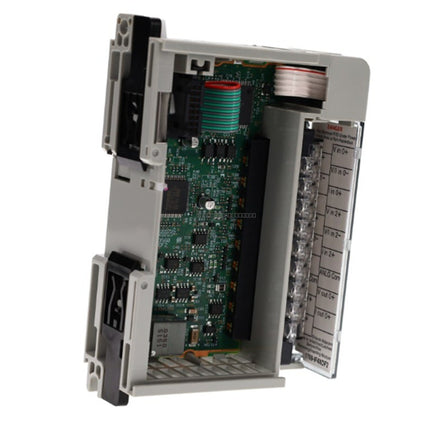

The Allen-Bradley 1769sc-IF8u is a high-performance Universal Analog Input Module designed for integration with the CompactLogix and MicroLogix 1500 controller platforms. This module provides versatile signal processing capabilities, allowing users to interface with a wide range of analog sensors and transmitters within an industrial automation environment. As part of the 1769 Compact I/O series, it is engineered to deliver precise data acquisition for complex control loops and monitoring tasks.
Features
- Universal input support for various analog signal types, including voltage and current configurations.
- High-resolution analog-to-digital conversion for accurate process monitoring.
- Seamless integration with the 1769 Compact I/O backplane for rapid data exchange.
- Compact form factor optimized for space-constrained control cabinets.
- Designed for reliable operation in demanding industrial environments.
Applications
This module is suitable for a variety of industrial applications, including process control, temperature monitoring, pressure sensing, and flow measurement. It is commonly used in manufacturing, water treatment, and material handling systems where flexible analog input signal handling is required.
Installation Guidelines
- Ensure the controller power is disconnected before installing or removing the module from the I/O rack.
- Mount the module securely on a DIN rail or panel according to standard 1769 Compact I/O mounting procedures.
- Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and noise.
- Ensure proper grounding of the cable shields at the signal source or the module end, depending on the specific application requirements.
- Maintain adequate clearance around the module to facilitate proper ventilation and heat dissipation.
- Verify that the power supply distance rating is not exceeded when adding this module to an existing I/O bank.
FAQ
What is the primary function of the 1769sc-IF8u?
The 1769sc-IF8u serves as a universal analog input module, converting analog signals from field devices into digital data that can be processed by the CompactLogix or MicroLogix 1500 controller.
Is this module compatible with all CompactLogix systems?
The 1769sc-IF8u is designed for the 1769 Compact I/O platform. Please verify your specific controller's compatibility and power supply loading capacity before installation.
