Description
Description

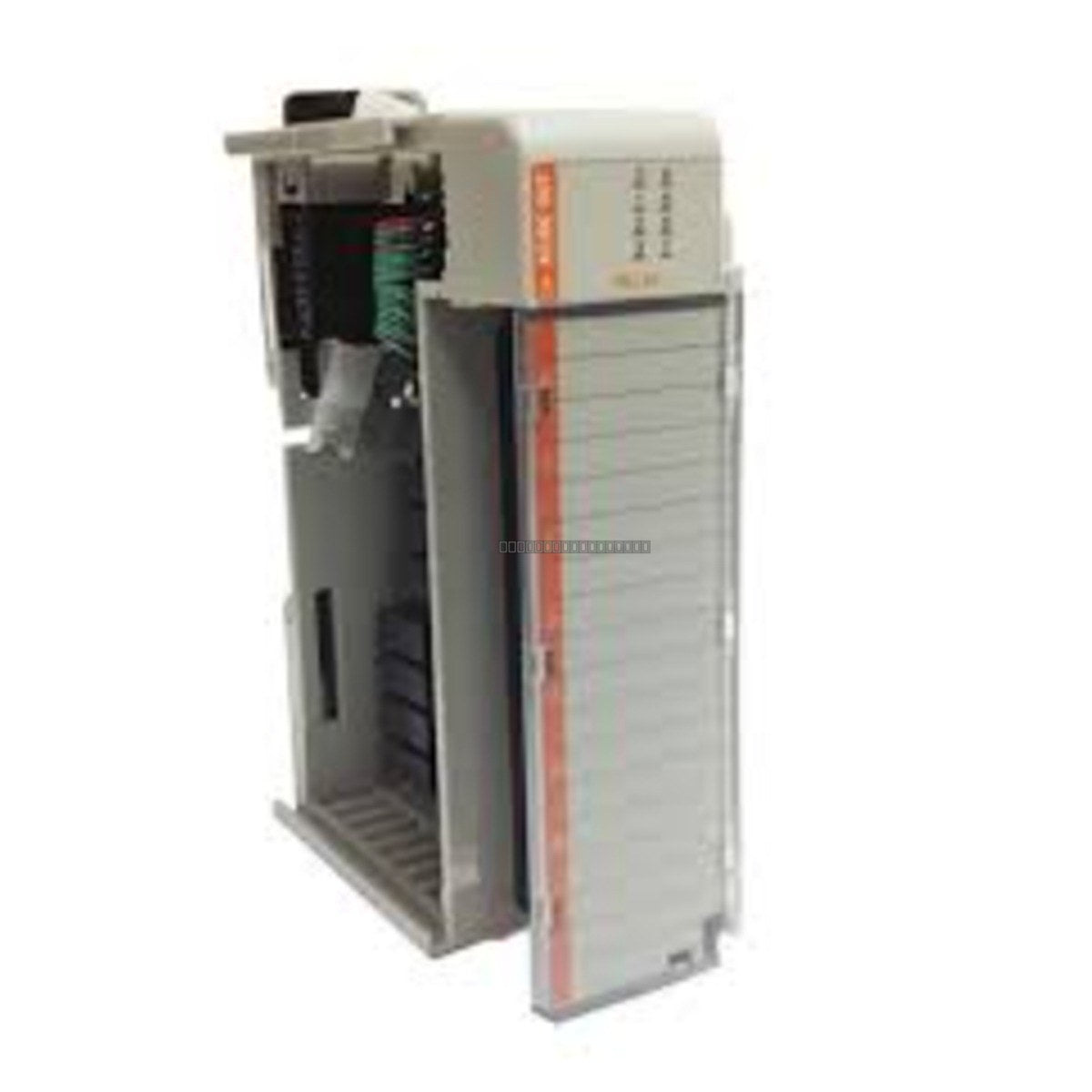

The Allen-Bradley 1769-OW8 is a high-performance discrete output module designed for the CompactLogix controller platform. This module provides eight (8) relay output points, allowing for the control of a wide variety of industrial devices. It is engineered to bridge the gap between low-voltage controller logic and higher-voltage field devices, supporting an operating voltage range of 5 to 265V AC or 5 to 125V DC.
Features
- Eight (8) independent relay output channels for flexible control applications.
- Wide operating voltage range compatible with both AC and DC field circuits.
- Compact form factor designed for seamless integration into CompactLogix I/O systems.
- Low bus current draw of 125 mA at 5.1V.
- Supports standard copper wiring (90 degrees Celsius rating).
Technical Specifications
| Product Model |
1769-OW8 |
| Product Line |
CompactLogix |
| Module Type |
Relay Output Module |
| Number of Outputs |
8 |
| Operating Voltage Range |
5 to 265V AC / 5 to 125V DC |
| Signal Delay (On) |
10 ms |
| Bus Current Draw (5.1V) |
125 mA |
| Power Supply Distance Rating |
8 |
| Wire Size (Solid) |
22 to 14 AWG |
| Wire Size (Stranded) |
22 to 16 AWG |
| Wire Type |
Copper-90 degC |
Installation Guidelines
- Ensure the controller and I/O power are disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
- Mount the module on a standard DIN rail or panel mount as per CompactLogix system requirements.
- Use appropriate wire gauges (22-14 AWG solid or 22-16 AWG stranded) and ensure all connections are tightened to the manufacturer's torque specifications.
- Maintain proper clearance for ventilation to prevent overheating, as the module relies on passive cooling.
- Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to ensure signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
What is the primary function of the 1769-OW8 module?
The 1769-OW8 is a relay output module used to interface a CompactLogix controller with field devices. It provides isolated relay contacts that can switch AC or DC loads, making it suitable for driving actuators, contactors, or other control elements.
Can this module be used with both AC and DC voltages?
Yes, the 1769-OW8 is versatile and supports an operating range of 5 to 265V AC and 5 to 125V DC, allowing it to be used in diverse industrial environments.
