Description

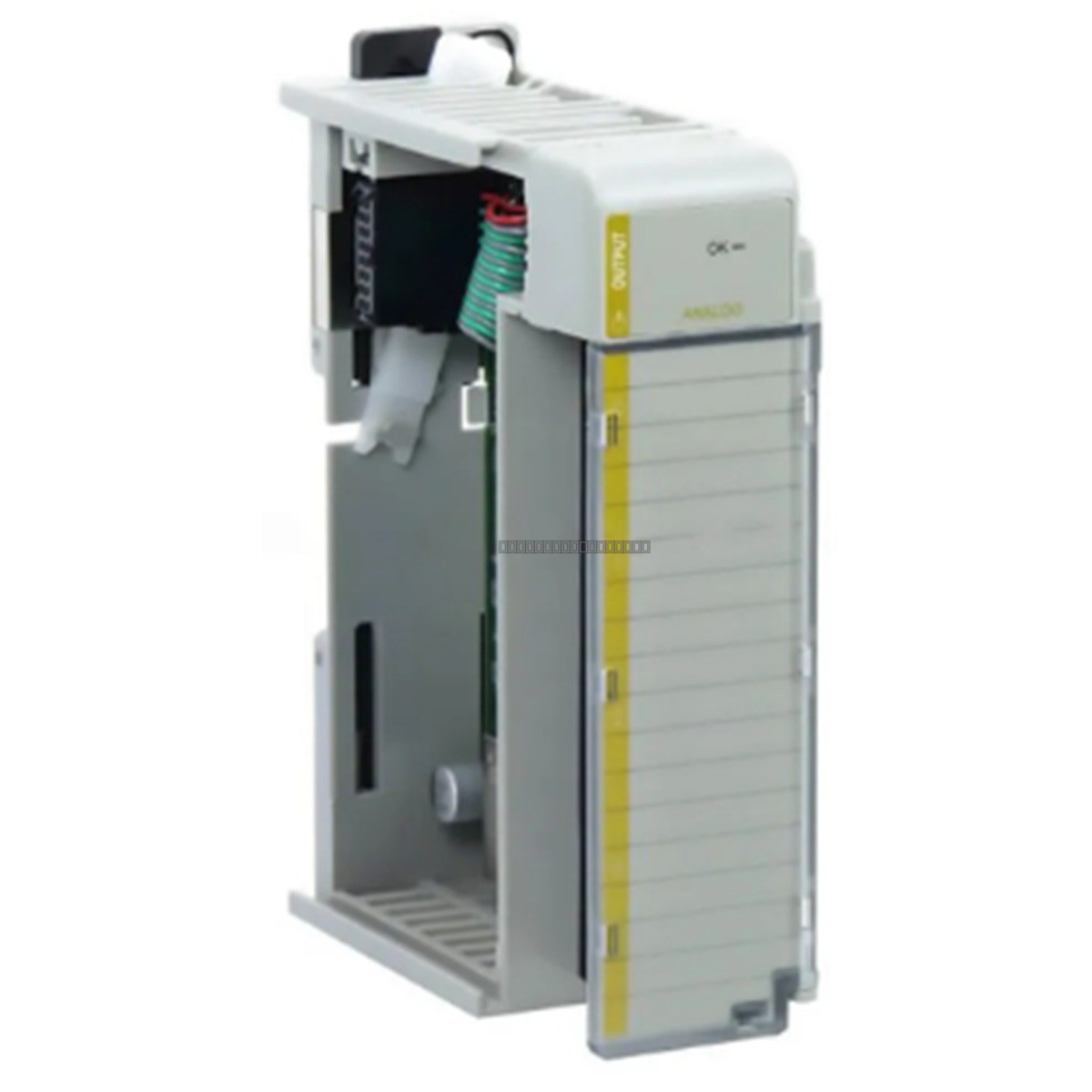

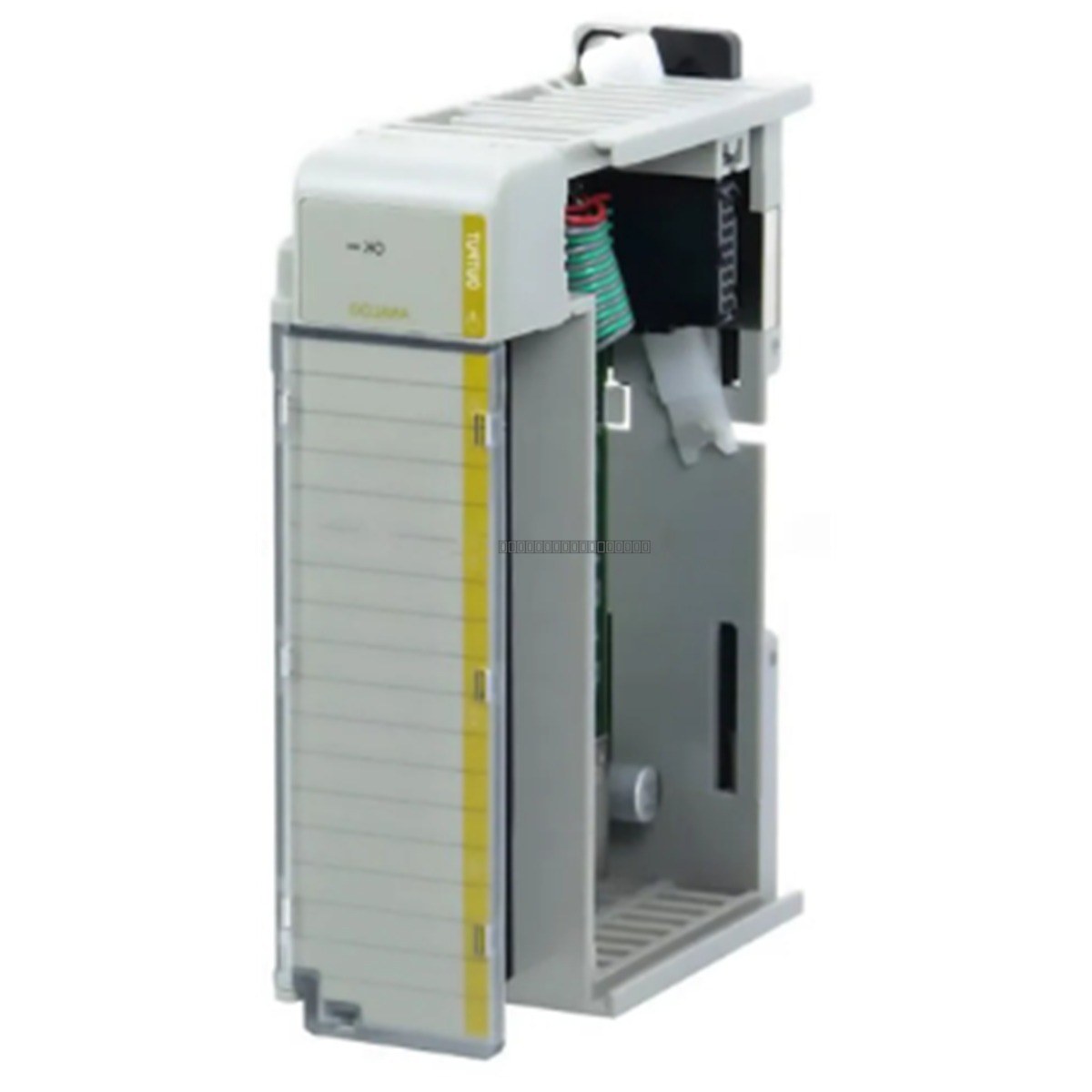

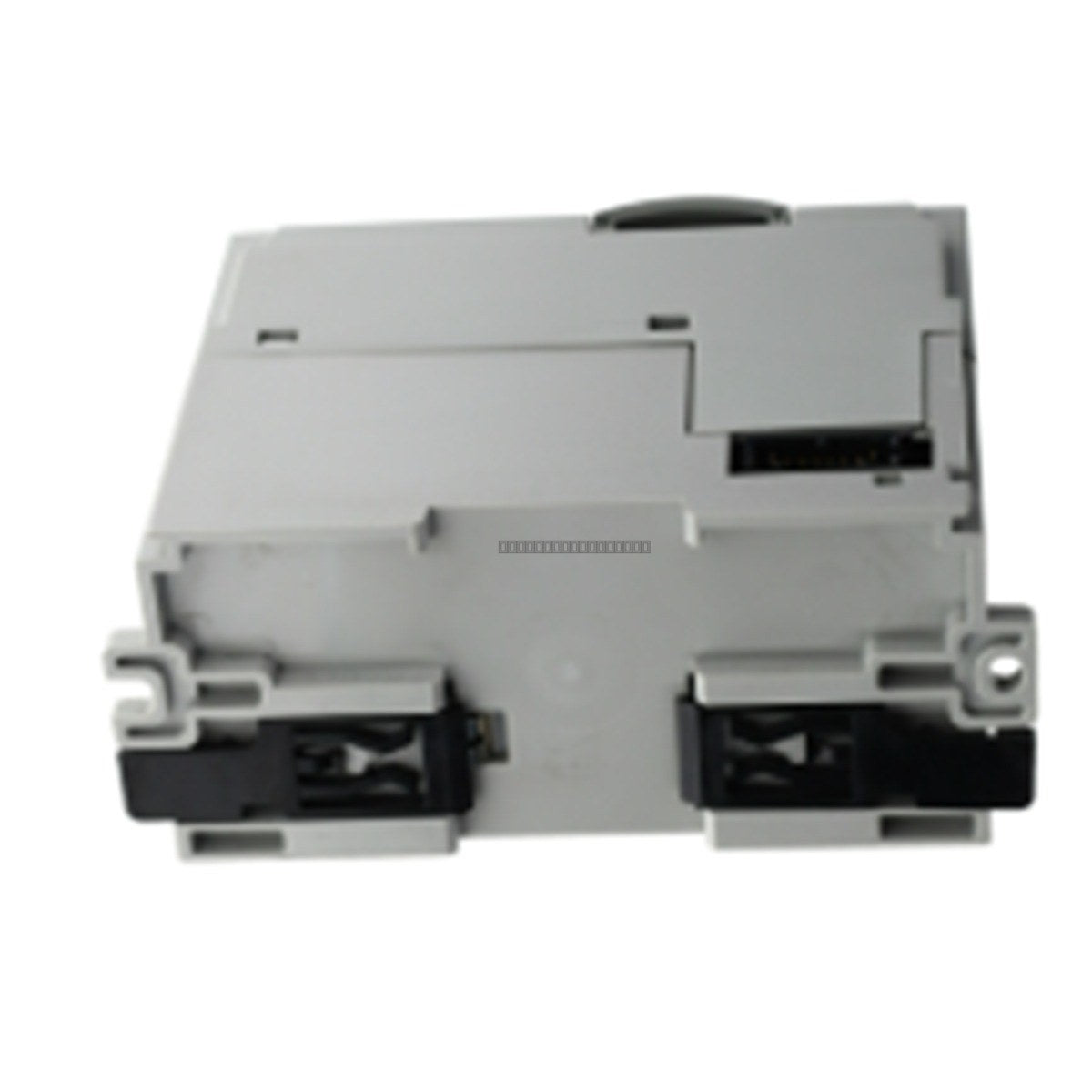

The Allen-Bradley 1769-OF4CI is a high-performance analog output module designed for the CompactLogix and MicroLogix 1500 control systems. As part of the Compact I/O product family, this module provides four isolated current output channels, ensuring reliable signal transmission in industrial environments where electrical noise or ground loops may be present. It is engineered to deliver precise control for actuators, valves, and other current-driven field devices.
Features
- Four isolated current output channels for enhanced signal integrity.
- Supports standard current ranges: 0 to 20 mA and 4 to 20 mA.
- Flexible data formatting including Raw/Proportional, Engineering Units, Scaled for PID, and Percent Full Range.
- Compatible with CompactLogix and MicroLogix 1500 platforms.
- No field calibration required, reducing maintenance overhead.
- Supports Series A and B hardware revisions.
Applications
This module is ideal for industrial automation tasks requiring precise analog control, such as:
- Proportional valve control in process industries.
- Variable frequency drive (VFD) speed reference signals.
- Data logging and chart recording for current-based instrumentation.
- PID loop control applications where isolation is required to prevent ground loops.
Technical Specifications
| Model |
1769-OF4CI |
| Module Type |
Isolated Analog Current Output |
| Number of Channels |
4 |
| Current Output Ranges |
0 to 20 mA, 4 to 20 mA |
| Full Scale Current Ranges |
0 to 21 mA, 3.2 to 21 mA |
| Non-linearity |
+/- 0.05% full scale |
| Power Supply Distance Rating |
8 |
| Wire Size (Stranded) |
22 to 16 AWG |
| Data Formats |
Raw/Proportional, Engineering, Scaled for PID, Percent Full Range |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the DIN rail or panel.
- The module must be mounted in a clean, dry environment within the specified operating temperature range.
- Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
- Ground the cable shield at one end only to prevent ground loops.
- Maintain proper clearance for ventilation to ensure adequate cooling of the I/O rack.
- Verify that the power supply distance rating is observed during system configuration to ensure sufficient backplane power.
FAQ
Does this module require field calibration?
No, the 1769-OF4CI does not require field calibration. It is factory-calibrated to meet its specified accuracy standards.
Can this module be used with both CompactLogix and MicroLogix systems?
Yes, the 1769-OF4CI is compatible with both the CompactLogix platform and the MicroLogix 1500 controller series.
What is the benefit of the isolated channels?
The isolated design protects the module and the controller from electrical noise and potential ground loops that can occur when connecting to multiple field devices with different ground potentials.
