Description

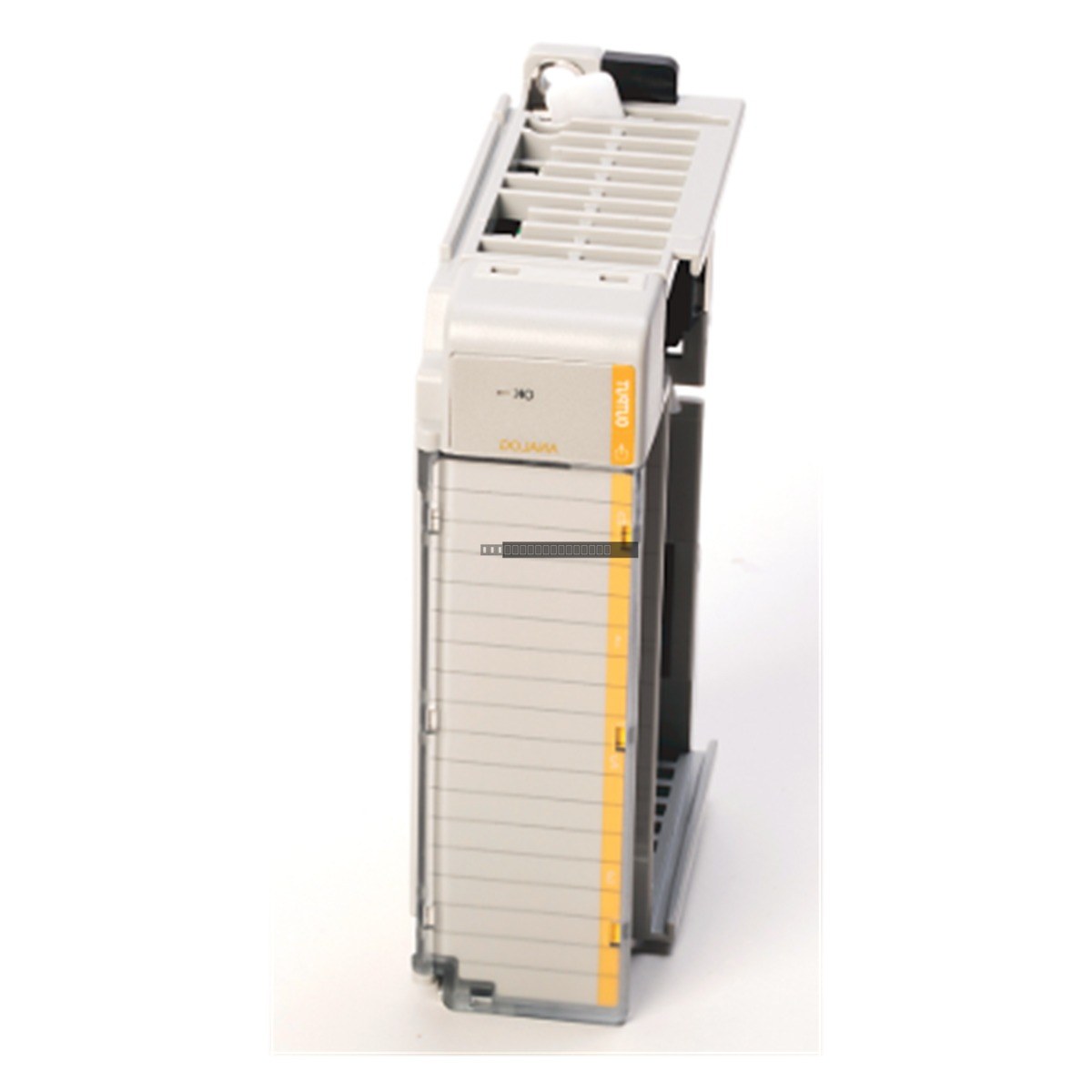

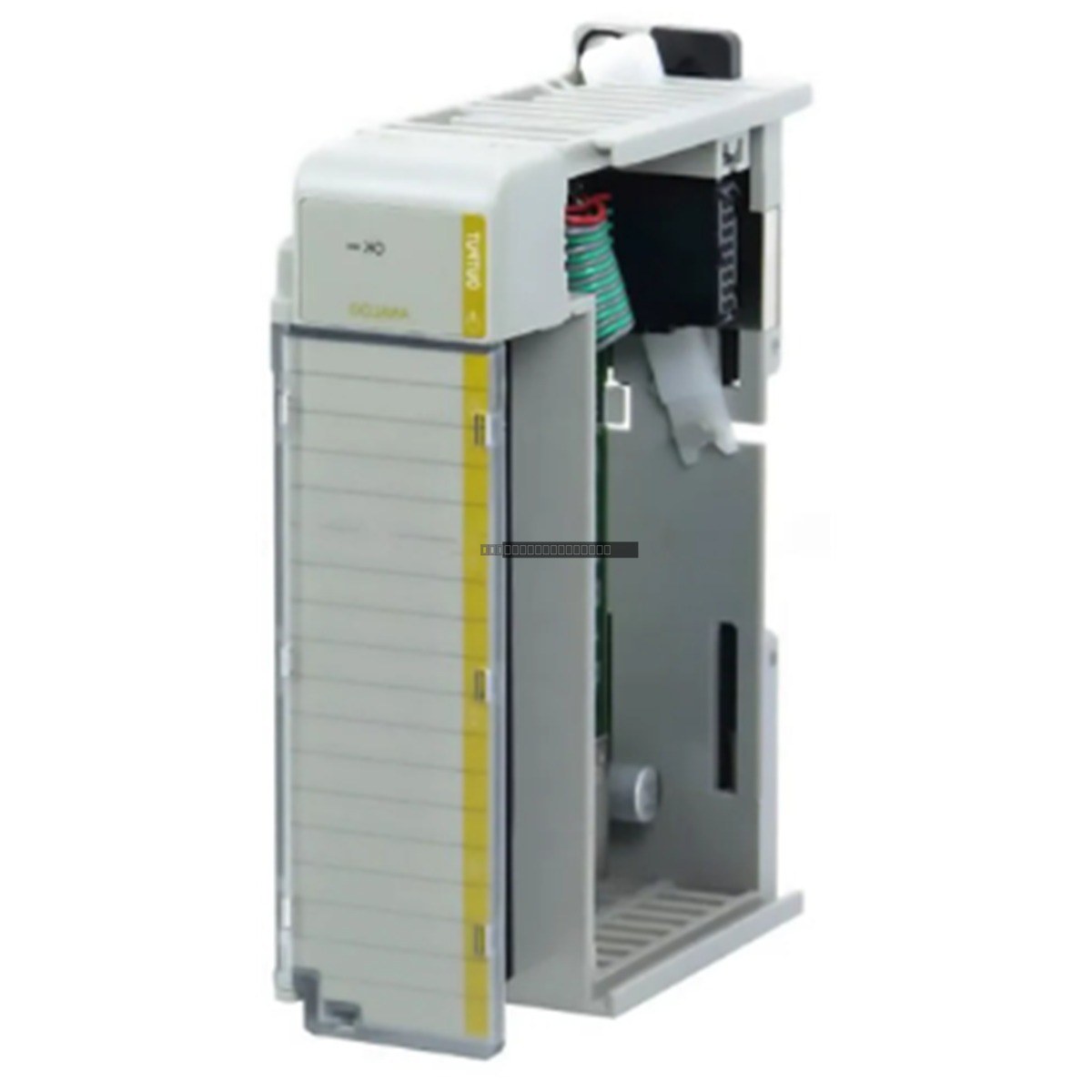

The Allen-Bradley 1769-OF4 is a Compact I/O analog output module designed for use within the CompactLogix or MicroLogix 1500 controller systems. This module provides four single-ended analog output channels, capable of delivering either voltage or current signals to field devices such as actuators, valves, or variable frequency drives. It features 16-bit resolution, ensuring high-precision control for industrial automation applications.
Features
- Four isolated analog output channels
- Selectable output ranges for voltage and current (0-20 mA)
- High 16-bit resolution for accurate signal generation
- Compact form factor for space-constrained control cabinets
- Compatible with CompactLogix and MicroLogix 1500 platforms
- Integrated screw terminal connections for secure field wiring
Technical Specifications
| Product Model |
1769-OF4 |
| Number of Channels |
4 |
| Output Type |
Voltage / Current (0-20 mA) |
| Resolution |
16-bit |
| Conversion Rate |
2.5 ms |
| Current Draw @ 5.1V |
120 mA |
| Current Draw @ 24V |
170 mA |
| Operating Voltage |
24 VDC |
| Wire Size (Solid) |
22 to 14 AWG |
| Wire Size (Stranded) |
22 to 16 AWG |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the I/O bus.
- Mount the module on a standard DIN rail or directly to a panel using the integrated mounting tabs.
- Use copper conductors only for all field wiring to ensure proper electrical conductivity and compliance.
- Maintain proper grounding practices to minimize electromagnetic interference (EMI).
- Ensure adequate ventilation in the control cabinet to prevent overheating during operation.
- Verify that the wire gauge used is within the specified 22-14 AWG range for solid wire or 22-16 AWG for stranded wire.
FAQ
What is the primary function of the 1769-OF4 module?
The 1769-OF4 is an analog output module used to convert digital data from a PLC processor into analog voltage or current signals to control external field devices.
Can this module be used with both CompactLogix and MicroLogix systems?
Yes, the 1769-OF4 is designed to be compatible with both the Allen-Bradley CompactLogix and MicroLogix 1500 controller series.
What type of wiring is required for this module?
The module requires copper wiring. Please ensure that solid wires are between 22 and 14 AWG, and stranded wires are between 22 and 16 AWG.
