Description

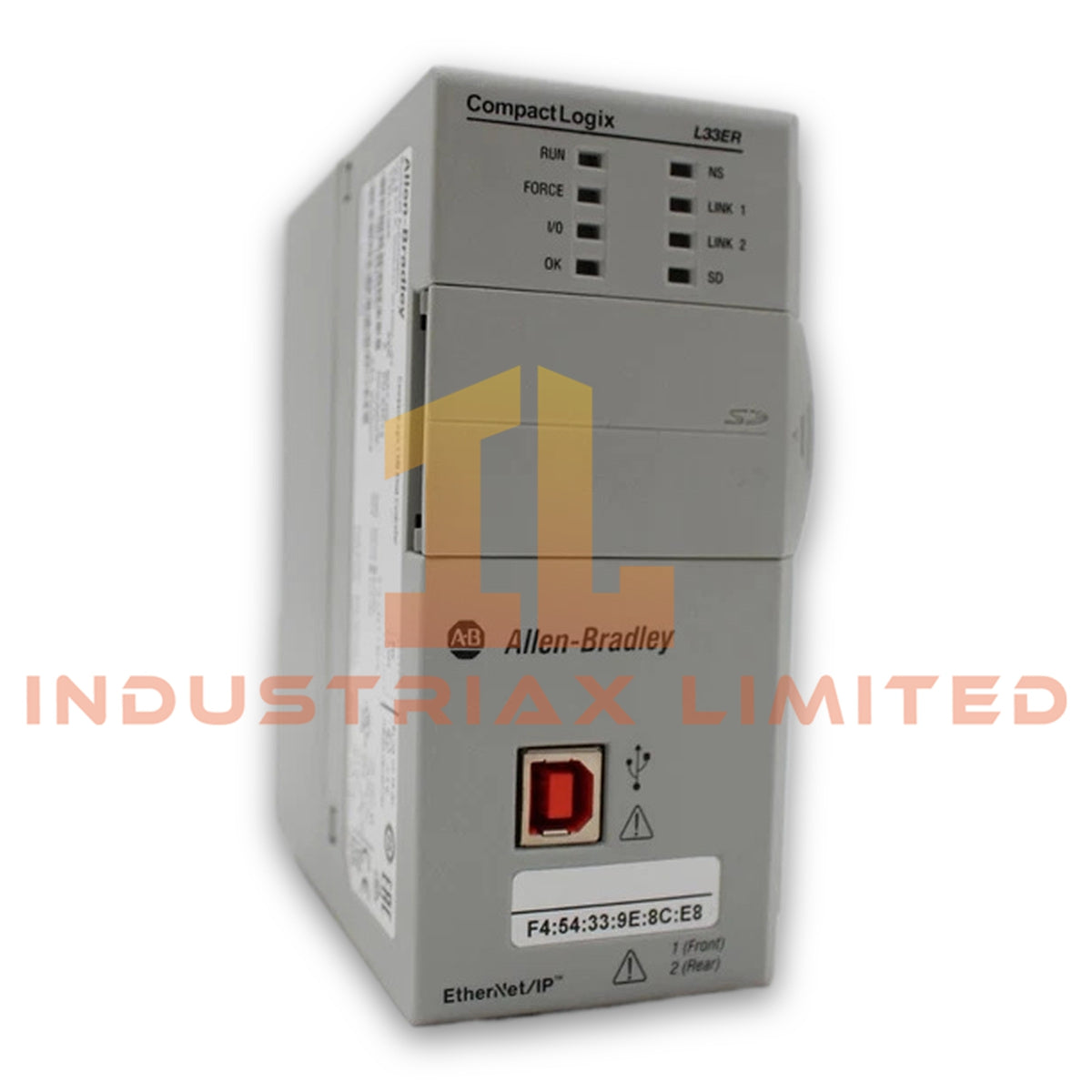

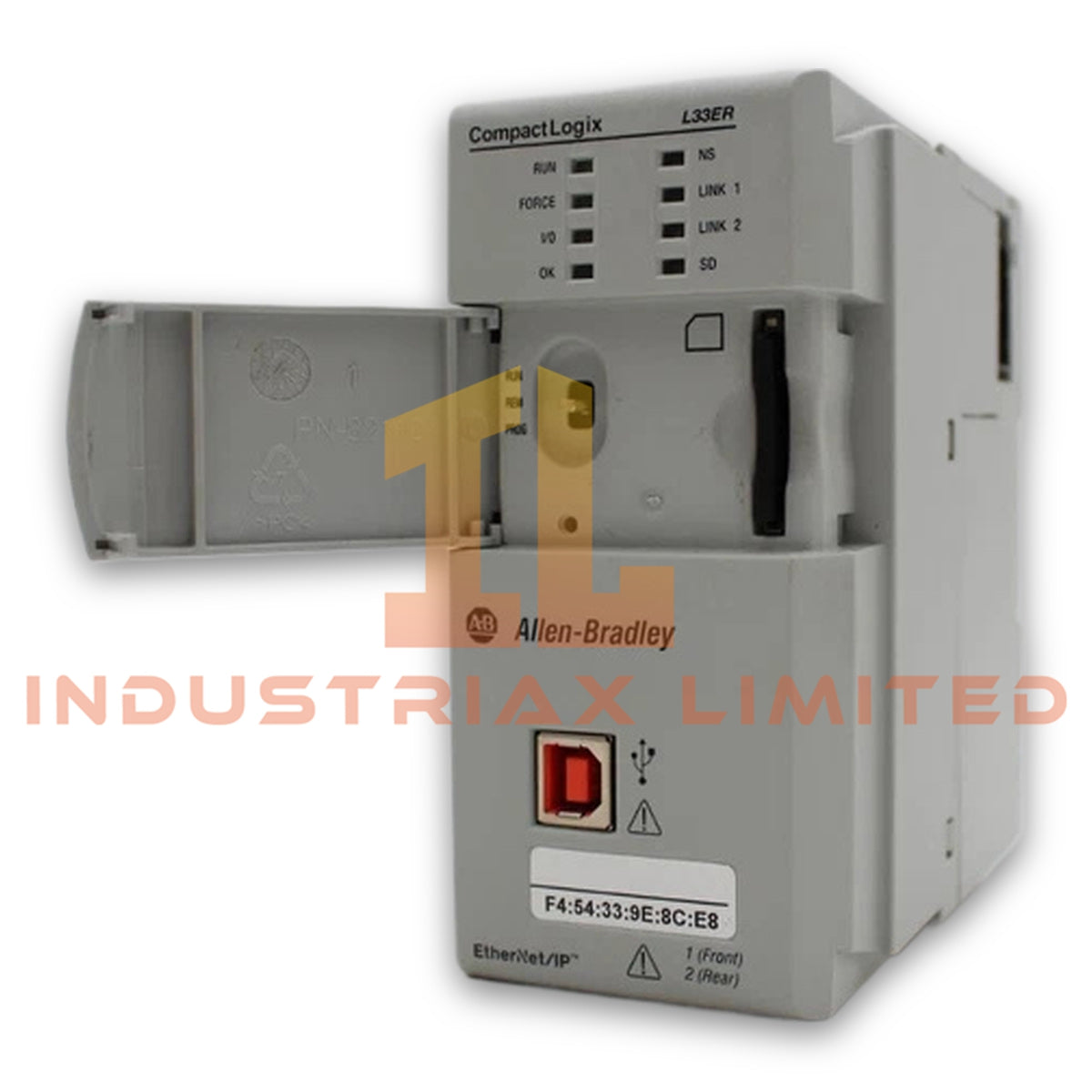

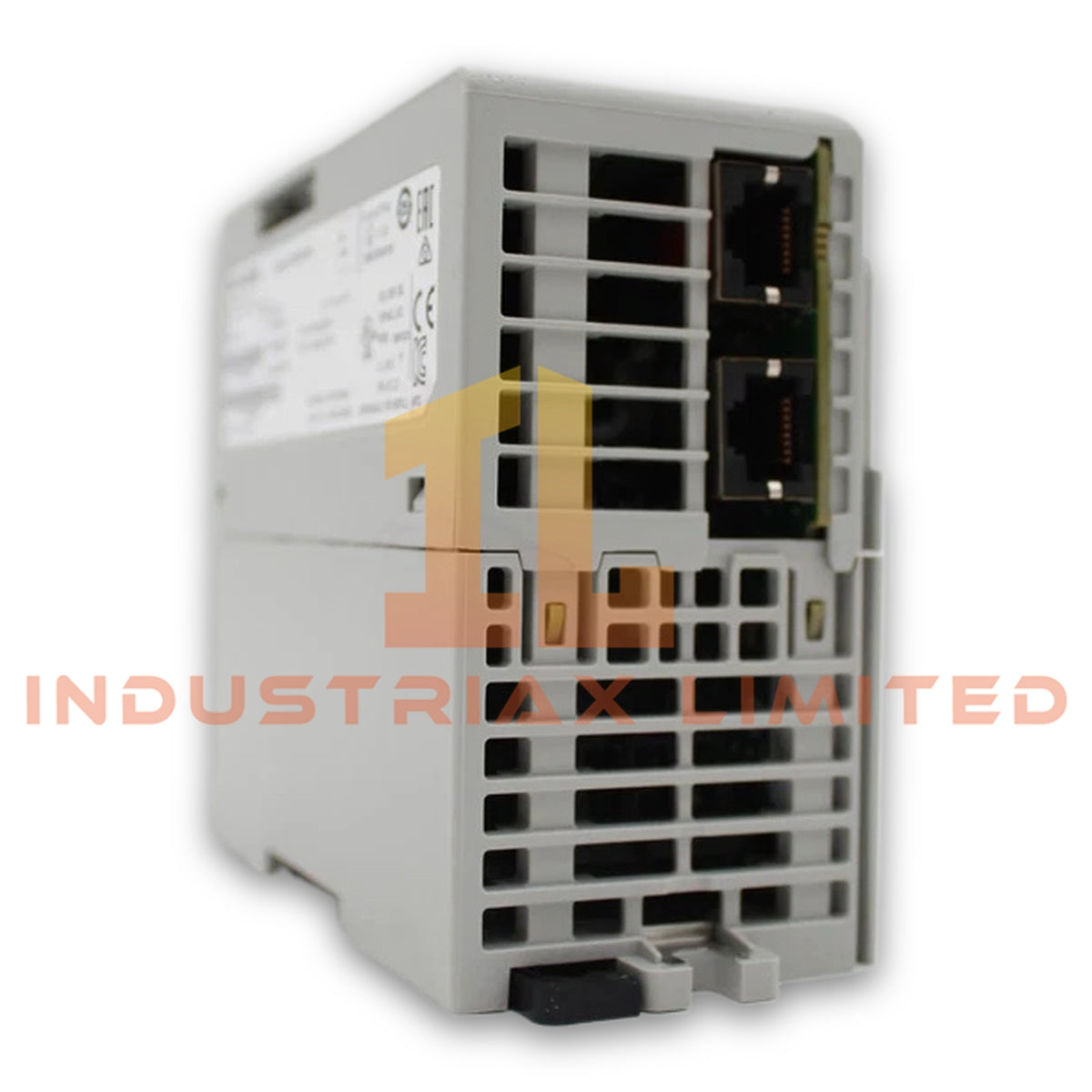

Allen Bradley 1769-L33ER CompactLogix Programmable Automation Controller

The Allen Bradley 1769-L33ER, also cataloged as the 1769-L33ER Programmable Automation Controller, operates as a dedicated hardware component for executing logic processing and EtherNet/IP communication tasks within CompactLogix control platforms.

Hardware Specifications

Parameter	Specification
Model	1769-L33ER
Brand	Allen Bradley
Origin	USA
Product Type	Programmable Automation Controller
Product Line	CompactLogix
Weight	0.45 kg (1.00 lbs)
Operating Temp	0 to 60 deg C
Power Consumption	Not specified by manufacturer
Local Modules Supported	Up to 16 modules
Expansion Banks Supported	2 banks
Memory Capacity	2 MB
Communication Ports	1 USB port and 1 Ethernet port
Supported Protocol	EtherNet/IP
Tasks	32 tasks
Programs per Task	100 programs
Mounting Options	DIN rail mounting and panel mounting
Vibration Rating	Operating: 10 to 500 Hz; 0.030 in. peak-to-peak

EtherNet/IP and CompactLogix Control Architecture

The 1769-L33ER controller uses the CompactLogix backplane communication structure to exchange data with local I/O modules. It supports EtherNet/IP communication through the integrated Ethernet interface, while the USB port provides local programming and diagnostic access.

Furthermore, the controller supports modular I/O density scaling with up to 16 local modules and two expansion banks. The architecture allows engineers to configure distributed control systems while maintaining direct processor access to connected modules.

The controller provides firmware compatibility within the CompactLogix platform and manages application execution through a structured task and program organization. It supports deterministic EtherNet/IP networks for industrial control communication between controllers, I/O devices, and automation components.

Frequently Asked Questions

Q: Does the 1769-L33ER support hot-swapping of connected I/O modules?
A: No. The controller does not support hot-swapping of CompactLogix I/O modules. Power must be removed before installing or removing hardware components.

Q: What communication interfaces are integrated into the 1769-L33ER?
A: The controller includes one Ethernet port for EtherNet/IP communication and one USB port for local programming and maintenance operations.

Q: How does the controller manage application execution?
A: The 1769-L33ER manages control logic through up to 32 tasks, with each task supporting up to 100 programs.

Field Installation Guidelines

Install the 1769-L33ER on a properly grounded DIN rail or panel mounting surface according to CompactLogix installation requirements.

Maintain correct module alignment when connecting local I/O modules to the controller. Verify that the backplane connection is fully engaged before applying system power.

Route Ethernet communication cables separately from high-voltage power wiring to reduce electromagnetic interference. Use proper cable shielding and grounding practices for industrial Ethernet networks.

Before commissioning, verify firmware compatibility between the controller, connected I/O modules, and engineering software environment. Confirm network addressing and EtherNet/IP communication parameters before placing the control system into operation.

Specifications

• Brand: Allen Bradley

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
