Description

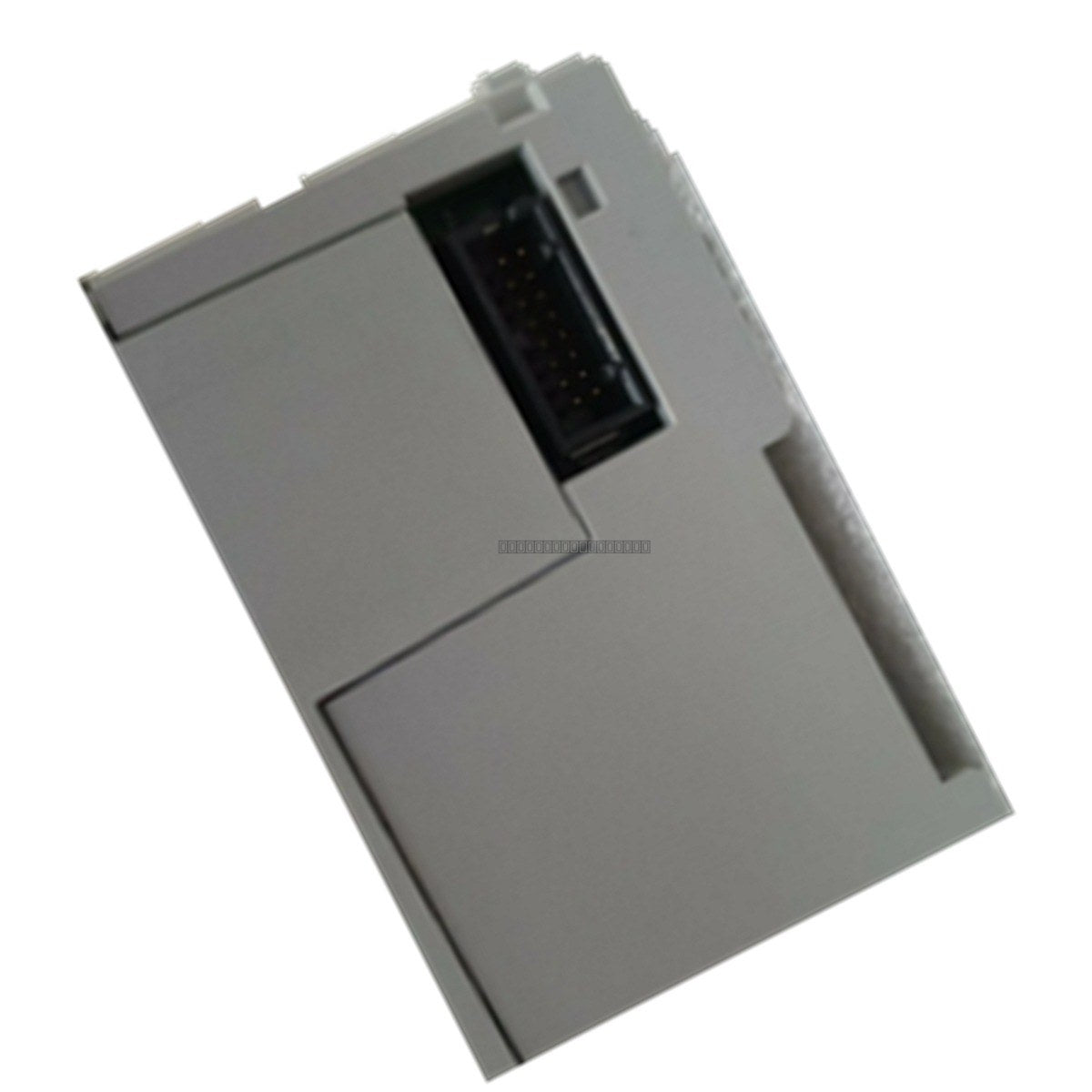

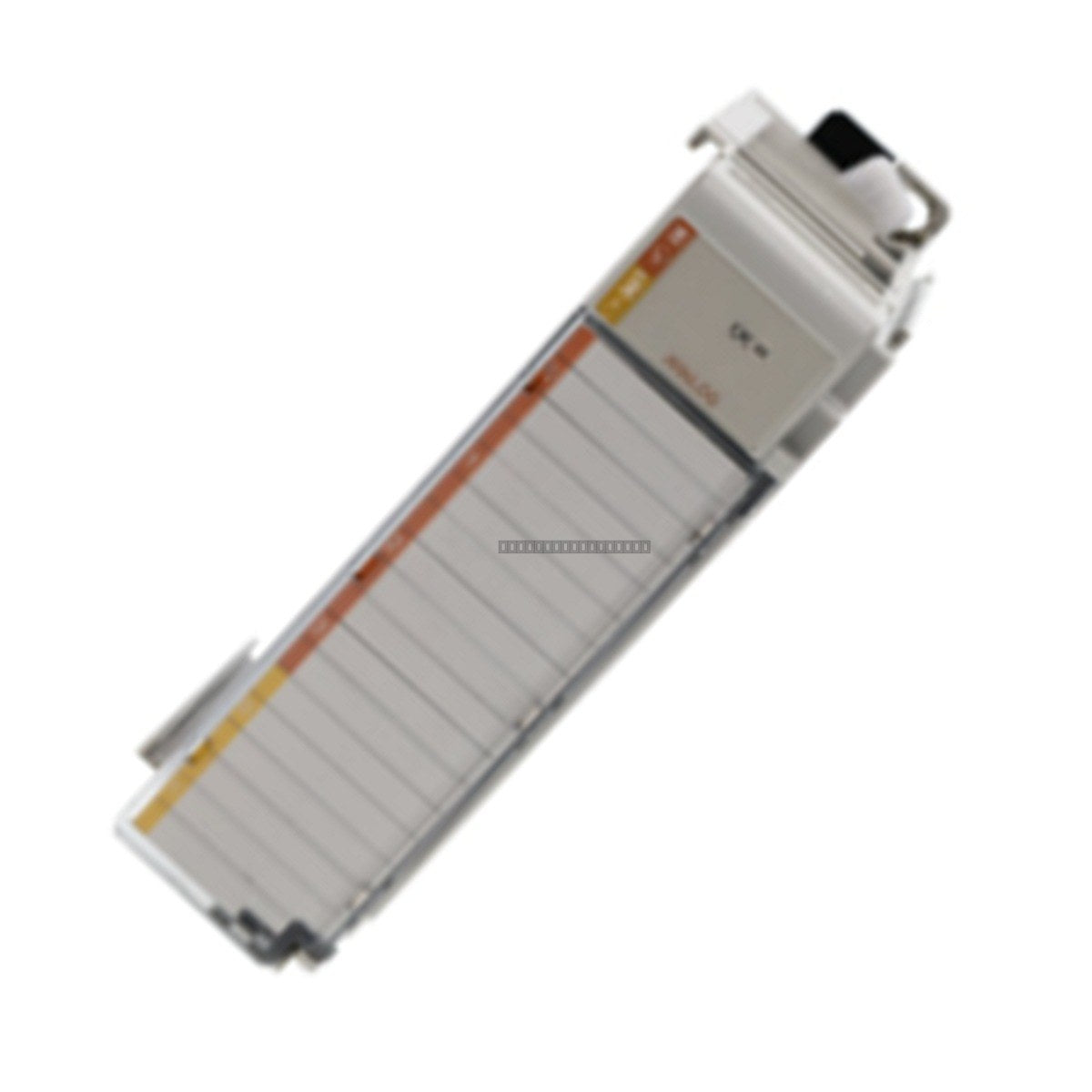

The Allen-Bradley 1769-IF4I is a high-performance analog input module designed for the CompactLogix controller platform. This module provides four channels of analog input, supporting both current and voltage signals. Each channel is individually isolated, ensuring high signal integrity and protection against ground loops in industrial control environments. It features 14-bit resolution, providing precise data acquisition for critical process control applications.
Features
- 4-channel analog input configuration
- Individually isolated channels for enhanced noise immunity
- Supports both current (0-20 mA) and voltage signal ranges
- 14-bit resolution for high-precision measurement
- Designed for seamless integration with CompactLogix systems
- 24 VDC operation
Applications
This module is engineered for industrial automation tasks requiring analog data monitoring, such as pressure, flow, temperature, or level sensing. It is suitable for use in manufacturing, water treatment, and process control systems where signal isolation is required to prevent interference between field devices and the PLC backplane.
Technical Specifications
| Product Model |
1769-IF4I |
| Manufacturer |
Allen-Bradley |
| Module Type |
Analog Input Module |
| Channel Count |
4 |
| Input Types |
Voltage / Current |
| Current Range |
0-20 mA |
| Resolution |
14-bit |
| Isolation |
Individually Isolated |
| Operating Voltage |
24 VDC |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module.
- Mount the module on a standard DIN rail or panel mount as per CompactLogix system requirements.
- Use shielded twisted-pair cabling for all analog inputs to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the module chassis to the system ground bus to maintain signal integrity.
- Verify that the module is firmly seated in the I/O rack and that the bus connector is fully engaged.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent internal component damage.
FAQ
Is the 1769-IF4I compatible with all CompactLogix controllers?
The 1769-IF4I is designed for the 1769 Compact I/O platform. Please verify your specific controller's compatibility with 1769-series I/O modules in your system documentation.
Does this module require external power?
Yes, the module requires a 24 VDC power supply for operation. Refer to the module wiring diagram for correct polarity and connection points.
