Description

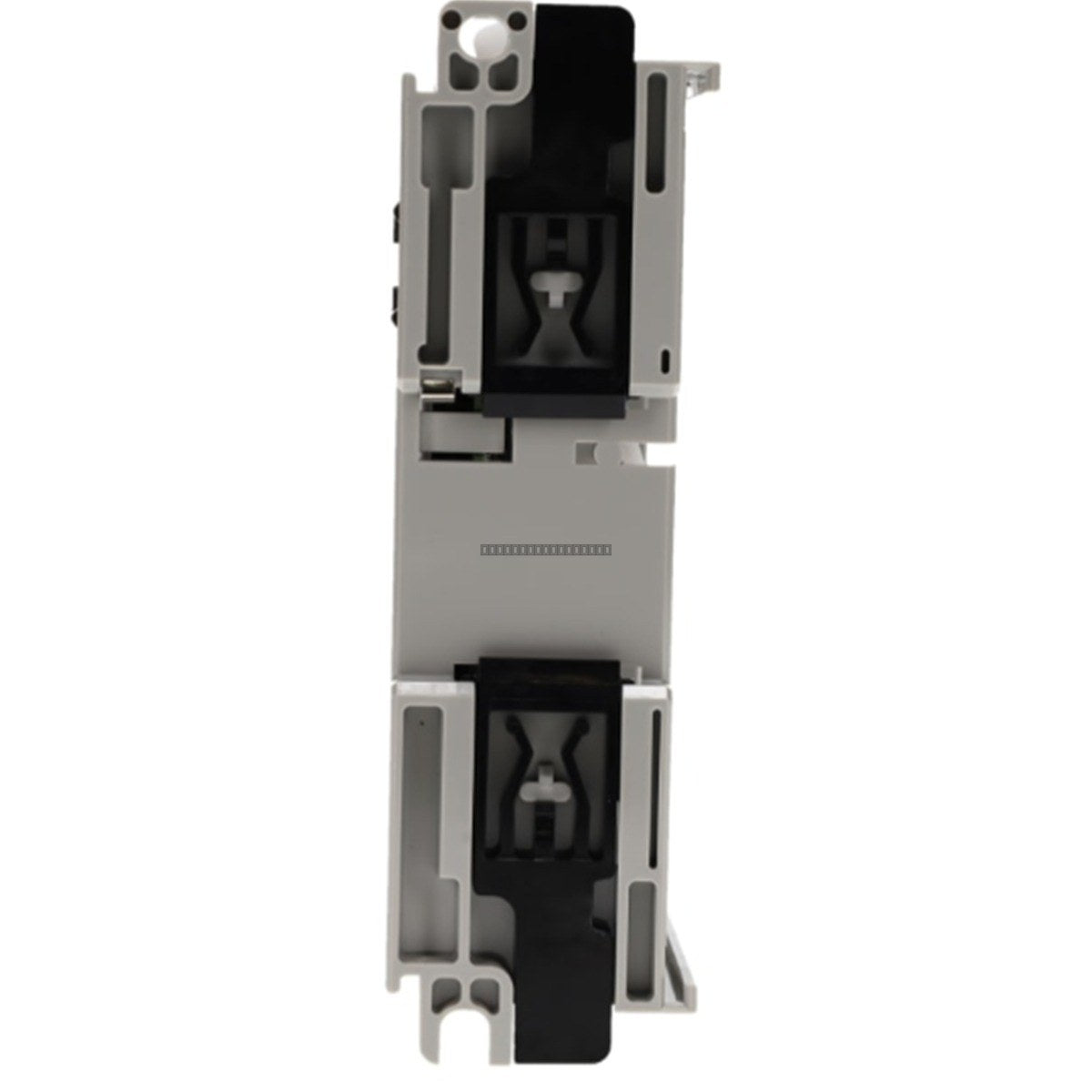

The Allen-Bradley 1769-ADN is a CompactLogix DeviceNet Adapter module designed to interface 1769 Compact I/O modules with a DeviceNet network. This adapter allows for the expansion of I/O capabilities, enabling a remote 1769 I/O rack to communicate with a DeviceNet master controller. It is a compact, high-performance solution for distributed control applications requiring reliable fieldbus connectivity.
Features
- Supports up to 30 Compact I/O modules per adapter.
- Provides 180 words of input and 180 words of output data capacity.
- Single-channel DeviceNet interface for seamless network integration.
- Compact form factor suitable for space-constrained control cabinets.
- Designed for robust performance in industrial environments.
Technical Specifications
| Model |
1769-ADN |
| DeviceNet Power Requirements |
24V DC (+4%) at 90mA max (N.E.C. Class 2) |
| I/O Capacity |
Up to 30 modules |
| Data Capacity |
180 words Input / 180 words Output |
| Isolation Voltage |
710V DC, 1 minute |
| Heat Dissipation |
4.7W maximum |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the DIN rail or panel.
- Mount the module in an environment that allows for adequate ventilation to manage heat dissipation.
- Use shielded, twisted-pair cabling for DeviceNet connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the module chassis to a common ground point to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent internal component damage.
FAQ
Is the 1769-ADN still in production?
No, the 1769-ADN has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.
How many I/O modules can I connect to this adapter?
The 1769-ADN supports a maximum of 30 Compact I/O modules in a single rack configuration.
What is the power requirement for the DeviceNet interface?
The module requires 24V DC (+4%) at 90mA maximum, adhering to N.E.C. Class 2 power standards.
