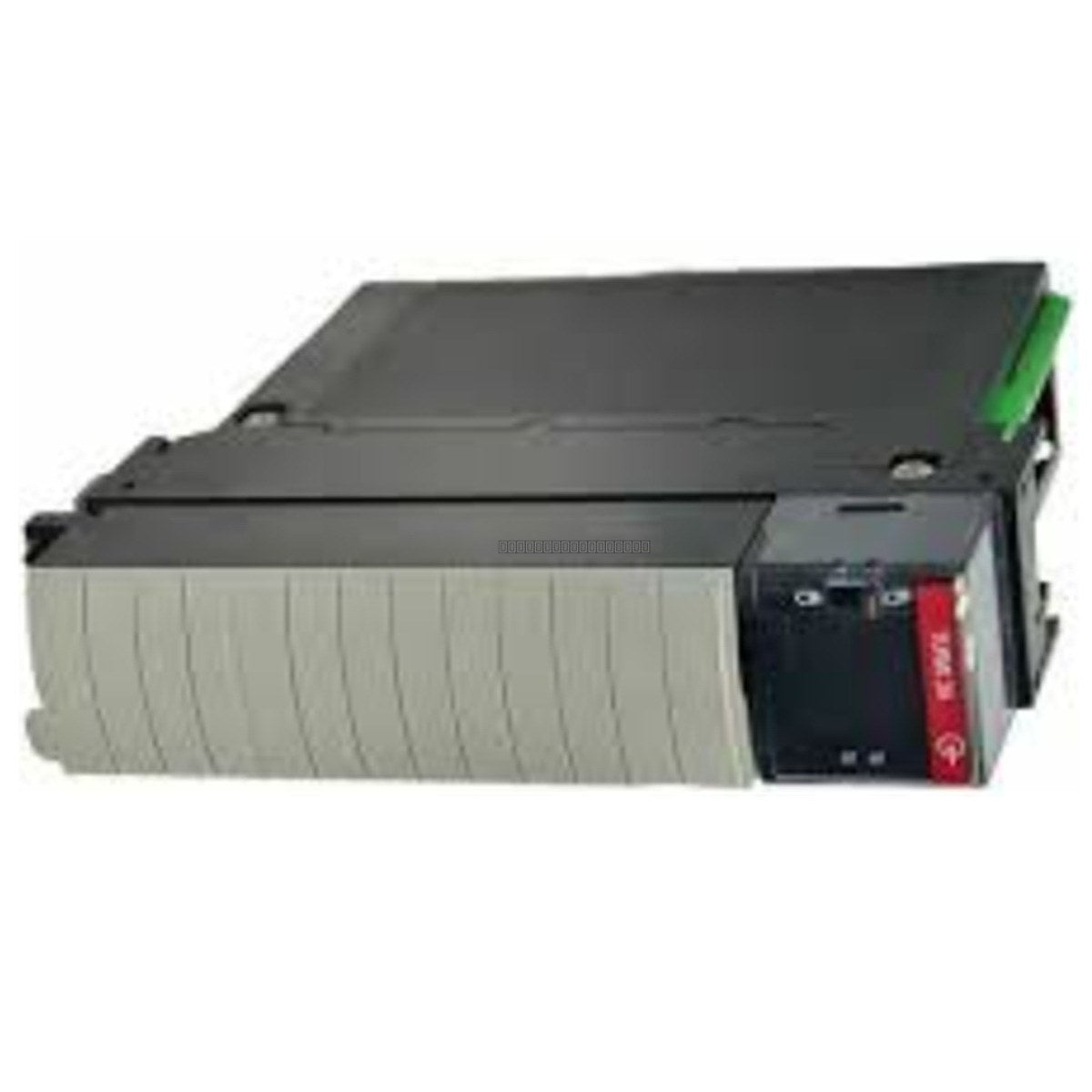

The Allen-Bradley 1756-OB16I is a high-performance 16-point isolated digital DC output module designed for the ControlLogix platform. This module provides reliable control for industrial automation applications, offering both current sinking and current sourcing capabilities to accommodate diverse field device requirements. It is engineered to operate within 12/24V DC systems, ensuring compatibility with standard industrial control voltages.
Features
- 16 isolated output channels for enhanced system protection and signal integrity.
- Supports both current sinking and current sourcing configurations.
- Compatible with standard 12/24V DC power supplies.
- Designed for seamless integration into any ControlLogix I/O chassis.
- Status indicators for each channel to facilitate rapid diagnostics and troubleshooting.
Technical Specifications
| Product Model |
1756-OB16I |
| Module Type |
Digital DC Isolated Output |
| Number of Outputs |
16 |
| Voltage Category |
12/24V DC |
| Manufacturer |
Allen-Bradley |
| Platform |
ControlLogix |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
- Align the module carefully with the chassis guide rails and seat it firmly until the locking tab engages.
- Use appropriate shielded cabling for field connections to minimize EMI interference in high-noise industrial environments.
- Verify that the external power supply voltage matches the module's rated input range before applying power.
- Always follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the 1756-OB16I?
The 1756-OB16I is a digital output module used to interface the ControlLogix controller with field devices such as relays, solenoids, or indicators, providing isolated switching control.
Does this module require a specific chassis?
Yes, this module is designed specifically for the Allen-Bradley ControlLogix I/O chassis system.
Can this module be used for both sinking and sourcing?
Yes, the 1756-OB16I is designed to support both current sinking and current sourcing configurations, providing flexibility for various wiring requirements.
