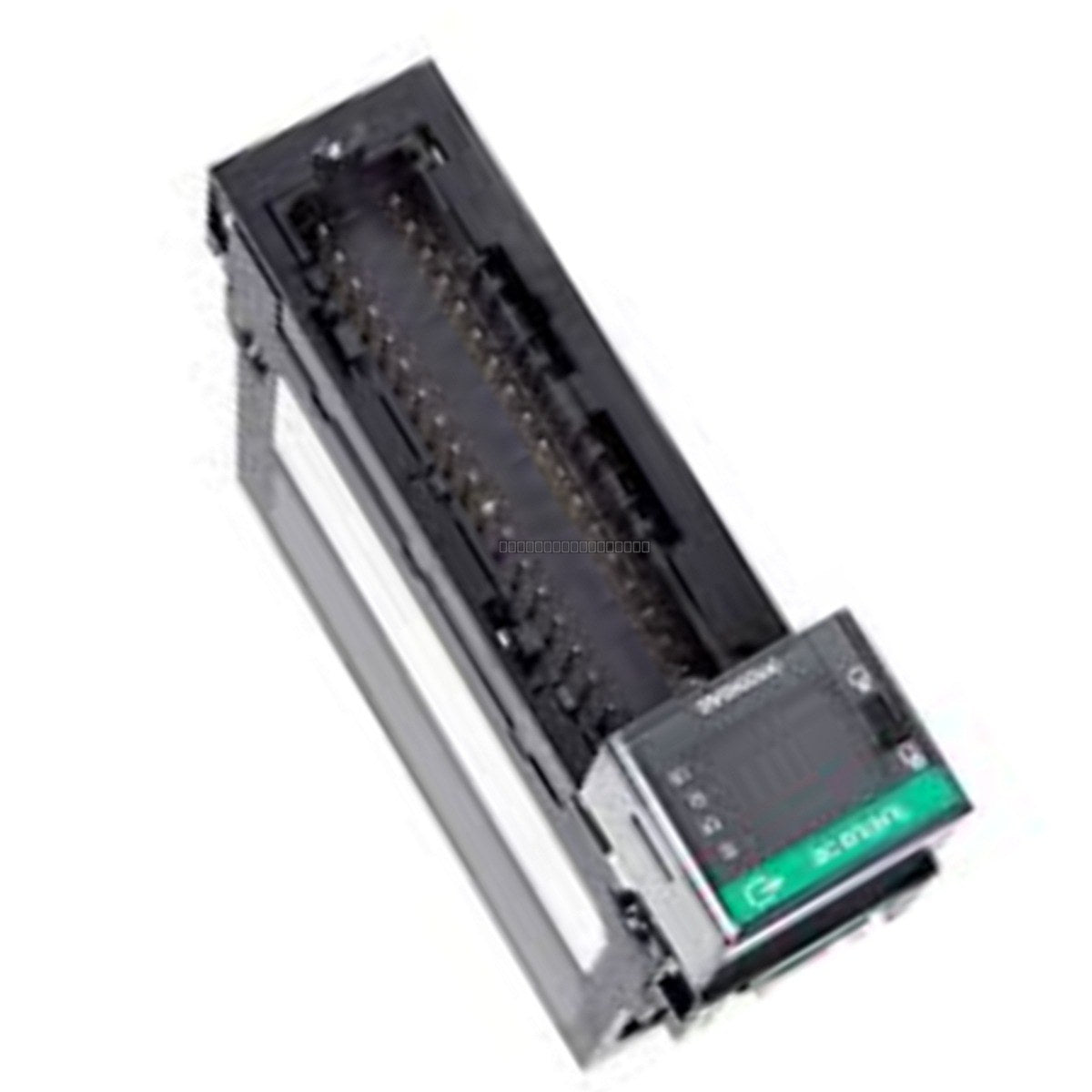

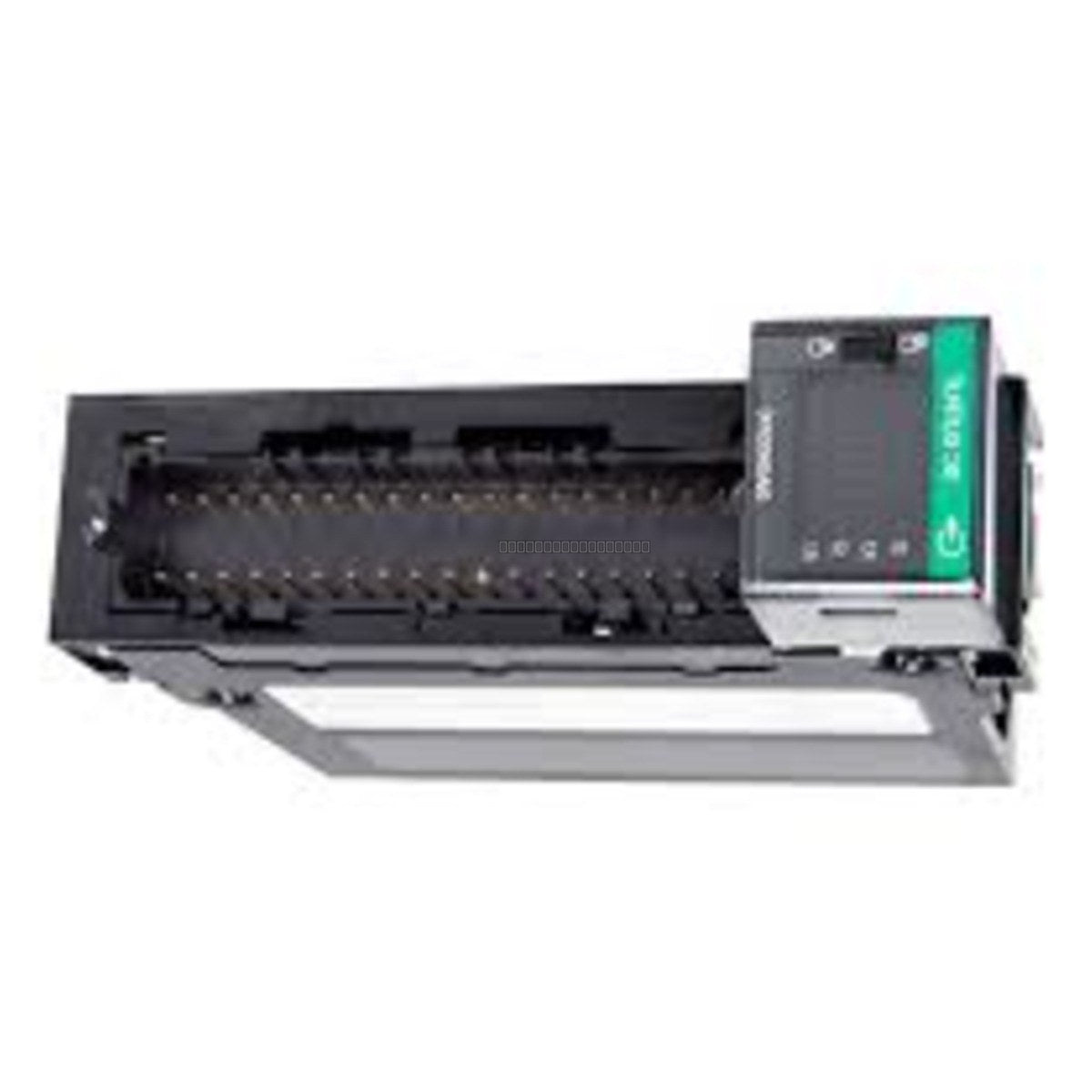

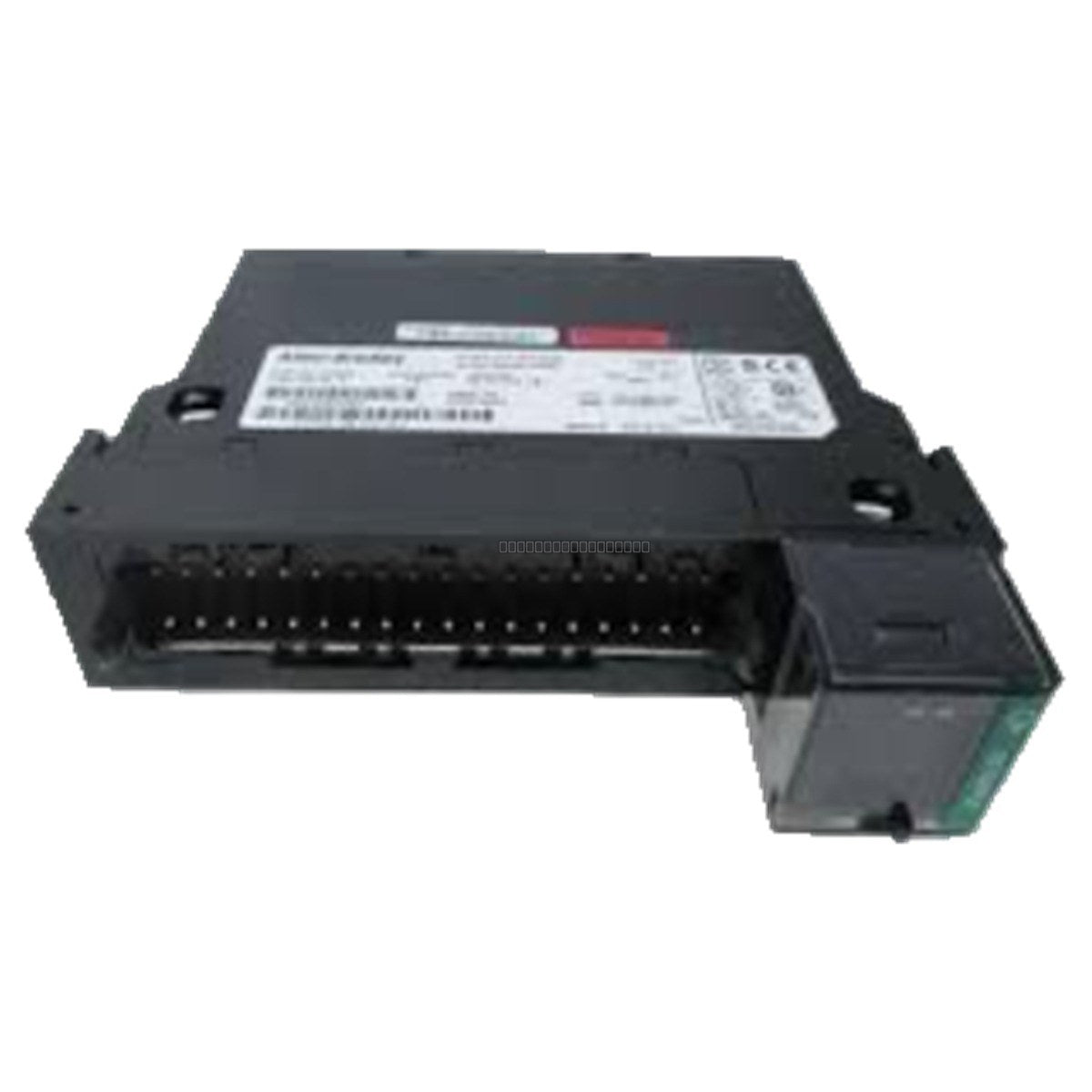

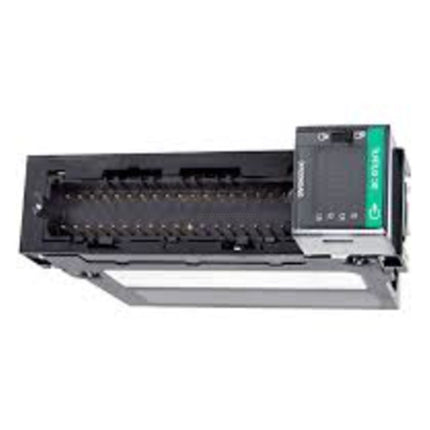

The Allen-Bradley 1756-OB16D is a high-performance 16-point diagnostic digital output module designed for the ControlLogix platform. This module provides reliable switching for 24V DC field devices, featuring advanced diagnostic capabilities to detect load conditions such as open-wire or short-circuit faults. It is engineered to integrate seamlessly into ControlLogix chassis, providing essential status monitoring and control for industrial automation processes.
Features
- 16-point diagnostic output configuration.
- Supports 24V DC source output.
- Diagnostic feedback for improved troubleshooting and system availability.
- Optimized for high-density I/O requirements in ControlLogix systems.
- Low power dissipation for efficient thermal management in control cabinets.
Technical Specifications
| Model |
1756-OB16D |
| Output Points |
16 |
| Voltage Category |
24V DC Source |
| Operating Voltage Range |
19.2 - 30V DC |
| Max Output Current (Per Point) |
2 Amps |
| Backplane Current @ 5V |
250 mA |
| Backplane Current @ 24V |
140 mA |
| Max Power Dissipation |
3.3 Watts @ 60 degC |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
- The 1756-OB16D must be installed in a standard ControlLogix I/O chassis.
- Use appropriate shielded cabling for field wiring to minimize EMI interference.
- Ensure proper grounding of the chassis and module to maintain signal integrity.
- Verify that the field power supply is within the 19.2-30V DC range before energizing the system.
- Handle with care using ESD-safe practices to protect internal electronic components.
FAQ
What is the primary function of the diagnostic feature on this module?
The diagnostic feature allows the ControlLogix controller to monitor the health of the output circuit, specifically detecting conditions like open-circuit or short-circuit faults, which helps in reducing downtime by identifying issues at the specific point level.
Is this module compatible with standard ControlLogix chassis?
Yes, the 1756-OB16D is designed for use in any standard Allen-Bradley ControlLogix I/O chassis and communicates via the ControlLogix backplane.
