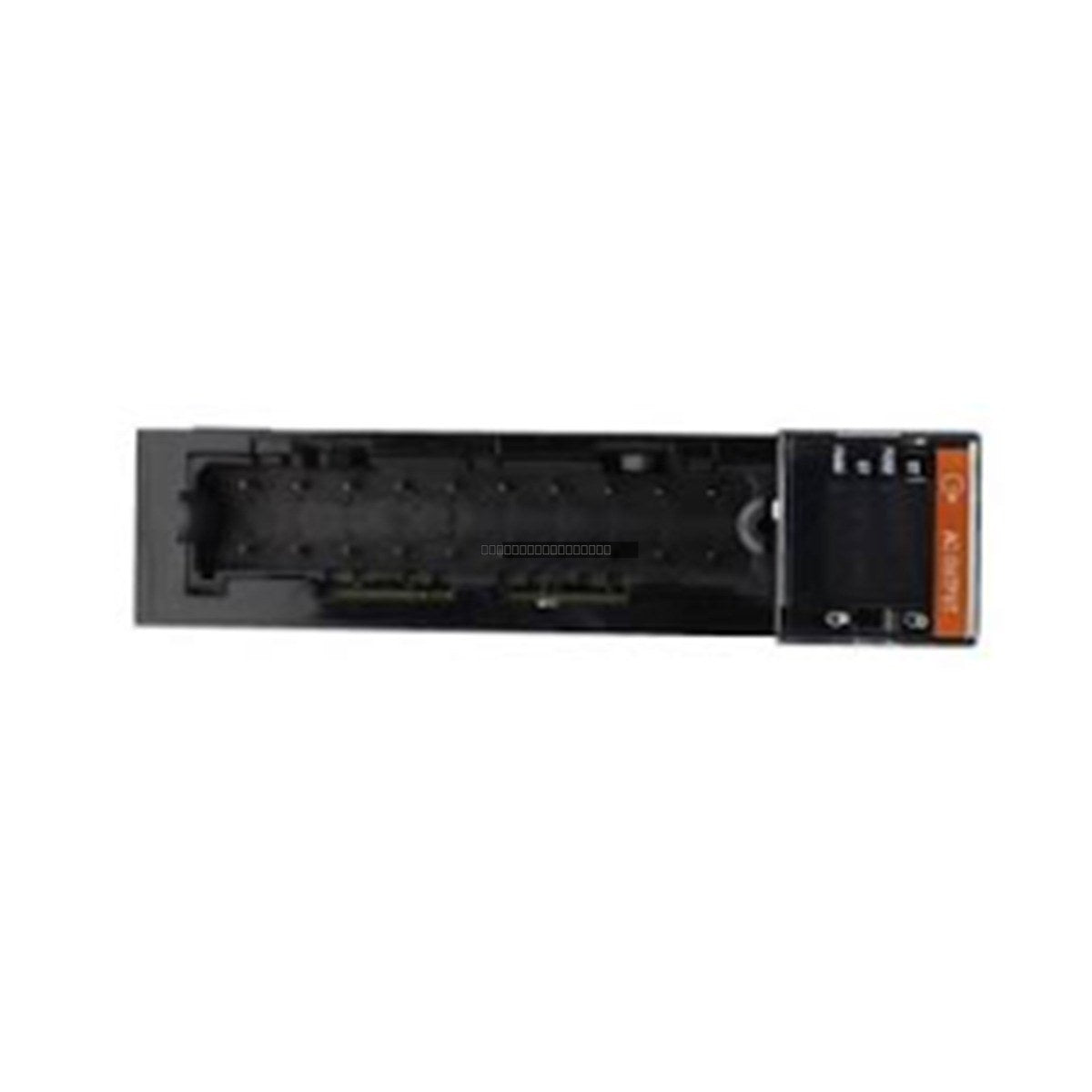

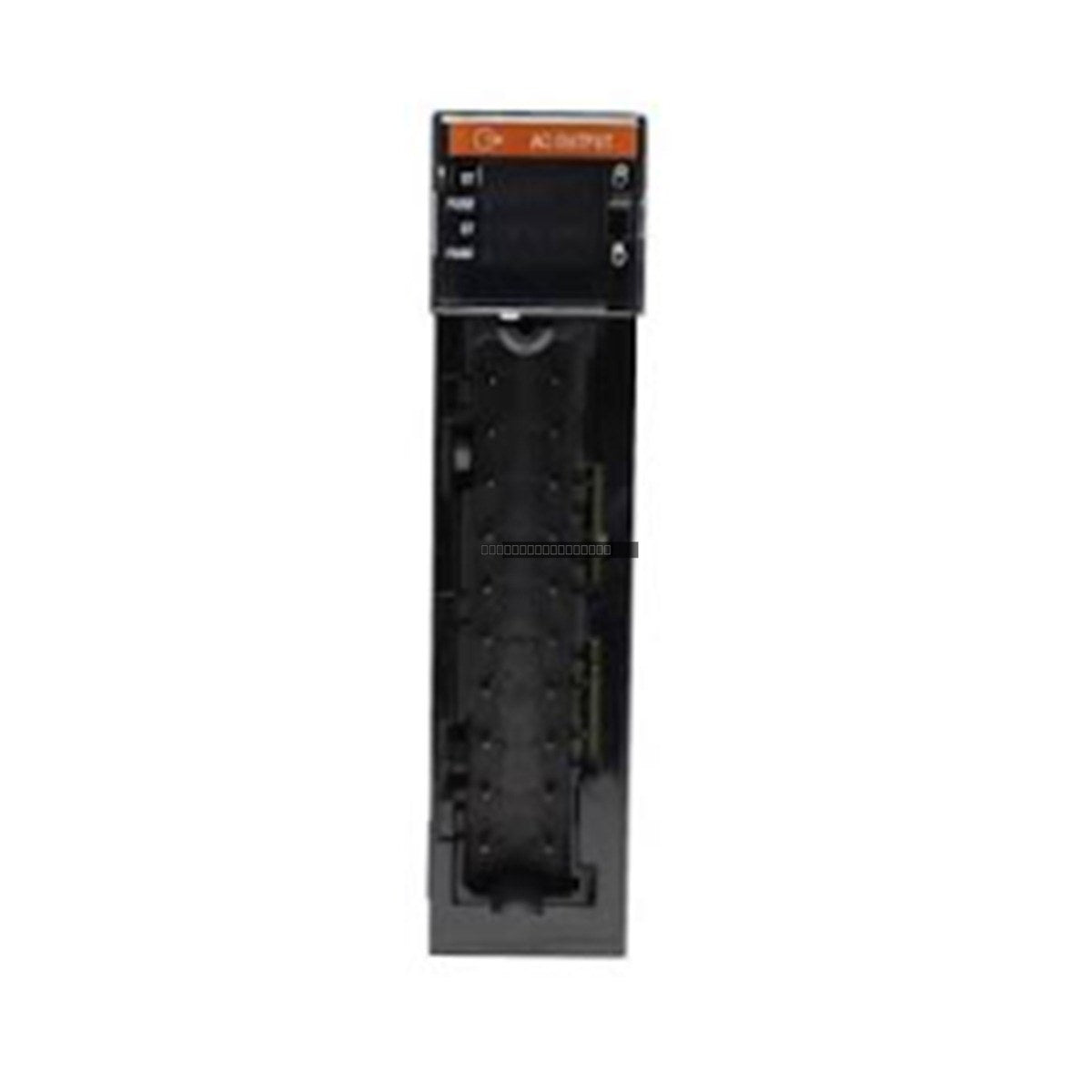

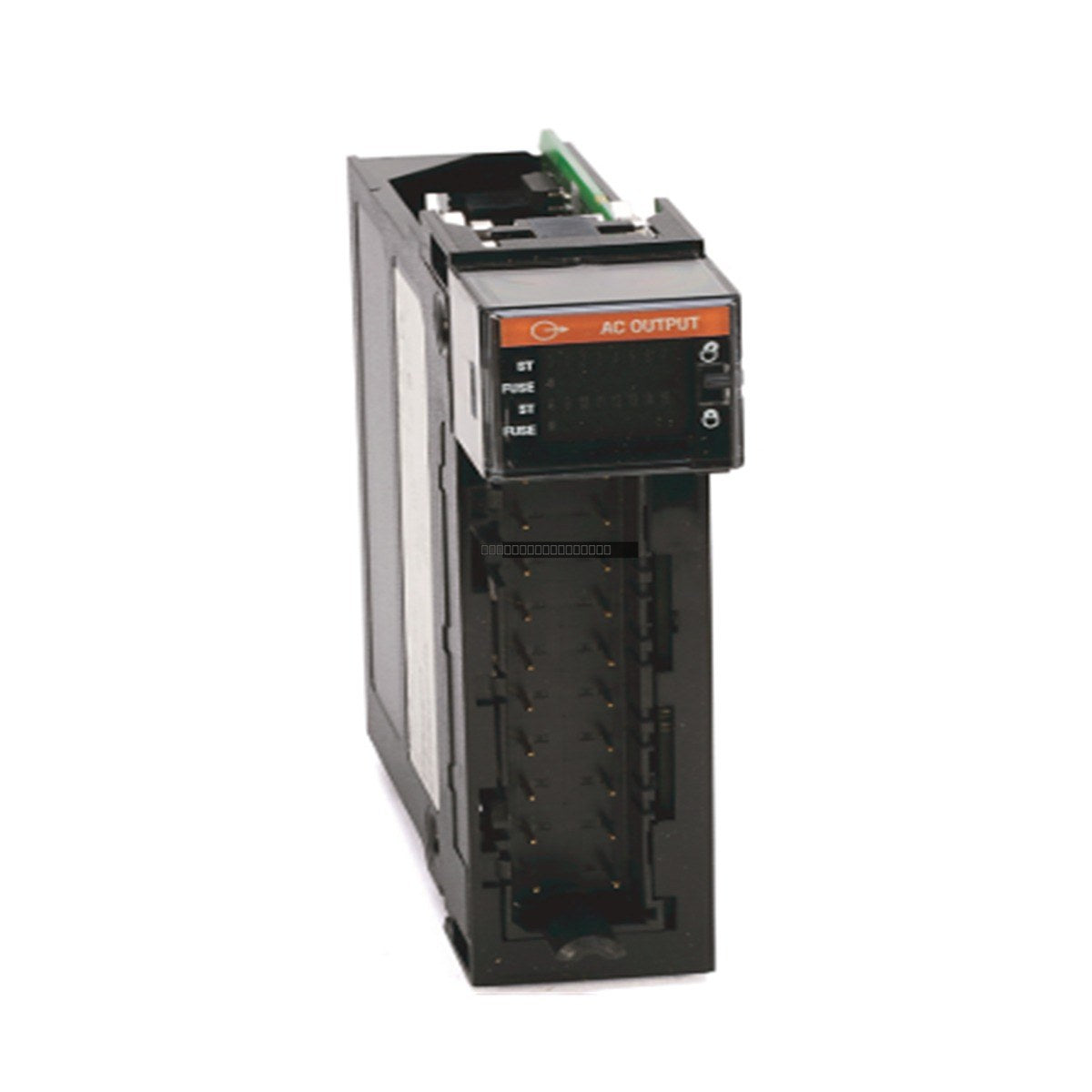

The Allen-Bradley 1756-OA8 is a high-performance discrete output module designed for the ControlLogix platform. This module provides 8 output points, specifically engineered to handle AC voltage applications. It is widely used in industrial automation environments to interface the ControlLogix controller with AC-powered field devices such as motor starters, contactors, and solenoid valves.
Features
- 8 isolated AC output points for flexible control configurations.
- Wide operating voltage range of 74-265 Volts AC, supporting both 120V and 240V systems.
- High current capacity of 0.5 A per point at 60 degC.
- Integrated status indicators for clear visual diagnostics of output states.
- Designed for seamless integration into the standard ControlLogix chassis.
Applications
This module is suitable for various industrial control applications, including machine control, process automation, and manufacturing line management where AC load switching is required. It is commonly deployed in systems requiring reliable, high-density AC output control within a unified ControlLogix architecture.
Technical Specifications
| Number of Outputs |
8 |
| Voltage Category |
120 / 240 Volts AC |
| Operating Voltage Range |
74-265 Volts AC |
| Current per Point |
0.5 A @ 60 degC |
| Current per Group (Max) |
2 A @ 60 degC |
| Backplane Current @ 5V |
200 mA |
| Backplane Current @ 24V |
2 mA |
| Power Dissipation (Max) |
5.1 W @ 60 degC |
| Isolation Voltage |
50 Volts Continuous |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-OA8 module to prevent electrical arcing or damage to the backplane.
- Verify that the module is properly seated in the chassis slot and secured with the top and bottom locking tabs.
- Use appropriate wire gauges for the terminal block to ensure secure connections and prevent overheating.
- Route high-voltage AC wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the module to ensure proper airflow and cooling, as the module dissipates heat during operation.
- Follow all local electrical codes and safety standards regarding grounding and circuit protection for AC output devices.
FAQ
What is the primary function of the 1756-OA8?
The 1756-OA8 is a discrete output module that allows the ControlLogix controller to switch AC-powered devices on or off based on the control program logic.
Can this module be used with 120V and 240V systems?
Yes, the module supports an operating voltage range of 74-265 Volts AC, making it compatible with both standard 120V and 240V AC industrial control circuits.
Is this module hot-swappable?
Yes, the ControlLogix system supports Removal and Insertion Under Power (RIUP), allowing you to replace the module without shutting down the entire chassis, provided that safety protocols are followed.
