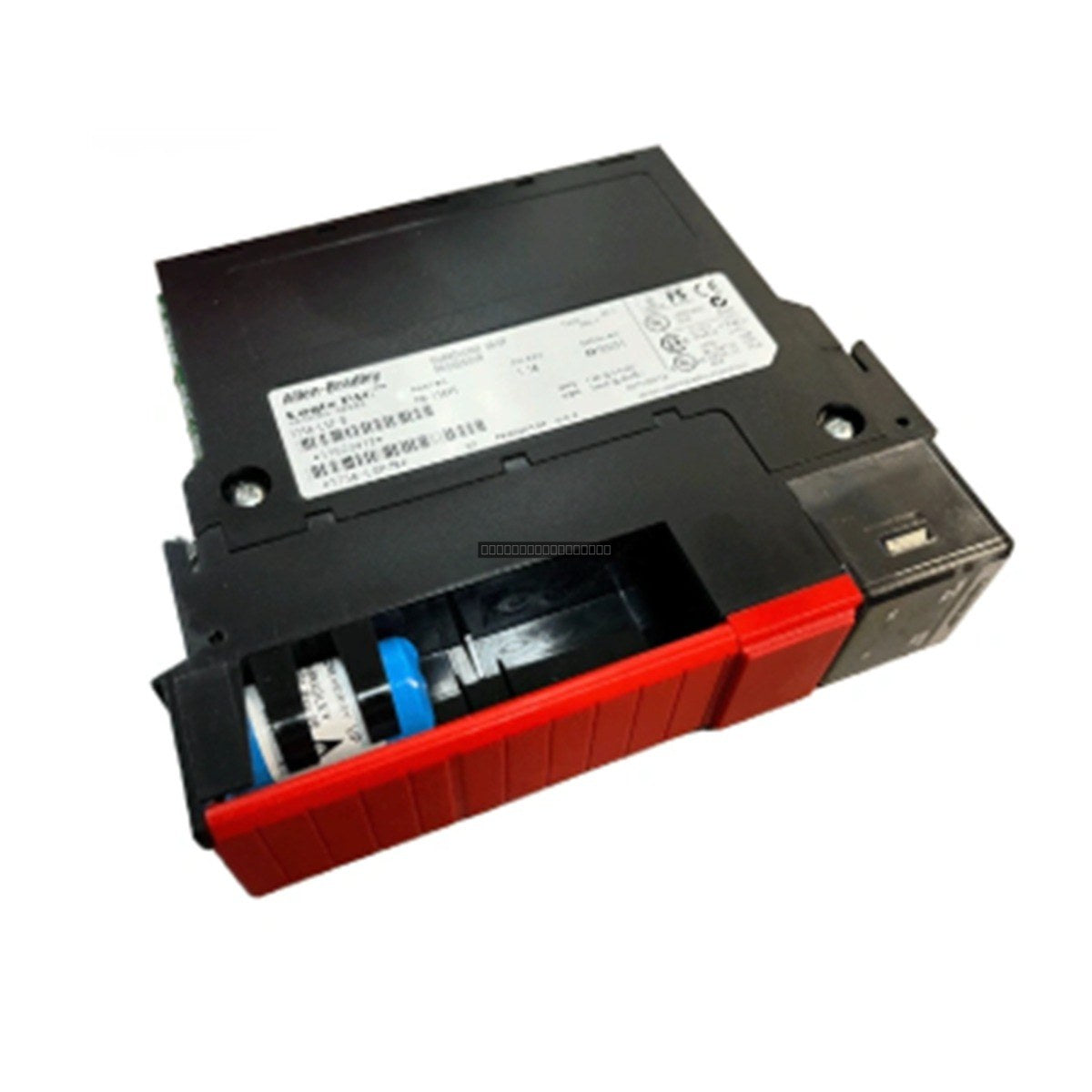

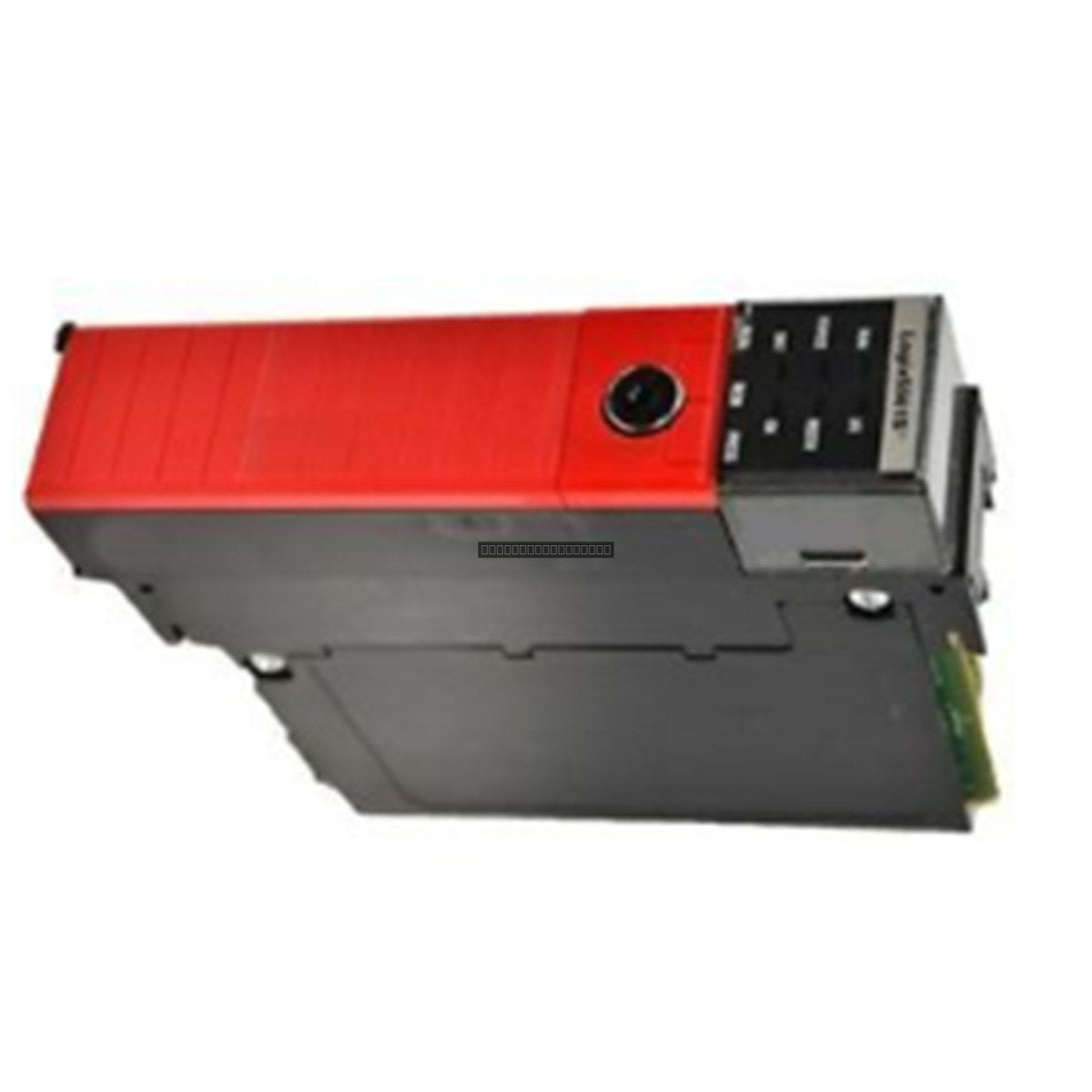

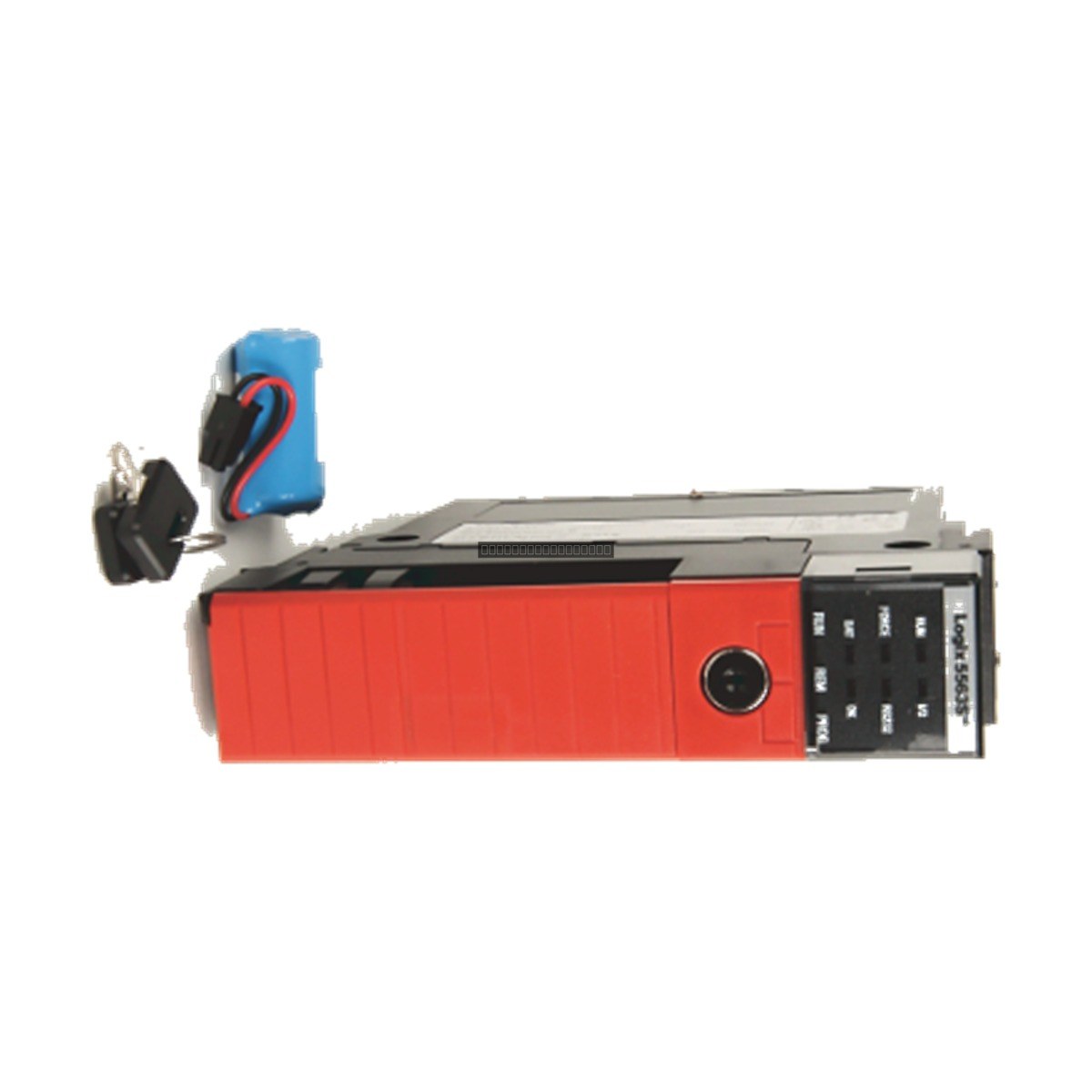

The Allen-Bradley 1756-L7SP is a ControlLogix GuardLogix Safety Partner module designed for high-integrity safety applications. This module is used in conjunction with a primary ControlLogix controller to achieve SIL 3 and PLe safety ratings, providing the necessary redundancy and diagnostic coverage required for critical safety-instrumented systems. It occupies two slots in a standard ControlLogix chassis.
Features
- Designed for SIL 3 and PLe safety-rated control architectures.
- Functions as a dedicated safety partner for GuardLogix controllers.
- Occupies two slots in the ControlLogix chassis.
- Optimized for high-reliability industrial automation environments.
- Integrated diagnostic monitoring for safety-critical operations.
Technical Specifications
| Product Model |
1756-L7SP |
| Series |
GuardLogix |
| Power Dissipation |
2.5 W |
| Thermal Dissipation |
8.5 BTU/hr |
| Backplane Current (5.1V DC) |
5 mA |
| Backplane Current (24V DC) |
800 mA |
| Module Width |
2 Slots |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-L7SP module to prevent electrical damage.
- The module must be installed in a compatible ControlLogix chassis; ensure it is fully seated and the top and bottom latches are secured.
- Maintain adequate ventilation within the cabinet to ensure the module operates within its thermal limits.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
- Ensure all safety-related wiring is routed according to local electrical codes and the specific safety system design documentation.
FAQ
What is the primary function of the 1756-L7SP?
The 1756-L7SP acts as a safety partner module within the GuardLogix system, enabling the controller to meet SIL 3 and PLe safety requirements by providing the necessary redundant processing capabilities.
How many slots does this module require?
This module occupies two slots in a standard ControlLogix chassis.
Is this module compatible with standard ControlLogix controllers?
The 1756-L7SP is specifically designed for use in GuardLogix safety systems. It must be paired with a compatible safety-rated controller to function as intended in a safety-instrumented system.
