Description

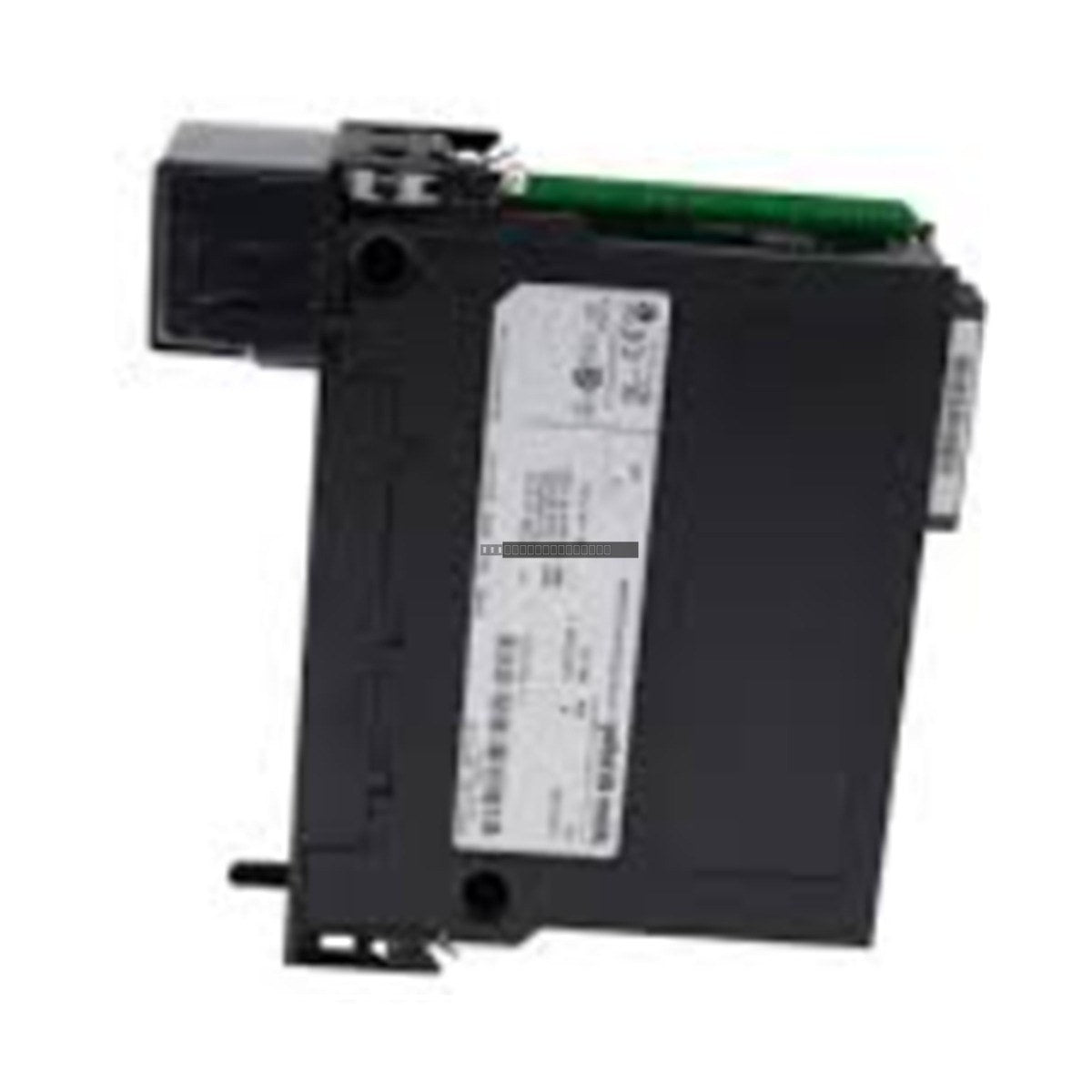

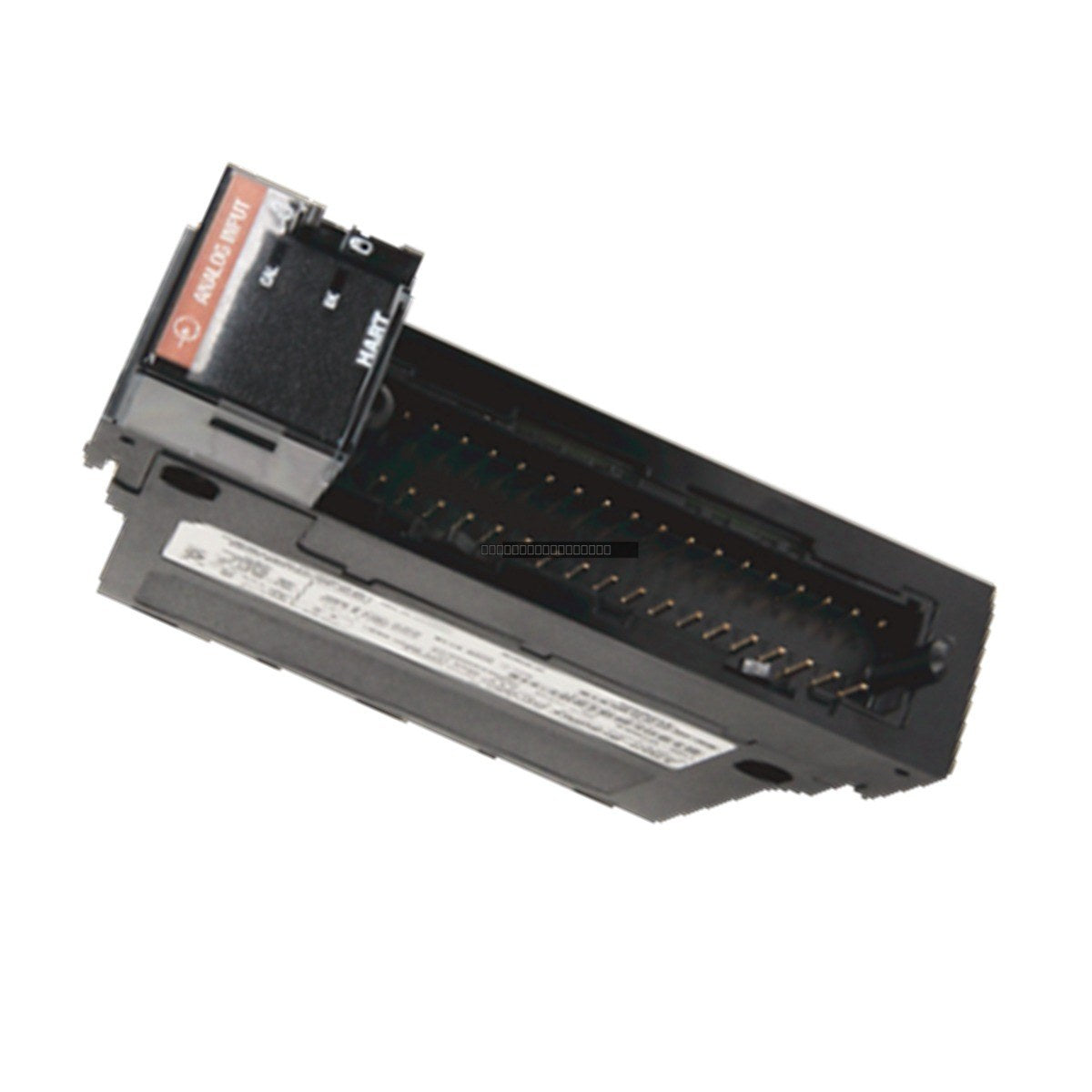

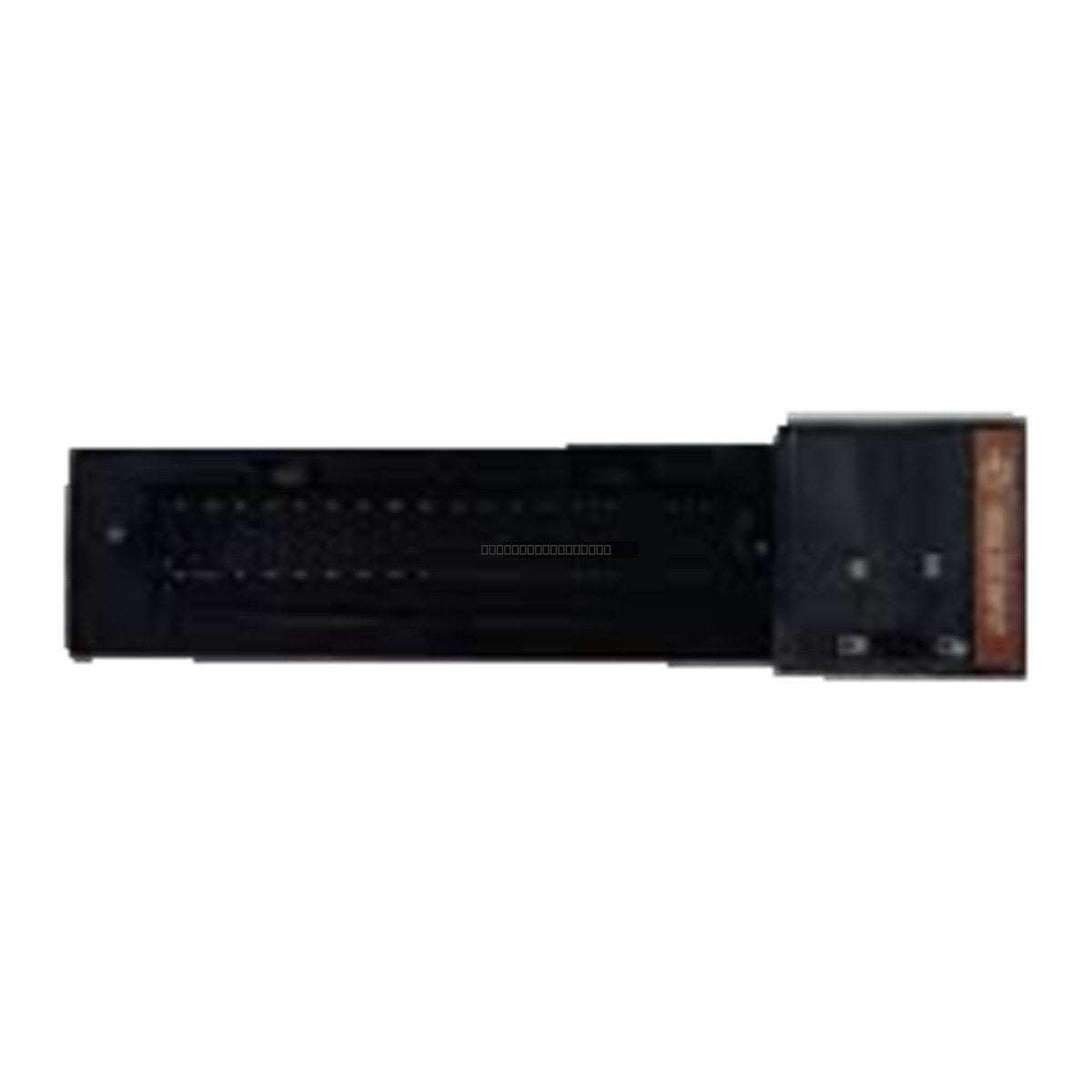

The Allen-Bradley 1756-IT6I is a high-performance analog thermocouple input module designed for the ControlLogix platform. This module provides six isolated input channels, specifically engineered to interface with a wide range of thermocouple types for precise temperature monitoring in industrial control environments. By offering isolation between channels, the module effectively minimizes signal interference, ensuring reliable data acquisition even in electrically noisy settings.
Features
- Six isolated thermocouple input channels for enhanced signal integrity.
- Supports a comprehensive range of thermocouple types including B, C, E, J, K, N, R, S, and T.
- Includes one Cold Junction Compensation (CJC) input for accurate temperature readings.
- Compatible with 1756-TBNH and 1756-TBSH removable terminal blocks for flexible wiring configurations.
- Optimized power dissipation with a maximum rating of 4.3 Watts.
Technical Specifications
| Module Type |
Isolated Thermocouple Input Module |
| Input Points |
6 Isolated Channels |
| Supported Sensors |
B, C, E, J, K, N, R, S, T |
| Backplane Current (5V) |
250 mA |
| Backplane Current (24V) |
2 mA |
| Max Power Dissipation |
4.3 Watts |
| Compatible RTBs |
1756-TBNH, 1756-TBSH |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-IT6I module to prevent electrical damage.
- Use properly shielded thermocouple extension wire to minimize electromagnetic interference (EMI).
- Verify that the removable terminal block (RTB) is securely locked into the module housing before applying power.
- Maintain adequate clearance around the chassis for proper airflow and cooling, as the module dissipates heat during operation.
- Ground the shield of the thermocouple cables at the sensor end or the module end according to your specific facility grounding standards to prevent ground loops.
FAQ
What thermocouple types does the 1756-IT6I support?
This module supports a broad range of standard thermocouple types, specifically B, C, E, J, K, N, R, S, and T.
Is this module isolated?
Yes, the 1756-IT6I features six isolated input channels, which helps protect against common-mode noise and ground loops in complex industrial systems.
Which terminal blocks are compatible with this module?
The module is designed to be used with 1756-TBNH or 1756-TBSH removable terminal blocks.
