Description

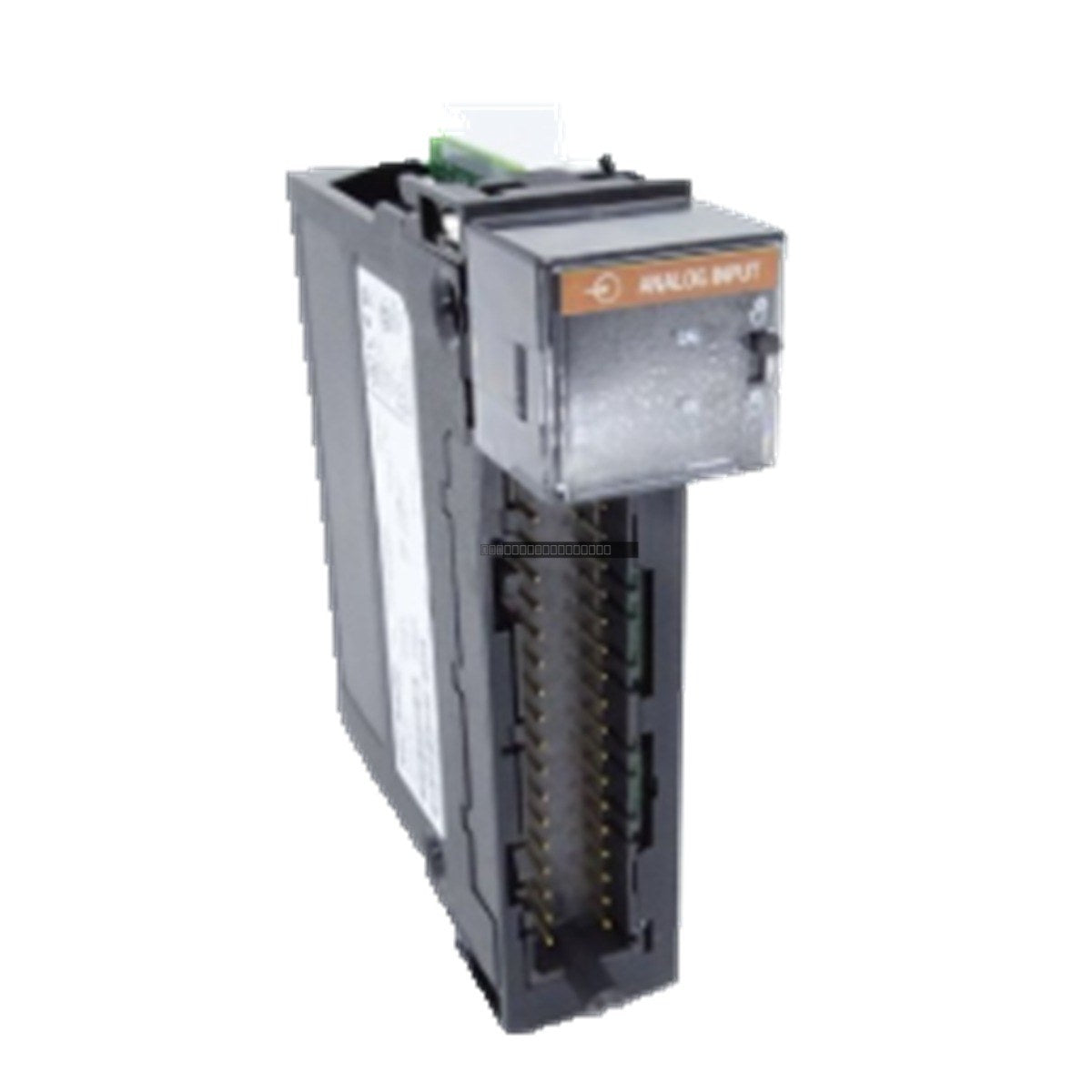

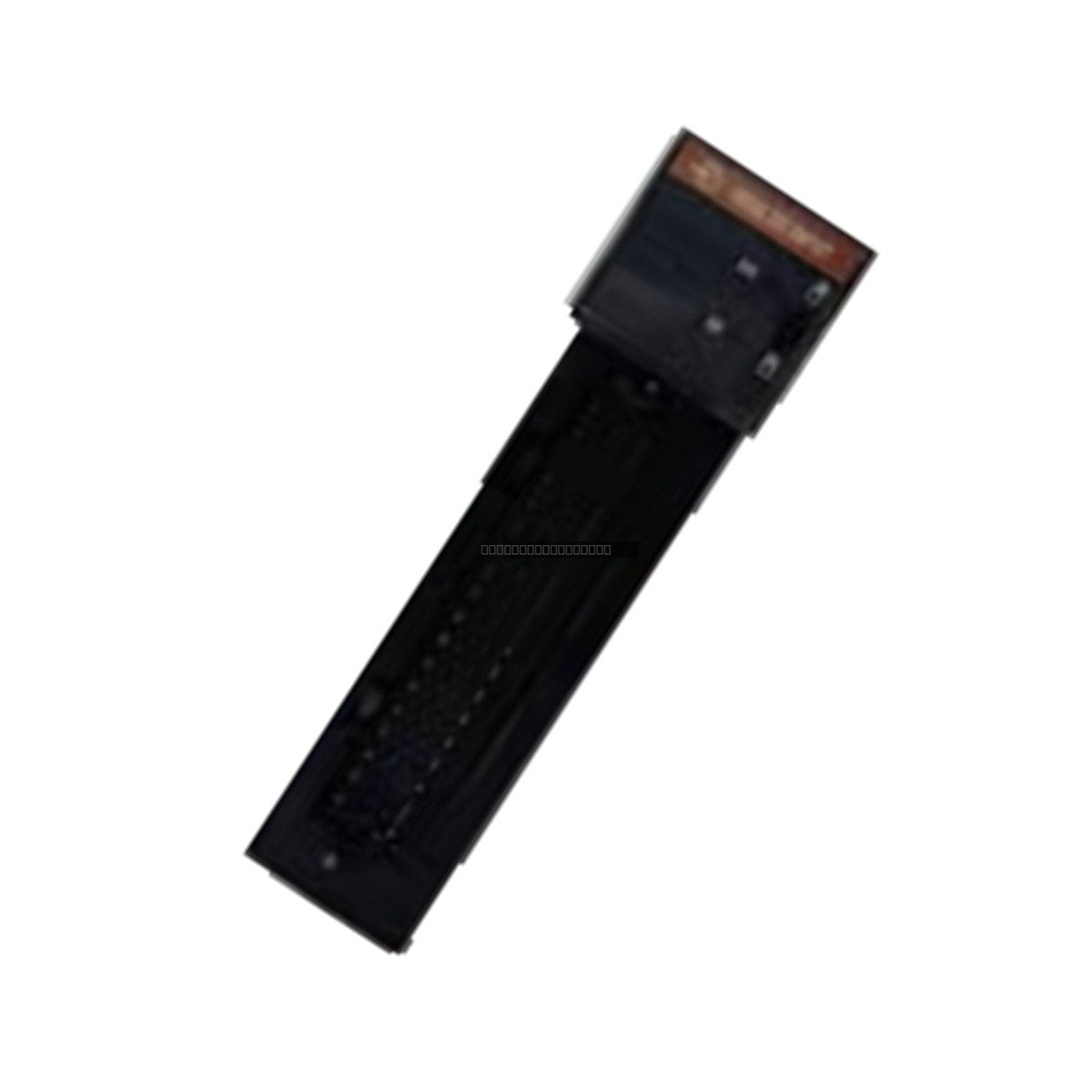

The Allen-Bradley 1756-IF8 is a high-performance analog input module designed for the ControlLogix automation platform. It provides eight input channels capable of processing both voltage and current signals, facilitating the integration of diverse field devices such as pressure transducers, flow meters, and temperature transmitters into your control architecture.
Features
- Eight-channel input configuration supporting single-ended, differential, and high-speed differential modes.
- Flexible signal range support including +/-10V, 0-10V, 0-5V, and 0-20mA (including 4-20mA).
- High-resolution 16-bit data conversion using Sigma-Delta technology for precise process monitoring.
- Integrated digital filtering to mitigate signal noise and improve measurement stability.
- Efficient power consumption with low backplane current draw.
Applications
- Dosing and metering systems requiring accurate flow feedback.
- Filtration monitoring using differential pressure sensors.
- Industrial hydraulic and pneumatic stamping press force control.
- Injection molding process control for temperature and pressure monitoring.
- Water treatment and environmental monitoring skids for pH and turbidity tracking.
Technical Specifications
| Manufacturer |
Allen-Bradley |
| Model |
1756-IF8 |
| Module Type |
Analog Input |
| Input Channels |
8 (Single-ended) / 4 (Differential) |
| Conversion Method |
Sigma-Delta |
| Backplane Current (5V) |
150 mA |
| Backplane Current (24V) |
40 mA |
| Power Dissipation (Voltage Mode) |
1.73 W |
| Power Dissipation (Current Mode) |
2.33 W |
Installation Guidelines
-
Enclosure Requirements: This is open-type equipment and must be installed within a suitable NEMA or IEC-rated enclosure to prevent accidental contact with live electrical components.
-
RIUP Caution: While the module supports Removal and Insertion Under Power (RIUP), ensure field-side power is disconnected before removing the Removable Terminal Block (RTB) to prevent electrical arcing.
-
Grounding: Ensure the chassis is properly grounded in accordance with local electrical codes to minimize EMI and ensure signal integrity.
-
Handling: Use standard ESD-safe handling procedures when installing or removing the module from the ControlLogix rack.
FAQ
What is the primary function of the 1756-IF8?
The 1756-IF8 acts as an interface between field analog sensors and the ControlLogix processor, converting continuous voltage or current signals into digital data for control logic.
Is this module isolated?
The 1756-IF8 is a non-isolated module. If your application requires channel-to-channel isolation, please consider the 1756-IF8I model.
How are the input channels configured?
The module supports 8 single-ended inputs or 4 differential inputs depending on your wiring and configuration settings in the Studio 5000 software.
