Description

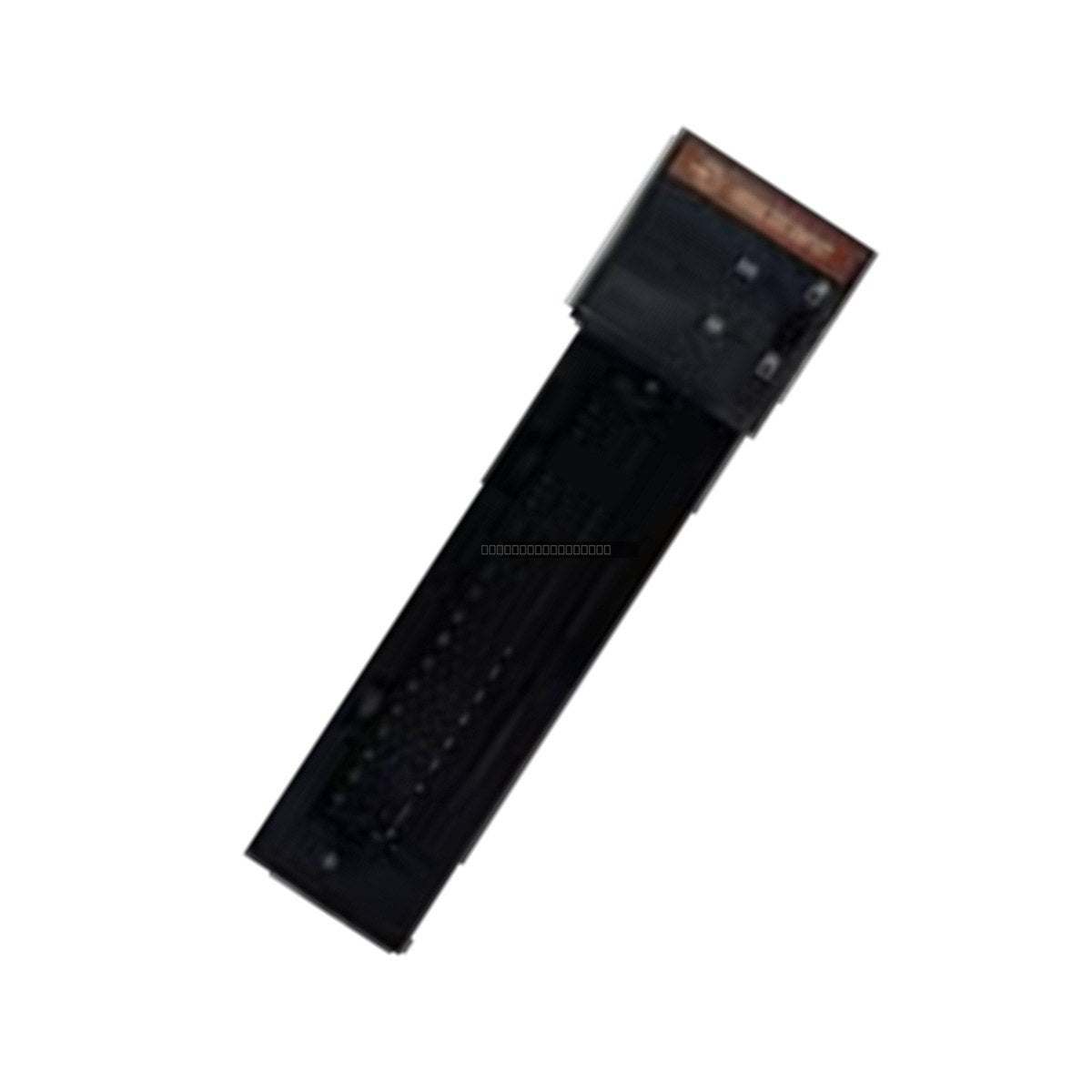

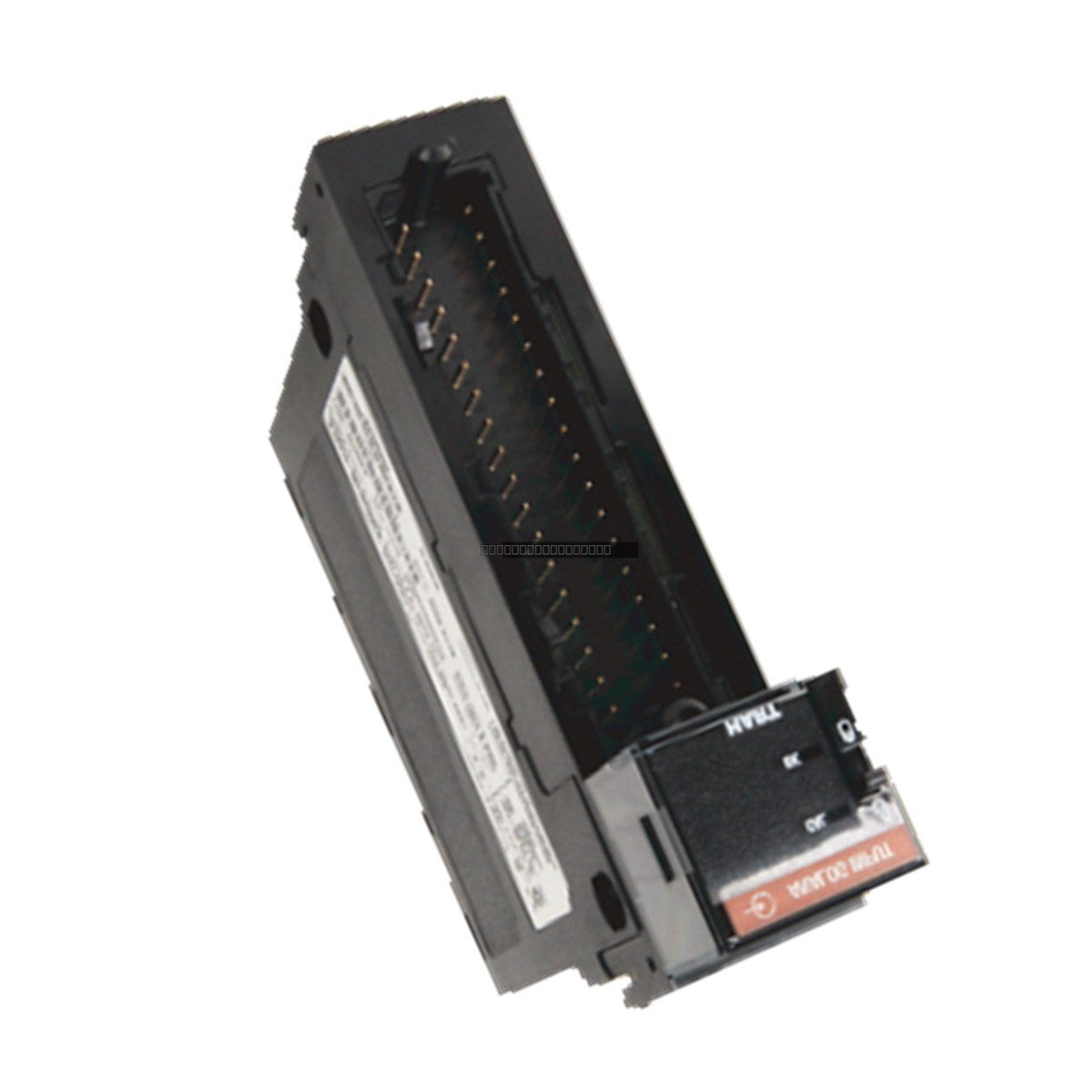

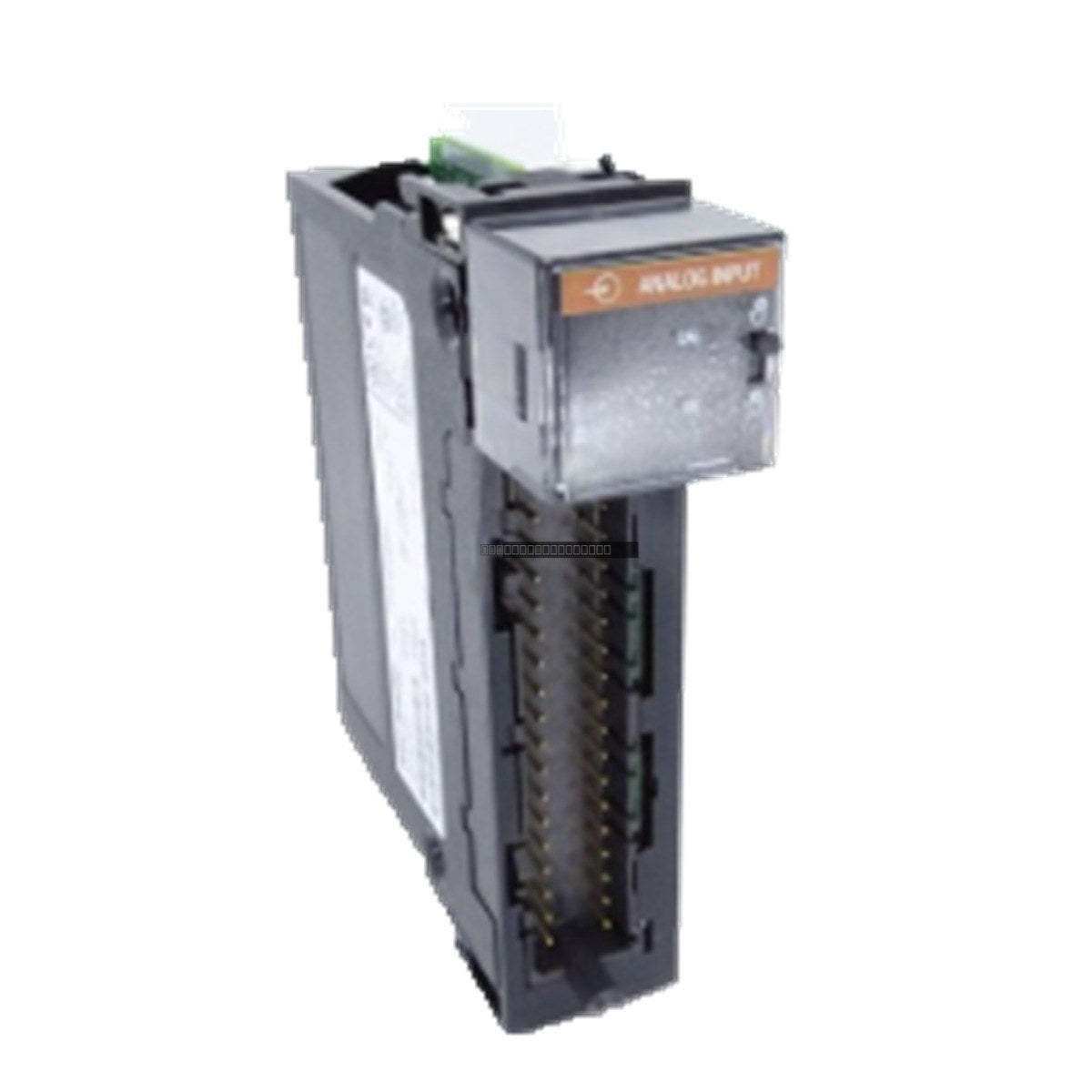

The Allen-Bradley 1756-IF6I is a high-performance isolated analog input module designed for the ControlLogix platform. This module provides six isolated input channels, ensuring signal integrity by preventing ground loops and electrical interference in complex industrial control environments. Utilizing sigma-delta conversion, it delivers precise data acquisition for voltage and current signals, making it suitable for demanding process automation applications.
Features
- Six isolated analog input channels for improved noise immunity.
- High-resolution 16-bit conversion for accurate signal monitoring.
- Supports multiple input ranges, including bipolar voltage (±10.5V), unipolar voltage (0-10.5V, 0-5.25V), and current (0-21 mA).
- Flexible data formats supporting both integer (2's complement) and IEEE 32-bit floating point representations.
- Optimized power consumption with a maximum power dissipation of 4.3 W in current mode.
Technical Specifications
| Model |
1756-IF6I |
| Module Type |
Isolated Analog Input |
| Input Channels |
6 Isolated |
| Conversion Method |
Sigma-Delta |
| Resolution |
16-bit |
| Backplane Current (5V) |
250 mA |
| Backplane Current (24V) |
100 mA |
| Power Dissipation (Max) |
Voltage: 3.7 W; Current: 4.3 W |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module.
- Use shielded twisted-pair cabling for all analog signal connections to minimize EMI-induced noise.
- Verify that the module is fully seated in the chassis slot and secured with the top and bottom mounting screws.
- Observe proper grounding practices for the cable shields at the signal source or the module end, depending on the specific application requirements.
- Maintain adequate ventilation around the chassis to prevent exceeding the maximum operating temperature.
FAQ
What are the supported signal ranges for this module?
The 1756-IF6I supports ±10.5V, 0-10.5V, 0-5.25V, and 0-21 mA ranges.
Is this module compatible with all ControlLogix chassis?
Yes, the 1756-IF6I is designed to fit into any standard Allen-Bradley ControlLogix I/O chassis.
Does this module support floating-point data?
Yes, it supports both integer mode (left-justified, 2's complement) and IEEE 32-bit floating-point data formats.
