Description

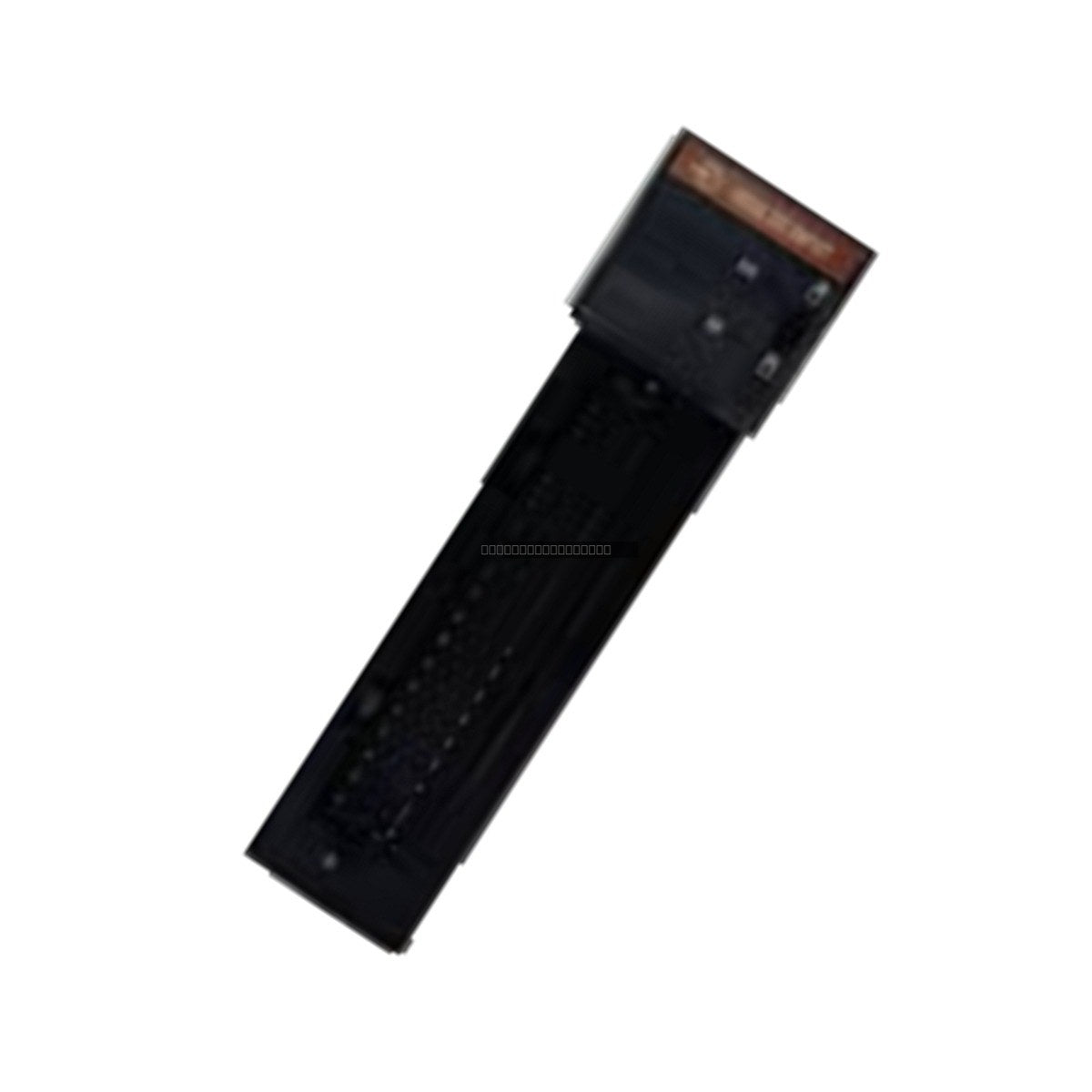

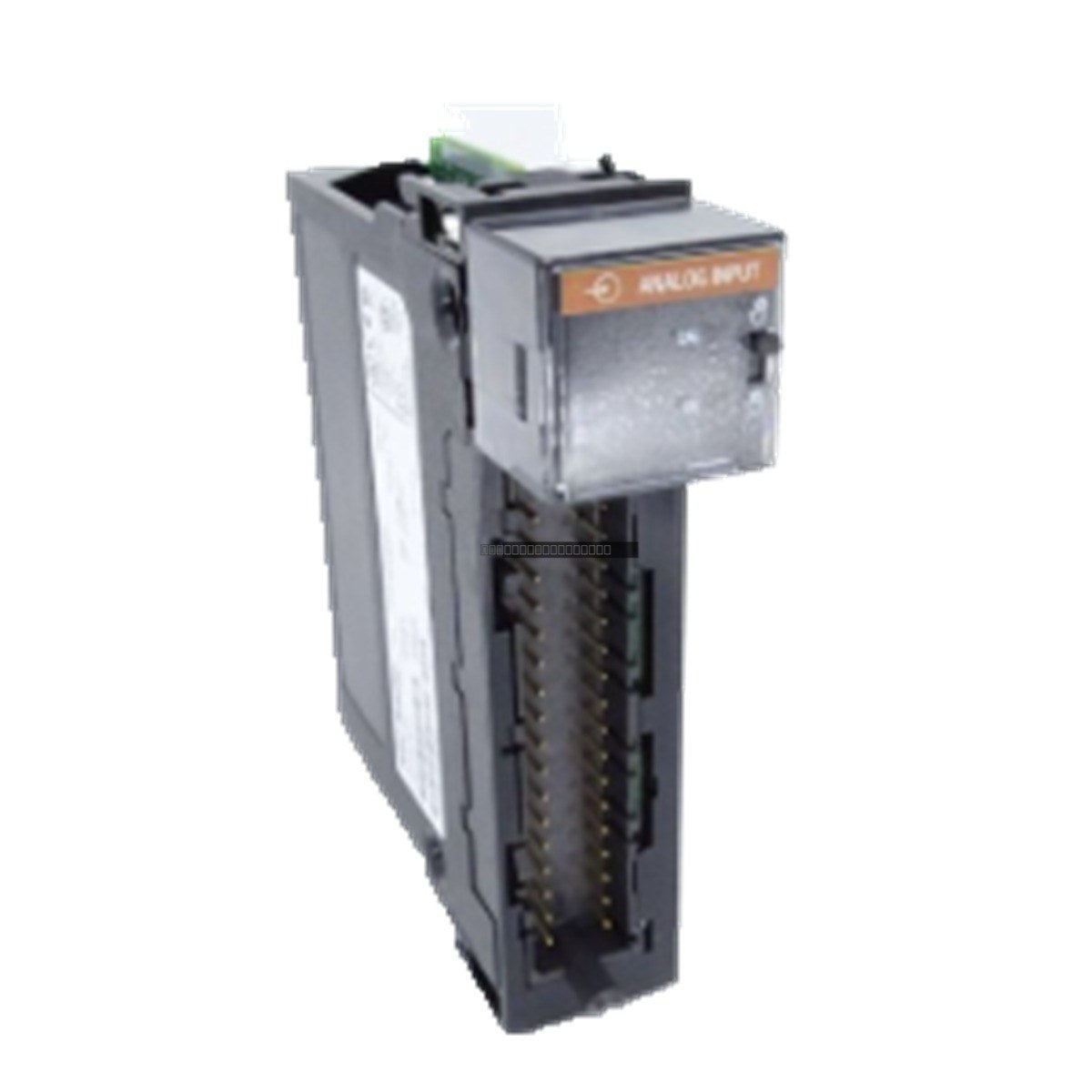

The Allen-Bradley 1756-IF6CIS is a high-performance analog input module designed for the ControlLogix platform. This module provides six points of isolated, current-sourcing analog inputs, engineered to meet the demanding requirements of industrial process control and data acquisition applications.
Features
- Six isolated, current-sourcing input channels.
- Advanced Sigma-Delta conversion method for high-accuracy signal processing.
- Supports a wide input range of 0 to 21 mA.
- Configurable data formats including 2's complement integer and IEEE 32-bit floating point.
- Designed for seamless integration into the ControlLogix chassis backplane.
Applications
This module is ideal for industrial environments requiring precise current loop monitoring. Common applications include the measurement of process variables from transmitters, flow meters, and pressure sensors where channel-to-channel isolation is necessary to prevent ground loops and signal interference.
Technical Specifications
| Model |
1756-IF6CIS |
| Input Points |
6 Isolated, Current Sourcing |
| Conversion Method |
Sigma-Delta |
| Input Current Range |
0 to 21 mA |
| Backplane Current (5V) |
250 mA |
| Backplane Current (24V) |
275 mA |
| Max Power Dissipation |
5.1 Watts at 60 degC |
| Data Formats |
Integer (left-justified, 2's complement), IEEE 32-bit floating point |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module.
- Handle the module using proper ESD precautions to prevent damage to internal circuitry.
- Verify that the module is fully seated in the chassis slot and that the locking tab is engaged.
- Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
- Maintain adequate spacing within the cabinet to allow for proper airflow and heat dissipation, as the module can dissipate up to 5.1 Watts.
- Route signal wiring away from high-voltage AC lines or high-current DC conductors.
FAQ
What is the primary function of the 1756-IF6CIS?
The 1756-IF6CIS is an isolated analog input module used to convert incoming current signals (0-21 mA) into digital data that the ControlLogix processor can utilize for control logic.
Does this module require external power?
The module draws its power from the ControlLogix backplane. Ensure your power supply is sized to accommodate the 250 mA (5V) and 275 mA (24V) current draw requirements.
