Description

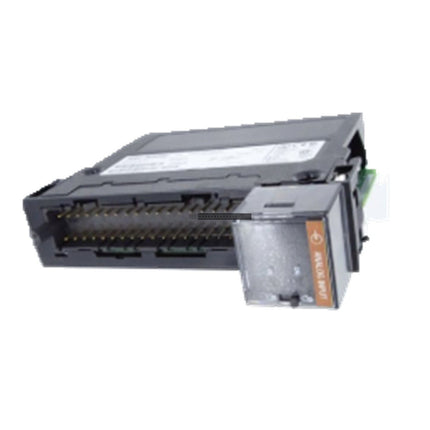

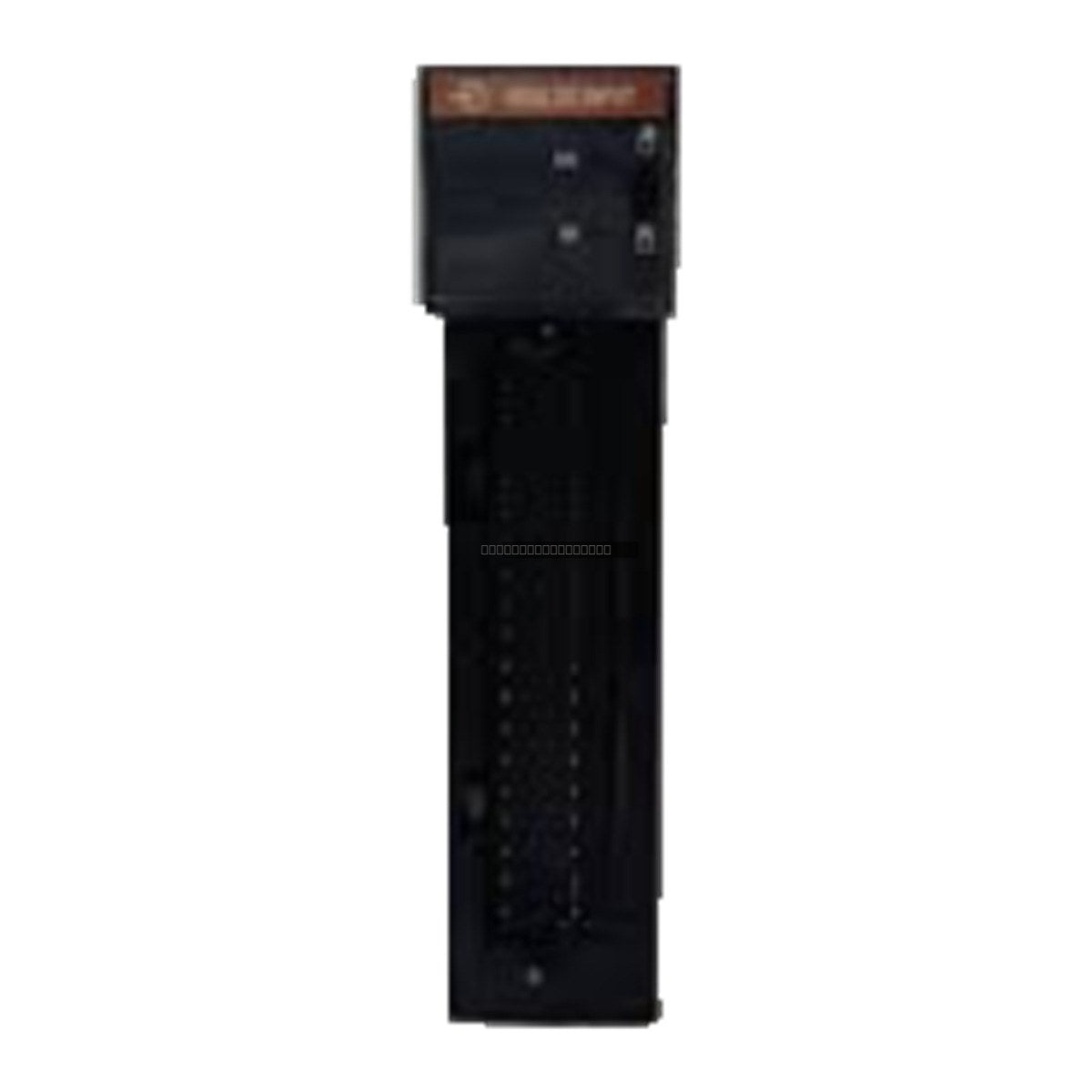

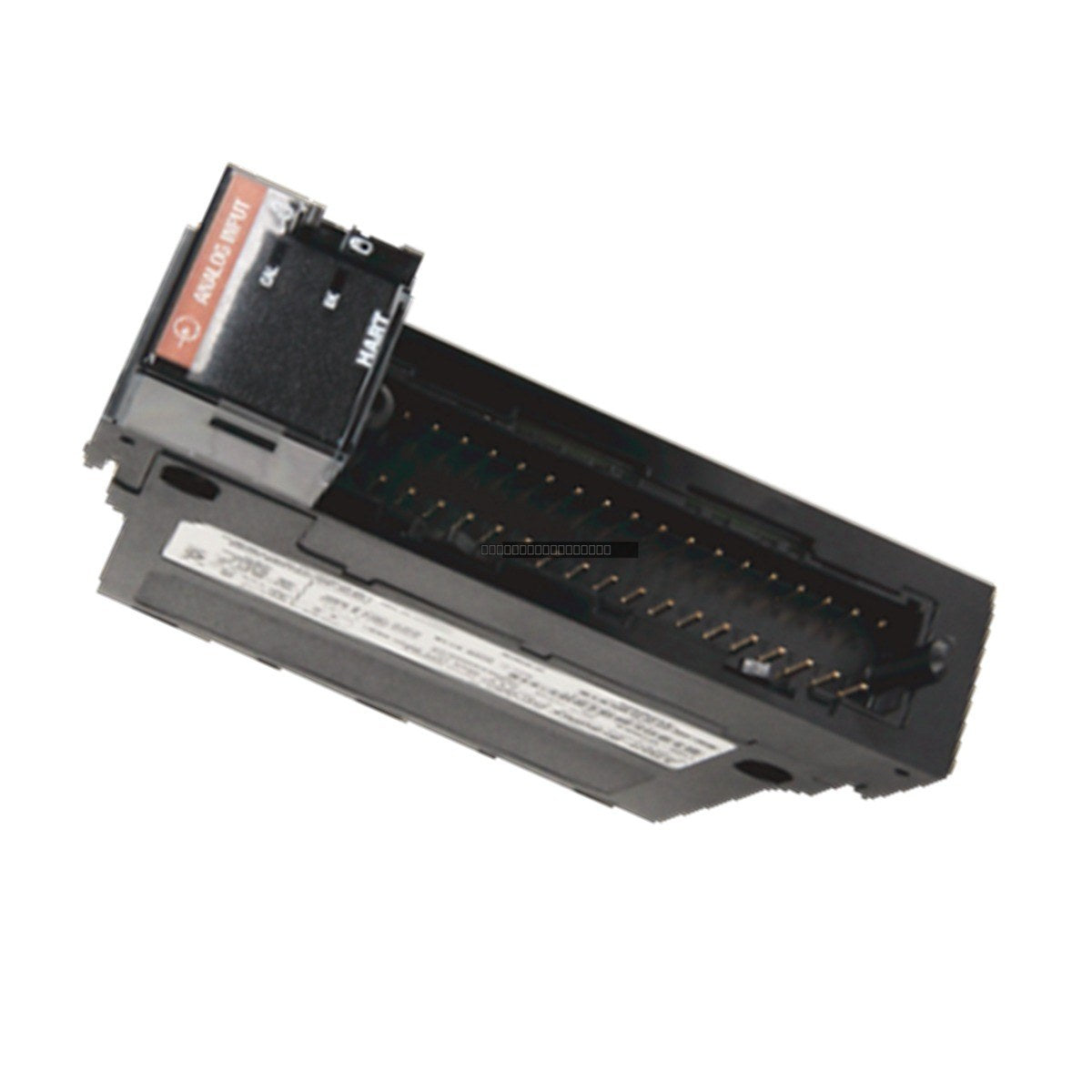

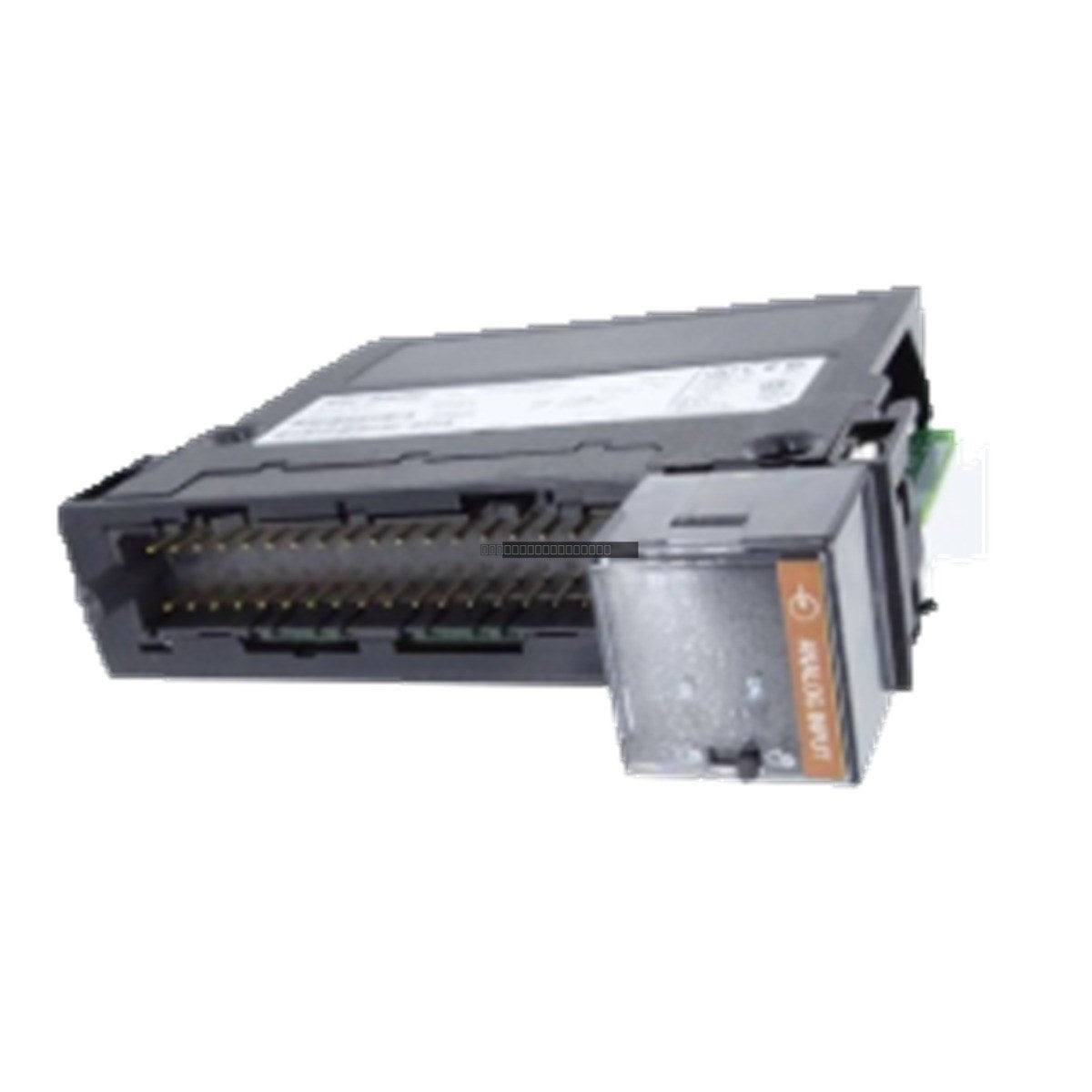

The Allen-Bradley 1756-IF4FXOF2F is a high-performance, combination analog I/O module designed for the ControlLogix platform. This module integrates high-speed processing capabilities, providing four differential high-speed analog inputs and two high-speed analog outputs, ideal for demanding control applications requiring sub-millisecond response times.
Features
- Four high-speed, sub-millisecond differential analog input channels.
- Two high-speed analog output channels supporting both voltage and current signals.
- Configurable input ranges including ±10V, 0-10V, 0-5V, and 0-20 mA.
- Configurable output ranges including ±10V and 0-20 mA.
- High-resolution conversion for precision measurement and control.
- Seamless integration into existing ControlLogix chassis architectures.
Applications
This module is engineered for industrial environments where rapid signal acquisition and output are critical, such as high-speed motion control, precision process regulation, and fast-loop feedback systems within manufacturing and automation lines.
Technical Specifications
| Module Type |
High-Speed Analog I/O |
| Inputs |
4 High-speed differential |
| Outputs |
2 High-speed (Voltage/Current) |
| Input Ranges |
±10V, 0-10V, 0-5V, 0-20 mA |
| Output Ranges |
±10V, 0-20 mA |
| Input Resolution |
14 bits (±10.5V DC), 12 bits (21 mA) |
| Output Resolution |
13 bits (21 mA), 14 bits (21.8V) |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the chassis slot and secured with the top and bottom latching mechanisms.
- Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the chassis and signal wiring to ensure signal integrity.
- Avoid routing signal cables near high-voltage power lines or high-frequency switching equipment.
FAQ
What is the primary function of the 1756-IF4FXOF2F?
It is a combination module that provides both high-speed analog input and output functionality for Allen-Bradley ControlLogix systems, specifically designed for applications requiring sub-millisecond processing.
Does this module support both current and voltage signals?
Yes, the module is software-configurable to handle various voltage and current ranges for both inputs and outputs.
