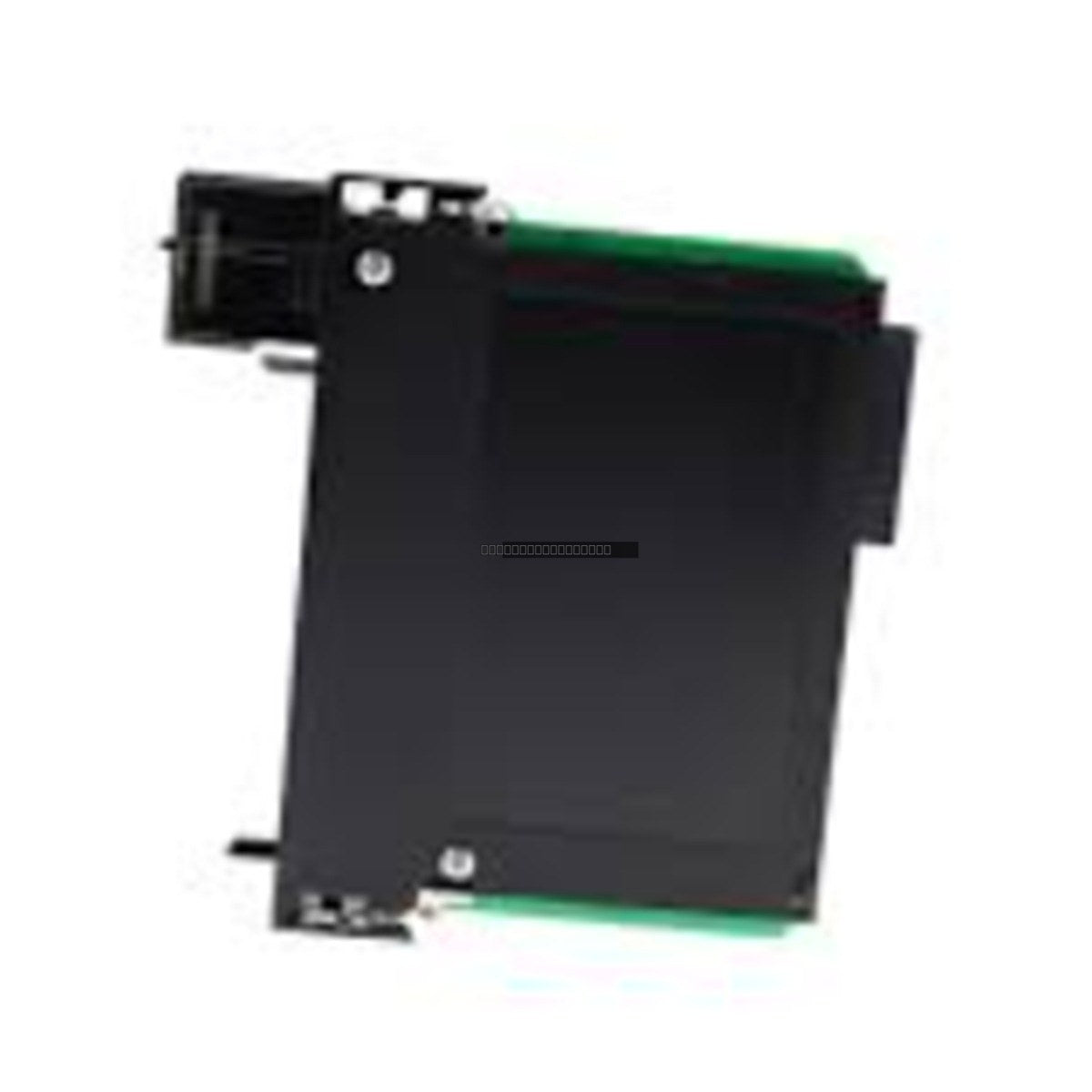

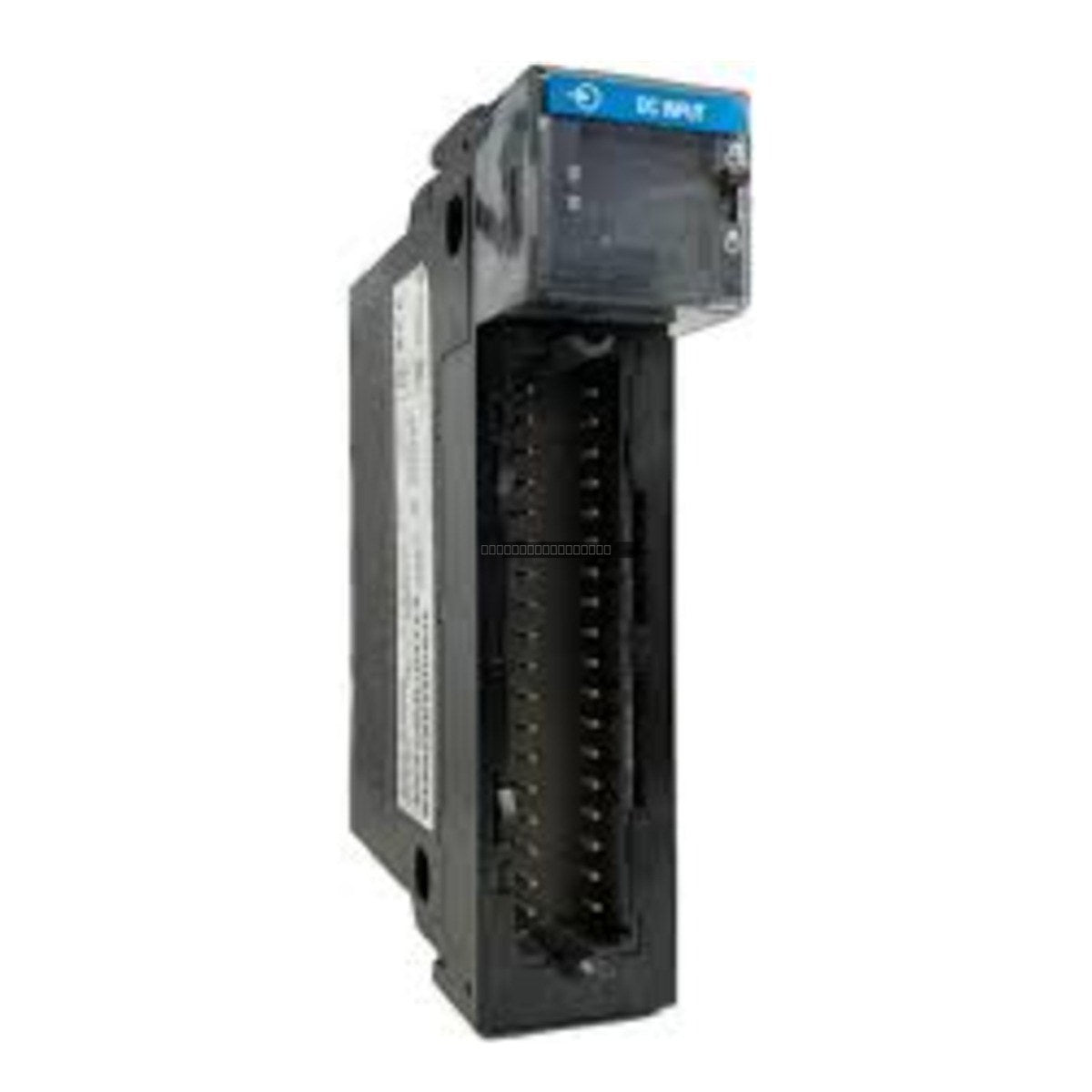

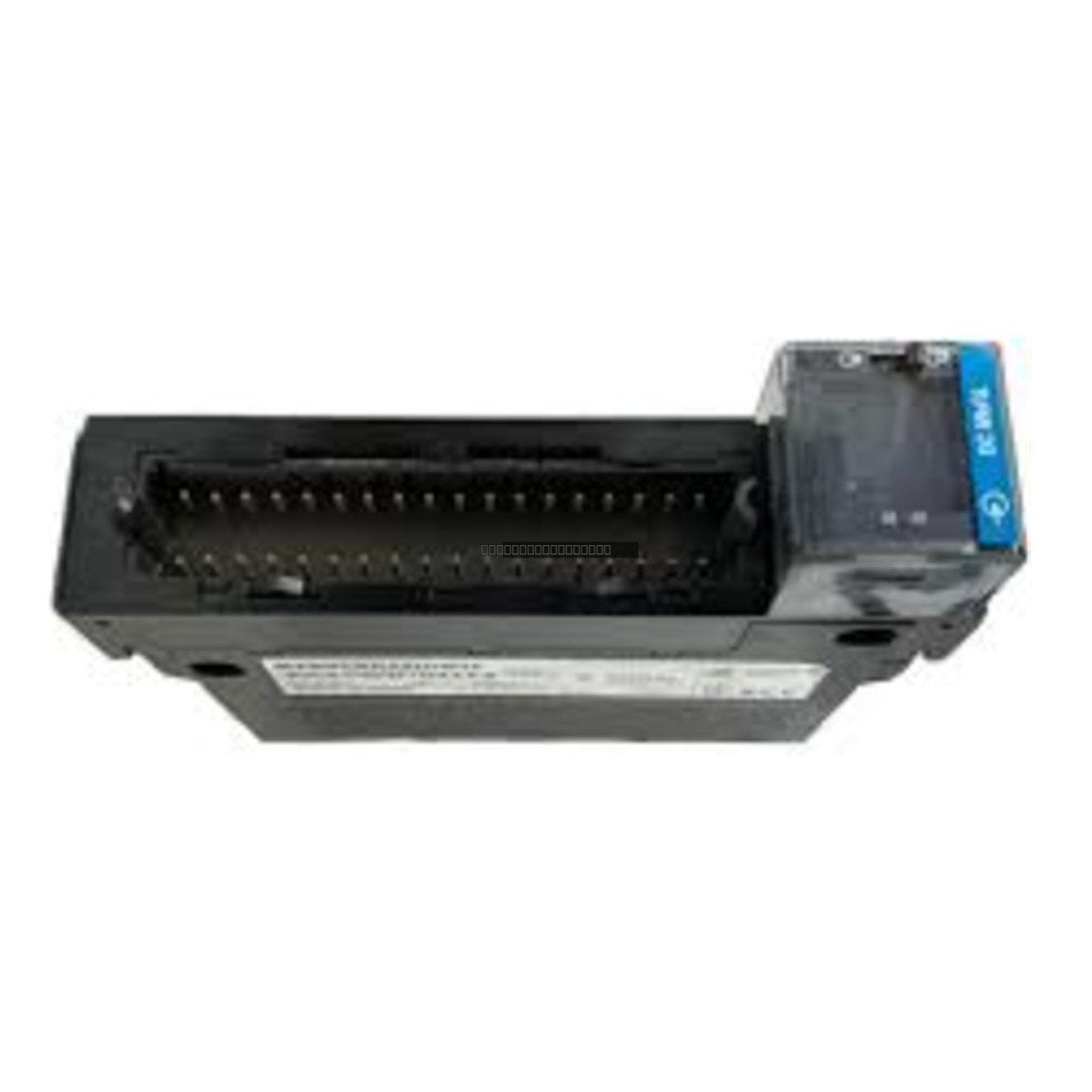

The Allen-Bradley 1756-IB16IF is a high-performance, 16-point fast digital input module designed for the ControlLogix platform. This module provides rapid signal processing capabilities, making it suitable for applications requiring high-speed data acquisition and precise timing. It features isolated input channels and supports peer-to-peer communication, ensuring reliable integration within complex automation architectures.
Features
- 16 isolated DC digital input points.
- Fast input response time for high-speed industrial processes.
- Integrated module health and communication status diagnostics display.
- Compatible with 10-30 VDC input voltage ranges.
- Designed for seamless integration into the ControlLogix chassis.
Technical Specifications
| Model |
1756-IB16IF |
| Input Voltage Range |
10-30 VDC |
| Power Dissipation |
3.8 Watts |
| Current Draw (5.1V) |
275 mA |
| Current Draw (24V) |
3 mA |
| Manufacturer |
Allen-Bradley |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is properly seated in the chassis slot and that the locking tab is fully engaged.
- Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain adequate spacing around the module for proper ventilation and heat dissipation.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
Is the 1756-IB16IF module isolated? Yes, the 1756-IB16IF features isolated input channels to protect against ground loops and electrical interference.
What is the primary application for this 'Fast' module? The 'Fast' designation indicates that this module is optimized for applications where high-speed input response is critical, such as high-speed counting or rapid event triggering.
