Description

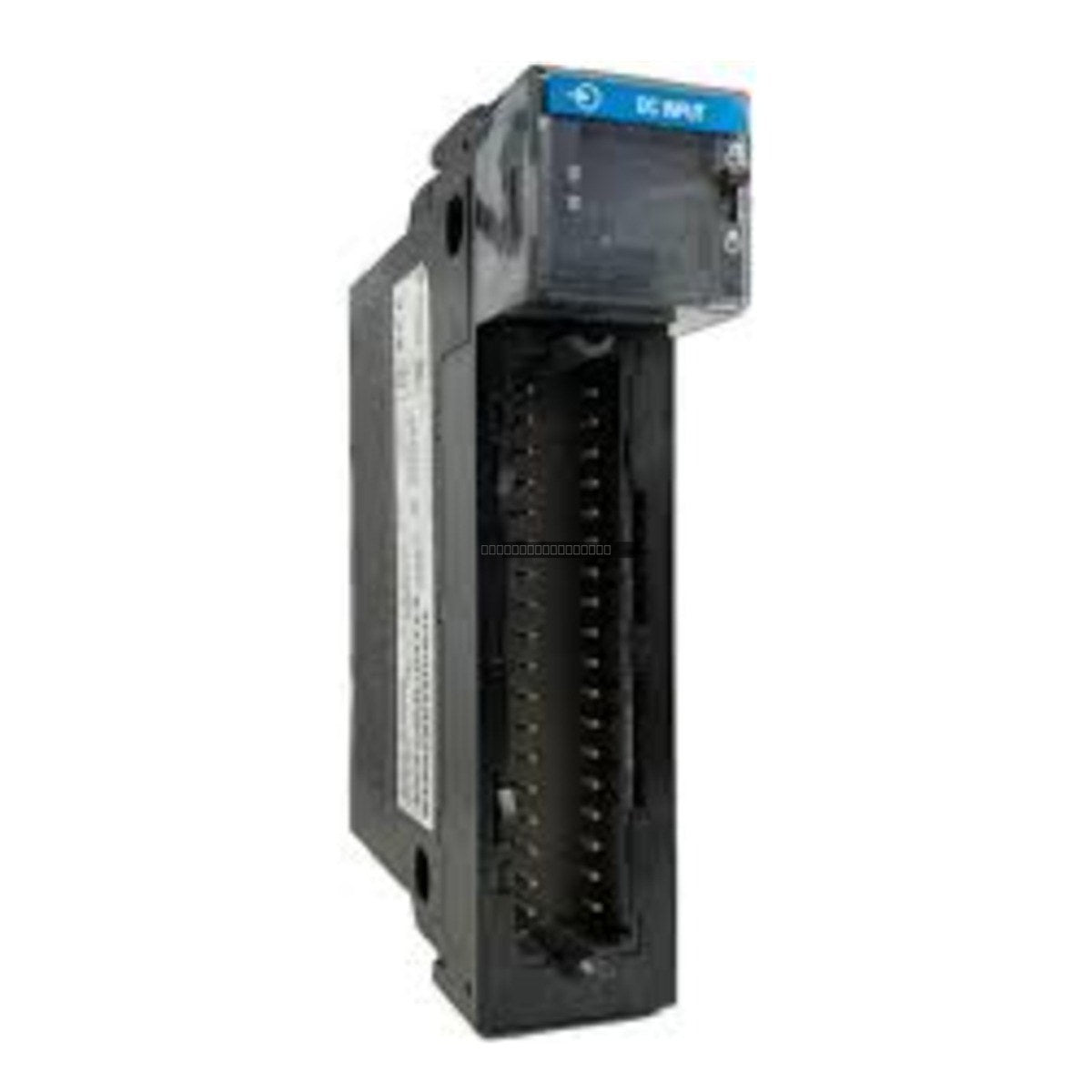

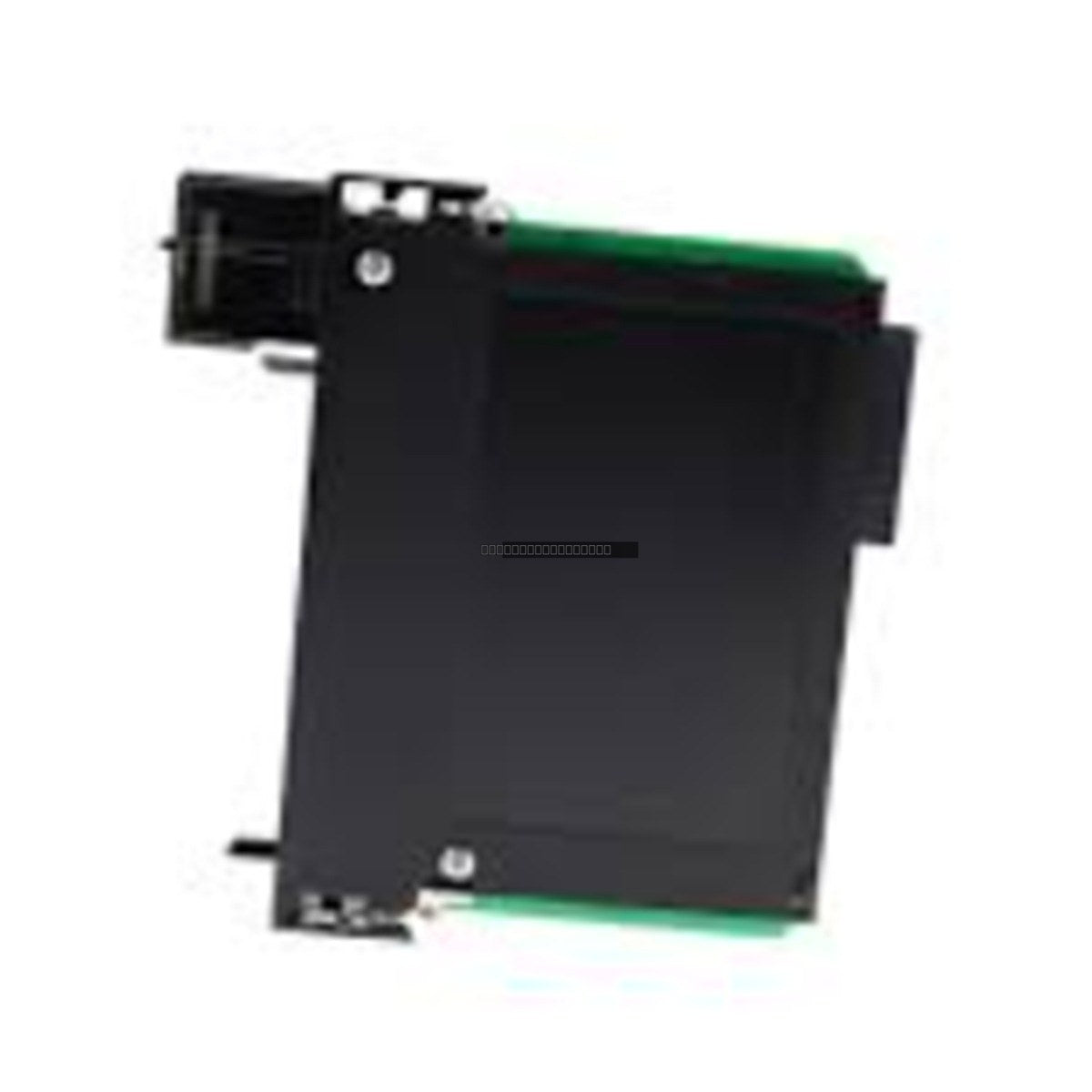

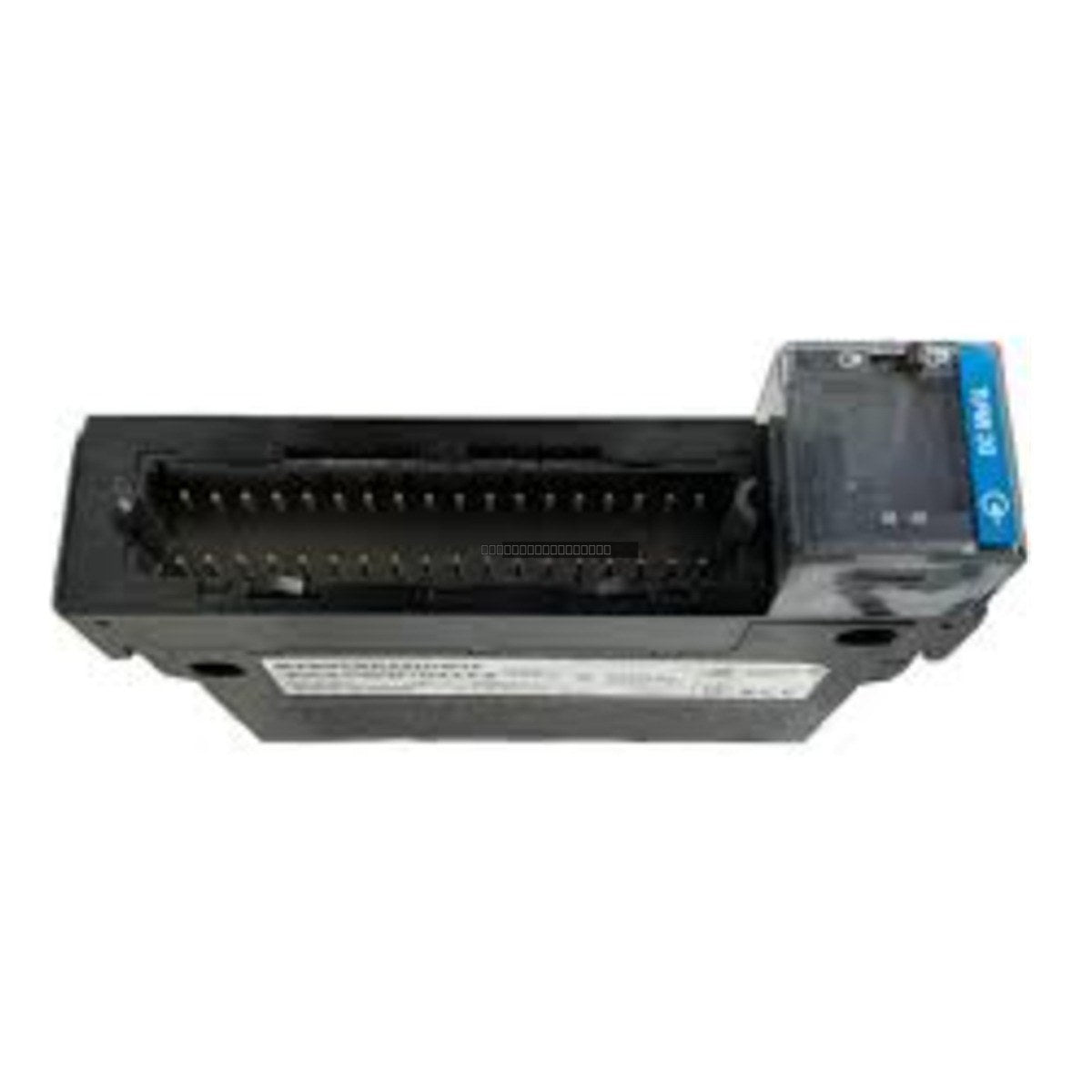

The Allen-Bradley 1756-IB16D is a high-performance diagnostic digital input module designed for the ControlLogix platform. This module provides 16 points of 12-24V DC sinking inputs, specifically engineered to support diagnostic monitoring in demanding industrial automation applications. It is built to offer reliable signal acquisition with integrated fault detection capabilities, ensuring robust system operation.
Features
- 16 diagnostic input channels for comprehensive signal monitoring.
- Supports 12-24V DC sinking input configurations.
- Wide operating voltage range from 10-30V DC to accommodate various power environments.
- Integrated diagnostic features to detect field-side faults.
- Low power dissipation of 5.8 Watts at 60 degC.
- Compact ControlLogix form factor for high-density rack mounting.
Technical Specifications
| Model |
1756-IB16D |
| Input Type |
16 Diagnostic Inputs (Sink) |
| Voltage Range |
10-30V DC |
| Nominal Voltage |
12-24V DC |
| Off-State Current (Max) |
1.5 mA per point |
| Operating Current (Min) |
2 mA at 10V DC |
| Operating Current (Max) |
13 mA at 30V DC |
| Backplane Current (5V) |
150 mA |
| Power Dissipation |
5.8 Watts at 60 degC |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage or backplane faults.
- Mount the module in any slot of a ControlLogix chassis; use the appropriate Removable Terminal Block (RTB) housing for field wiring.
- Maintain proper grounding practices for the chassis to minimize electromagnetic interference (EMI).
- Ensure adequate ventilation in the cabinet to stay within the power dissipation limits, especially at higher ambient temperatures.
- Route signal wiring away from high-voltage AC power lines to prevent signal noise and potential induction issues.
FAQ
What is the primary function of the 1756-IB16D?
This is a diagnostic digital input module for the ControlLogix system. It monitors 16 input points and provides diagnostic data to the controller, allowing for faster troubleshooting of field-side wiring and device faults.
Is this module compatible with standard ControlLogix chassis?
Yes, the 1756-IB16D is designed for standard ControlLogix I/O chassis and communicates via the ControlLogix backplane.
What is the input voltage range for this module?
The module operates within a 10-30V DC range, with a nominal operating voltage of 12-24V DC.
