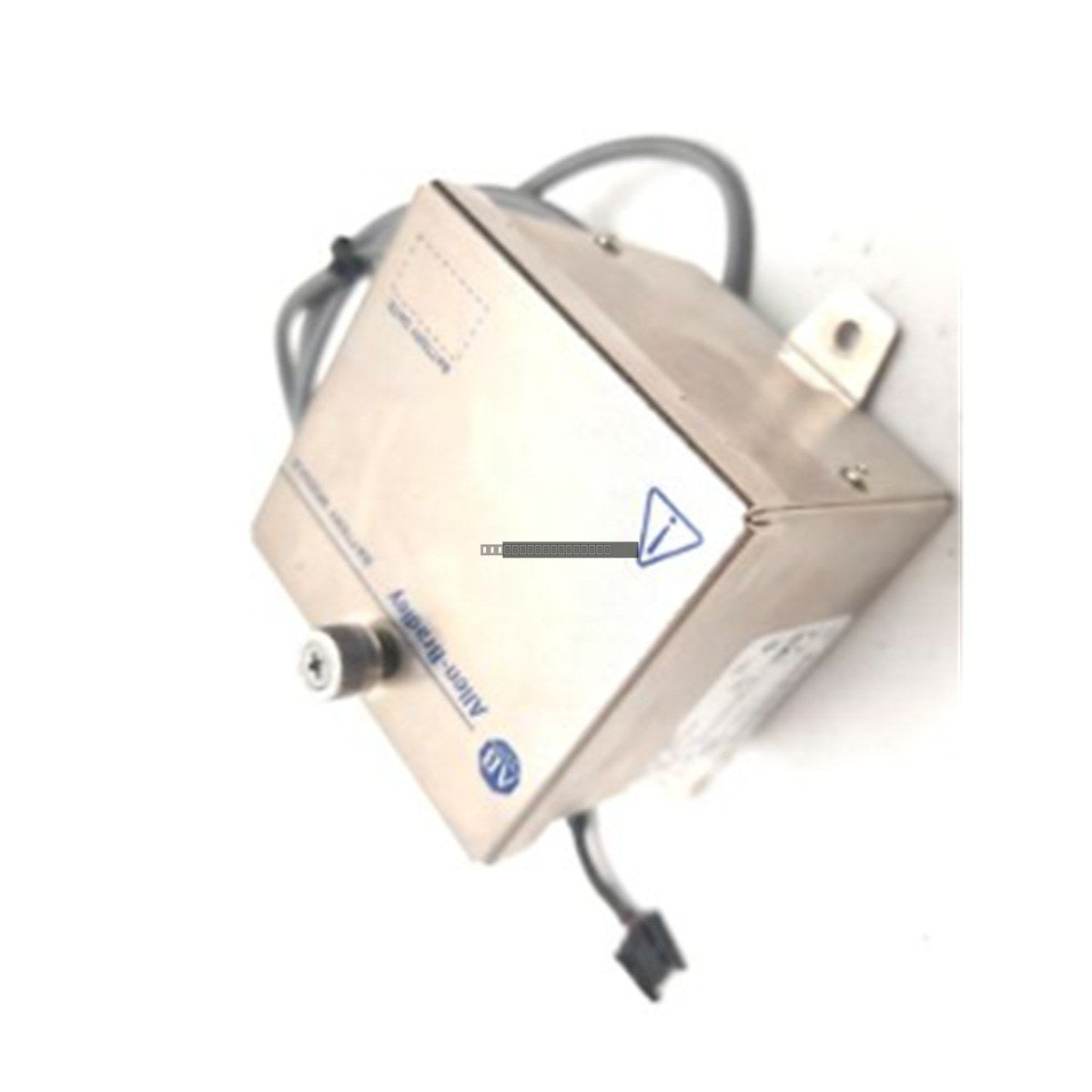

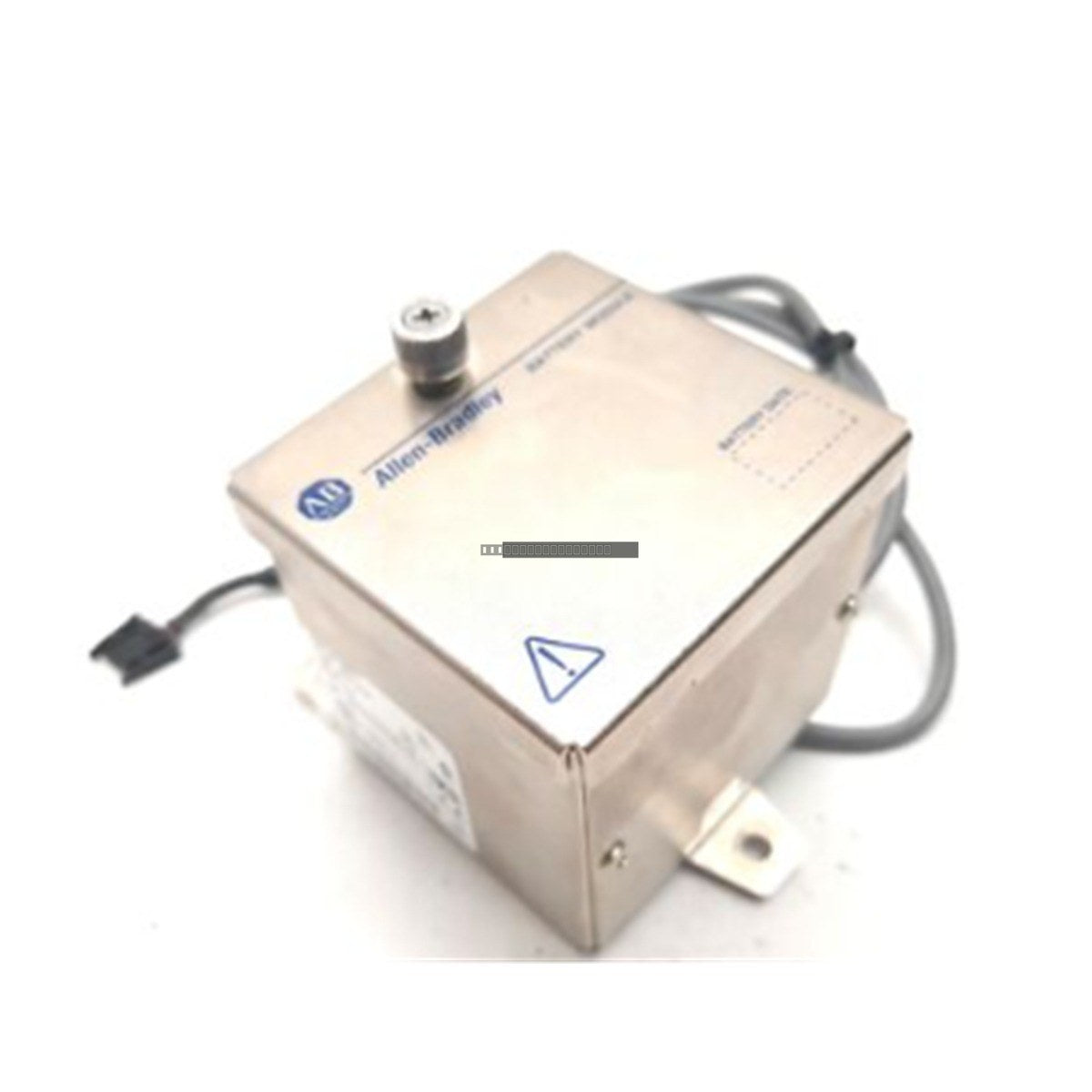

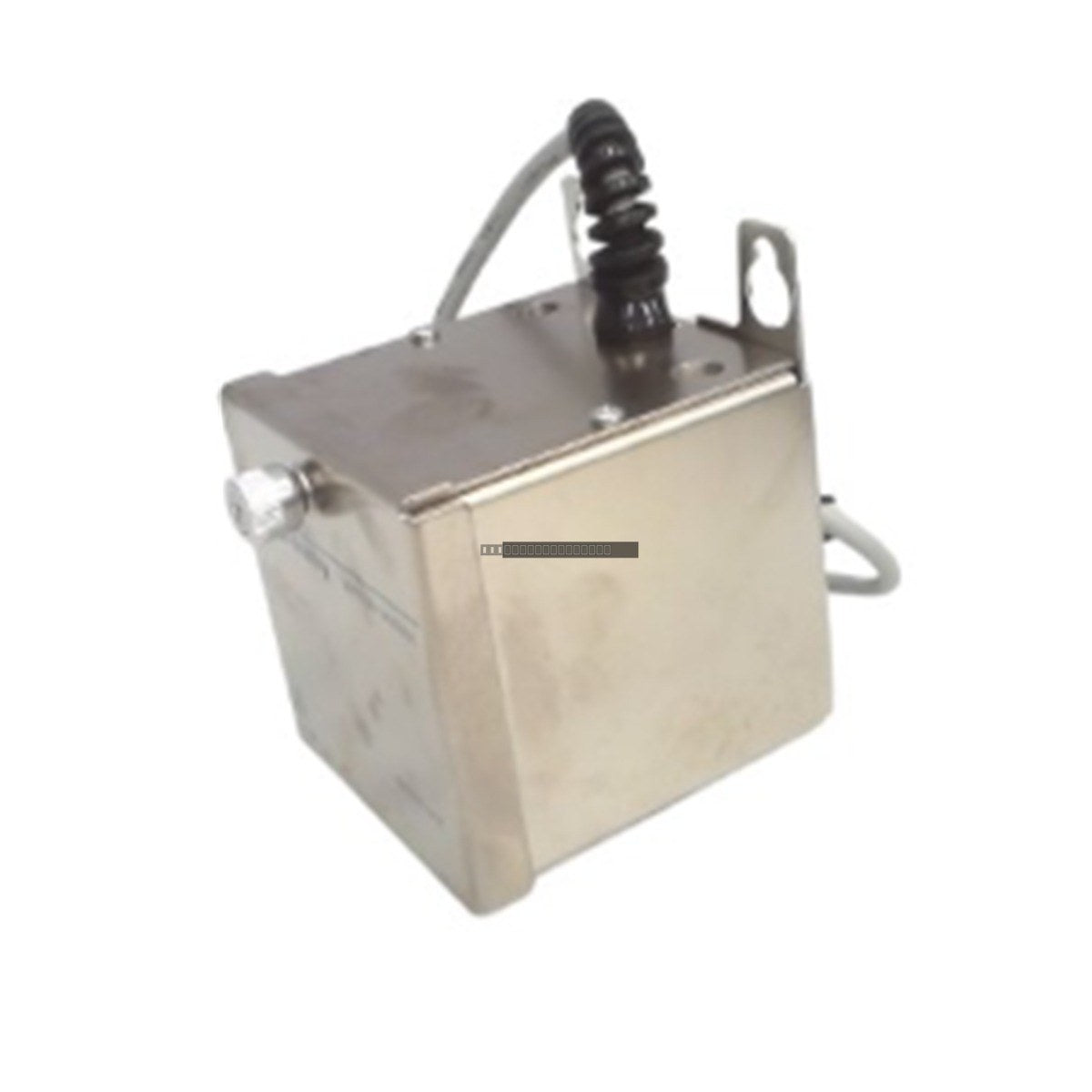

The Allen-Bradley 1756-BATM is a dedicated battery assembly designed for the ControlLogix platform. This externally mounted component provides essential backup power to maintain the volatile memory of the controller, ensuring the preservation of user programs and data during power loss or system shutdowns.
Features
- Designed specifically for integration within the ControlLogix system architecture.
- Externally mounted configuration for simplified access and replacement.
- Reliable lithium-based chemistry for long-term memory retention.
- Open enclosure design suitable for standard industrial control panels.
Technical Specifications
| Manufacturer |
Allen-Bradley |
| Model |
1756-BATM |
| Product Type |
Lithium Battery Assembly |
| Series |
ControlLogix |
| Mounting |
Horizontal |
| Power Dissipation (Max) |
4.5 Watts |
| Backplane Current (5V DC) |
10 Amps |
| Backplane Current (24V DC) |
2.8 Amps |
| Weight |
0.35 kg |
Installation Guidelines
- Ensure the controller is powered down before installing or replacing the battery assembly.
- The 1756-BATM is designed for horizontal mounting; verify physical orientation matches the chassis configuration.
- Handle lithium batteries according to local environmental regulations and safety protocols for disposal.
- Avoid exposing the battery assembly to extreme temperatures or high-humidity environments to maintain optimal service life.
- Ensure the battery connector is fully seated to prevent intermittent power loss to the volatile memory.
FAQ
Is the 1756-BATM compatible with all ControlLogix controllers?
This battery assembly is engineered for the ControlLogix series. Please verify your specific controller model documentation to confirm compatibility with the 1756-BATM assembly.
How often should I replace the battery?
Replacement intervals depend on the specific controller's power consumption and the frequency of power cycles. It is recommended to monitor the low-battery status indicator on your controller and replace the unit proactively.
