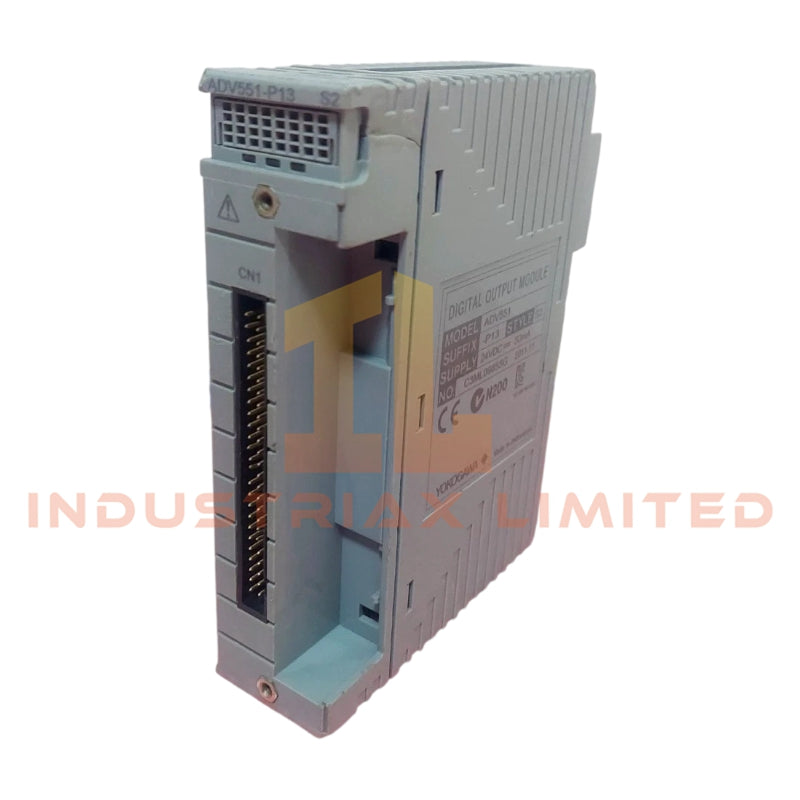

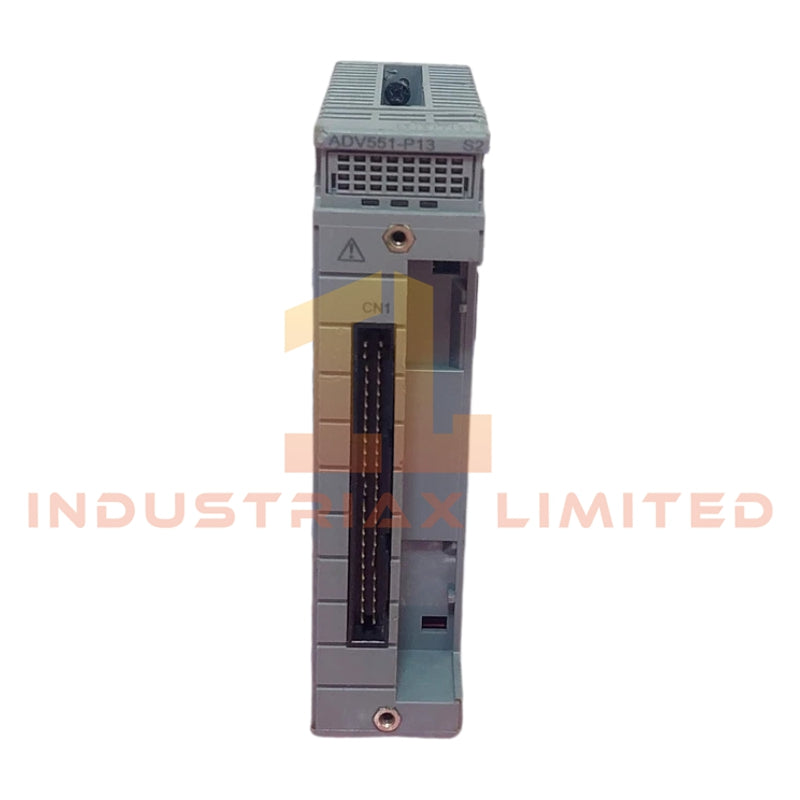

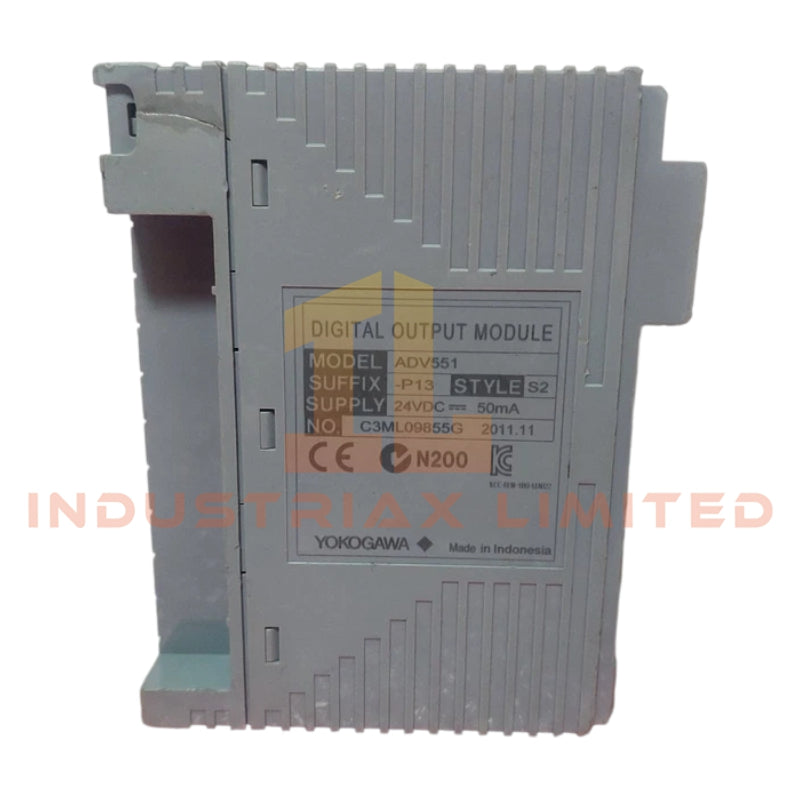

Yokogawa ADV551-P13 Digital Output Module
Configured for discrete signal actuation in distributed control logic execution within Yokogawa DCS I/O architectures, the Yokogawa ADV551-P13 (ADV551-P13 Digital Output Module) provides direct physical/electrical switching of 24 V DC field loads via current sink output structure across 32 independent channels.
Suffix Breakdown & Model Matrix
No validated manufacturer-provided suffix decomposition is available for ADV551-P13. The identifier is treated as a single-order hardware code within the ADV500 I/O module family, with P13 denoting a legacy production variant superseded by ADV551-P63.
Hardware Specifications
| Parameter |
Specification |
| Model |
ADV551-P13 |
| Brand |
Yokogawa |
| Origin |
JAPAN |
| Product Type |
Digital Output Module |
| Output Channels |
32 channels |
| Rated Voltage |
24 V DC |
| Output Format |
Current sink |
| Max Load Current |
100 mA / channel at 26.4 V |
| Withstanding Voltage |
2 kV AC (output to system, 1 min), 500 V AC (between commons, 1 min) |
| Channel Grouping |
Common minus side per 16 channels |
DCS Output Stage Signal Conditioning and Channel Group Isolation
Within Yokogawa process control I/O architectures, the ADV551-P13 implements grouped common return segmentation across 16-channel blocks, enabling controlled fault containment at field termination level. The current sink topology defines load-side energization behavior, where output transistors complete return paths to system common. In modular DCS backplane operation, this structure supports deterministic state updates aligned with scan-based execution cycles and maintains electrical segregation between channel banks under mixed inductive load conditions.
Frequently Asked Questions
Q: Can ADV551-P13 outputs be paralleled for higher load current?
A: No. Each channel is independently rated at 100 mA maximum. Parallel operation is not supported due to internal transistor current distribution limits.
Q: What happens when inductive loads are connected without suppression?
A: Voltage transients may exceed internal protection thresholds. External flyback diodes or suppression networks are required at field terminals.
Q: Is hot-swap supported for ADV551-P13 within the rack system?
A: Hot-swap capability depends on the host base unit design. The module itself does not internally manage load-side isolation during insertion/removal.
Field Installation Guidelines
-
Ensure 24 V DC supply polarity is verified before energizing field terminals
-
Maintain separation between output wiring and high-noise power conductors
-
Use shielded cabling for long-distance field runs with single-point grounding at cabinet side
-
Apply surge suppression for inductive loads such as solenoids and relay coils
-
Confirm group common (16-channel grouping) wiring integrity before commissioning
-
Avoid live insertion unless the rack backplane explicitly supports module hot replacement
