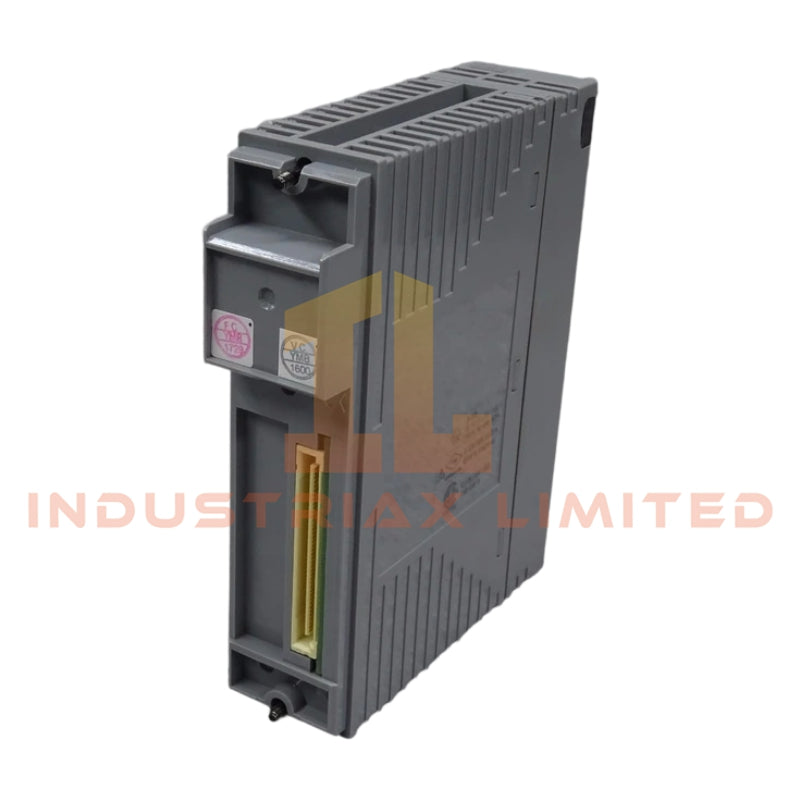

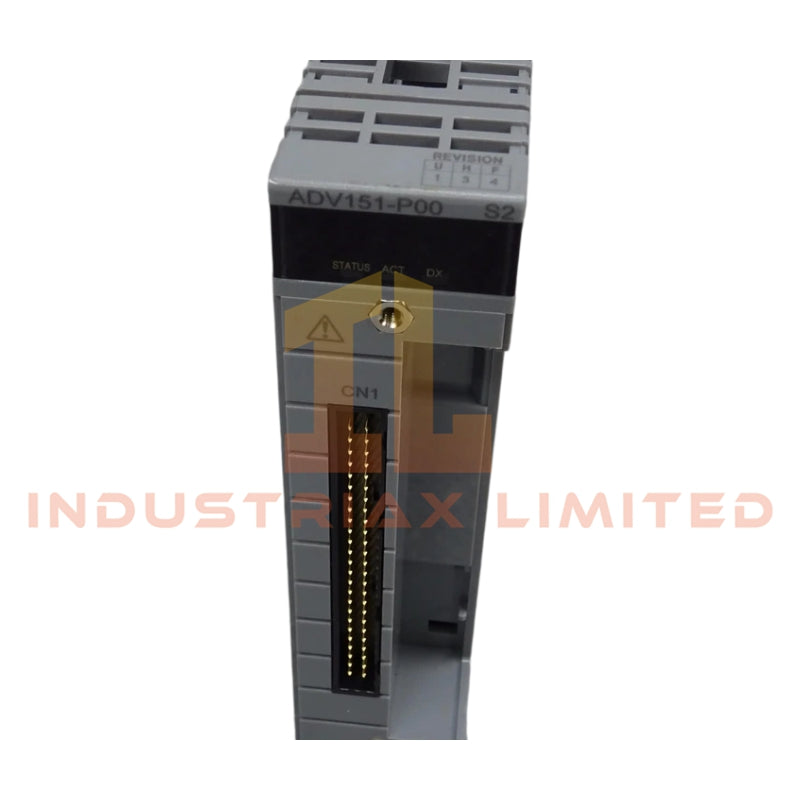

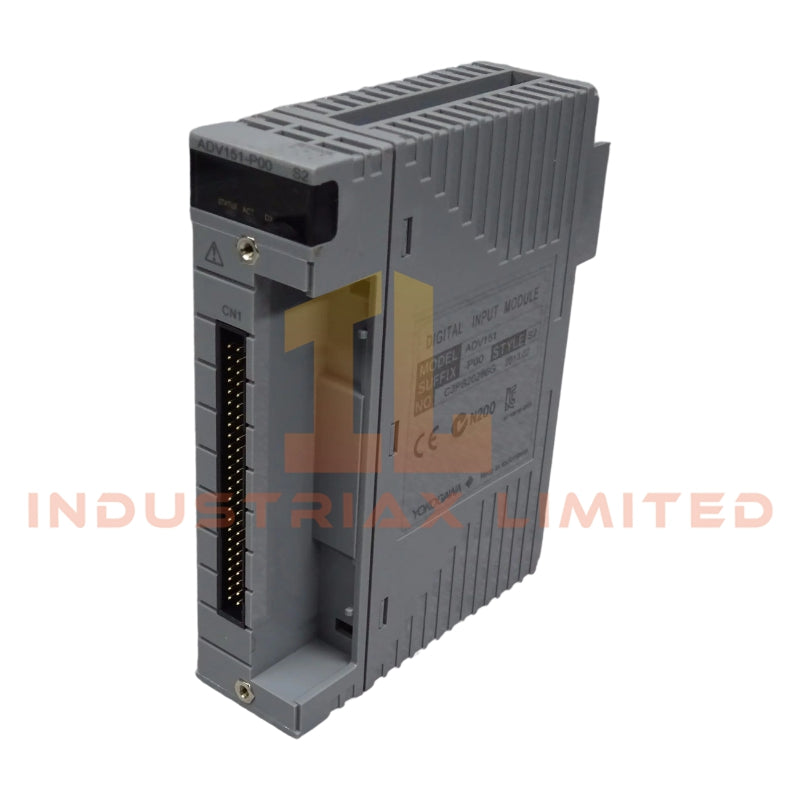

Yokogawa ADV151-P10/B5S10 Digital Input Module
The Yokogawa ADV151-P10/B5S10, also cataloged as the ADV151 Digital Input Module, serves as a 32-channel isolated 24 VDC discrete signal acquisition unit for binary field contact interfacing within Yokogawa DCS input subsystem architectures. Configured for per-channel optical isolation and structured terminal wiring via pressure clamp interface, the Yokogawa ADV151-P10/B5S10 (ADV151 Digital Input Module) provides direct electrical state sampling from ON/OFF field devices into controller scan logic.
Suffix Breakdown & Model Matrix
-
ADV151: 32-channel, 24 VDC isolated digital input base module
-
P: Pushbutton input function enabled
-
10: Standard configuration variant
-
B5S10: Pressure clamp terminal block with surge absorber option
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa ADV151-P10/B5S10 |
| Origin |
Japan |
| PowerConsumption |
Max 5 VDC backplane, 500 mA |
| Input Channels |
32 isolated channels |
| Input Voltage Range |
24 VDC |
| Input ON Voltage |
18 to 26.4 VDC |
| Input OFF Voltage |
5 VDC or less |
| Input Current |
4.1 mA +/-20 percent per channel |
| Max Allowable Input Voltage |
30 VDC |
| Withstanding Voltage |
2 kV AC (input to system, 1 min), 500 VAC (common groups) |
| Response Time |
8 ms or less |
| Terminal Type |
Pressure clamp terminal block |
Channel-to-Channel Isolation and 4-20 mA Field Interface Conditioning (DCS Input Architecture)
The ADV151 input stage implements channel-level isolation for 24 VDC discrete signal acquisition, with each input routed through isolated sensing circuitry prior to backplane digitization. The architecture prevents electrical coupling between adjacent channels under dense termination conditions.
From a process control instrumentation perspective, the module translates discrete field contact states into scan-cycle synchronized binary values within the DCS input image table. Surge-absorbing terminal configuration (B5S10) introduces transient suppression at the wiring interface, reducing voltage spike propagation into internal input stages during inductive switching events.
Channel threshold discrimination is defined by ON/OFF voltage windows (18 to 26.4 VDC for ON, 5 VDC or less for OFF), ensuring stable state recognition under variable field loop impedance conditions.
Frequently Asked Questions
Q: Can the module tolerate backplane hot insertion while field wiring remains energized?
A: The module supports backplane insertion depending on rack design, but field terminals should not be energized during insertion to avoid transient coupling into input circuitry.
Q: What defines the 8 ms response time behavior?
A: The response time is determined by internal input filtering and scan-cycle synchronization, limiting high-frequency contact bounce interpretation.
Q: Does surge absorber configuration affect channel isolation?
A: The surge absorber is applied at terminal interface level and does not alter internal channel-to-channel optical isolation structure.
Field Installation Guidelines
Install the module into a compatible Yokogawa ADV151 I/O base ensuring full seating into the backplane connector. Maintain correct polarity for 24 VDC input wiring to avoid reverse bias stress on input detection circuits. Use twisted pair wiring for long input runs and ensure shield continuity is terminated at a single-point cabinet earth reference.
Pressure clamp terminals must be tightened to specified mechanical retention force to maintain stable contact resistance. Separate high-voltage switching cables from low-level signal wiring to minimize inductive coupling into adjacent input channels.
