Description

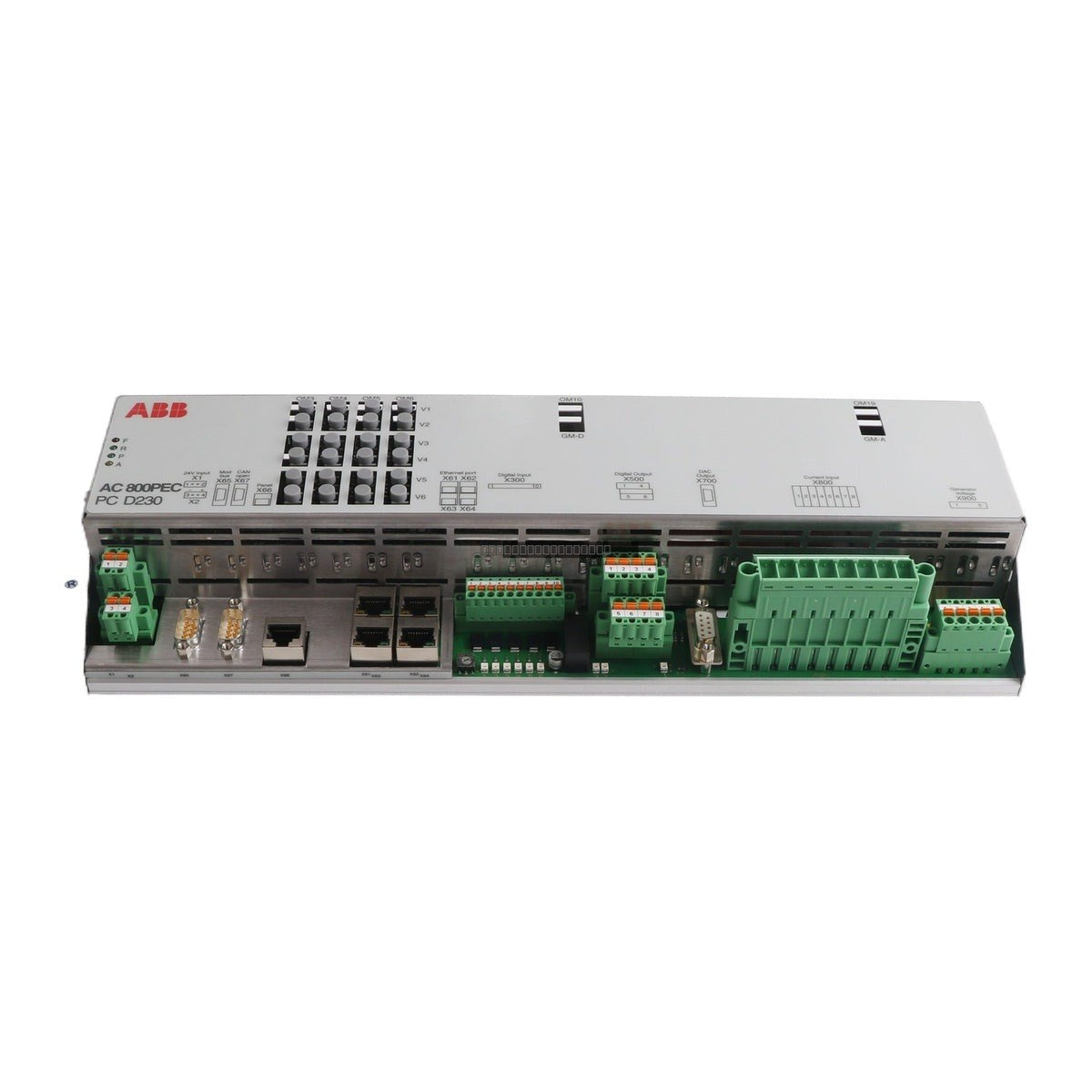

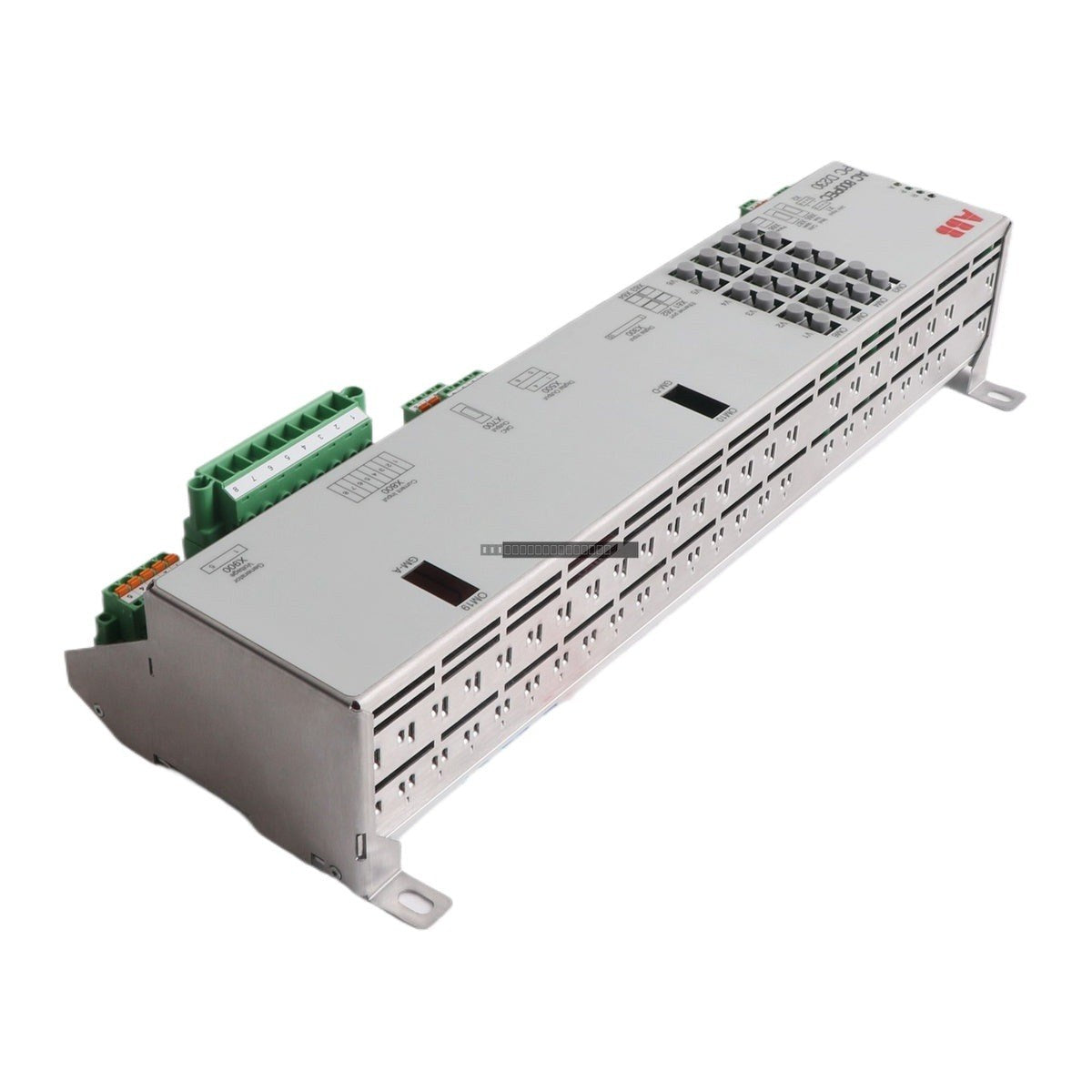

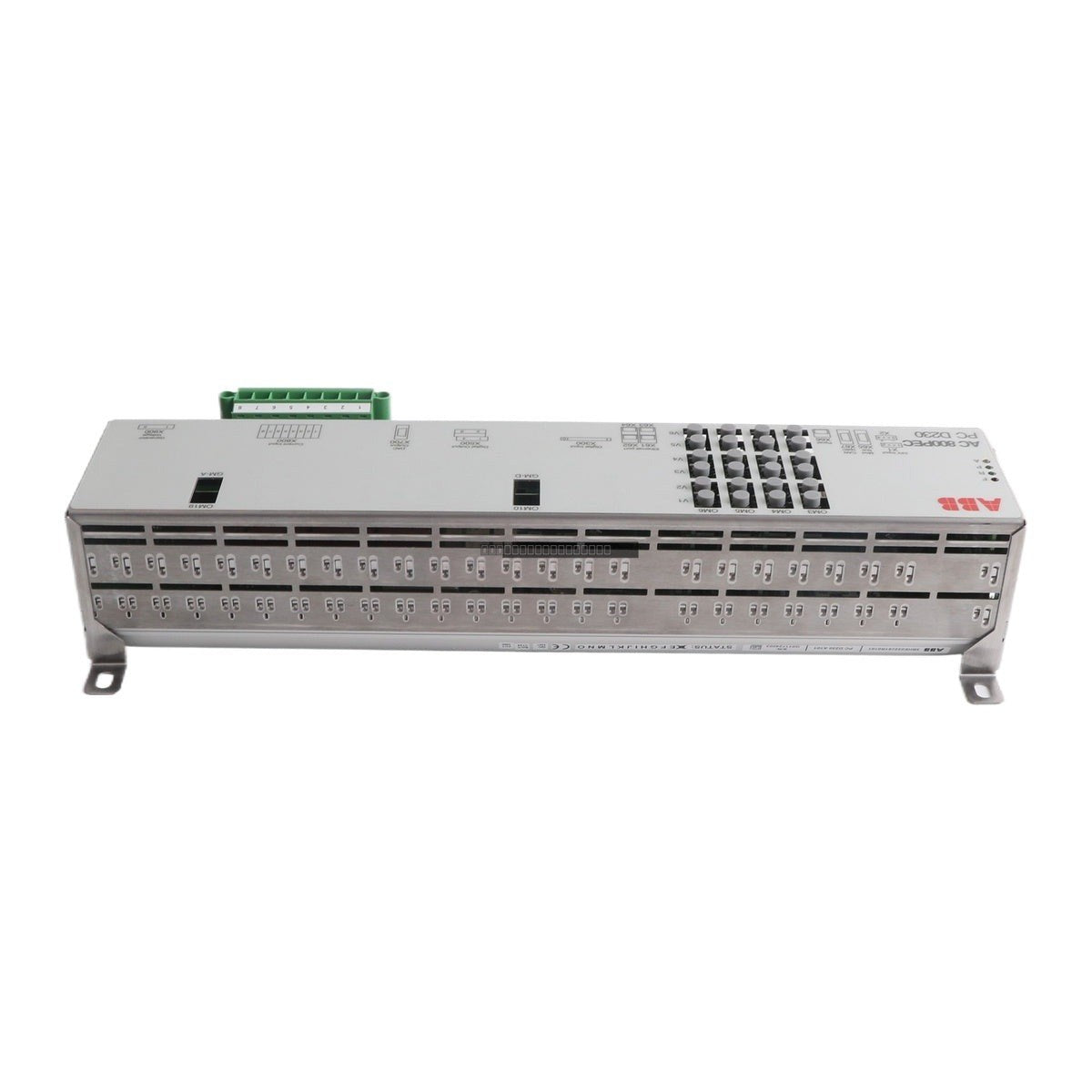

The ABB PCD230 A101 (3BHE022291R0101) is a specialized Communication, Control, and Measurement (CCM) board designed for use within ABB UNITROL excitation systems. This module serves as a critical interface component for managing communication protocols and control signals within the excitation control architecture.
Features
- Integrated communication, control, and measurement functionality.
- Designed specifically for compatibility with ABB UNITROL excitation system platforms.
- Robust hardware architecture for reliable performance in power generation and industrial control environments.
- Direct replacement or spare for 3BHE022291R0101 assemblies.
Applications
This module is primarily utilized in power plant excitation systems, providing the necessary control and communication logic to maintain generator stability and performance. It is intended for use in professional industrial settings requiring high-precision control of excitation parameters.
Technical Specifications
| Model |
PCD230 A101 |
| Part Number |
3BHE022291R0101 |
| Function |
CCM (Communication Control Measurement) Board |
| Manufacturer |
ABB |
| Weight |
1.5 kg |
Installation Guidelines
- Ensure the excitation system is fully powered down and locked out before attempting to install or remove the module.
- Handle the board using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to sensitive electronic components.
- Verify that the module is correctly seated in the designated slot within the UNITROL rack assembly.
- Ensure all communication cables are securely connected and routed away from high-voltage power lines to minimize EMI interference.
- Check for proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
FAQ
Is this a genuine ABB part? Yes, this is an original ABB UNITROL system component identified by the part number 3BHE022291R0101.
What is the primary function of the PCD230 A101? It acts as a CCM board, managing the communication and control measurement tasks required for the operation of the excitation system.
