Description

Overview

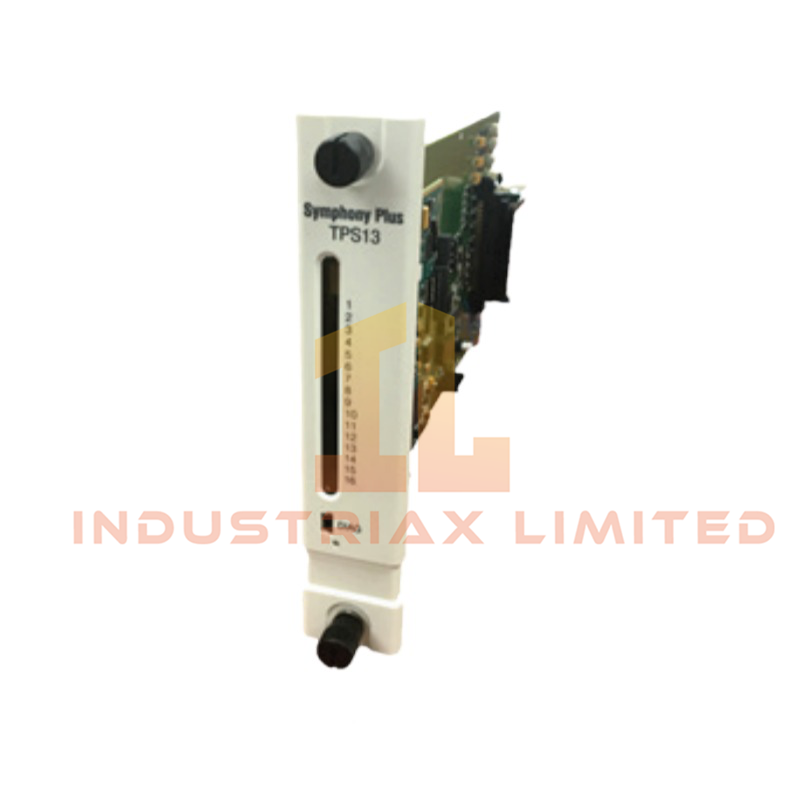

The SPTPS13 module is ABB’s next-generation Turbine Protection Module for the Symphony® Plus Harmony Rack platform. Engineered to replace and unify older modules (SPTPS02, SPFCS01, and SPTSA01), it offers versatile functionality through adapter board configuration and compatibility with multiple Harmony function codes. This modular approach simplifies upgrades and enhances system reliability in turbine control environments.

Key Features

• Legacy Module Consolidation

  • Replaces SPTPS02, SPFCS01, and SPTSA01

  • Reduces inventory and simplifies maintenance

• Multi-Mode Operation

  • Configurable via TPS, FCS, or TSA adapter boards

  • Adapts I/O channel mapping to match legacy modules

• Function Code Compatibility

  • FC 145/79/83/84 for TPS02 applications

  • FC 145 for FCS01 applications

  • FC 103 for TSA01 applications

• Termination Unit Support

  • Compatible with TPTU02, NTDI01, and NTDI02

• Advanced Speed Detection & Protection

  • Designed for turbine control and safety

  • Integrates seamlessly into Symphony Plus architecture

Technical Specifications

Specifications

• Dimensions: 35.56 mm x 177.80 mm x 298.45 mm
• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
