Description

Overview

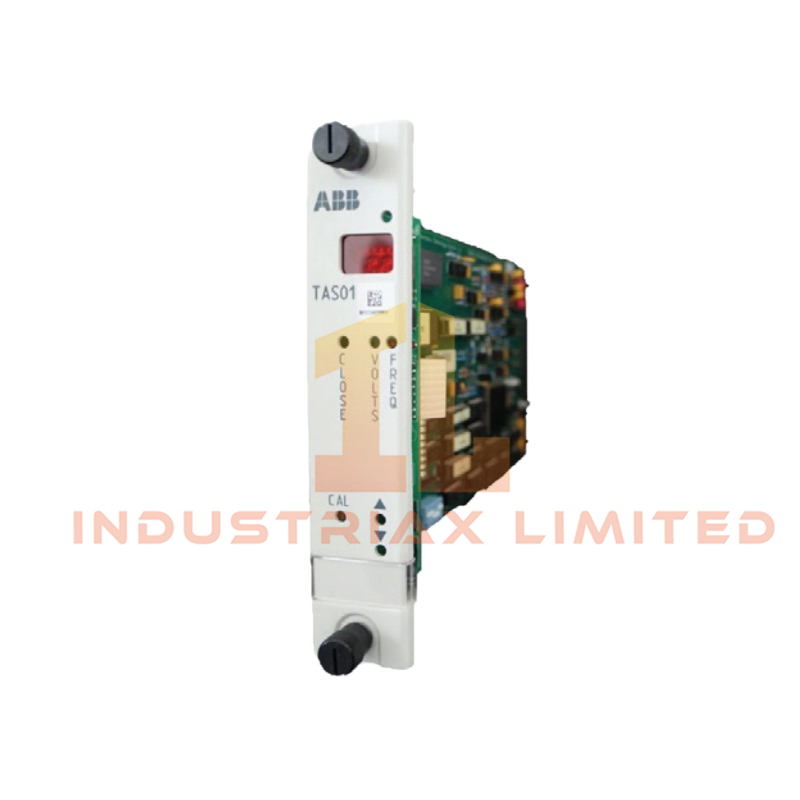

The SPTAS01 module from ABB’s Symphony® Plus series is designed to automate the synchronization of generators with the grid. It intelligently manages generator circuit breaker closure by continuously monitoring voltage, frequency, and phase alignment between the generator and the line. With configurable thresholds and optional manual override, it ensures safe and efficient synchronization in power generation environments.

Key Features

• Automatic Synchronization

  • Matches generator and line voltage, frequency, and phase

  • Enables automatic breaker closure when conditions are met

• Continuous Monitoring

  • Real-time voltage and frequency checks

  • Synchronization sequence initiates only when:

    • Line voltage > 75% of target

    • Generator voltage > 33% of target

    • Frequencies within user-defined window

• Configurable Operation

  • Automatic functions can be disabled for manual monitoring

  • Supports both high (0–150 VAC) and low (0–50 VAC) input ranges

  • Compatible with 50 Hz and 60 Hz systems

• System Integration

  • Seamlessly integrates with Symphony Plus control architecture

  • Enhances operational safety and efficiency in turbine systems

Technical Specifications

Specifications

• Dimensions: 35.56 mm x 177.80 mm x 298.45 mm
• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
