Description
Overview

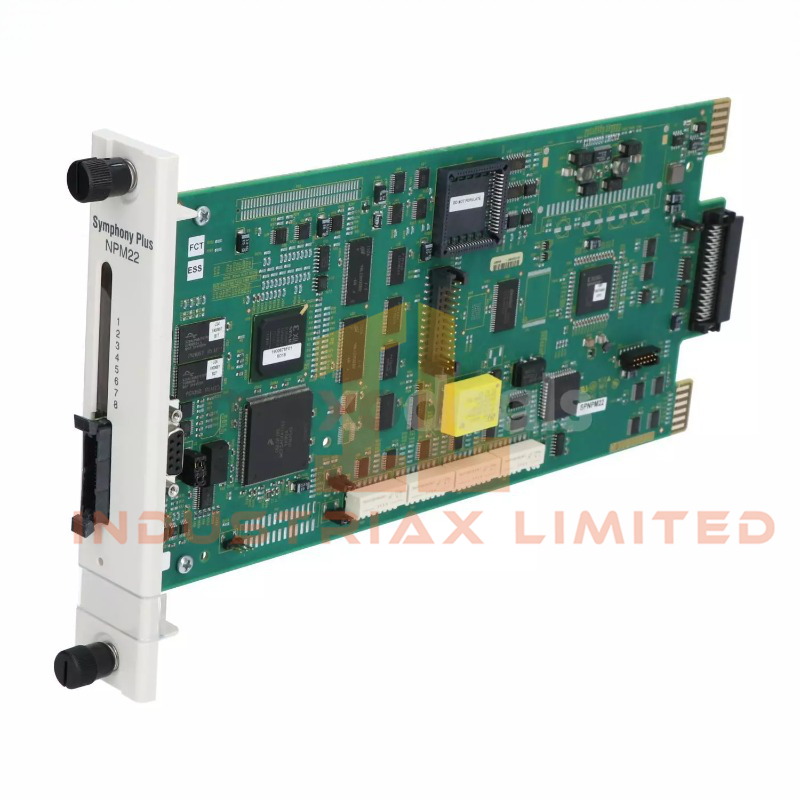

The SPNPM22 Network Processing Module from ABB Symphony Plus serves as a high-speed gateway between Cnet and Control way. It integrates a Harmony Control Unit (HCU) database and manages communication with the SPNIS21 module via a dedicated I/O expander bus. This single-slot module features robust microprocessor-based circuitry and dual card edge connectors for power and signal interfacing.
Key Features
-
Microprocessor: 32-bit CPU running at 160 MHz
-
Memory: ROM for firmware; RAM for temporary storage and exception routing
-
Interfaces: RS-232-C serial channel, I/O expander bus
-
Control way: Dual-channel, 1 Mbps peer-to-peer communication
-
Status Monitoring: 16-byte status record viewable via HSI
-
Faceplate Components: 16 LEDs (8 red, 8 green), Status LED, Stop/Reset button
-
Mounting: Secured with two latching fasteners to MMU
Technical Specifications
| Specification |
Detail |
| Manufacturer |
ABB |
| Series |
Symphony Plus |
| Model |
SPNPM22 |
| Voltage |
24 VDC |
| Current |
2 A |
| Dimensions |
73.66 mm × 360.68 mm × 279.4 mm |
| Weight |
0.3 kg |
| Connectors |
P1: +5 VDC, Control way; P2: I/O bus |
| Communication |
Control way, RS-232-C, I/O expander |
| Slot Occupancy |
Single slot in MMU |
Applications & Compatibility
The SPNPM22 module is ideal for industrial automation systems requiring synchronized communication between Harmony control units and peer modules. It supports up to 32 Control way connections and ensures fault-tolerant data integrity across MMU backplanes. Compatible with SPNIS21 modules and ABB’s Symphony Plus architecture, it suits high-reliability environments in power generation, process control, and manufacturing.
