Description
Product Overview

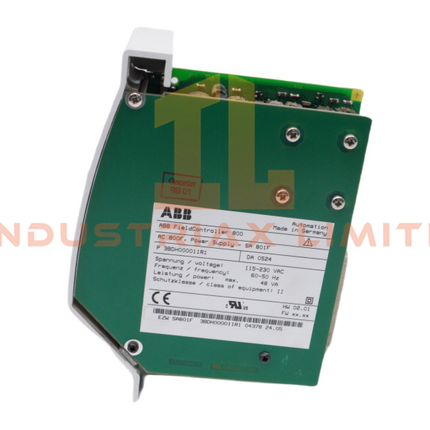

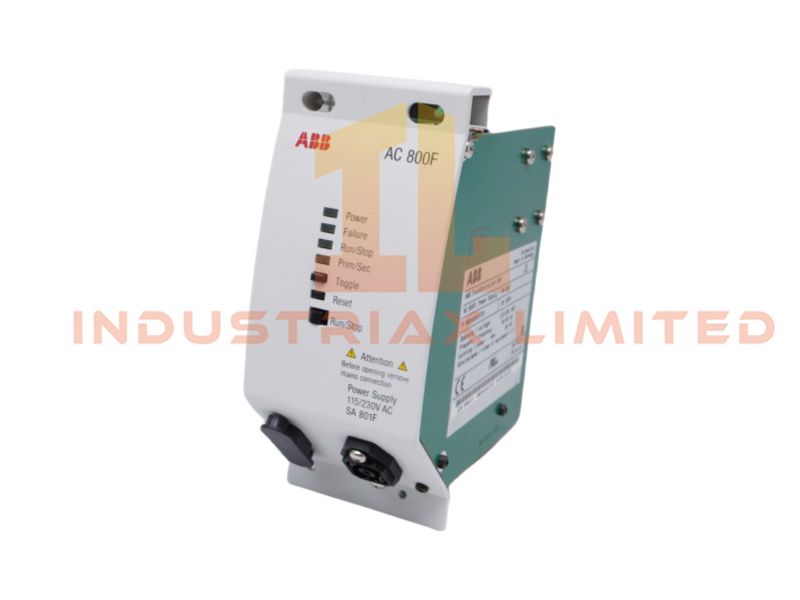

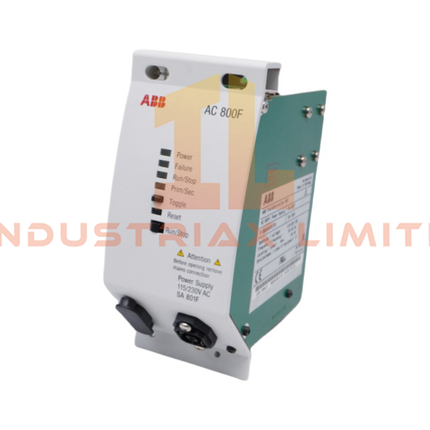

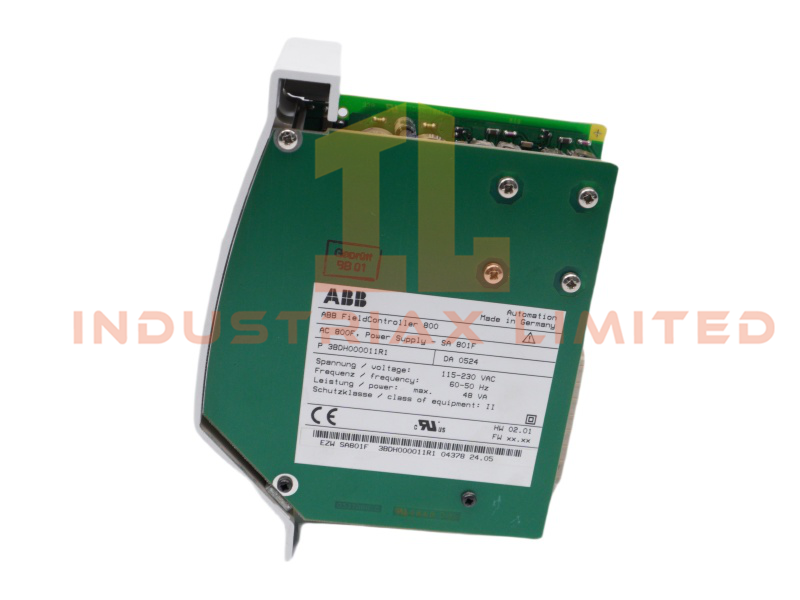

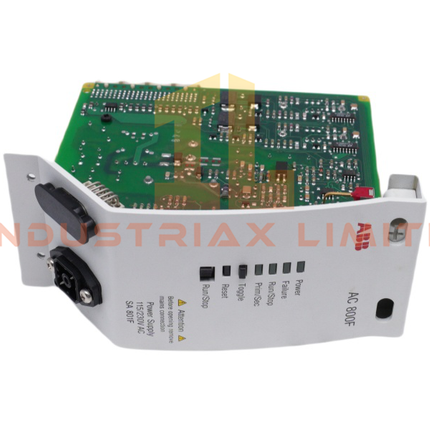

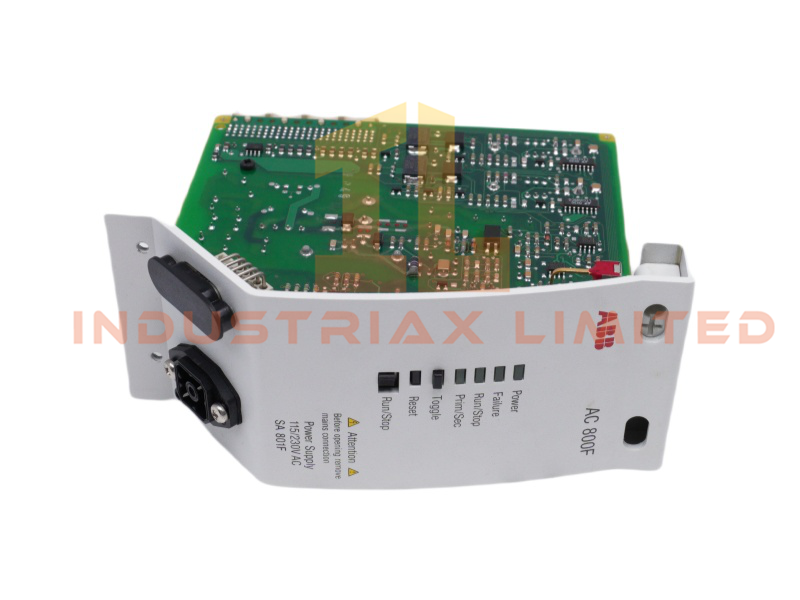

The ABB SA801F 3BDH000011R1 Power Supply is engineered for industrial automation systems requiring durability and efficiency. ABB designed this module for AC 800F controllers, ensuring seamless integration, reliable energy delivery, and compliance with international safety standards.
Technical Specifications
| Parameter |
Value |
| Model Number |
SA801F 3BDH000011R1 |
| Manufacturer |
ABB |
| Module Type |
Power Supply (Analog Input Module) |
| Product Range |
AC 800F |
| Condition |
Brand New |
| Dimensions |
6.5 × 12.5 × 15.5 cm |
| Weight |
0.46 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
Sweden |
| System |
DCS |
| Communication Interface |
Ethernet Router |
| Status |
Active |
| Input Voltage Range |
115 / 230 VAC |
| Power Consumption |
≤5W |
| Certifications |
UL, NEMA 1 kits available |
| Operating Temperature |
-20°C to +60°C |
Functional Description
The ABB SA801F 3BDH000011R1 operates across 115/230 VAC input voltage, providing flexible output options for diverse automation setups. Its compact 6.5 cm width and 15.5 cm height simplify cabinet integration, while the lightweight 0.46 kg design reduces installation effort. Engineers benefit from UL-certified safety features, including manual motor protectors that safeguard against branch circuit failures. NEMA 1 kits allow standalone installations, ensuring compatibility with multiple mounting scenarios.
Applications and Compatibility
The ABB SA801F 3BDH000011R1 integrates seamlessly into AC 800F systems and supports DCS networks. Manufacturers deploy this power supply in energy plants, heavy machinery, and automated production lines where reliable voltage regulation is essential. Its compliance with UL standards and robust construction make it a trusted solution for industrial environments requiring safety and efficiency.
Key Advantages
-
Compact dimensions optimize cabinet space utilization.
-
Lightweight design simplifies installation and maintenance.
-
115/230 VAC input voltage ensures flexible integration.
-
UL-certified safety features enhance reliability and protection.
-
NEMA 1 kits provide versatile standalone installation options.
