Description
Overview

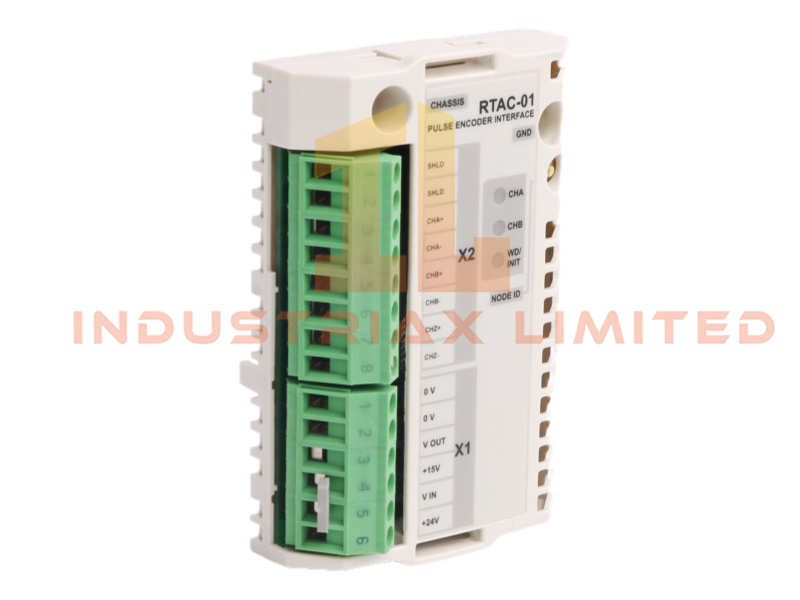

The ABB RTAC-01 64610805 Pulse Encoder Interface Module ensures precise signal conversion between encoders and ACS800 or DCS800 drives. Engineers use this compact interface to achieve accurate motion control and reliable position feedback in industrial automation systems.
Technical Specifications
| Parameter |
Value |
| Model Number |
RTAC-01 64610805 |
| Module Type |
Pulse Encoder Interface Module |
| Manufacturer |
ABB |
| Condition |
Brand New |
| Range of Product |
ABB |
| Dimensions |
18.5 × 8.5 × 30.5 cm |
| Weight |
1.08 kg |
| HS Code |
8537101190 |
| System |
DCS |
| Communication Service |
Ethernet Router |
| Product Origin |
Sweden |
| MOQ |
1 |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description
The ABB RTAC-01 64610805 supports both 15/24 VDC differential and single-ended encoder signals, ensuring compatibility with multiple encoder types. Engineers benefit from its noise immunity features that maintain signal integrity in electrically noisy environments. The module replaces the earlier 64379194 model, offering improved reliability while maintaining backward compatibility.
Design and Build
The ABB RTAC-01 64610805 measures only 9.5x6.2x4cm and weighs 0.08kg, making it ideal for installations with limited space. Its architecture includes robust shielding and optimized circuitry to guarantee stable data transmission between encoders and controllers.
Applications and Compatibility
The ABB RTAC-01 64610805 integrates seamlessly with ACS800 and DCS800 series drives. Engineers deploy it in automation systems requiring precise motion control, including material handling, robotics, and industrial processing. Its backward compatibility ensures smooth upgrades without disrupting existing installations.
Key Benefits
-
Compact design supports space-constrained installations.
-
Noise immunity ensures reliable encoder signal transmission.
-
Backward compatibility with earlier ABB encoder modules.
-
Supports multiple encoder signal types for flexible integration.
