Description

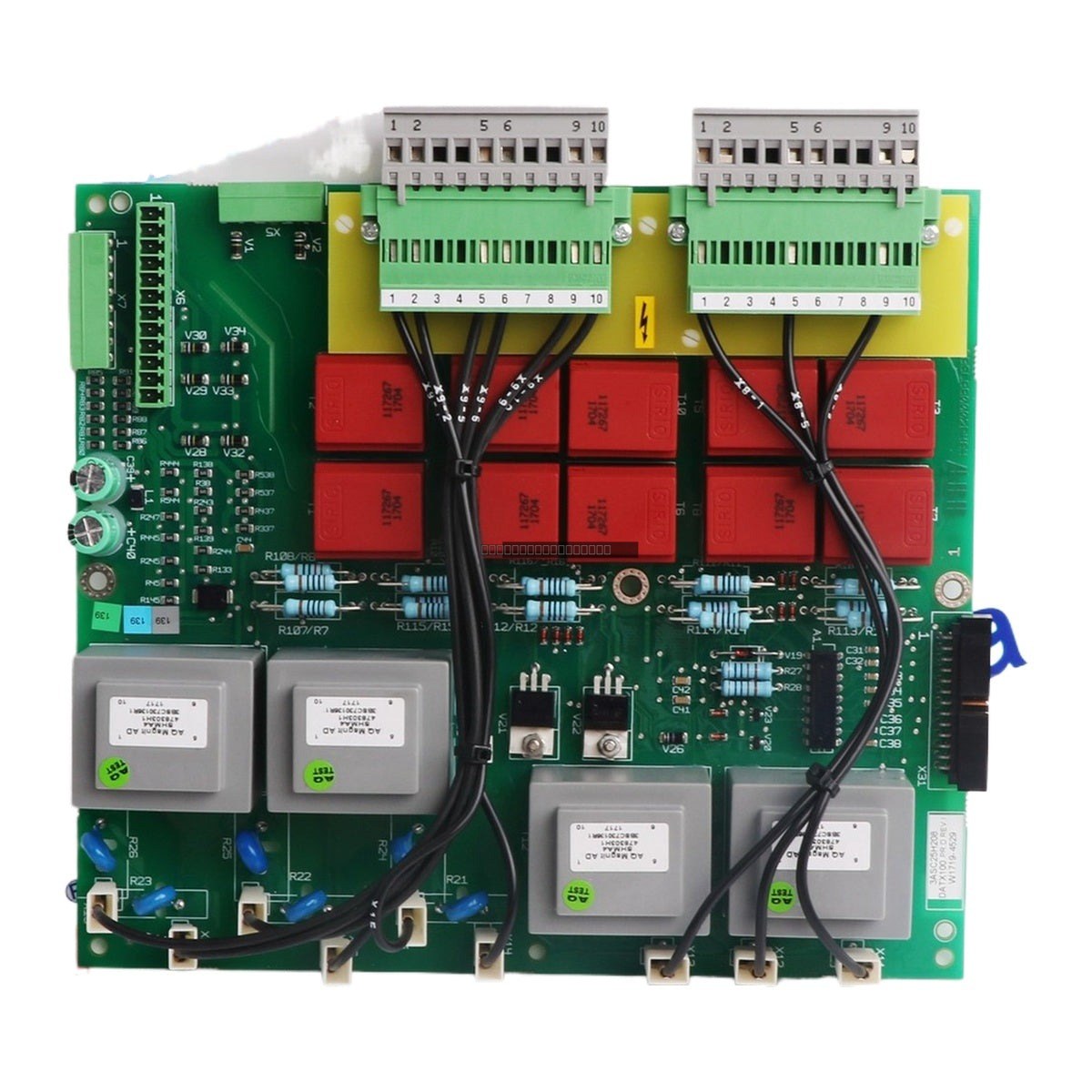

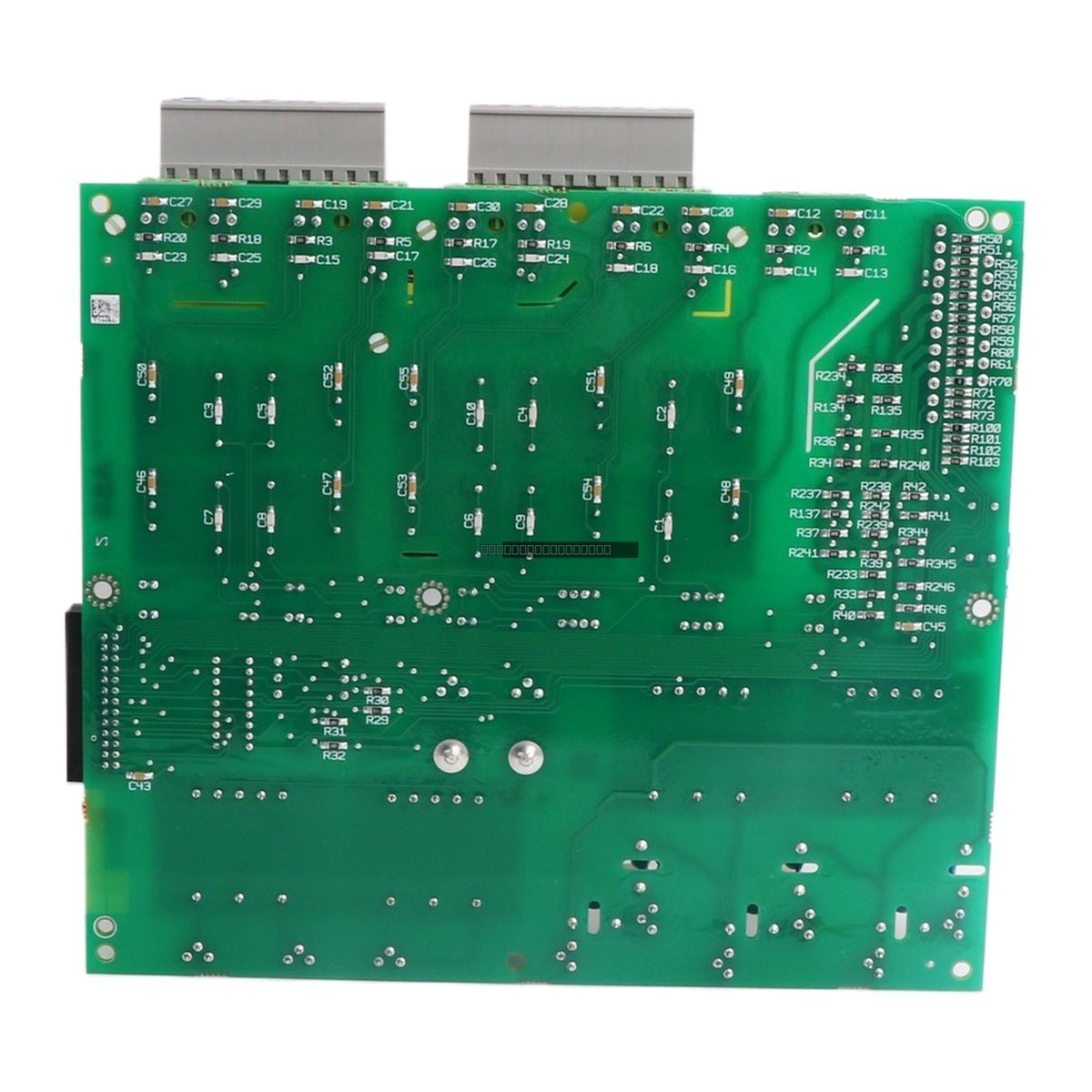

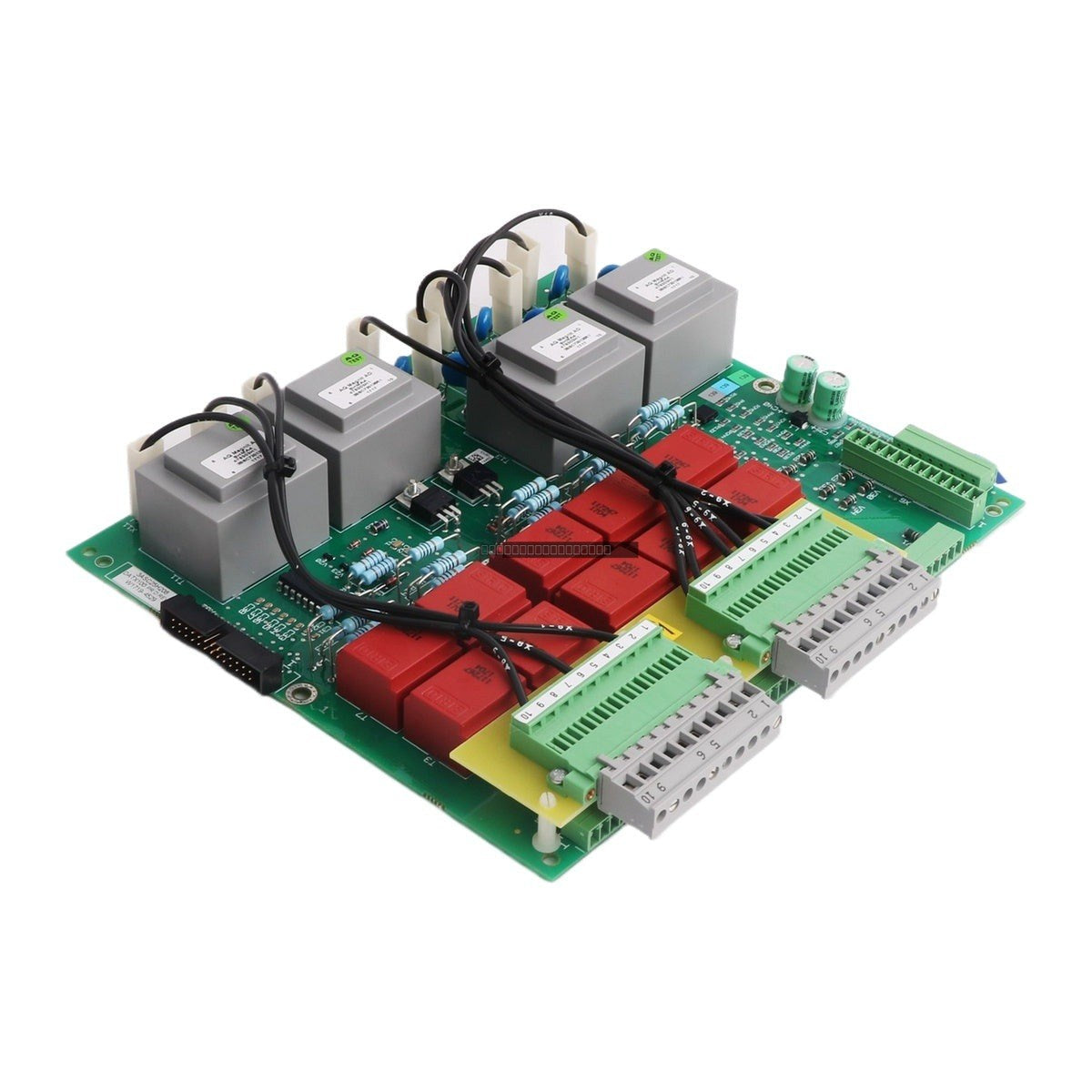

The ABB DATX100 (3ASC25H208) is a pulse transformer board designed for integration within ABB robotic control systems. This component provides critical signal isolation and pulse transformation, ensuring reliable communication and power distribution within the robot's internal control architecture.
Features
- Optimized for high-frequency pulse applications within the 1–50 kHz range.
- Robust isolation voltage rating of typically 4 kV or greater.
- Designed for standard primary voltage inputs ranging from 5 V to 24 V DC.
- Capable of handling peak currents between 2 A and 5 A.
- Engineered for precise signal integrity in demanding industrial environments.
Technical Specifications
| Product Model |
DATX100 3ASC25H208 |
| Spare Part Number |
3ASC25H208 |
| Component Type |
Pulse Transformer Board |
| Manufacturer |
ABB |
| Isolation Voltage |
>= 4 kV |
| Frequency Range |
1 - 50 kHz |
| Primary Voltage |
5 - 24 V DC |
| Peak Current |
2 - 5 A |
| Tariff Code |
8537101190 |
Installation Guidelines
Installation of the DATX100 board should be performed by qualified personnel familiar with ABB robotic control hardware. Ensure the following practices are observed:
- Always disconnect the main power supply to the robot controller before attempting to install or remove the board.
- Observe standard ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive components.
- Ensure the board is securely seated in its designated slot and that all connectors are fully engaged.
- Verify that the environment is free from excessive vibration, moisture, and conductive dust.
- Check that all wiring connections are tight and routed away from high-power EMI sources to maintain signal integrity.
FAQ
What is the primary function of the DATX100 board?
The DATX100 is a pulse transformer board used in ABB robotic systems to provide electrical isolation and signal transformation for control pulses.
Is this part compatible with all ABB robots?
This board is specific to systems requiring the DATX100 / 3ASC25H208 configuration. Please verify your existing part number or consult your robot's technical manual to ensure compatibility.
