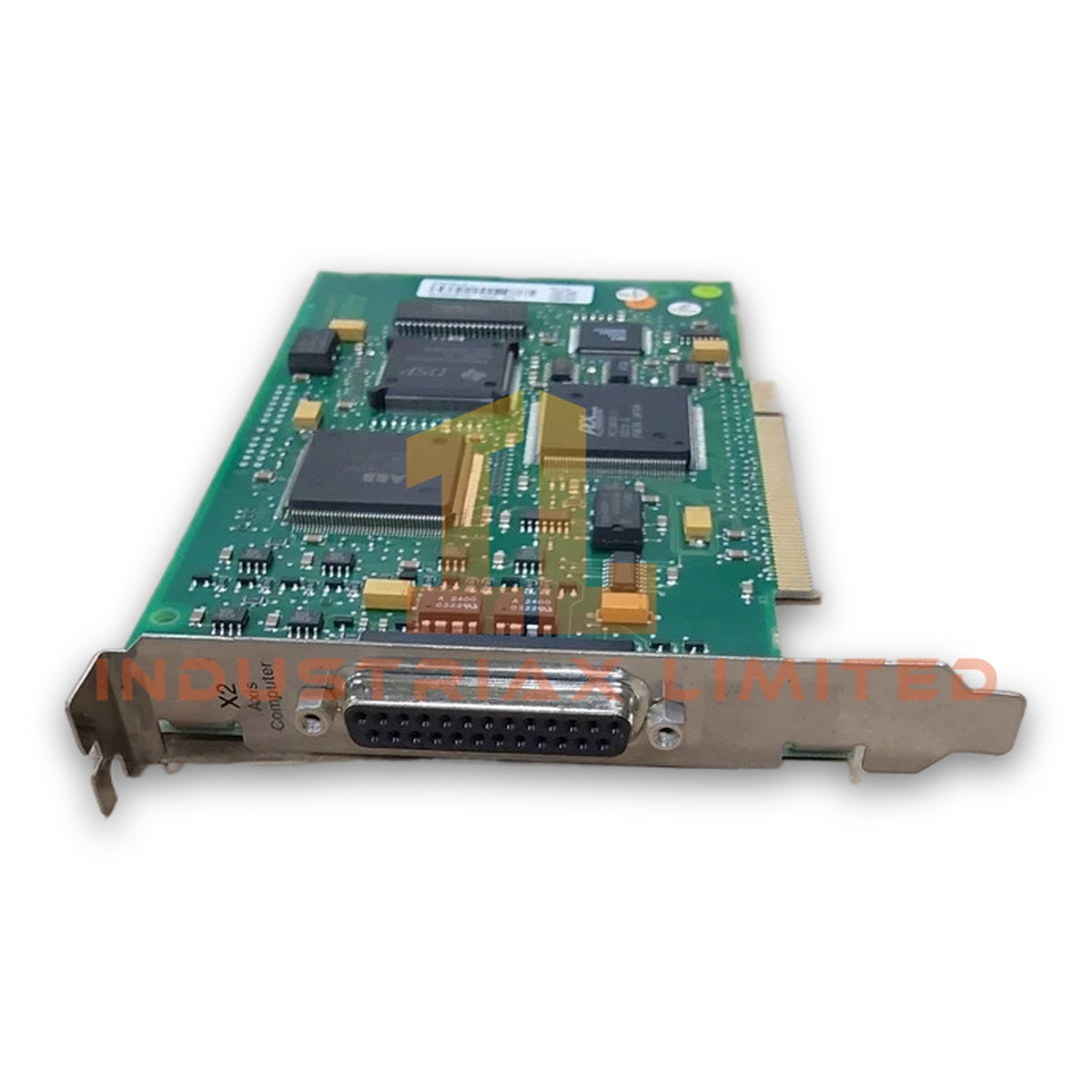

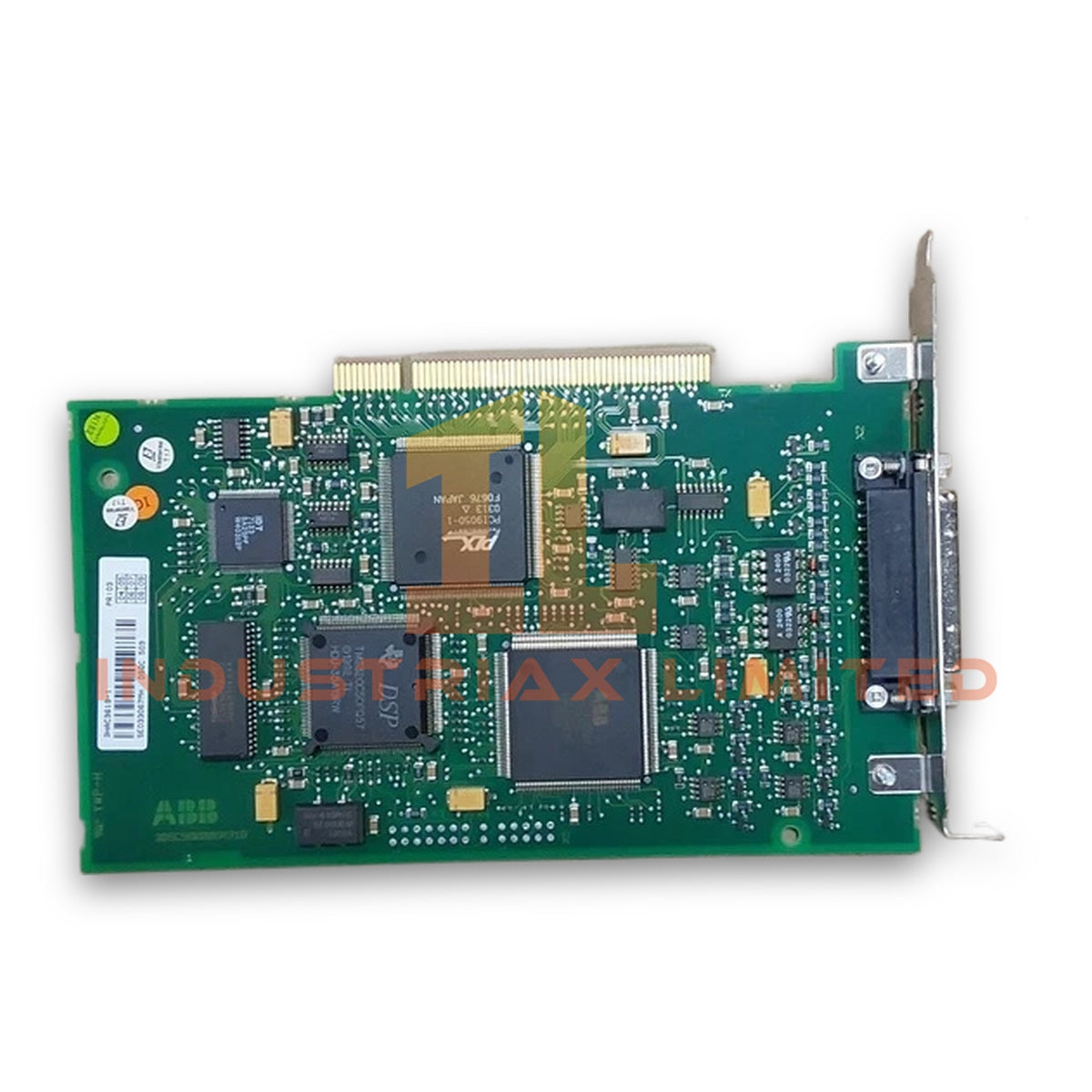

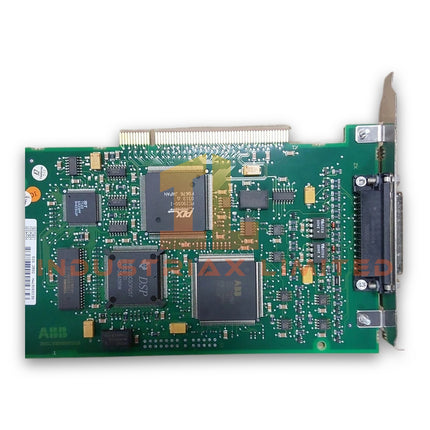

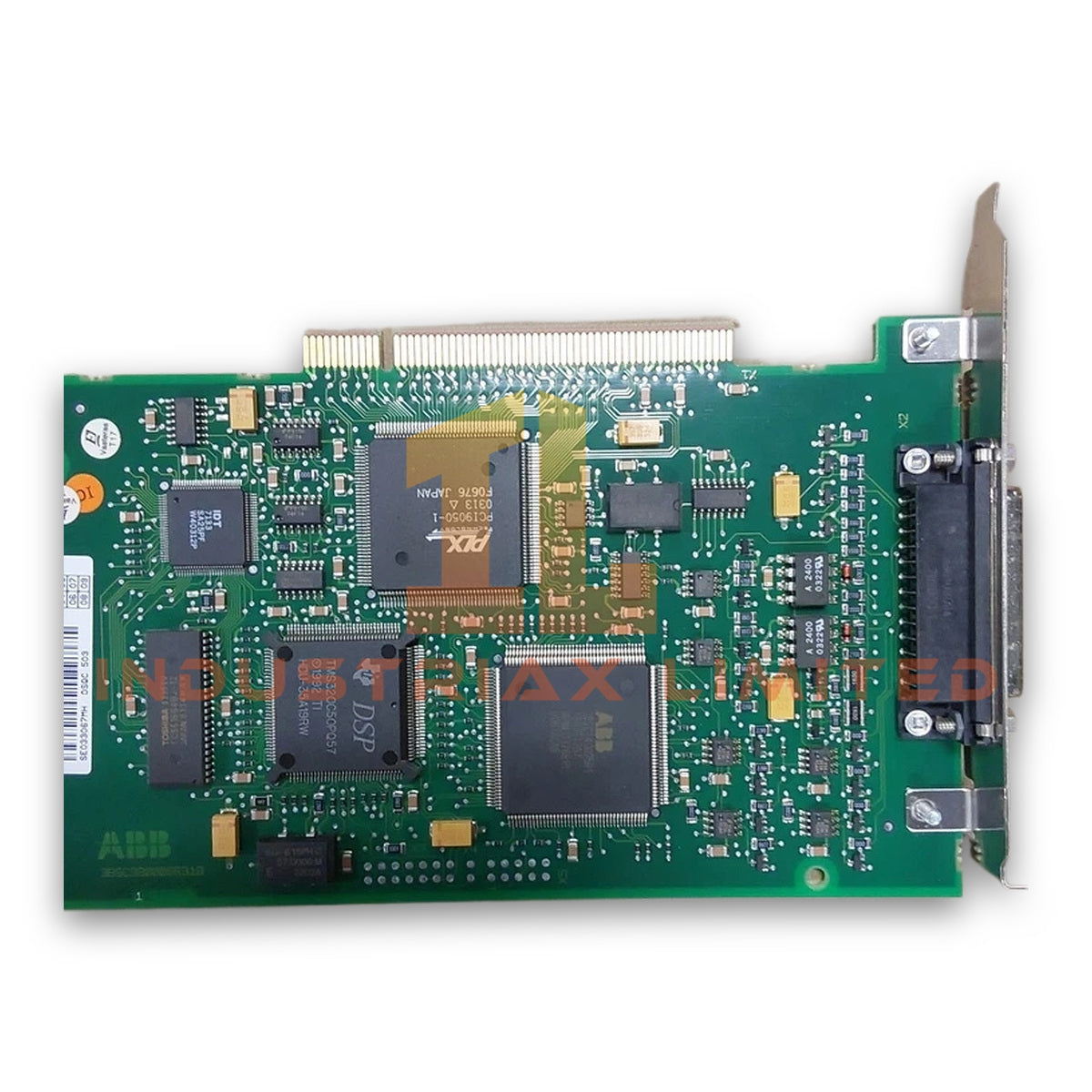

ABB DSQC503 3HAC3619-1 Axis Computer Board
The ABB DSQC503 3HAC3619-1, also cataloged as the DSQC503 Axis Computer Board, operates as a dedicated hardware component for axis control processing within ABB robot controller platforms. The board executes motion-related computing functions and handles internal communication between controller hardware and robot axis drive systems.
Hardware Specifications
Parameter
Specification
Model
DSQC503 3HAC3619-1
Brand
ABB
Product Type
Axis Computer Board
Origin
Sweden
Weight
2.36 kg
Dimensions
14.5 cm x 18 cm x 15 cm
Operating Temp
-10 deg C to 55 deg C
Storage Temp
-25 deg C to 70 deg C
Humidity
5% to 95% non-condensing
Input Voltage
Typically 24 VDC
Industrial Control and Drive Interface Characteristics
The ABB DSQC503 supports axis-level processing functions inside ABB robot control architectures. Therefore, the module participates in real-time motion data handling between controller logic and servo drive components.
The board is designed for ABB industrial control platforms that require coordinated axis computation, position processing, and internal backplane communication. Additionally, firmware flash compatibility should be verified before replacement to maintain controller software consistency.
The DSQC503 belongs to ABB industrial control hardware using structured internal communication paths. Consequently, technicians should confirm controller generation, hardware revision, and software compatibility before installation.
Frequently Asked Questions
Q: What function does the ABB DSQC503 3HAC3619-1 perform in a robot controller? A: The DSQC503 functions as an Axis Computer Board that processes axis-related control tasks and exchanges data with compatible ABB robot controller hardware.
Q: Does the DSQC503 require a specific input voltage supply? A: The module typically operates with a 24 VDC input supply according to the provided technical data.
Q: What environmental conditions are specified for DSQC503 operation? A: The specified operating temperature range is -10 deg C to 55 deg C, with storage conditions from -25 deg C to 70 deg C and humidity from 5% to 95% non-condensing.
Field Installation Guidelines
Verify the ABB controller model and hardware revision before installing the DSQC503 board.
Disconnect cabinet power before removing or inserting the module.
Use anti-static protection when handling circuit board assemblies.
Confirm connector alignment and seating condition after installation.
Maintain proper cable routing to avoid electromagnetic interference from high-current drive circuits.
Check grounding connections according to the controller cabinet installation requirements.
Perform controller diagnostics and axis verification after module replacement.
