Description

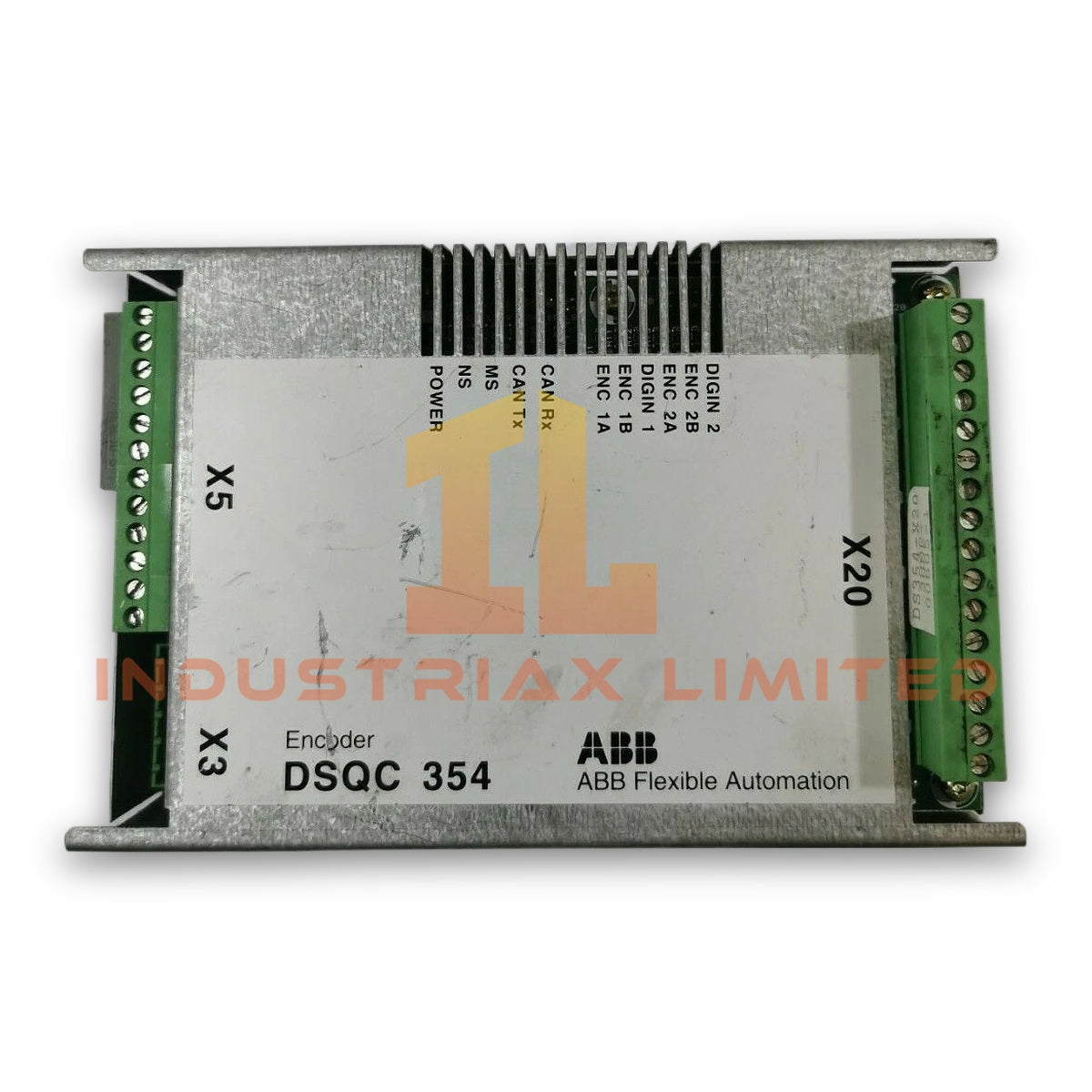

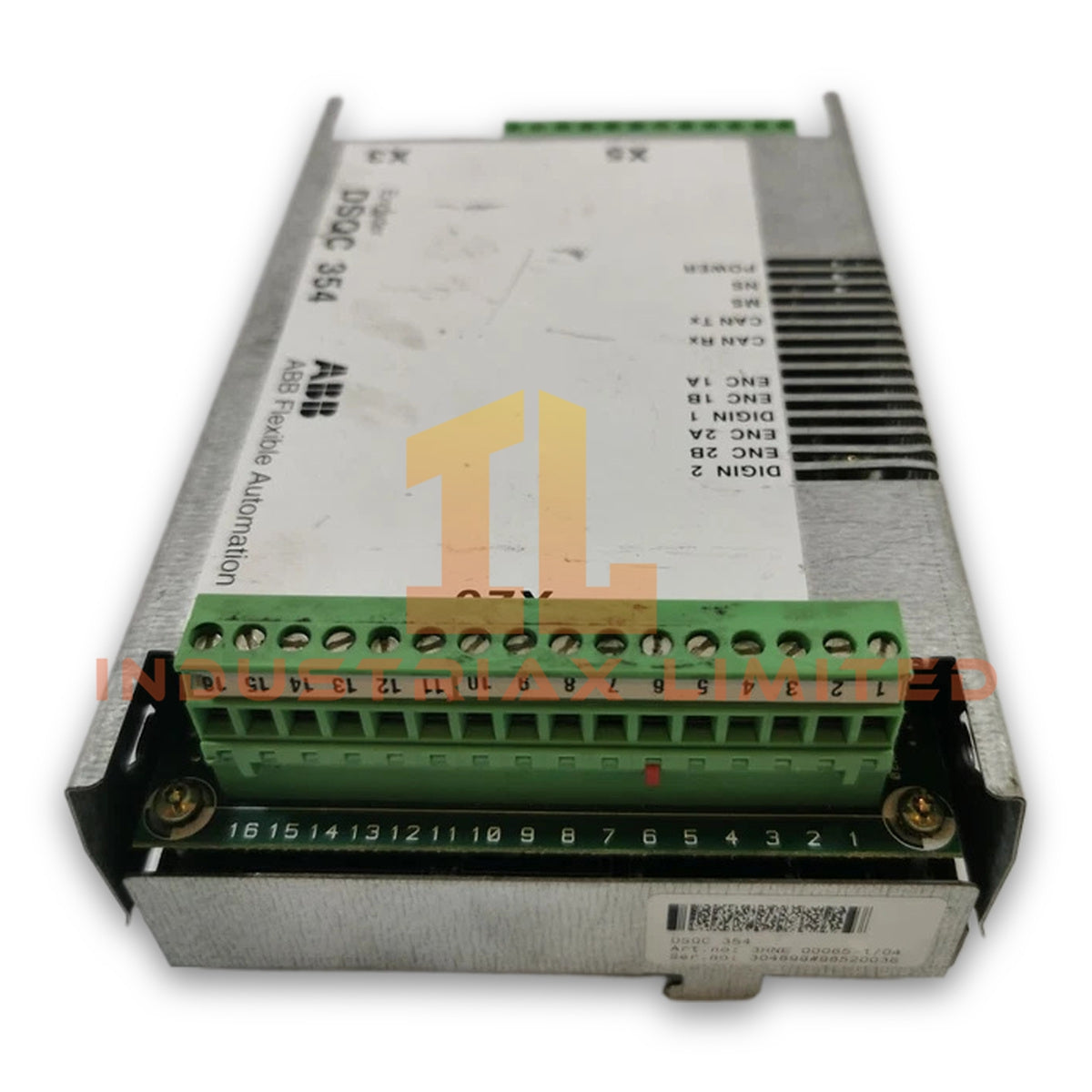

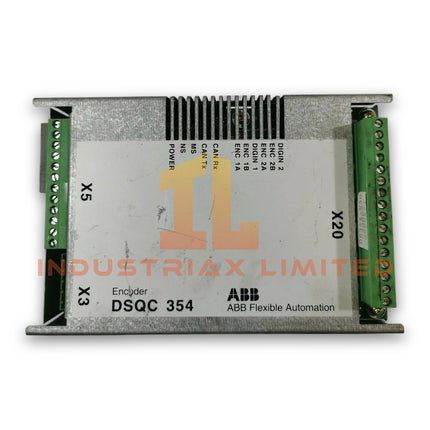

ABB DSQC354 Encoder Interface Card

Configured for encoder signal acquisition in ABB robot controller platforms, the ABB 3HNE00065-1/05 (DSQC354 Encoder Interface Card) provides direct physical and electrical execution for processing incremental encoder feedback and supporting robot axis position measurement functions.

Hardware Specifications

Parameter	Specification
Model	DSQC354
Full Model	3HNE00065-1/05
Brand	ABB Robotics
Product Type	Encoder Interface Card
Origin	Sweden
Weight	Approx. 0.4 kg
Dimensions	Not specified in available technical data
Operating Temp	-20 deg C to +70 deg C
Power Consumption	Approx. 5 W
Supply Voltage	24 VDC
Encoder Input Type	Incremental, absolute, and servo encoder feedback interfaces
Signal Format	A/B phase orthogonal pulse inputs
Pulse Resolution	Configurable from 1 to 65,535 pulses per revolution
Maximum Pulse Frequency	Up to 1 MHz

Profinet and Industrial Control Interface Characteristics

The ABB DSQC354 operates as an encoder feedback processing module within ABB robot control architectures. It receives pulse-based position signals from connected encoders and converts these inputs into motion feedback data for controller axis regulation.

Furthermore, the module supports high-speed encoder signal acquisition through differential A/B phase processing. The design allows ABB robot systems to maintain position feedback accuracy by reducing signal distortion during pulse transmission.

The DSQC354 follows ABB industrial control hardware practices, including backplane communication management, I/O density scaling, and firmware compatibility requirements within supported controller generations.

Frequently Asked Questions

Q: What encoder signals can the ABB DSQC354 process?
A: The DSQC354 processes encoder feedback signals including incremental, absolute, and servo encoder interfaces. The input method depends on the connected robot system configuration.

Q: Does the DSQC354 require a separate power supply connection?
A: The module operates with a 24 VDC supply input. Installation must follow the power distribution design of the applicable ABB robot controller.

Q: Can the DSQC354 be installed in any ABB robot controller?
A: No. Compatibility depends on controller generation, hardware configuration, firmware support, and system architecture requirements.

Field Installation Guidelines

• Install the DSQC354 only in the designated ABB controller rack position defined by the system hardware configuration.
• Verify encoder cable shielding before commissioning. Connect shield layers according to ABB grounding practices to reduce electromagnetic interference.
• Separate encoder signal wiring from high-voltage motor cables and switching power circuits.
• Confirm encoder channel assignment, pulse direction, and feedback scaling parameters before robot calibration.
• Inspect connectors and cable terminations for proper mechanical locking and signal continuity.
• Verify firmware and controller compatibility before replacing an installed encoder interface module.

Specifications

• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
