Description

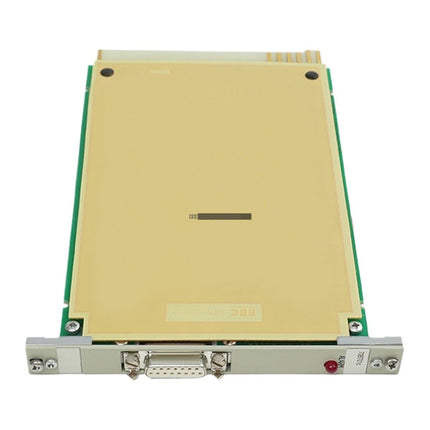

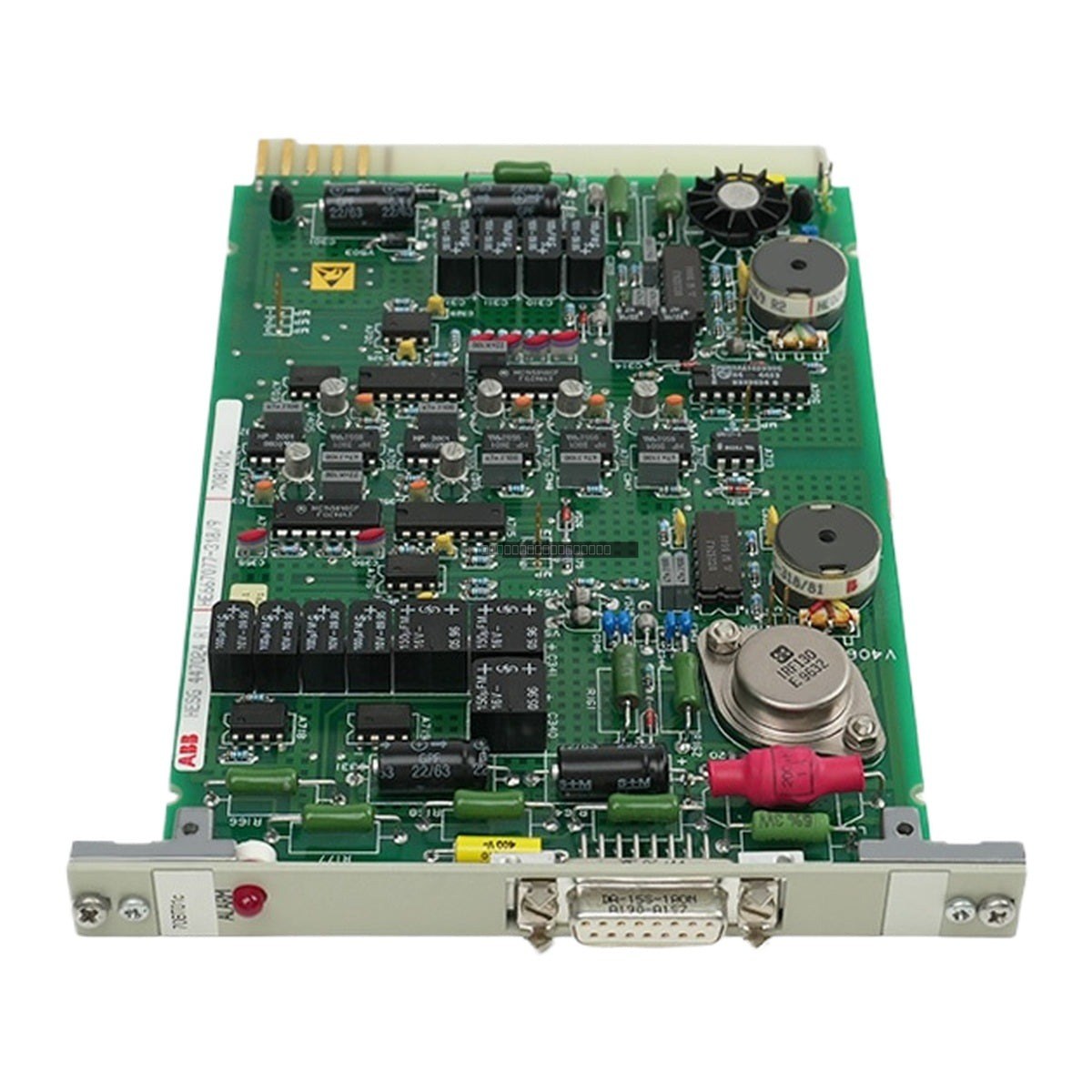

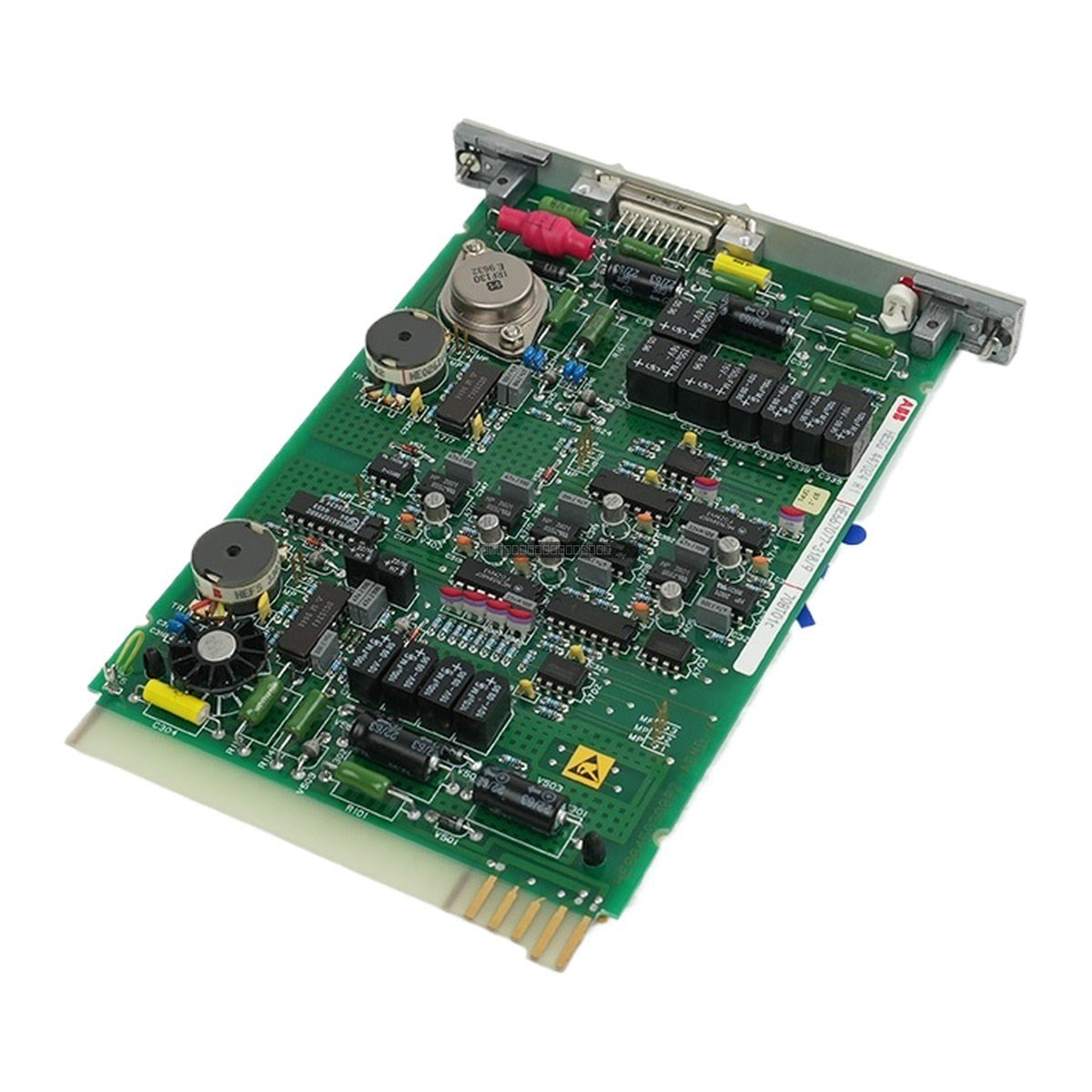

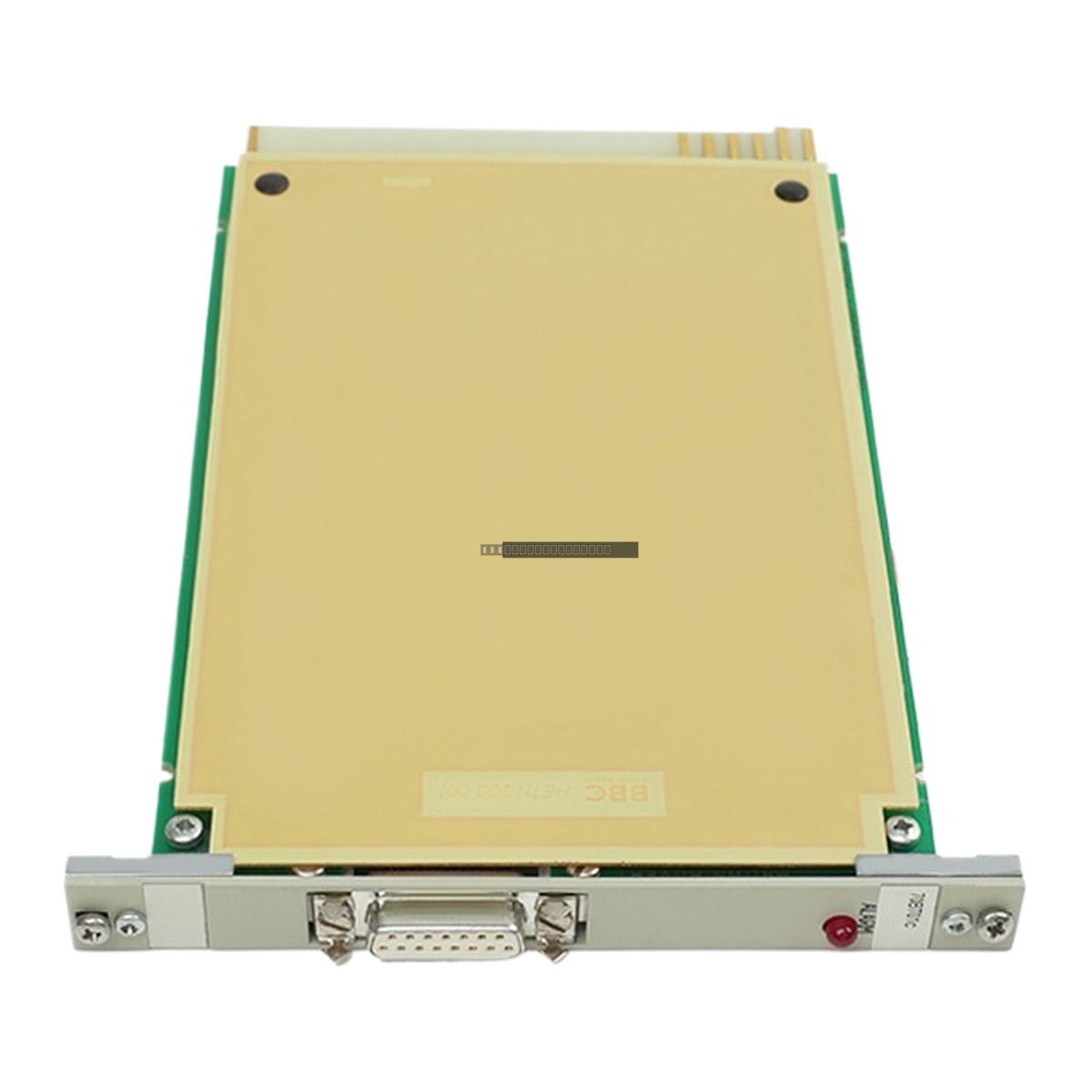

The ABB HESG447024R1 (70BT01C) is a high-performance bus transmitter and isolation amplifier module designed specifically for the ABB PROCONTROL P distributed control system. This module functions as a critical interface between the main PROCONTROL control system and the PROCONTROL-PS protection system, enabling the seamless integration of protection signals into the P bus architecture.
Features
-
System Integration: Facilitates communication between PROCONTROL-PS protection systems and the main PROCONTROL P bus.
-
Galvanic Isolation: Provides 1500 V DC isolation to ensure electrical safety and mitigate ground loop interference between disparate system segments.
-
Signal Processing: Supports up to 32 binary or analog input signals, converting them into 32 compatible PROCONTROL P bus signals.
-
Configuration: Configured via the Process Data Display System (PDDS) with nonvolatile storage in onboard EEPROM.
-
High-Speed Communication: Supports deterministic remote bus communication for real-time process signal availability.
-
Redundancy: Designed to support redundant communication architectures to enhance system reliability.
Applications
This module is widely utilized in large-scale industrial automation environments, including:
-
Power Generation: Thermal, hydropower, and nuclear power plants for turbine control and protection.
-
Metallurgical Industry: Automation of blast furnaces and monitoring of steel rolling lines.
-
Petrochemical: Process monitoring in oil refining and chemical production.
-
Manufacturing: Conveyor system monitoring and grinding machine control in cement and paper mills.
Technical Specifications
| Model |
HESG447024R1 / HEB67077-31B / 70BT01C |
| Manufacturer |
ABB |
| Power Supply |
24 V DC |
| Power Consumption |
< 10 W |
| Input Capacity |
Up to 32 binary/analog signals |
| Isolation Voltage |
1500 V DC |
| Operating Temperature |
-20 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
0 - 95 % RH (non-condensing) |
Installation Guidelines
-
Safety First: Always disconnect power from the rack before inserting or removing the module to prevent electrical damage.
-
Handling: This module contains sensitive electronic components; use proper ESD (Electrostatic Discharge) protection during handling.
-
Mounting: Ensure the module is securely seated in the designated PROCONTROL P rack slot to maintain proper bus backplane contact.
-
Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation to prevent heat buildup.
-
Wiring: Use shielded cables for signal input to minimize EMI/RFI interference. Ensure proper grounding of the cable shields at the designated terminal points.
FAQ
What is the primary function of the HESG447024R1?
The HESG447024R1 acts as a bus transmitter and isolation amplifier, bridging the gap between the PROCONTROL-PS protection system and the main PROCONTROL P bus system.
How is the module configured?
Configuration is performed using the ABB PDDS (Process Data Display System). Users load marshalling and limit-value lists into the module's RAM, which can then be saved to the onboard nonvolatile EEPROM.
Does this module support redundant systems?
Yes, the module is designed to be compatible with redundant communication architectures, helping to prevent system-wide failures in the event of a single module fault.
