Description
Overview

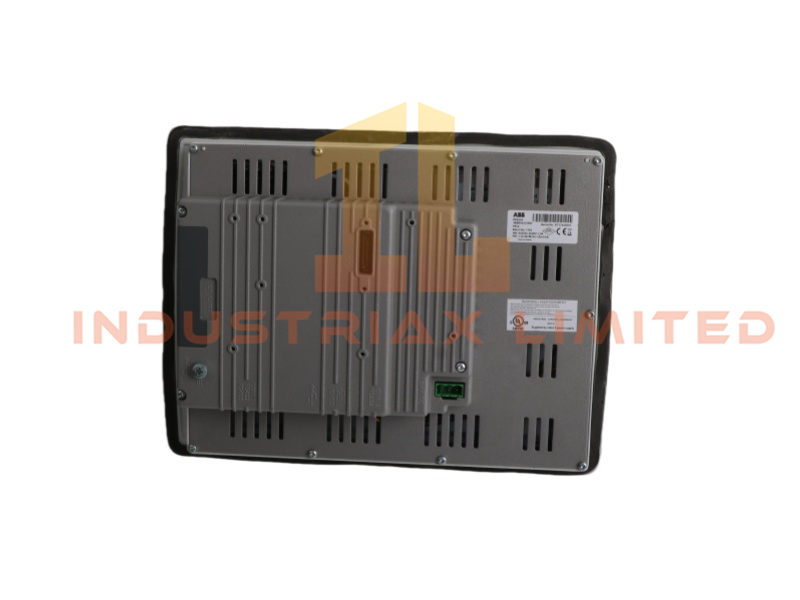

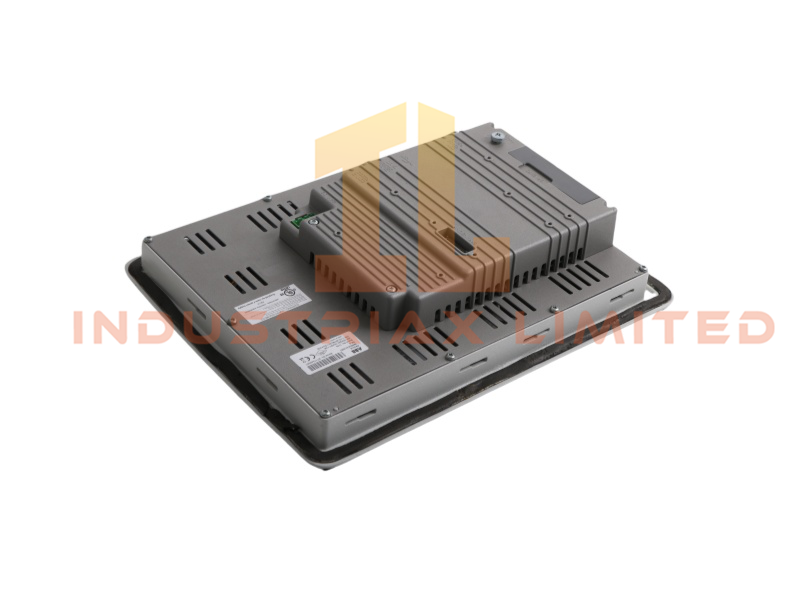

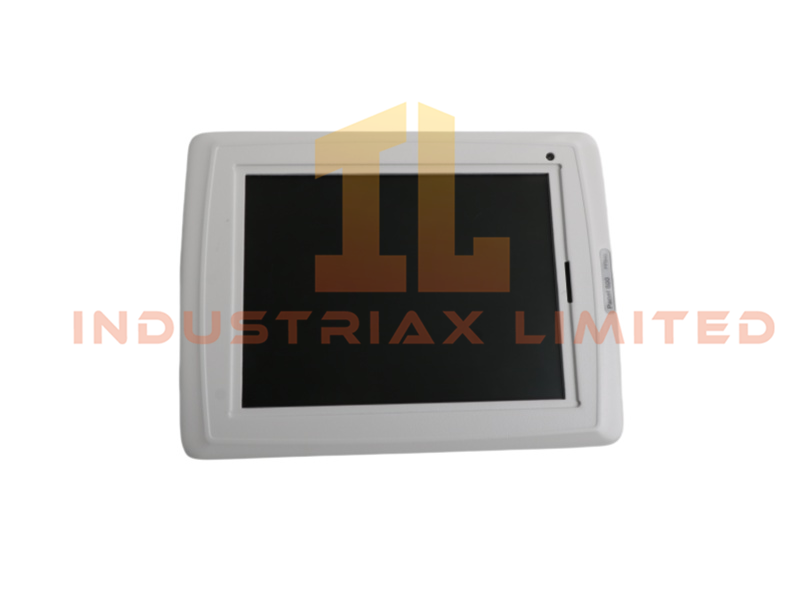

The PP845A 3BSE042235R2 operator touch screen is part of ABB’s System 800xA family, designed to provide a reliable and intuitive interface for supervisory and process‑level control. Its rugged construction, clear display, and flexible communication capabilities make it suitable for demanding DCS environments where stable operator interaction is essential.
Functional Characteristics
This touch panel serves as a front‑end interface for monitoring and controlling industrial processes. Its hardware is engineered for continuous operation, offering responsive touch performance and stable communication with 800xA controllers and networked devices.
The PP845A 3BSE042235R2 features an IP65‑rated front panel, providing resistance to dust, moisture, and wash‑down conditions when mounted correctly. Its enclosure and internal electronics are designed to withstand vibration and temperature variations typical of industrial installations.
Multiple communication options allow seamless integration into existing DCS architectures. The panel supports real‑time visualization, alarm handling, and operator input functions, enabling efficient process supervision. Its configuration flexibility allows customization of screen layouts, control elements, and user access levels.
Technical Specifications
| Parameter |
Value |
| Model / Part Number |
PP845A 3BSE042235R2 |
| Product Type |
Touch Screen Operator Panel |
| Manufacturer |
ABB |
| Product Series |
System 800xA |
| System Compatibility |
DCS / 800xA |
| Condition |
Brand New |
| Country of Origin |
Sweden |
| Weight |
2.04 kg |
| Dimensions |
30.2 × 23 × 6 cm |
| HS Code |
8537101190 |
| Front Protection |
IP65 (front panel) |
| Display Type |
Industrial touch interface |
| Communication |
Ethernet‑based connectivity |
| Operating Environment |
Suitable for harsh industrial conditions |
| Availability |
In Stock |
| Minimum Order |
1 Unit |
| Operational Status |
Active |
Application Scenarios
-
Operator workstations in System 800xA
-
Process visualization and control
-
Manufacturing and utility control rooms
-
Local equipment monitoring stations
-
System upgrades requiring modern touch interfaces
FAQ
Q: Is the PP845A compatible with older 800xA versions? Yes, it supports backward integration with most 800xA system revisions, depending on configuration.
Q: Can the panel be used in wash‑down or dusty areas? The IP65‑rated front panel allows installation in environments requiring dust and splash protection.
Q: Does the unit support Ethernet‑based communication? Yes, Ethernet connectivity is included for integration with DCS networks.
