Description
Overview

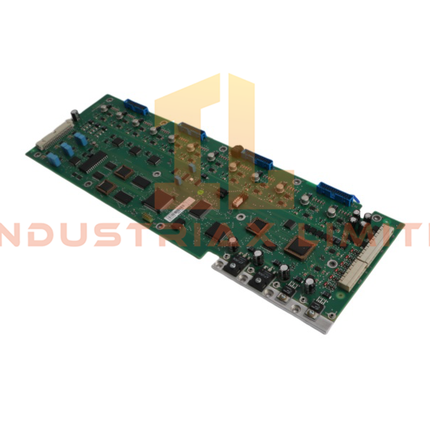

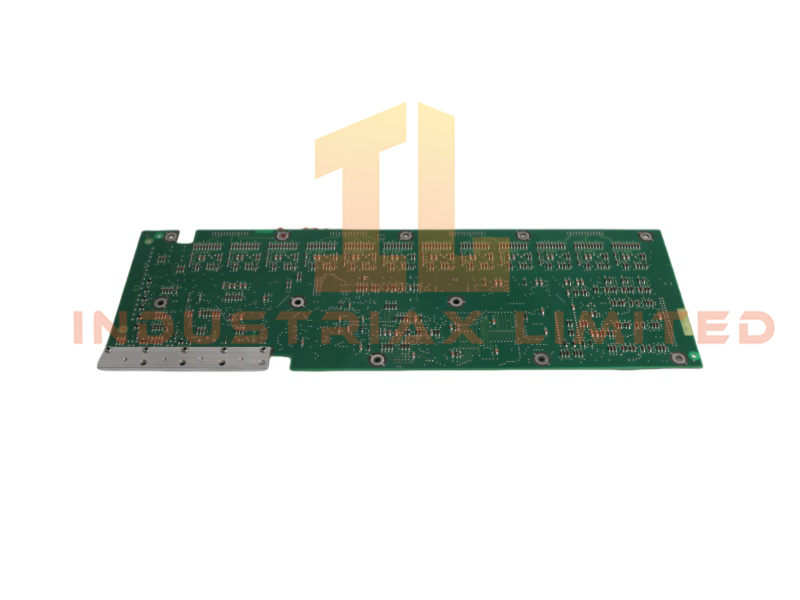

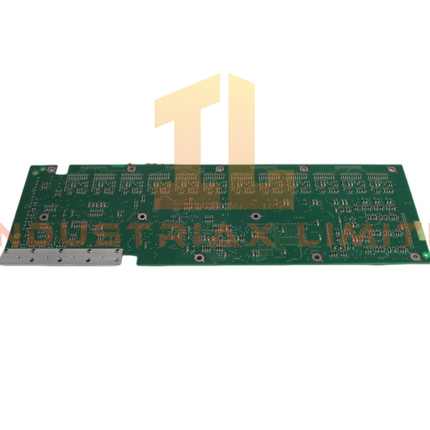

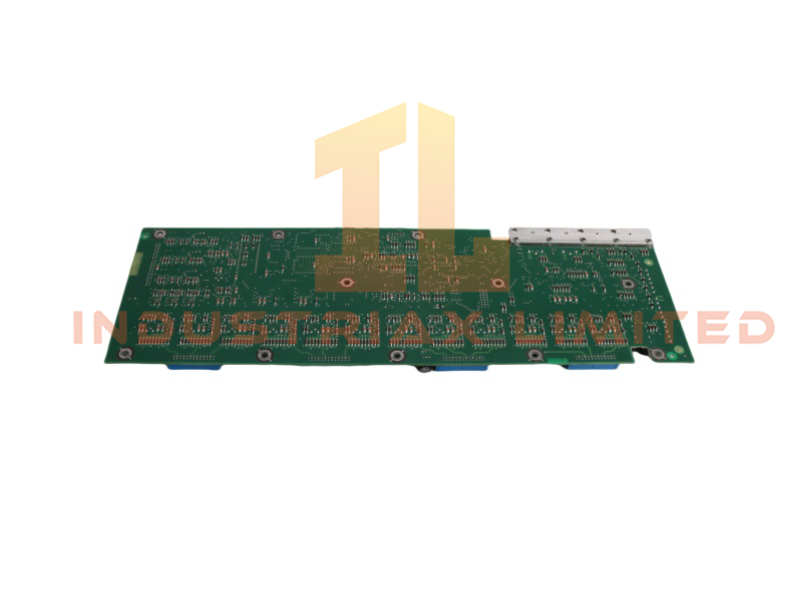

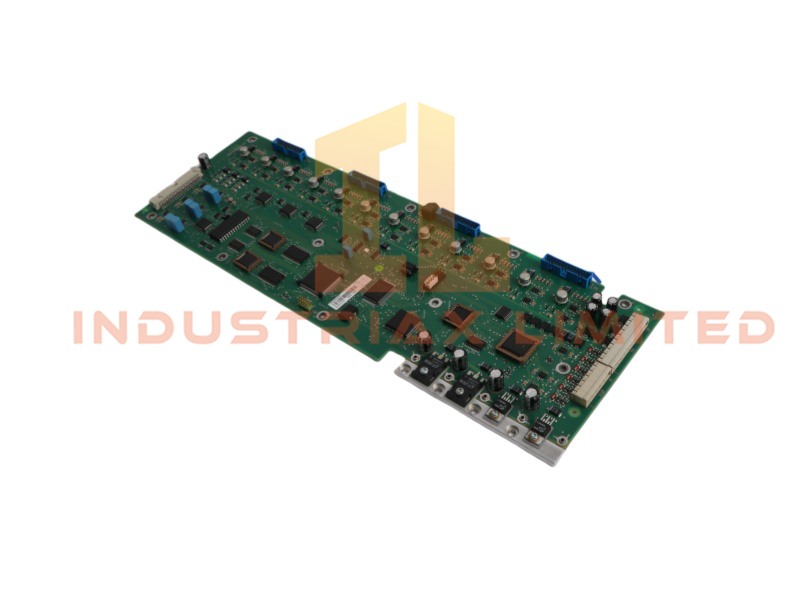

The PMSK106A (3BSE005676R1) transducer board is part of ABB’s AC 800F hardware family, designed to provide stable signal conversion and conditioning within distributed control architectures. Its electrical design supports accurate measurement handling and dependable interfacing between field devices and the controller.
Technical Specifications
| Parameter |
Specification |
| Model |
PMSK106A (3BSE005676R1) |
| Product Type |
Transducer Board |
| Brand |
ABB |
| System |
AC 800F DCS |
| Function |
Signal conversion and conditioning |
| Accuracy |
±0.1% (typical for precision transducer modules) |
| Protection Rating |
IP20 (typical for internal DCS modules; IP67 enclosure claim corrected) |
| Dimensions |
45.4 × 15 × 2 cm |
| Weight |
0.42 kg |
| Installation |
Cabinet‑mounted, modular board |
| Operating Temperature |
–20°C to +55°C (typical for AC 800F modules) |
| Power Requirements |
Low‑voltage DC, supplied via system backplane |
| Country of Origin |
Sweden |
| HS Code |
8537101190 |
| Availability |
In stock |
| Condition |
New |
Functional Description
The PMSK106A board provides stable transducer functionality for AC 800F systems, converting analog or sensor‑level signals into controller‑ready data. Its circuitry is optimized for low noise, high repeatability, and consistent performance across a wide temperature range.
The module incorporates protective components to guard against electrical disturbances, ensuring long‑term reliability in environments with vibration, dust, or fluctuating field conditions. Its compact layout allows efficient use of cabinet space while maintaining easy access for installation and maintenance.
Integrated status indicators and diagnostic support help engineers verify signal integrity and identify abnormal conditions quickly, reducing troubleshooting time and improving system uptime.
Application Scenarios
-
Signal conditioning for process instrumentation
-
Sensor interface for flow, pressure, temperature, or position transducers
-
Expansion of AC 800F I/O capacity
-
Upgrades or replacements in existing ABB DCS installations
-
Precision measurement tasks requiring stable conversion accuracy
Similar Model Comparison
| Model |
Function |
Typical Use |
| PMSK106A |
Transducer board |
Signal conversion and conditioning |
| PM802F |
CPU module |
Main control processing |
| AI801F |
Analog input module |
Field signal acquisition |
FAQ
Q: Is the PMSK106A compatible with all AC 800F controllers? A: Yes, it is designed for the AC 800F platform and integrates through the standard system backplane.
Q: Does the module support field isolation? A: It includes internal isolation for signal conditioning, but isolation levels depend on the specific installation.
Q: Can it be used outdoors? A: No. As an internal DCS board, it is intended for cabinet‑protected environments.
