Overview

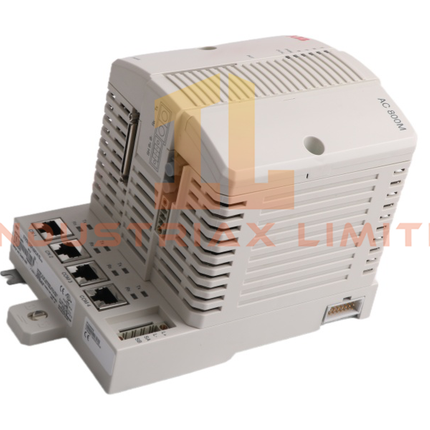

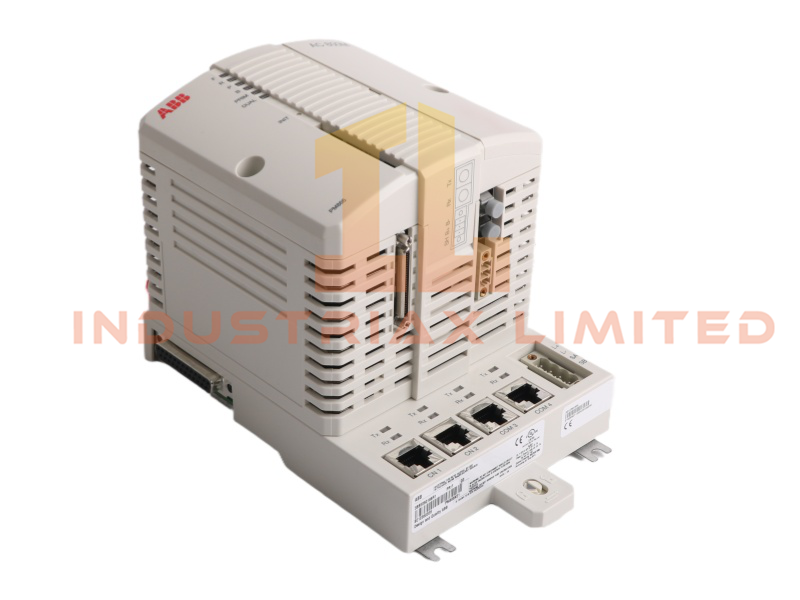

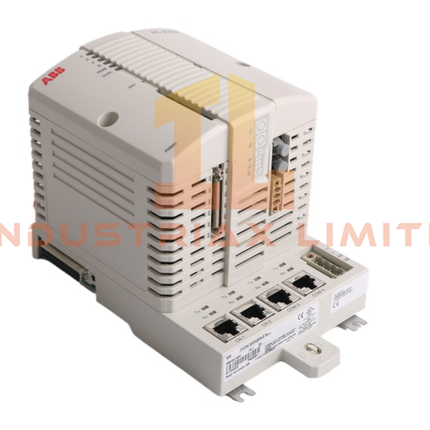

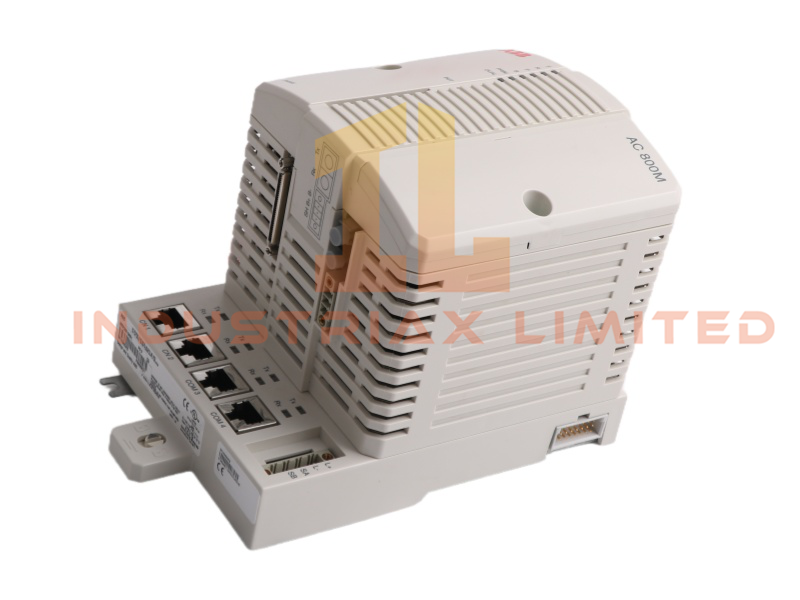

The ABB PM862K02 3BSE081636R1 AC 800M Controller delivers high-performance automation for complex industrial processes. Engineers rely on its ISA Secure certification, fault diagnosis features, and modular expansion capability to ensure reliable operation in demanding environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
PM862K02 3BSE081636R1 |
| Module Type |
AC 800M Controller |
| Manufacturer |
ABB |
| Condition |
Brand New |
| Range of Product |
Advant-800xA |
| Dimensions |
18.5 × 8.5 × 30.5 cm |
| Weight |
1.08 kg |
| HS Code |
8537101190 |
| System |
DCS |
| Communication Service |
Ethernet Router |
| Product Origin |
Sweden |
| MOQ |
1 |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description

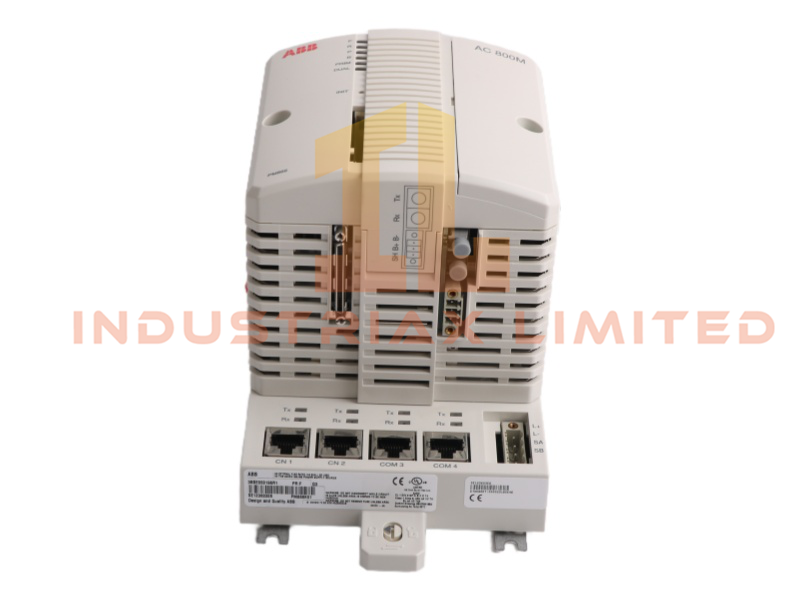

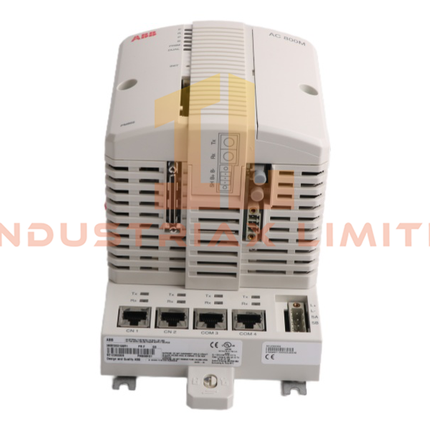

The ABB PM862K02 3BSE081636R1 integrates Ethernet, PROFIBUS DP, and redundant communication ports to maximize system availability. Its CPU board includes a microprocessor, RAM, real-time clock, LED indicators, INIT push button, and CompactFlash interface. Engineers benefit from two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4), supporting RS-232C and isolated configuration connections.
Design and Build
The ABB PM862K02 3BSE081636R1 measures 18.5x8.5x30.5cm and weighs 1.08kg, making installation straightforward. Its IP20 protection eliminates the need for external enclosures, while the DIN rail slide-and-lock mechanism simplifies mounting. Each base plate carries a unique Ethernet address, ensuring clear hardware identification.
Applications and Compatibility
The ABB PM862K02 3BSE081636R1 AC 800M Controller integrates seamlessly with Advant-800xA systems. Engineers deploy it in power generation, chemical plants, and manufacturing facilities requiring redundancy and secure communication. Its compatibility with S800 I/O and CEX-Bus ensures flexible system expansion.
Key Benefits
-
ISA Secure certification enhances cybersecurity in industrial networks.
-
Redundant Ethernet ports increase system availability and reliability.
-
Compact design with 1.08kg weight supports space-constrained installations.
-
Flexible programming via 800xA Control Builder simplifies configuration.
