Description

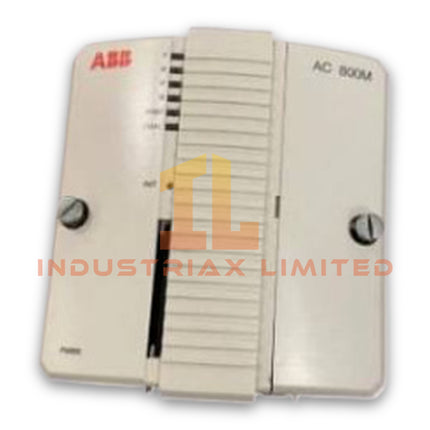

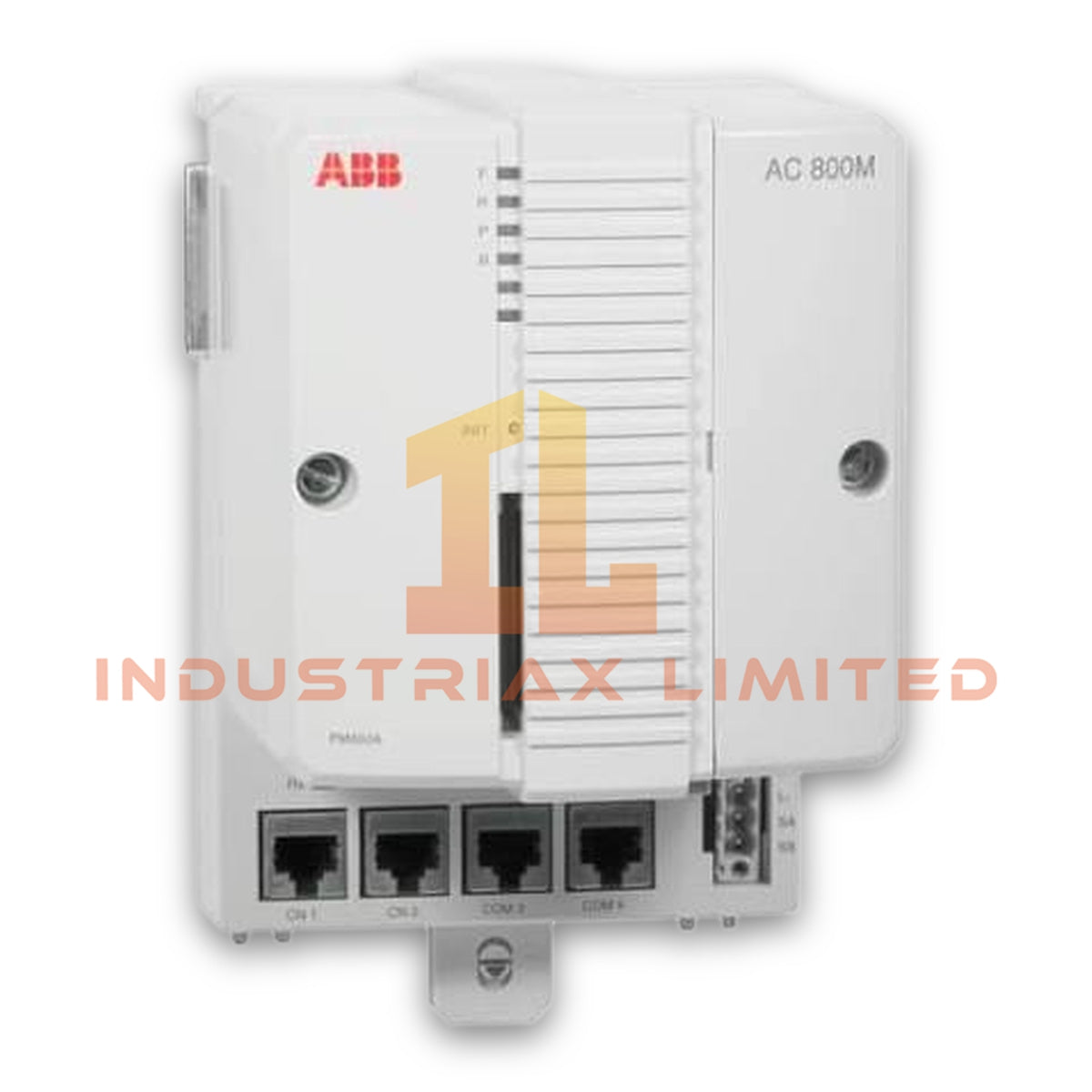

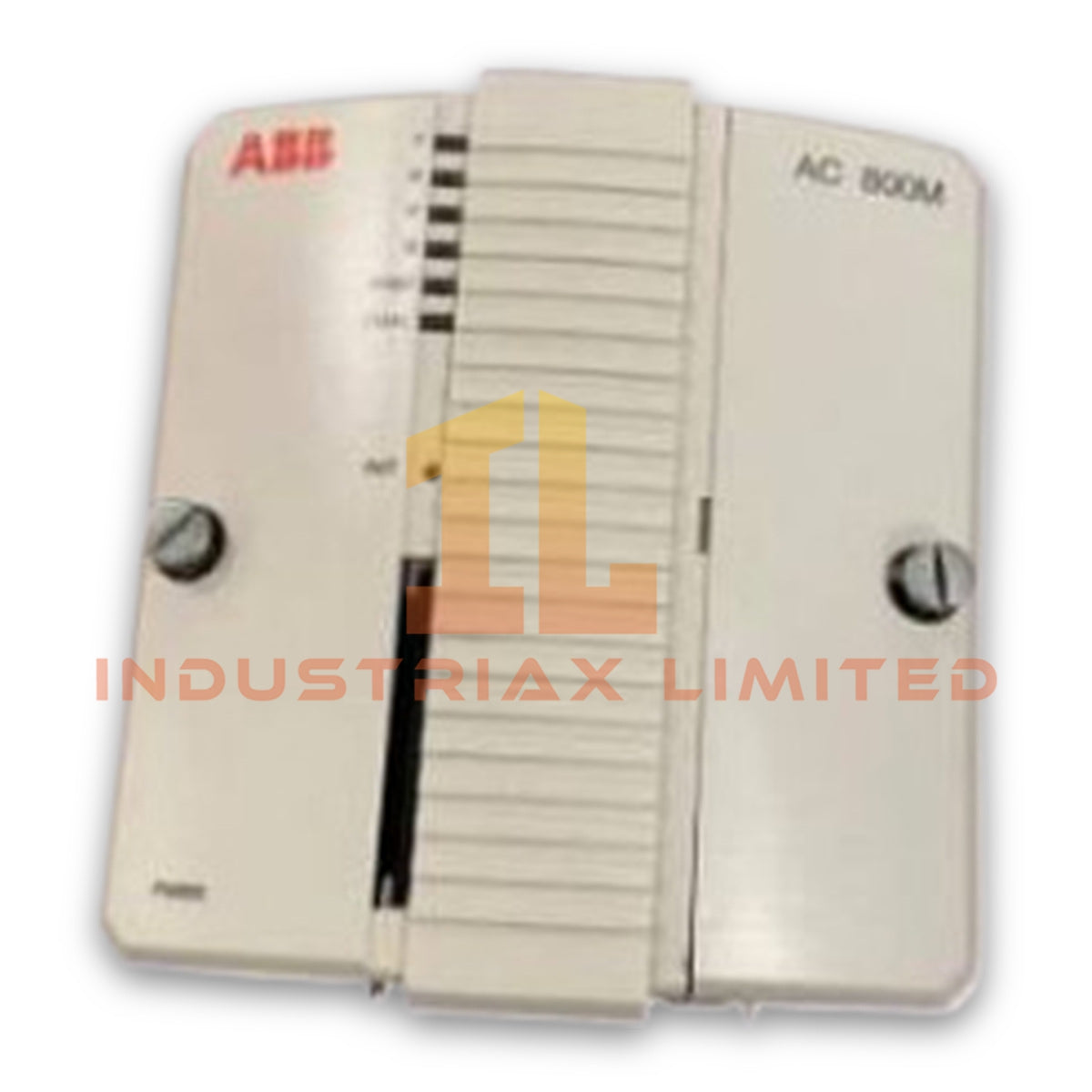

ABB PM860AK01 3BSE066495R1 Processor Unit

The ABB PM860AK01 3BSE066495R1, also cataloged as the PM860AK01 Processor Unit, operates as a dedicated hardware component for control execution, memory management, and communication tasks within ABB AC 800M controller platforms.

Hardware Specifications

Parameter	Specification
Model	PM860AK01 3BSE066495R1
Brand	ABB
Product Type	Processor Unit
Origin	Sweden
Weight	0.5 kg
Dimensions	11.5 x 12.5 x 11.5 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	5-10 W
Operating Voltage	Typically 24 VDC
CPU Clock Frequency	48 MHz
Processor Architecture	Typically 32-bit
RAM Capacity	16-32 MB
Flash Memory	64-128 MB
Humidity Range	5-95% non-condensing

Backplane Bus Communication and Firmware Flash Compatibility

The ABB PM860AK01 integrates into the AC 800M controller architecture through internal backplane communication. Therefore, the processor unit manages application execution, I/O data exchange, and controller diagnostics between connected modules.

Additionally, the module supports firmware flash memory storage for controller operating software and configuration data. The 32-bit processor architecture provides deterministic execution behavior for PLC and DCS control tasks. Furthermore, the hardware design supports ABB controller communication structures with defined module addressing and system synchronization functions.

Frequently Asked Questions

Q: What is the primary function of the ABB PM860AK01 3BSE066495R1?

A: The PM860AK01 functions as a processor unit for ABB AC 800M controller systems. It executes control programs, manages internal memory operations, and handles communication with connected automation modules.

Q: What power supply does the PM860AK01 require?

A: The processor unit operates with a typical 24 VDC supply input. The installed system configuration determines the actual current load and power distribution requirements.

Q: Does the PM860AK01 support firmware storage?

A: Yes. The processor unit includes flash memory storage for controller firmware and application-related data. Firmware compatibility depends on the configured AC 800M system version.

Field Installation Guidelines

• Install the PM860AK01 module on the designated ABB AC 800M controller mounting arrangement.
• Verify that the power supply wiring follows the specified 24 VDC polarity and grounding requirements.
• Keep communication wiring separated from high-voltage power cables to reduce electrical interference.
• Ensure the module connector and backplane contacts remain clean before installation.
• Confirm firmware compatibility before replacing an existing processor unit.
• Use appropriate cabinet ventilation to maintain the specified operating temperature range.
• Check grounding connections and shield termination practices according to the controller installation manual.

Specifications

• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
