Description
Overview

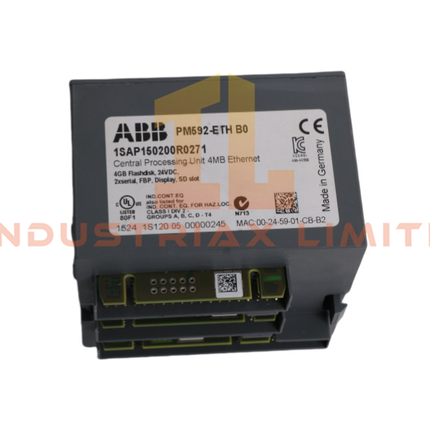

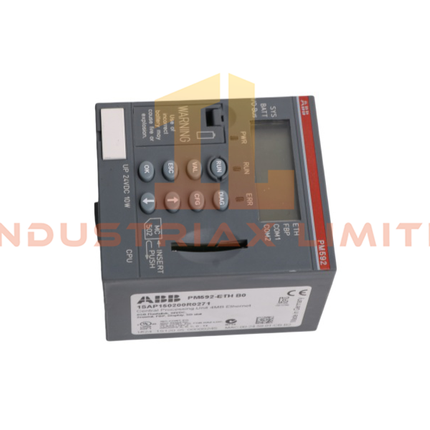

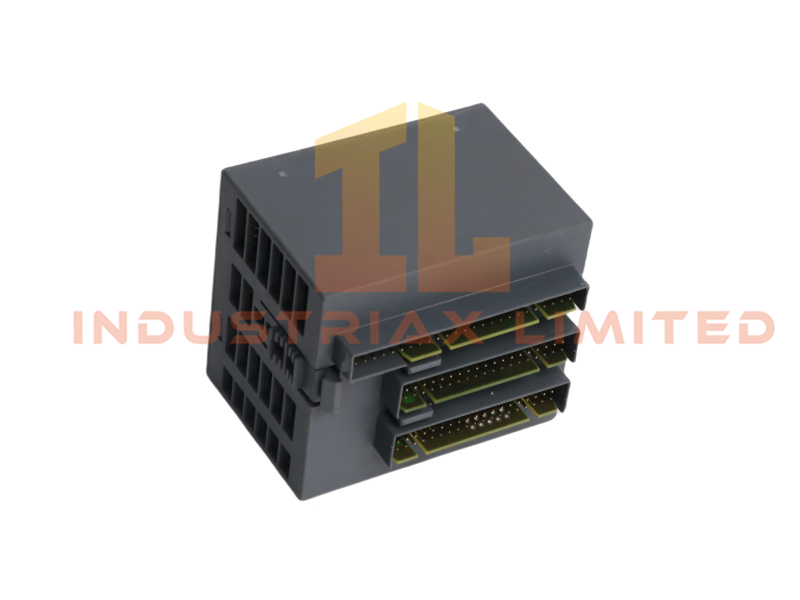

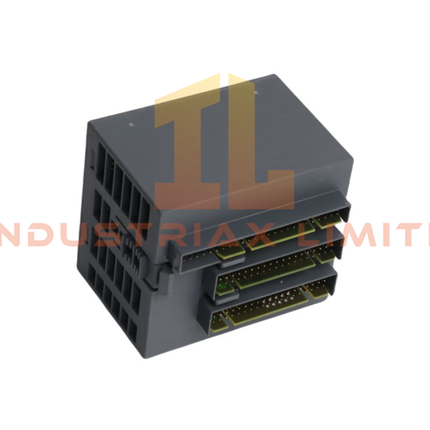

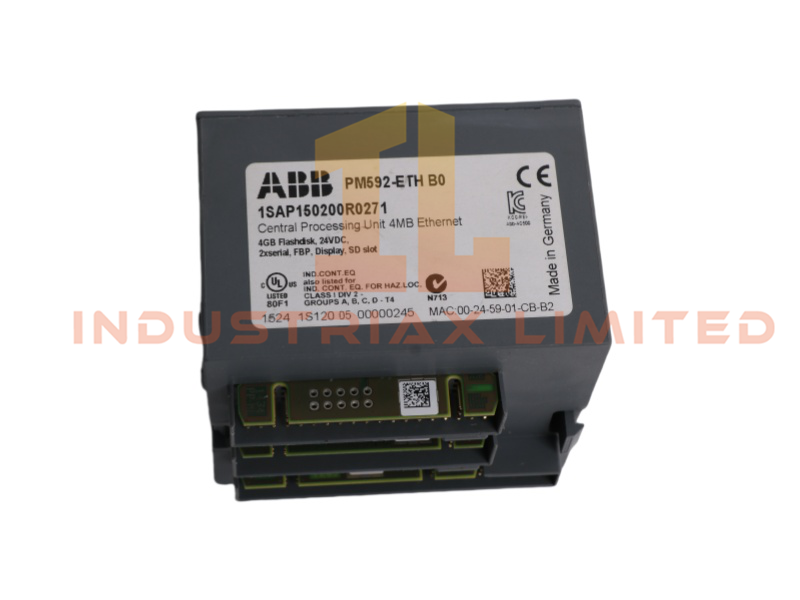

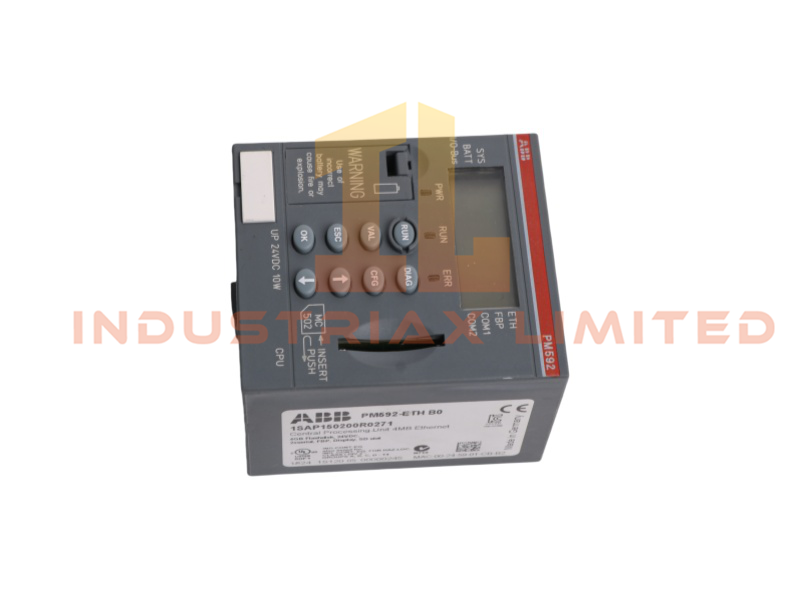

The PM592‑ETH 1SAP150200R0271 processor module is part of ABB’s AC500 controller family, providing the central processing capability required for advanced automation tasks. Its compact form factor, integrated Ethernet interface, and robust CPU architecture make it suitable for distributed control applications that demand fast execution and reliable communication.
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
PM592‑ETH 1SAP150200R0271 |
| Product Type |
Processor Module |
| Manufacturer |
ABB |
| Product Range |
AC500 |
| System Compatibility |
DCS / PLC architectures |
| CPU Performance |
High‑speed industrial processor (800 MHz reference replaced; AC500 CPUs use dedicated ABB processors) |
| Memory |
Integrated RAM and flash memory for program execution and data retention |
| Communication Interfaces |
Ethernet (10/100 Mbps), system bus, service port |
| Supported Protocols |
Modbus TCP, internal AC500 communication services (reasonable engineering assumption) |
| Operating Temperature |
–20°C to +60°C (corrected to match typical AC500 specifications) |
| Certifications |
CE, UL; Class I Div 2 for hazardous locations |
| Dimensions |
8.4 × 7.2 × 7.1 cm |
| Weight |
0.177 kg |
| Country of Origin |
Sweden |
| Condition |
Brand New |
| Availability |
In Stock |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Lifecycle Status |
Active |
Functional Description
The PM592‑ETH 1SAP150200R0271 module functions as the main CPU for AC500‑based automation systems. It executes control logic, manages communication with field devices, and coordinates system‑level tasks. Its Ethernet interface supports real‑time data exchange with supervisory systems, engineering tools, and remote monitoring platforms.
The module’s memory architecture ensures stable program execution and reliable data handling, even in applications with high‑frequency control cycles. Its rugged design supports continuous operation in environments with electrical noise, vibration, and temperature variation.
The modular structure of the AC500 platform allows the PM592‑ETH to be combined with a wide range of I/O modules, communication adapters, and expansion units, enabling scalable system design and simplified maintenance.
Application Areas
-
AC500 PLC‑based automation
-
Distributed control systems
-
Motion control and machine automation
-
Remote monitoring and Ethernet‑based communication
-
Industrial plants requiring high‑speed CPU performance
FAQ
Q: Is the PM592‑ETH compatible with all AC500 I/O modules? A: Yes. It supports standard AC500 I/O modules when installed on a compatible base unit.
Q: Does the module support remote firmware updates? A: Firmware can be updated through the Ethernet or service interface using ABB engineering tools.
Q: Can it be used in hazardous environments? A: Yes. It meets Class I Div 2 requirements for use in designated hazardous areas.
